ECS-3953M-098.3-AU datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> ECS-3953M-098.3-AU

ECS-3953M-098.3-AU: DescriptionXO, Clock, 1MHz Min, 200MHz Max, 9.8304MHz Nom,; CategoryPassive components oscillator; File Size127KB，1 Pages; ManufacturerECS; Websitehttp://www.ecsxtal.com/; Environmental Compliance

Download Datasheet Parametric View All

ECS-3953M-098.3-AU Overview

XO, Clock, 1MHz Min, 200MHz Max, 9.8304MHz Nom,

ECS-3953M-098.3-AU Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1148233447
package instruction	DILCC4,.2,200
Reach Compliance Code	compliant
Other features	TRI-STATE; ENABLE/DISABLE FUNCTION
maximum descent time	10 ns
Frequency Adjustment - Mechanical	NO
frequency stability	100%
JESD-609 code	e4
Installation features	SURFACE MOUNT
Number of terminals	4
Maximum operating frequency	200 MHz
Minimum operating frequency	1 MHz
Nominal operating frequency	9.8304 MHz
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output load	15 pF
Package body material	CERAMIC
Encapsulate equivalent code	DILCC4,.2,200
physical size	7.0mm x 5.0mm x 1.7mm
power supply	3.3 V
Certification status	Not Qualified
longest rise time	10 ns
Maximum slew rate	40 mA
Maximum supply voltage	3.3 V
Minimum supply voltage	2.97 V
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	40/60 %
Terminal surface	Gold (Au) - with Nickel (Ni) barrier

Preview

Download Datasheet

View All

-55 ~ +125°C Temp Range

5 x 7 mm Footprint

Pb Free/RoHS Compliant

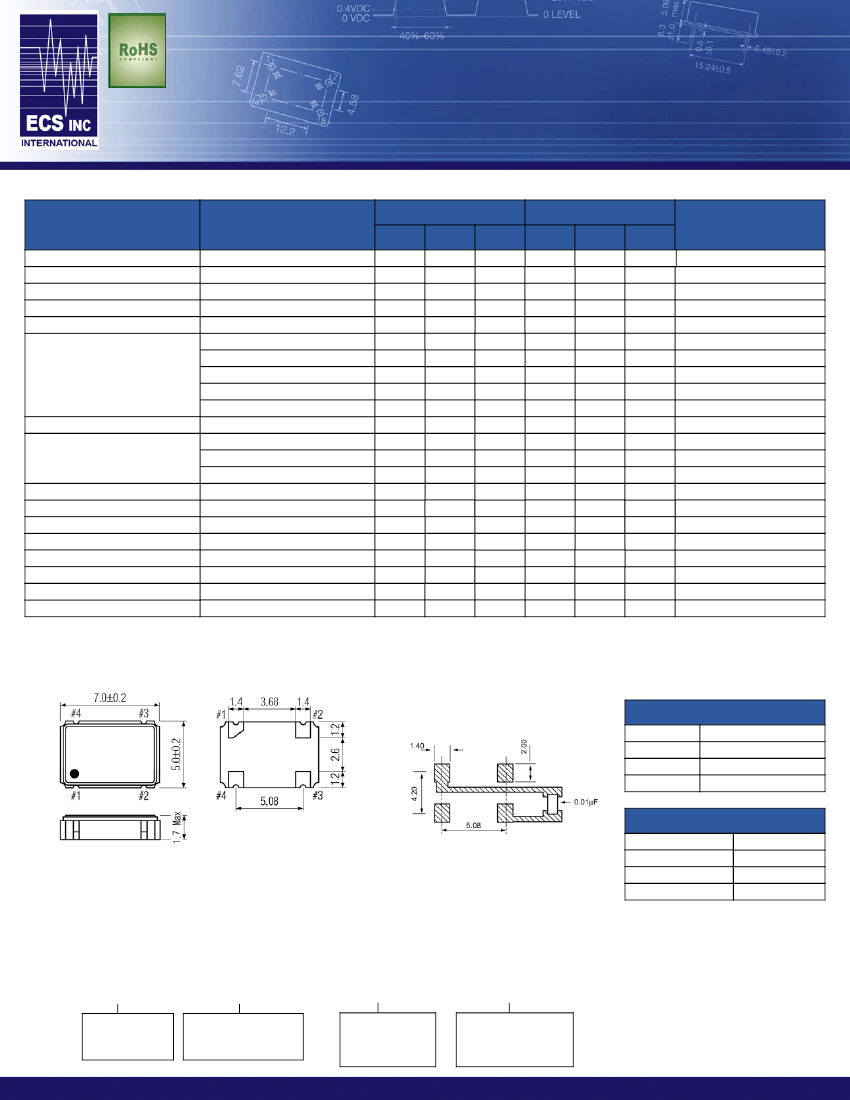

ECS-3951M/3953M-AU

SMD CLOCK OSCILLATOR

ECS-3951M-AU (5.0V) and ECS-3953M-AU (3.3V) Automotive

Grade (-55 to +125°C) miniature SMD oscillators . Ideal for

today's high temperature range applications.

OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS

ECS-3951M-AU (+5V)

ECS-3953M-AU (+3.3V)

PARAMETERS

Frequency Range

Operating Temperature

Storage Temperature

Supply Voltage

Frequency Stability *

CONDITIONS

MIN

1.000

-55

+4.5

TYP

MAX

106.25

+125

+5.5

± 100

40/60

2.5

10% VDD

MIN

1.000

-55

+2.97

TYP

MAX

200.000

+125

+3.63

± 100

40/60

2.5

10% VDD

UNITS

MHz

°C

VDC

ppm

VDC

ppm

Standard

VDD

Option A

1.000 to 34.999 MHz

35.000 to 60.000 MHz

60.001 to 99.999 MHz

100.000 to 106.250 MHz

106.251 to 200.000 MHz

@ 50% VDD level

1.000 to 60.000 MHz

60.001 to 99.999 MHz

100.000 to 200.000 MHz

VOL

VOH

HCMOS

+5.0

+3.3

Input Current

Output Symmetry

Rise and Fall Times

"0" level

"1" level

Output Load

Startup time

Disable delay time

Period Jitter

Aging

90% VDD

pk-pk

One Sigma

at +25°C

100

±5

100

±5

* Note: Inclusive of 25°C tolerance, operating temperature,input voltage change, load change.

DIMENSIONS (mm)

Pin Connections

Pin #1

Pin #2

Pin #3

Pin #4

Tri-State

Ground

Output

Tri-State Control Voltage

Pad 1

Open

VIH 70% VDD Min

VIL 30% VDD Max

Pad 4

Oscillation

No Oscillation

Figure 1) Top, Side and Bottom views

Figure 2) Suggested Land Pattern

Note: Internal crystal oscillation to be halted

(Pin #1=VIL)

PART NUMBERING GUIDE: Example ECS-3953M-200-AU

ECS

Series

Frequency Abbreviation

200 = 20.000 MHz

See Frequency

Abbreviations

Stability

Temperature

U = -55 ~ +125°C

3951M = +5.0V

3953M = +3.3V

A = ± 100 ppm
