RJ3-350V470MJ7#-G10

Description
Aluminum Electrolytic Capacitor, Polarized, Aluminum, 350V, 20% +Tol, 20% -Tol, 47uF,
CategoryPassive components    capacitor
File Size176KB,2 Pages
ManufacturerELNA
Environmental Compliance
Download Datasheet Parametric View All

RJ3-350V470MJ7#-G10 Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum, 350V, 20% +Tol, 20% -Tol, 47uF,

RJ3-350V470MJ7#-G10 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Objectid229963886
package instruction,
Reach Compliance Codeunknown
Country Of OriginThailand
ECCN codeEAR99
YTEOL7.03
capacitance47 µF
Capacitor typeALUMINUM ELECTROLYTIC CAPACITOR
diameter16 mm
dielectric materialsALUMINUM
ESR7060 mΩ
length31.5 mm
negative tolerance20%
Number of terminals2
Maximum operating temperature105 °C
Minimum operating temperature-40 °C
Package formRadial
method of packingBulk
polarityPOLARIZED
positive tolerance20%
Rated (DC) voltage (URdc)350 V
ripple current210 mA
seriesRJ3
Terminal pitch7.5 mm

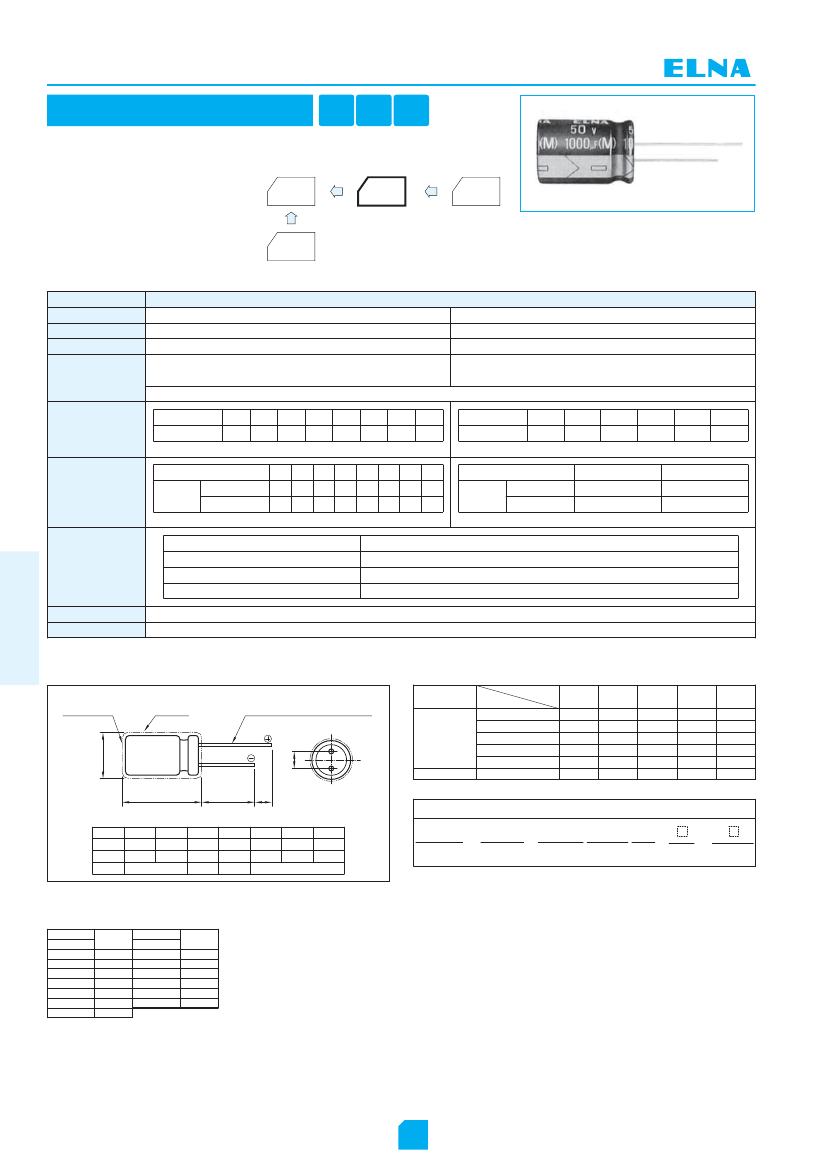

RJ3
MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS
®
Guarantees 2000 hours at 105℃ (φ5∼8 : 1000 hours).
Miniaturized
Miniaturized
RJ4
RJ3
High temperature
RJJ
Marking color : White print on a black sleeve
RE3
Specifications
Item
Category temperature range (℃)
Performance
−55 to +105
6.3 to 100
±20
(20°
C,120Hz)
−40 to +105
160 to 450
±20
(20°
C,120Hz)
Rated voltage (V)
Tolerance at rated capacitance (%)
Leakage current (µA)
Less than 0.01CV or 3 whichever is larger (after 2 minutes)
(20°
C)
CV≦1000 : Less than 0.1CV+40 (after 1 minute)
CV>1000 : Less than 0.04CV+100 (after 1 minute)
(20°
C)
C : Rated capacitance (µF) V : Rated voltage (V)
Tangent of loss angle
(tanδ)
Rated voltage (V)
6.3
0.22
10
0.19
16
0.16
25
0.14
35
0.12
50
0.10
63
0.09
100
0.08
Rated voltage (V)
160
0.15
200
0.15
250
0.15
315
0.20
350
0.20
400
0.20
tanδ (max.)
tanδ (max.)
0.02 is added to every 1000µF increase over 1000µF
Rated voltage (V)
Characteristics at high
and low temperature
6.3
10
4
8
16
3
6
25
2
4
35
2
3
(20°
C,120Hz)
50
2
3
63
2
3
100
2
3
Rated voltage (V)
Impedance Z−25℃/Z+20℃
ratio
Z−40℃/Z+20℃
(max.)
160 to 250
3
8
(20°
C,120Hz)
315 to 400
3
6
(120Hz)
2000 hours (φ5 to φ8 : 1000 hours)
The initial specified value or less
Within ±20% of initial value
200% or less of the initial specified value
Impedance Z−25℃/Z+20℃ 5
ratio
Z−55℃/Z+20℃ 10
(max.)
(120Hz)
Test time
Miniature
Aluminum Electrolytic Capacitors
Endurance (105℃)
(Applied ripple current)
Leakage current
Percentage of capacitance change
Tangent of the loss angle
Shelf life (105℃)
Applicable standards
Test time : 1000 hours; other items are the same as those for the endurance. Voltage application treatment
JIS C5101-1, -4 1998 (IEC 60384-1 1992, -4 1985)
Unit : mm
Coefficient of Frequency for Rated Ripple Current
Rated voltage (V)
Rated
Frequency (Hz)
capacitance (µF)
50・60
̶
̶
̶
̶
̶
0.8
120
0.4
0.5
0.7
0.8
0.9
1
1k
0.7
0.8
0.9
0.9
1.0
1.3
10k
0.8
0.9
0.9
1.0
1
1.4
100k
1
1
1
1
1
1.6
Vent (exceptφ5)
Sleeve
φd±0.05 copper clad steel wire (tinned)
φD+0.5max.
6.3 to 100
F±0.5
160 to 400
0.1
10
100
330
2200
0.47
to
to
to
to
to
to
4.7
47
220
1000
15000
220
L+ max.
α
15min
5
min.
Part numbering system (example : 63V1000µF)
φD
F
φd
α
5
2.0
0.5
2.0
6.3
2.5
0.5
8
3.5
0.6
1.5
10
5.0
0.6
2.0
12.5
5.0
0.6
16
7.5
0.8
2.5
18
7.5
0.8
RJ3
Series code
̶
63
Rated voltage
symbol
V
102
M
J7 #
Casing
symbol
Optional
symbol
̶
Taping(Forming)
symbol
Rated capacitance
Capacitance
symbol
tolerance symbol
Casing symbol
Size
Size
Casing
Casing
φD×L (mm) Symbol φD×L (mm) Symbol
5×11
6
E3
12.5×25
6.3×11
J6
F3
16×25
8×11.5
J7
G3
16×31.5
10×12.5
J8
H3
16×35.5
10×16
K8
H4
18×35.5
10×20
K9
H5
18×40
12.5×20
5
CAT.No.2013/2014E
98
NOTE
Design, Specifications are subject to change without notice.
Ask factory for technical specifications before purchase and/or use.
