66 & 78
MIL-C-38999
Series I
G
.950 (24.1)
Max
.047 (1.2) Max
Gasket
H
Length

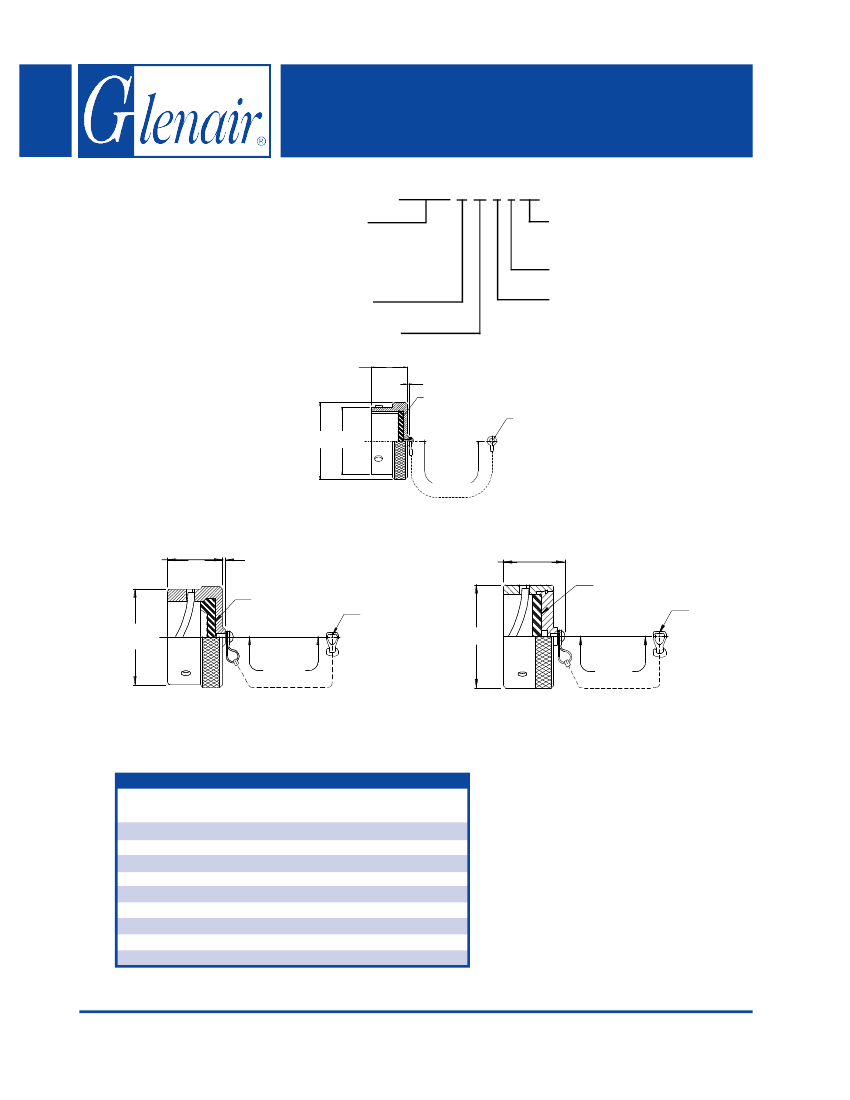

660-012 (Plug) - 660-013 (Receptacle)
661-002 (EMI Receptacle)
Protective Covers
MIL-C-38999 Series I
660-012 M 17 S 5 -04
Basic Part No.
660-012 Plug
660-013 Receptacle
661-002 Receptacle
Finish (Table II)
Shell Size (Table X)
.950 (24.1) Max
.047 (1.2) Max
Gasket
F
Length
Ring or Eyelet Dash No.
(Tables IV, V, VI, VII)
Attachment Length (in inches)
Attachment Type (Table III)
Att. Type
(Table III)
660-012 Plug Cover
1.025 (26.0)
Max
Att. Type
(Table III)
Gasket
Att. Type
(Table III)
Length
H
660-013 Receptacle Cover
661-002 EMI/RFI Receptacle Cover
Shell
Size
09
11
13
15
17
19
21
23
25
© 2005 Glenair, Inc.
TABLE X: SHELL SIZE DIMENSIONS
G Dia
F
H
Max
Dia
Max
.820 (20.8)
.572 (14.5)
.844 (21.4)
.940 (23.9)
.700 (17.8)
.968 (24.6)
.850 (21.6) 1.070 (27.2) 1.125 (28.6)
.975 (24.8) 1.190 (30.2) 1.250 (31.8)
1.100 (27.9) 1.320 (33.5) 1.406 (35.7)
1.207 (30.7) 1.440 (36.6) 1.500 (38.1)
1.332 (33.8) 1.570 (39.9) 1.625 (41.3)
1.457 (37.0) 1.690 (42.9) 1.750 (44.5)
1.582 (40.2) 1.820 (46.2) 1.875 (47.6)
CAGE Code 06324
See inside back
cover fold-out or
page 14 for Table II.
Metric dimensions
(mm) are indicated in
parentheses.
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
Series 66 and 78 - Page 10
MIL-C-38999 Series I

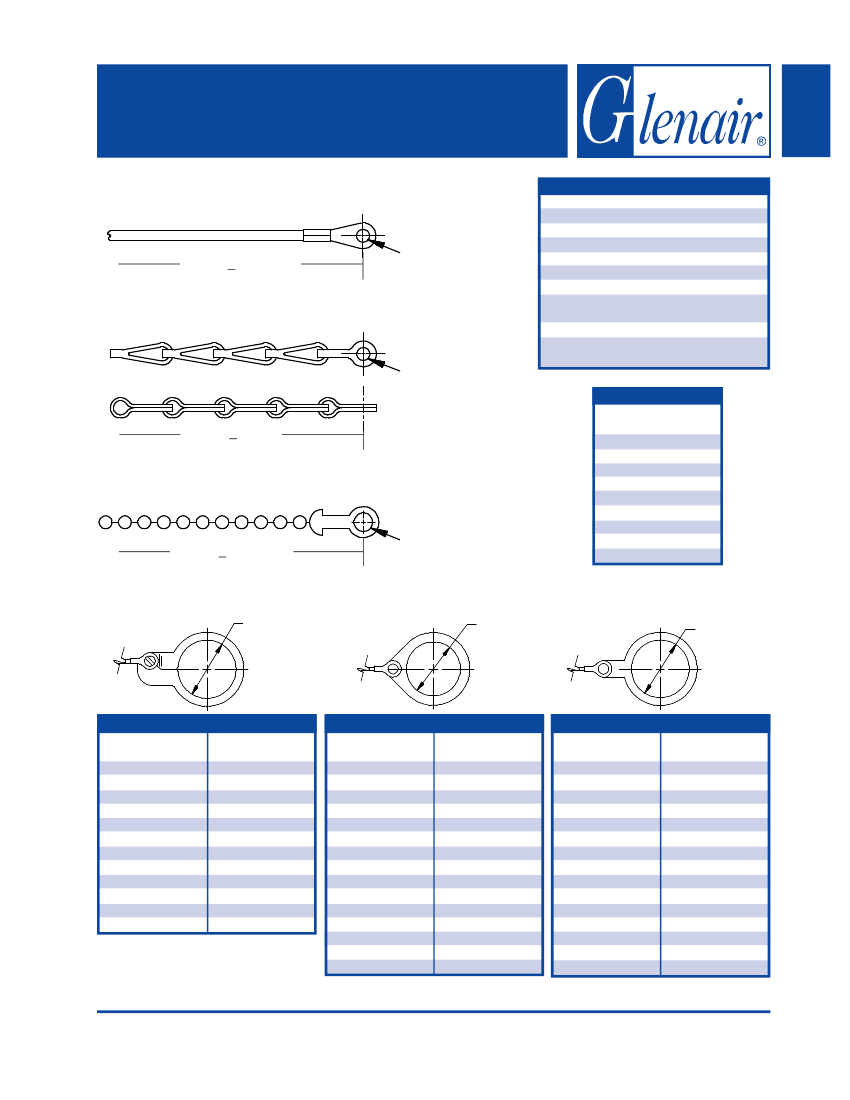

ROPE
(Types F, G, H, R, T, U)
K Dia.
(Table IV)
Length + .250 (6.4)
SASH CHAIN
(Type S)
Sym
D
F
G
H
N
R
S
T
U
TABLE III: ATTACHMENT
K Dia.
(Table IV)
Length + 1 Link
BEAD CHAIN
(Type D)
K Dia.
(Table IV)
Attachment Type
Bead Chain, Cres., Passivate
Wire Rope, Nylon Jacket
Nylon Rope
Wire Rope, Fluroropolymer Jacket
No Attachment
Wire Rope, PVC Jacket
#8 Sash Chain, Cres.,
Passivate
Wire Rope, No Jacket
Wire Rope, Polyurethane
Jacket with Terminal
TABLE IV: EYELET
Dash
No.
01
02
03
04
05
06
07
09
00
Length + .250 (6.4)
K DIA
±.010 (0.3)
.140 (3.6)
.182 (4.6)
.191 (4.9)
.197 (5.0)
.167 (4.2)
.125 (3.2)
.218 (5.5)
.156 (4.0)
No Eyelet
SPLIT RING - Style C
L
SOLID RING - Style B
M
SOLID RING - Style A
N
Dash
L Dia.
No. ±.015 (0.4)
50 .425 (10.8)
52 .485 (12.3)
54 .640 (16.3)
56 .750 (19.1)
58 .890 (22.6)
60 1.015 (25.8)
62 1.095 (27.8)
64 1.130 (28.7)
66 1.250 (31.8)
68 1.350 (34.3)
70 1.390 (35.3)
72 1.485 (37.7)
TABLE V: SPLIT RING STYLE C
Dash
L Dia.
No. ±.015 (0.4)
74 1.625 (41.3)
76 1.750 (44.5)
78 1.875 (47.6)
80 1.980 (50.3)
82 2.060 (52.3)
84 2.235 (56.8)
86 2.310 (58.7)
88 2.475 (62.9)
90 2.655 (67.4)
92 2.810 (71.4)
94 3.045 (77.3)
Dash
M Dia.
No. ±.015 (0.4)
08 .468 (11.9)
10 .593 (15.1)
12 .718 (18.2)
13 .765 (19.4)
14 .844 (21.4)
15 .890 (22.6)
16 .968 (24.6)
17 1.015 (25.8)
18 1.093 (27.8)
19 1.140 (29.0)
20 1.203 (30.6)
21 1.265 (32.1)
22 1.343 (34.1)
23 1.453 (36.9)
TABLE VI: SOLID RING STYLE B
Dash
M Dia.
No. ±.015 (0.4)
24 1.484 (37.7)
25 1.577 (40.1)
27 1.640 (41.7)
28 1.687 (42.8)
29 1.765 (44.8)
30 1.890 (48.0)
31 1.953 (49.6)
32 1.968 (50.0)
33 2.077 (52.8)
35 2.140 (54.4)
36 2.187 (55.5)
40 2.406 (61.1)
44 2.656 (67.5)
48 3.031 (77.0)
118 .310 (7.9)
Dash
N Dia.
No. ±.015 (0.4)
095 .312 (7.9)
100 .391 (9.9)
101 .516 (13.1)
102 .583 (14.8)
103 .641 (16.3)
104 .708 (18.0)
105 .766 (19.5)
205 .788 (20.0)
106 .896 (22.2)
206 .907 (23.0)
107 1.016 (25.8)
207 1.025 (26.0)
108 1.141 (29.0)
308 1.188 (30.2)
208 1.203 (30.6)
TABLE VII: SOLID RING STYLE A
Dash
N Dia.
No. ±.015 (0.4)
109 1.266 (32.2)
209 1.312 (33.3)
110 1.391 (35.3)
210 1.438 (36.5)
111 1.521 (38.6)
211 1.536 (39.0)
112 1.641 (41.7)
113 1.766 (44.9)
213 1.812 (46.0)
114 1.891 (48.0)
214 1.938 (49.2)
115 2.078 (52.8)
116 2.406 (61.1)
117 2.510 (63.8)
© 2005 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
Series 66 and 78 - Page 11
66 & 78
660-012 (Plug) - 660-013 (Receptacle)
661-002 (EMI Receptacle)
Protective Covers
How
to Order
GLENAIR
SYMBOL
A
B
C*
G*
J
LF
M
N
NC
NF
T
U
ZU**
ZN
*
**
W
N
A
M85049 SYMBOL
REFERENCE ONLY
FINISH
Cadmium Plate, Bright
Anodize, Black
Hard Coat, Anodic
Electroless Nickel
Cadmium Plate, Black
Cadmium Plate, Black
Reference Information
Standard Materials and Finishes
TABLE II - STANDARD FINISHES
SPECIFICATION(S)
AMS-QQ-P-416, Type I, Class 2
AMS-QQ-P-416, Type II, Class 3
AMS-A-8625, Type II, Class 2
AMS-A-8625, Type III, Class 1
Cadmium Plate, Olive Drab
Iridite, Gold Over Cadmium Plate Over MIL-C-5541, Class 3 AMS-QQ-P-416, Type II,
Electroless Nickel
Class 3 over AMS-C-26074, Class 4, Grade B
Cadmium Plate, Bright Over
Electroless Nickel
Cadmium Plate, Olive Drab Over
Electroless Nickel
Zinc Cobalt, Dark Olive Drab
Cadmium Plate, Olive Drab Over
Electroless Nickel
Cadmium Plate, Bright Over
Electroless Nickel
1000 Hour Corrosion Resistance
AMS-C-26074, Class 4, Grade B
AMS-QQ-P-416, Type II, Class 3 over Electroless Nickel
AMS-C-26074
96 Hour Corrosion Resistance
1000 Hour Corrosion Resistance
AMS-QQ-P-416, Type I, Class 3
ASTMB 733-90, SC2, Type I, Class 5, MIL-C-26074***
AMS-QQ-P-416, Type II, Class 3
AMS-QQ-P-416, Type II, Class 3
ASTMB 841-91, Over Electroless Nickel 1000 Hour Salt
Spray
Zinc-Nickel Alloy, Olive Drab
Anodize finish; not suitable for EMI Shielding or grounding applications.
Applicable to corrosion resisting steel backshells and accessories. Consult factory for other available finishes.
