M80-500000000-02-33A-00-000 datasheet, PDF

M80-500000000-02-33A-00-000: DescriptionBoard Connector, 2 Contact(s), Male, Right Angle, Surface Mount Terminal, Locking; CategoryThe connector The connector; File Size482KB，4 Pages; ManufacturerHarwin; Websitehttp://www.harwin.com/; Environmental Compliance

Download Datasheet Parametric View All

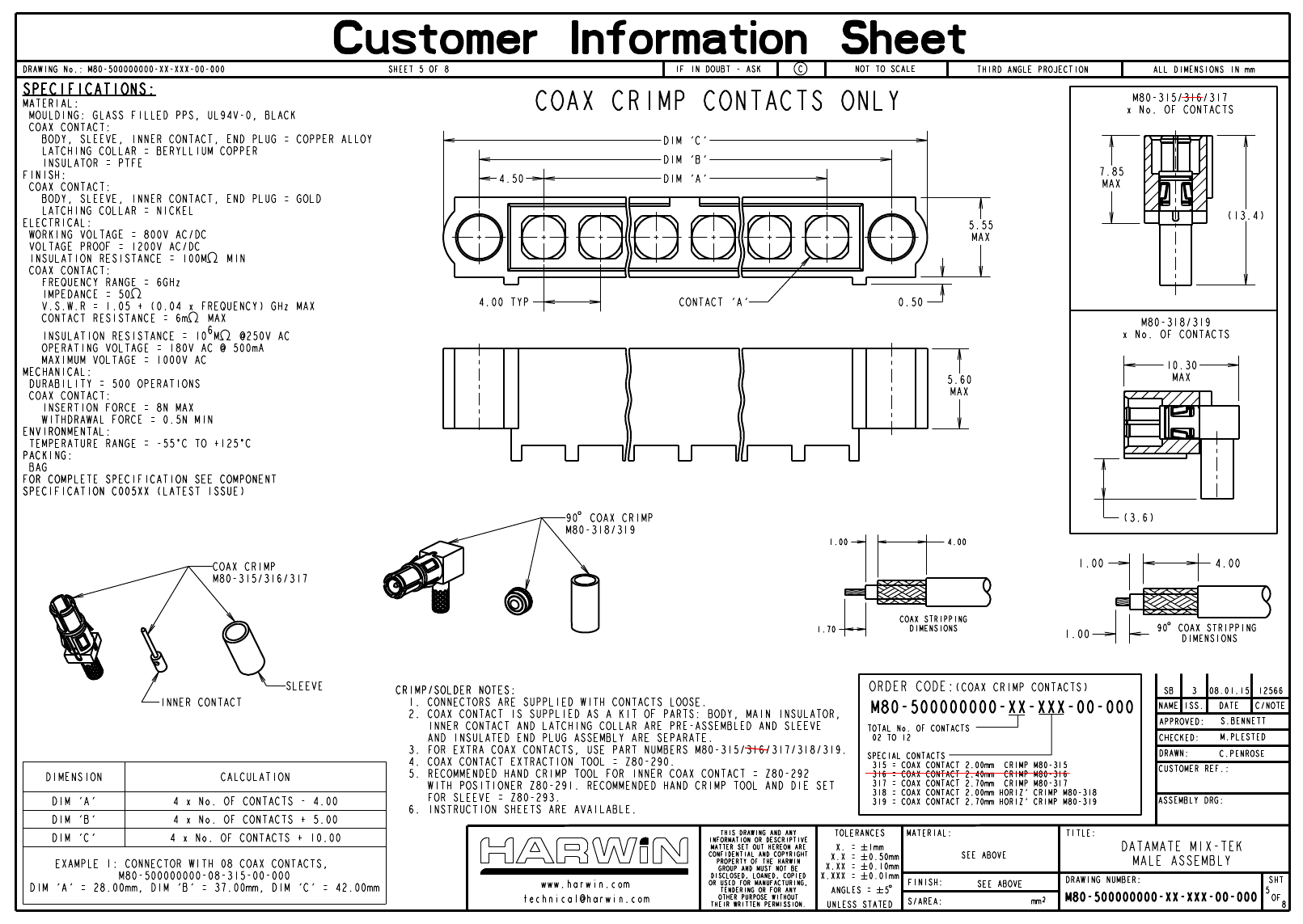

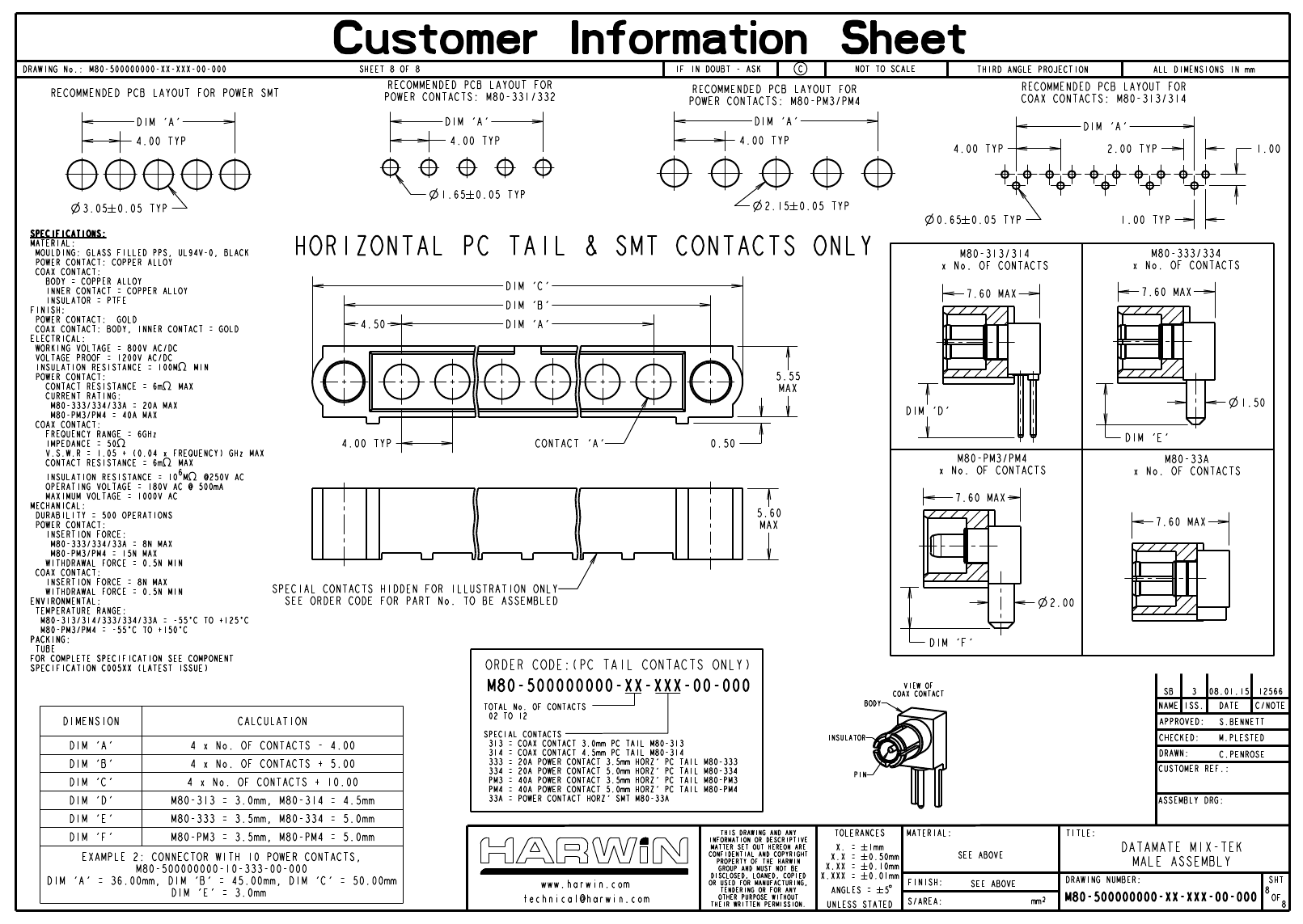

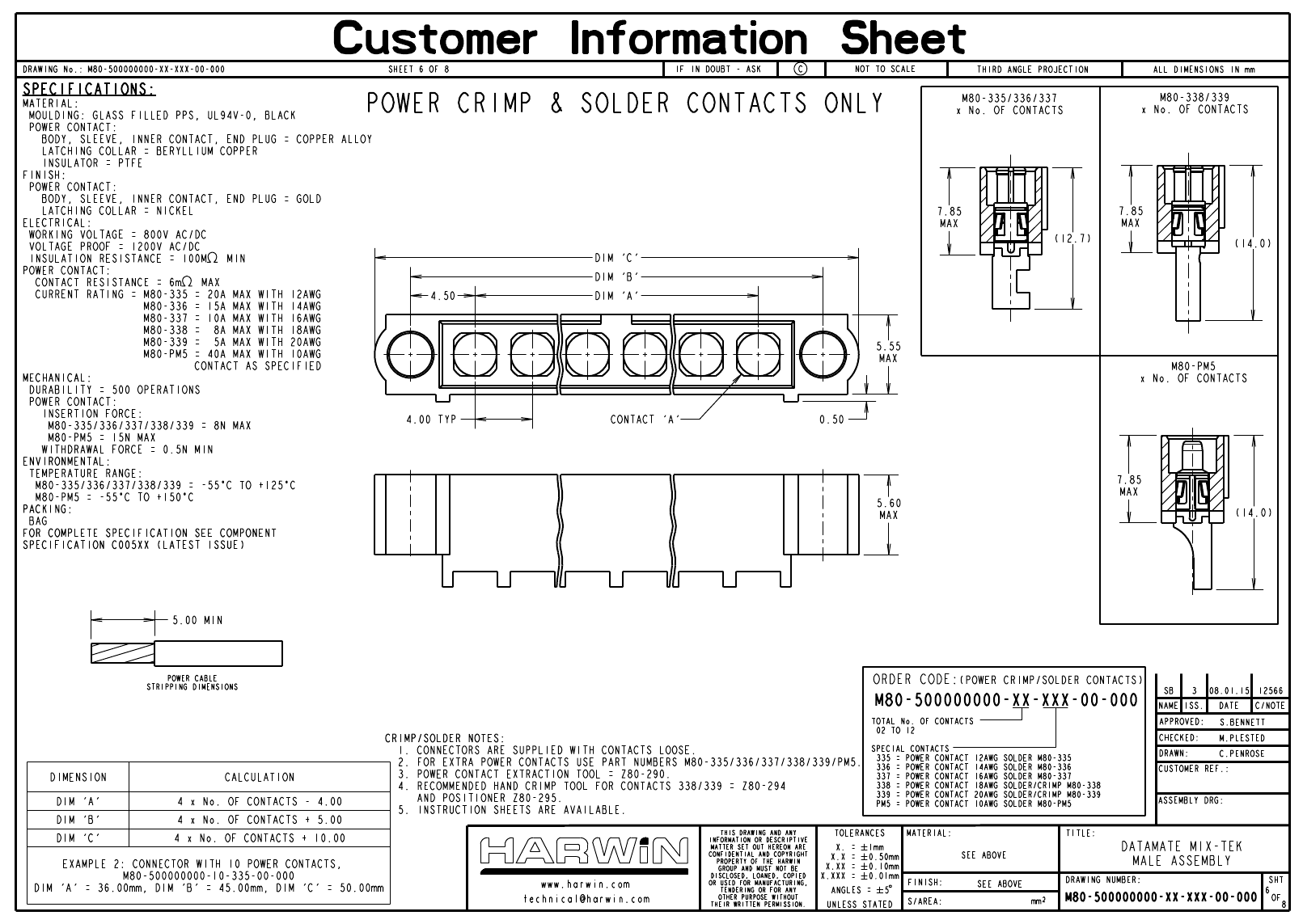

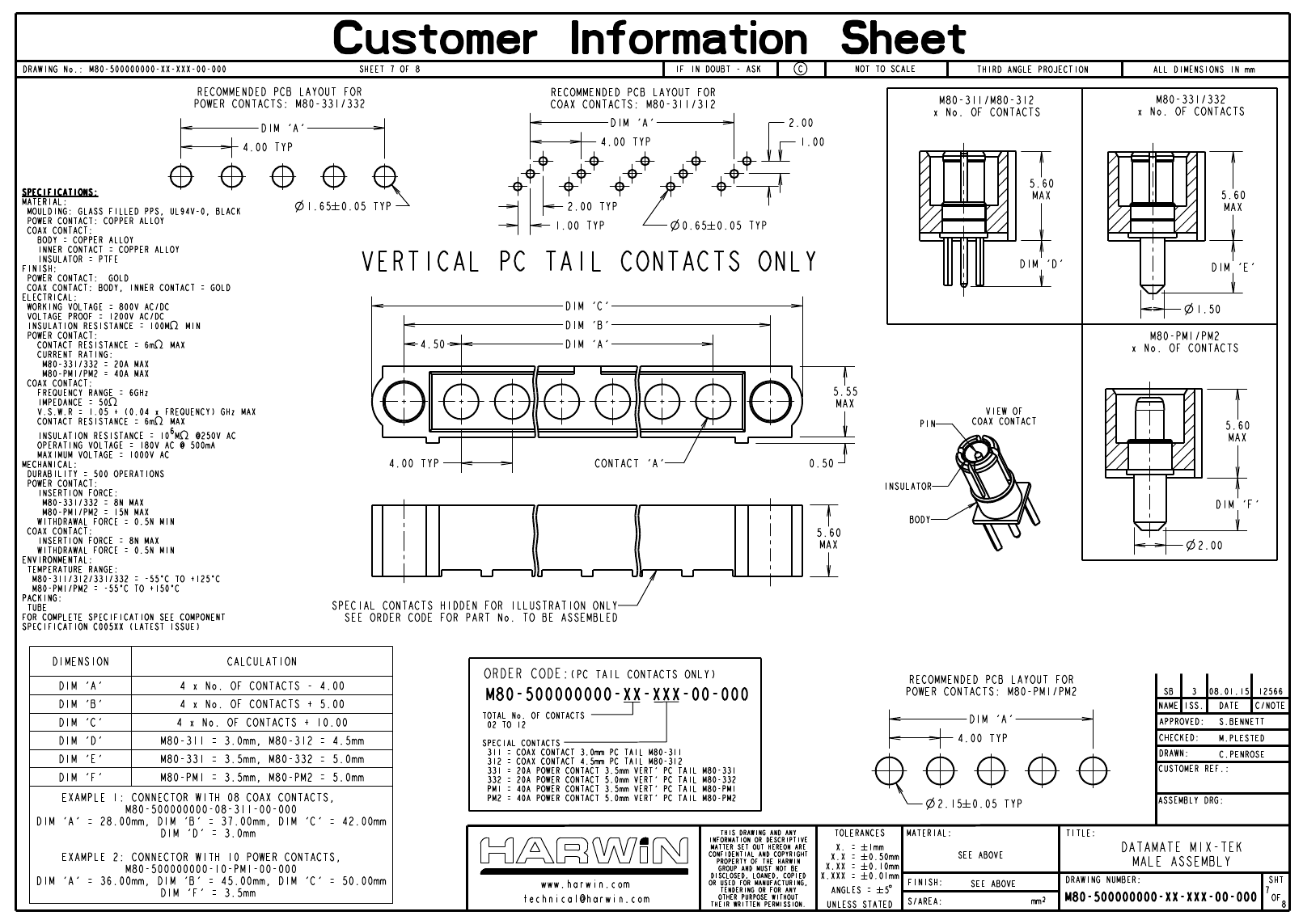

M80-500000000-02-33A-00-000 Overview

Board Connector, 2 Contact(s), Male, Right Angle, Surface Mount Terminal, Locking

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	314696919
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.219 inch
subject depth	0.299 inch
body length	0.709 inch
Connector type	RECTANGULAR POWER CONNECTOR
Contact arrangement	S0P2
Contact to complete cooperation	AU
Contact completed and terminated	GOLD
Contact point gender	MALE
Contact material	COPPER ALLOY
Contact resistance	6 mΩ
Contact style	RND PIN-SKT
Durability	500 Cycles
maximum insertion force	8.0064 N
Insulation resistance	100000000 Ω
insulator material	POLYTETRAFLUOROETHYLENE
Mixed contacts	YES
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Guideline	UL
reliability	COMMERCIAL
Termination type	SURFACE MOUNT
Total number of contacts	2
Evacuation force-minimum value	.5004 N
