Flush Silhouette Switches
LB Series
B-073
Flush Silhouette Switches
LBW Series
B-091
ø16mm LB Series
B-103
UP Series
B-123
B-071
For more information, visit http://asia.idec.com
For more information, visit http://eu.idec.com
Switches & Pilot Lights

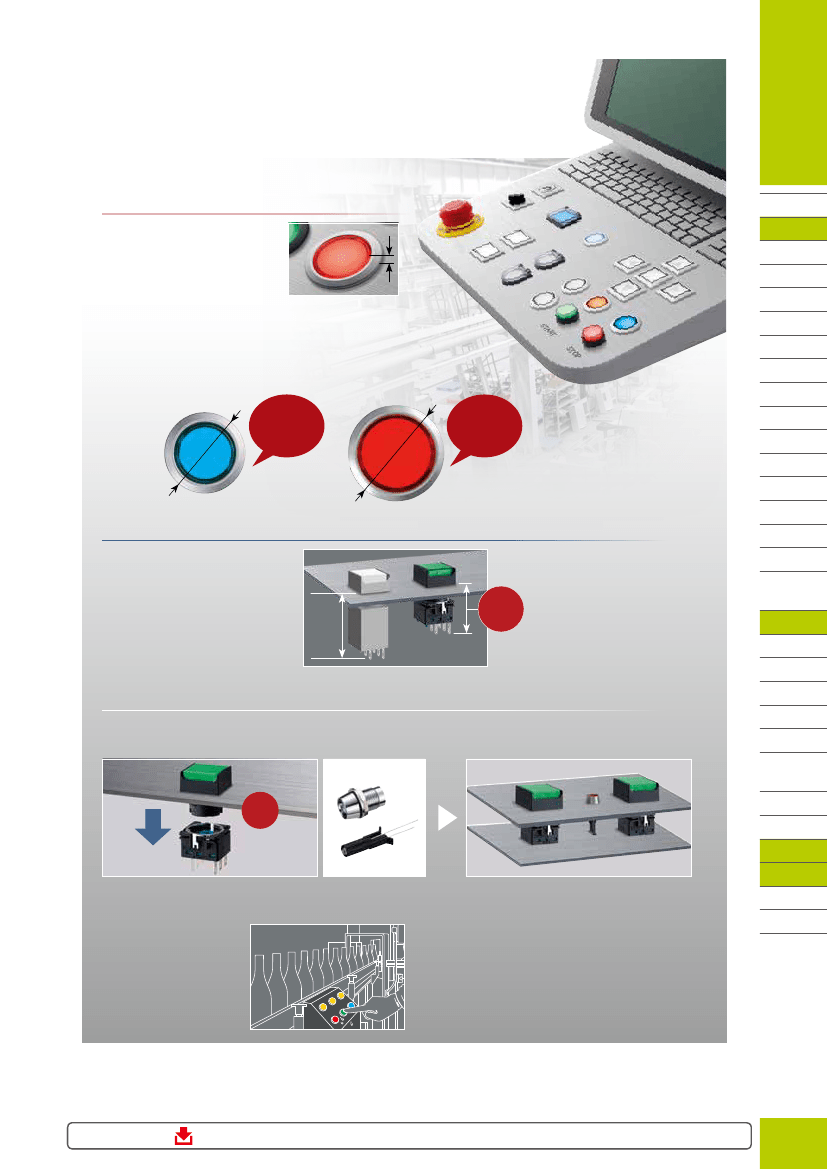

Stylish and Functional
IDEC’s extensive range of LB/LBW series switches can be used for a
wide range of applications.
F
lush Silhouette
Flush Silhouette
Projects only 2mm from the panel
surface. For sleek and refined style.
APEM
Switches &
Pilot Lights
Control Boxes
2
mm
LB Series Flush Silhouette Switches
Slim 2mm-thick bezels for stylish panels.
Emergency
Stop Switches
Enabling
Switches
Safety Products
Explosion Proof
Terminal Blocks
Relays & Sockets
LBW Series Flush Silhouette Switches
Smart appearance with large surface for secure operation.
LB Series
Bezel
ø22/22mm
LBW Series
Bezel
ø26/26mm
Circuit
Protectors
Power Supplies
LED Illumination
Controllers
C
ontrol Unit
ø16mm LB Series
Miniature Switches and Pilot Lights
Short body for space-saving installation.
Conventional
Conventional
n
Operator
Interfaces
Sensors
AUTO-ID
27.9
mm
Short Body
Depth of only 27.9mm behind panel.
Reduces the size of machines and control
panels.
Flush Silhouette
ø16
ø22
ø30
Miniature
Pilot Lights
45
mm
Compact
F
lush Silhouette
&
C
ontrol Unit
Removable Contact Block /Single Board Mounting
Removable contacts enable easy wiring / Single board mounting for space-saving installation.
Detachable
CW
LW-F
LB
UP
series
Separate & One Board
Waterproof
Degree of protection: IP65
LBW
UP series has the same depth as LB/LBW series.
Mounts on the same panel.
(Flush bezel: 34.9mm, standard bezel: 27.9mm)
UP
Flush Bezel
Waterproof
Download catalogs and CAD from http://asia.idec.com/downloads
Download catalogs and CAD from http://eu.idec.com/downloads
B-072
LB
-SERIES
|
Flush Silhouette Switches
22
mm
Actual Size
Thinnest in the
industry
(as of February
2011)
Switches &
Pilot Lights
Control Boxes
Emergency
Stop Switches
Enabling
Switches
Safety Products
Explosion Proof
Terminal Blocks
Relays & Sockets
Circuit
Protectors
Power Supplies
LED Illumination
Controllers
Operator
Interfaces
Sensors
AUTO-ID
Flush Silhouette
ø16
ø22
ø30
Miniature
Pilot Lights
Flush Bezel
B-073
Switches & Pilot Lights
APEM
CW
LW-F
LB
LBW
UP

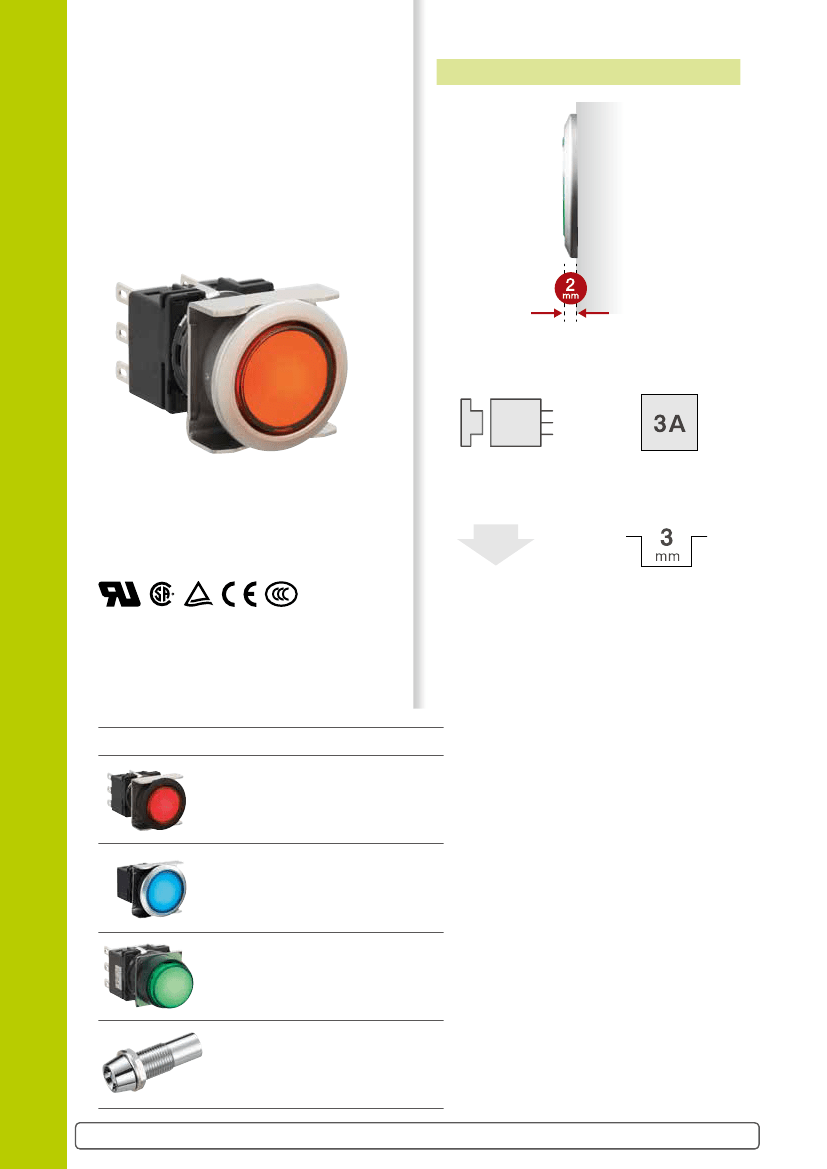

Flush Silhouette Switches
Slim
Protection degree: IP65 (IEC 60529)
point
Black Bezel
For sleek and refined style
Metallic Bezel
2
mm
*
Panel cutout (mm)
Round
ø18.2
*
Square
18.2
*
Rectangular
18.2 × 24.2
*
Illuminated
Pushbuttons
Illuminated pushbuttons with
switch guard available
Pushbuttons
Marking plates can be used with lens style
pushbuttons
*Does not light on.
Pushbuttons
with switch
guard available
Pilot Lights
Dome
Pilot Lights
Selector Switches
2-position and 3-position selector switches.
Maintained and other various spring return
actions available.
*Photo: lever operator (knob operator also available)
Illuminated selector switches available
Key
Selectors
ensure
safety
Wave Key
Seven different keys to choose from.
Key removable in desired positions.
Buzzer
Protection degree: IP54
Steady sound at 80 dB
minimum (at 0.1m)
Lever Switches
Degree of protection: IP67
Up/down operation.
2- and 3-positions available.
For 3-position switches, maintained and
return two-way actions available.
Black bezel only
For more information, visit http://asia.idec.com
For more information, visit http://eu.idec.com
Switches & Pilot Lights
Flush Silhouette Switches
Contact Ratings
(See
B-120
for approval ratings)
Gold Contact (switch base: blue)
Rated Insulation Voltage
Rated Thermal Current
Rated Operating Voltage
Rated Operating Current
Resistive
(electrical life: 100,000 operations) Load
Contact Material
250V
3A
30V DC
0.1A
125V AC
0.1A
LB
Series
Flush bezel projects only 2 mm from front of panel.
APEM
Switches &
Pilot Lights
Control Boxes
Emergency
Stop Switches
Enabling
Switches
Safety Products
Gold plated silver
• Minimum applicable load (reference value): 5V AC/DC, 1 mA
Applicable range is subject to the operating conditions and load.
• See electrical life in Specifications.
Silver Contact (switch base: gray)
Rated Insulation Voltage
Rated Operating Voltage
Electrical
Life
50,000
operations
Electrical
Life
100,000
operations
AC
50/60Hz
DC
AC
50/60Hz
DC
Resistive load
Inductive load
Resistive load
Inductive load
Resistive load
Inductive load
Resistive load
Inductive load
30V
—
—
5A
2A
—
—
3A
1A
250V
125V
5A
3A
1.1A
0.4A
5A
3A
0.6A
0.22A
5A
Silver
250V
5A
1.5A
—
—
3A
1.5A
—
—
Explosion Proof
Terminal Blocks
Relays & Sockets
Rated
Operating
Current

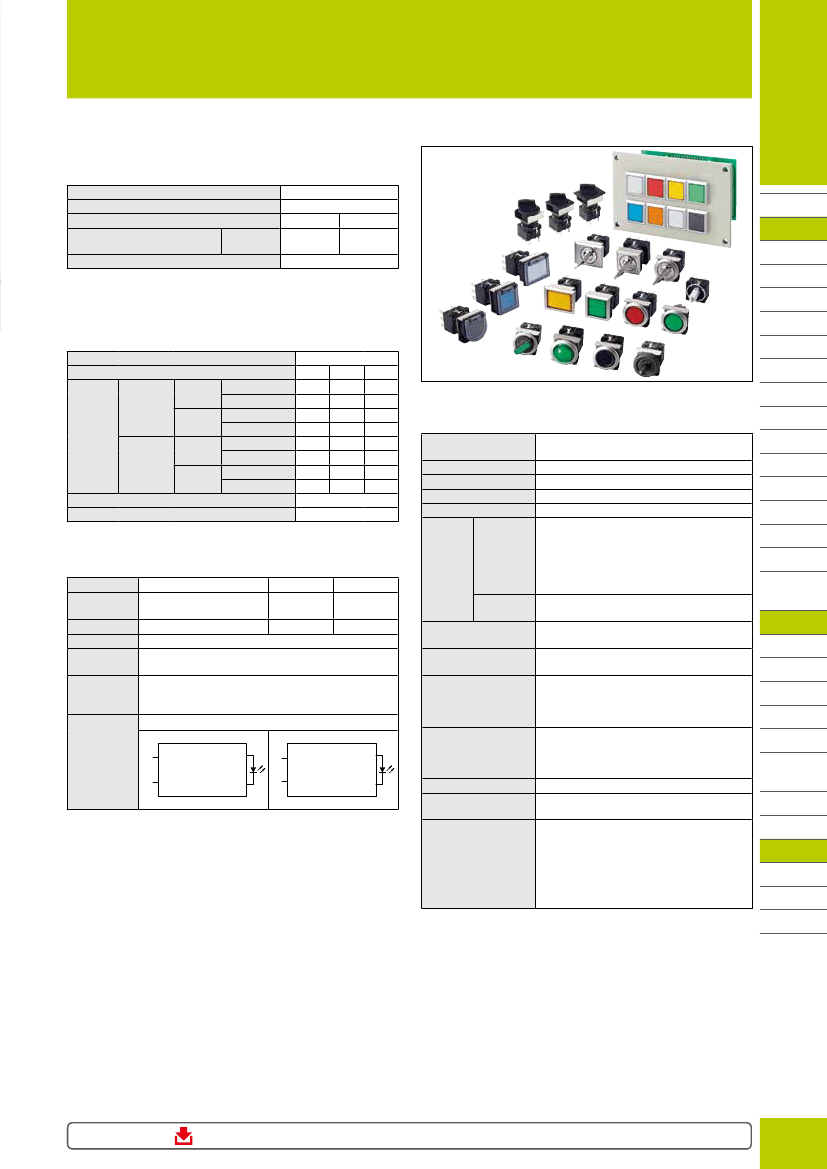

Specifications
Operating Temperature
Storage Temperature
Operating Humidity
Contact Resistance
Insulation Resistance
–25 to +60°C (no freezing)
Illuminated units: –25 to +55°C
–30 to +80°C (no freezing)
45 to 85% RH (no condensation)
50 mΩ maximum (initial value)
100 MΩ minimum (500V DC megger)
Between live part and ground:
2,000V AC, 1 minute
Between terminals of different poles:
2,000V AC, 1 minute
Between terminals of the same poles:
1,000V AC, 1 minute
Between live part and ground:
2,000V AC, 1 minute
Operating extremes/Damage limits:
5 to 55 Hz, amplitude 0.5 mm
Operating extremes: 100 m/s
2
Damage limits:
1,000 m/s
2
Momentary:
2,000,000
Maintained:
250,000
Selector switches:
250,000
Key selector switches: 250,000
Momentary: 50,000 / 100,000 (*1)
Maintained: 50,000 / 100,000 (*2)
Selector switches:
50,000 / 100,000 (*2)
Key selector switches: 50,000 / 100,000 (*2)
IP65 (IEC 60529)
Solder/tab terminal #110
PC board terminal
14g (LB8L-M1T24)
13g (LB8P-1T04)
13g (LB8B-M1T2)
15g (LB8S-2T2)
27g (LB8K-2ST2A)
15g (LB8GL-M1T24)
14g (LB8GB-M1T2)
Circuit
Protectors
Power Supplies
LED Illumination
Controllers
Operator
Interfaces
Sensors
AUTO-ID
Rated Thermal Current
Contact Material
• AC inductive load: PF=0.6 to 0.7
DC inductive load: L/R=7 ms max.
Dielectric
Strength
Switch Unit
LED Ratings
Rated Voltage
Voltage Range
LED Part No.
Current Draw
Voltage
Marking
LED Life
(reference
value)
5V DC
5V DC±5%
LB9Z-LED5➁
5 mA (typ.)
12V AC/DC
12V AC/DC
±10%
LB9Z-LED1➁
24V AC/DC
24V AC/DC
±10%
LB9Z-LED2➁
Illumination
Unit
Vibration Resistance
Shock Resistance
Mechanical Life
(minimum operations)
Electrical Life
(minimum operations)
Degree of Protection
Terminal Style
Flush Silhouette
ø16
ø22
ø30
Miniature
Pilot Lights
Marked on the side of the LED unit
Approx. 30,000 hours [until the brightness reduces to
50% of the initial value when lit at the rated voltage (direct
current) under 25°C environment.]
A, G, R, PW, S
Limited current circuit
Noise protection circuit
X2
Dimmer protection circuit
（－）
（＋）
Internal
Circuit
X1
Limited current circuit
Noise protection circuit
Recti er circuit
X2
Dimmer protection circuit
X1
CW
LW-F
LB
LBW
UP
Flush Bezel
•
➁
(color code): A (amber), G (green), PW (pure white), R (red), S (blue)
• Use the pure white (PW) module for yellow illumination.
• LED lamp contains a current-limiting resistor.
Weight (approx.)
*1: Switching frequency 1,800 operations/h.
*2: Switching frequency 1,200 operations/h.
Download catalogs and CAD from http://asia.idec.com/downloads
Download catalogs and CAD from http://eu.idec.com/downloads
B-074
Flush Silhouette Switches LB Series

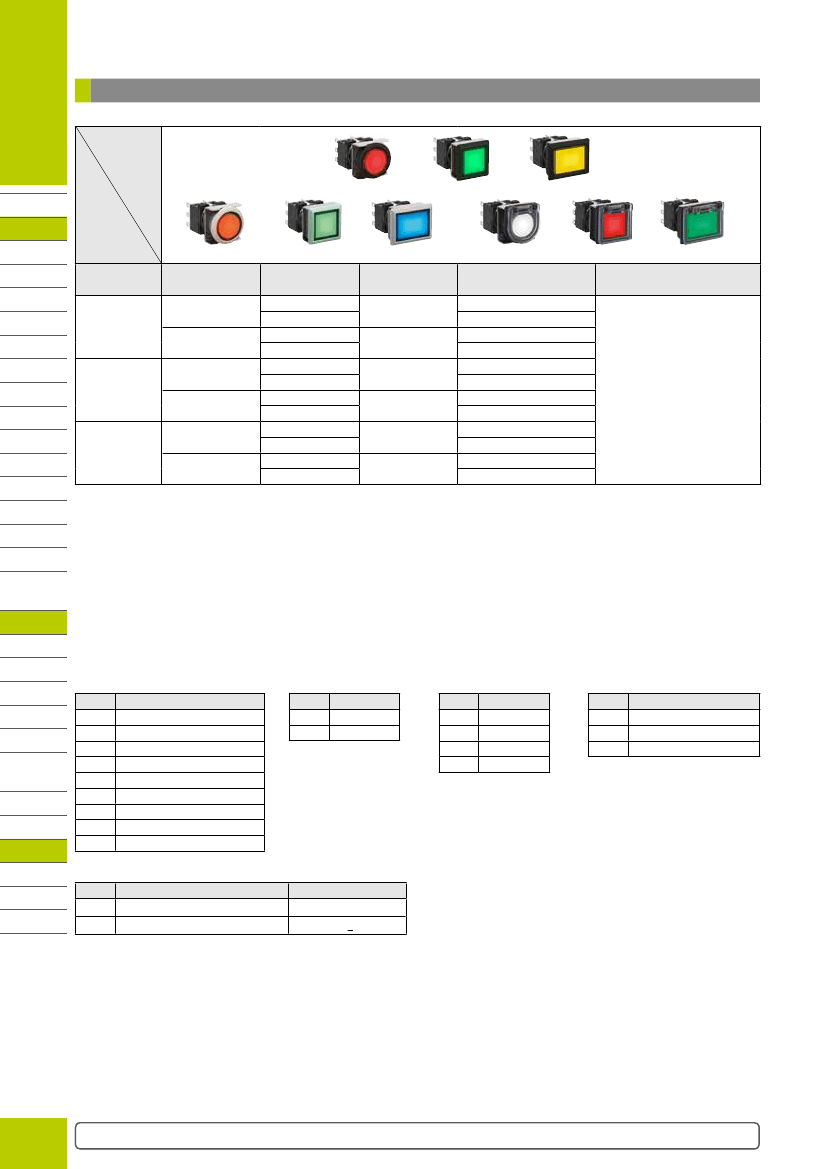

Illuminated Pushbuttons
Solder/Tab Terminal
Part No. /
Shape
Package Quantity:1
Switches &
Pilot Lights
Control Boxes
Emergency
Stop Switches
Enabling
Switches
Safety Products
Explosion Proof
Terminal Blocks
Relays & Sockets
Circuit
Protectors
Power Supplies
Round / Metallic Bezel
Square / Metallic Bezel
Rectangular / Metallic Bezel
Round with Guard
Square with Guard
Rectangular with Guard
LED Illumination
Controllers
Operator
Interfaces
Sensors
AUTO-ID
Flush Silhouette
ø16
ø22
ø30
Miniature
Pilot Lights
Flush Bezel
B-075
Switches & Pilot Lights
APEM
CW
LW-F
LB
LBW
UP
LB
L-
1T
∗
Round / Black Bezel
Square / Black Bezel
Rectangular / Black Bezel
➀
Shape
➁
Operation
Momentary
➂
Contact
Gold/SPDT
Gold/DPDT
Gold/SPDT
Gold/DPDT
Gold/SPDT
Gold/DPDT
Gold/SPDT
Gold/DPDT
Gold/SPDT
Gold/DPDT
Gold/SPDT
Gold/DPDT
➃
LED Operating
Voltage
24V AC/DC
24V AC/DC
24V AC/DC
24V AC/DC
24V AC/DC
24V AC/DC
Part No.
LB➀L-M1T14*
LB➀L-M1T24*
LB➀L-A1T14*
LB➀L-A1T24*
LB➀L-M1T14*
LB➀L-M1T24*
LB➀L-A1T14*
LB➀L-A1T24*
LB➀L-M1T14*
LB➀L-M1T24*
LB➀L-A1T14*
LB➀L-A1T24*
*
Illumination Color Code
Black bezel
Maintained
Momentary
Metallic bezel
Maintained
Momentary
Guard Type
Maintained
Specify the color code in place of
*
in
the Part No.
A:
G:
PW:
R:
S:
Y:
amber
green
pure white
red
blue
yellow
• Illuminated pushbuttons contain an LED unit. For details on LED units, see
B-130.
• The guard opens 180 degrees spring-return.
• Illuminated pushbuttons can be used with legend markings. Engraving can be done on a marking plate which is placed in the lens, or a clear film can be printed and
placed in the lens. See
B-133
for details on the marking plate and film.
• PC board terminals available for gold contacts. Silver contacts also available. To specify, see Part Number Development below.
• 5V DC and 12V AC/DC LED operating voltages also available.
• Other bezel sizes available (LBW series). For details, see
