302S43W102MV6 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> 302S43W102MV6

302S43W102MV6: DescriptionCeramic Capacitor, Multilayer, Ceramic, 3000V, 20% +Tol, 20% -Tol, X7R, -/+15ppm/Cel TC, 0.001uF, 1812,; CategoryPassive components capacitor; File Size209KB，2 Pages; ManufacturerJohanson Dielectrics; Environmental Compliance

Download Datasheet Parametric View All

302S43W102MV6 Overview

Ceramic Capacitor, Multilayer, Ceramic, 3000V, 20% +Tol, 20% -Tol, X7R, -/+15ppm/Cel TC, 0.001uF, 1812,

302S43W102MV6 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	7263755211
package instruction	, 1812
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	8
capacitance	0.001 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	2.8 mm
JESD-609 code	e3
length	4.5 mm
multi-layer	Yes
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package form	SMT
method of packing	Bulk
positive tolerance	20%
Rated (DC) voltage (URdc)	3000 V
size code	1812
Temperature characteristic code	X7R
Temperature Coefficient	15% ppm/°C
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier
width	3.17 mm

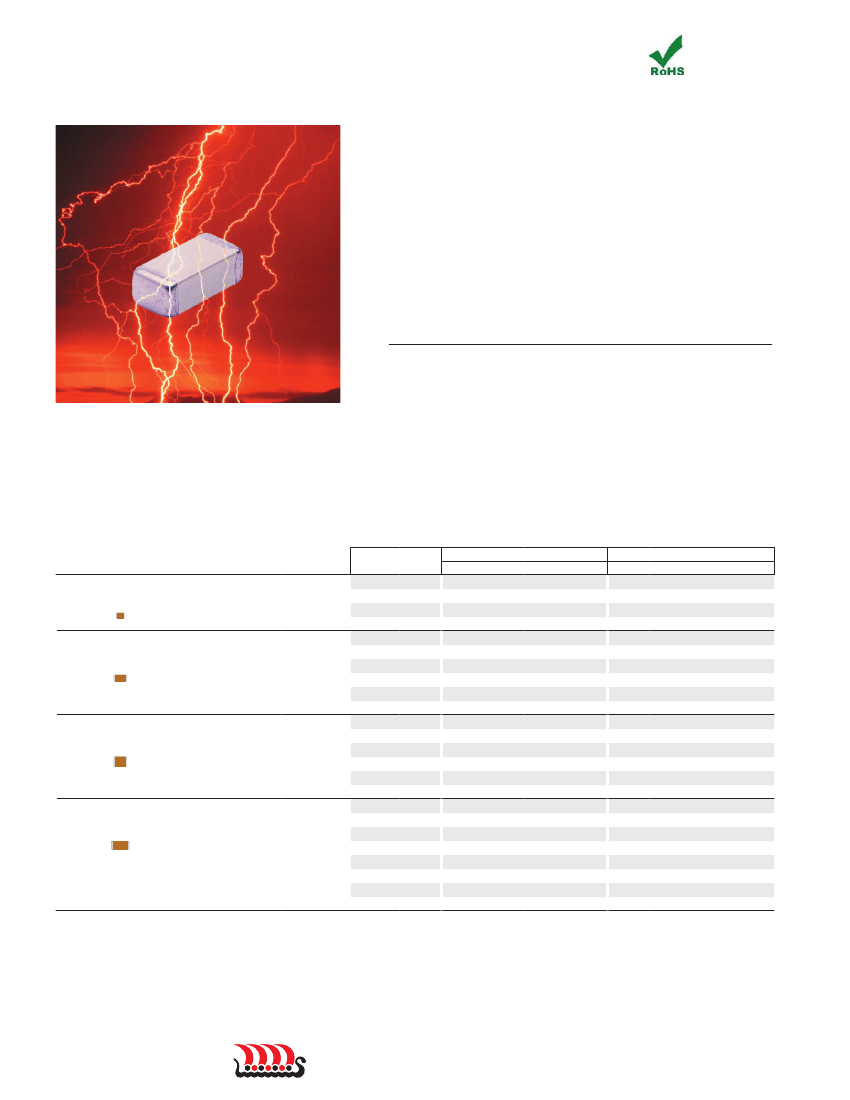

Preview

Download Datasheet

View All

Igh

olTage

urface

ounT

mlcc

250 - 6,000 Vdc

These high voltage capacitors feature a special internal electrode

design which reduces voltage concentrations by distributing

voltage gradients throughout the entire capacitor.

This unique design also affords increased capacitance values in

a given case size and voltage rating. The capacitors are designed

and manufactured to the general requirement of EIA198 and

are subjected to a 100% electrical testing making them well

suited for a wide variety of telecommunication, commercial, and

industrial applications.

pplicationS

• Analog & Digital Modems

• Lighting Ballast Circuits

• DC-DC Converters

• LAN/WAN Interface

• Voltage Multipliers

• Back-lighting Inverters

Polyterm

soft termination option for demanding environments &

processes available on select parts, please contact the factory.

aSe

ize

JDI /EIA

INCHES

E/B

.080 ±.010

.050 ±.010

.055 Max.

.020 ±.010

.125 ±.010

.062 ±.010

.067 Max.

.020 ±.010

(MM)

(2.03 ±.25)

(1.27 ±.25)

(1.40)

(0.51±.25)

(3.18 ±.25)

(1.57 ±.25)

(1.70)

(0.51±.25)

RATED

VOLTAGE

250 VDC

500 VDC

630 VDC

1000 VDC

250 VDC

500 VDC

630 VDC

1000 VDC

2000 VDC

3000 VDC

250 VDC

500 VDC

630 VDC

1000 VDC

2000 VDC

3000 VDC

500 VDC

630 VDC

1000 VDC

2000 VDC

3000 VDC

4000 VDC

5000 VDC

6000 VDC

apacitance

election

NP0 DIELECTRIC

MINIMUM

MAXIMUM

1.0

680

560

390

1500

1200

1000

220

3900

2700

1800

560

220

4700

3300

2200

820

470

180

X7R DIELECTRIC

MINIMUM

MAXIMUM

1000

100

1000

100

1000

100

1000

100

0.022

0.010

6800

2700

0.068

0.033

0.027

0.010

4700

1000

0.150

0.068

0.047

0.015

4700

1000

0.100

0.047

0.022

0.010

3300

1800

390

150

µF

R15/0805

R18/1206

S41/1210

E/B

.125 ±.010

.095 ±.010

.080 Max.

.020 ±.010

(3.18 ±.25)

(2.41 ±.25)

(2.03)

(0.51±.25)

R29/1808

E/B

.185 ±.020

.080 ±.010

.085 Max.

.020 ±.010

(4.70 ±.51)

(2.03 ±.25)

(2.16)

(0.51±.25)

Available cap. values include these significant retma values and their multiples: 1.0 1.2 1.5 1.8 2.2 2.7 3.3 3.9 4.7 5.6 6.8 8.2

( 1.0 = 1.0, 10, 100, 1000, etc.) Consult factory for non-retma values and sizes or voltages not shown.

www.johanson dielectrics.com
