1mm Pitch Connector for Vertical Connection
FX5 Series
Connecting Height: Low profile
FX5_*S2A_DSA
FX5_*P_SH
( 3.6 )
PCB

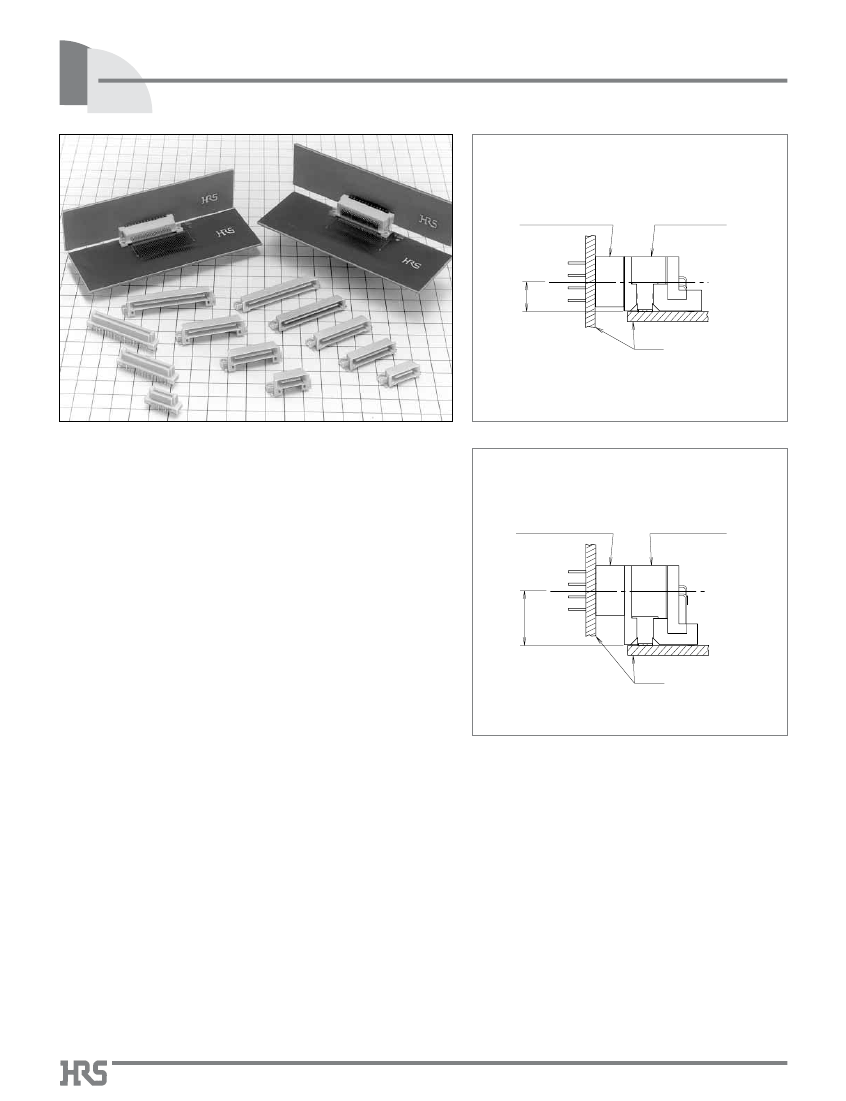

■Features
1. Header Side : 2 Types Available
Two header types, low profile and high profile, are prepared
according to the contact number variation and the connecting
height variation, considering unit connections of HDD, FDD, CD-
ROM and so on.
Connecting Height: High profile
FX5_*S2A_DSA
FX5_*P_SH3
2. Two-stages Sequential Structure
( 6.6 )
The connecting sequence is designed with 2 stages so that the
end user side can maintain.
3. Mating Guide
In the connecting process, the self-alignment is
±1mm
high
sufficient to the guide level, and the guide rib is provided to
achieve easy mating.
PCB
4. SMT Coplanarity
The coplanarity of SMT soldered area secures the high accuracy
of 0.1mm.
5. Miniaturization
The connector is miniaturized about 30% in the mounting area,
compared with the conventional half pitch connector (1.27mm).
■Applications
Note PC , other business equipments
A128
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
FX5 Series●1mm Pitch Connector for Vertical Connection
■Product
Specifications
Rating
Current rating
0.5A
Operating Temperature Range -55ç to +85ç (Note 1) Storage Temperature Range -10ç to +60ç (Note 2)
40% to 80%
Storage Humidity Range
40% to 70%
Voltage rating 100V AC Operating Humidity Range
Item
1. Insulation Resistance
2. Withstanding voltage
3. Contact Resistance
4. Vibration
5. Moisture Resistance
6. Temperature Cycle
100M
ohms
min.
Specifications
250V DC
300V AC/1 minute
100mA
Condition
No flashover or insulation breakdown.
50m
ohms
max.
No electrical discontinuity of 1μs or more
Contact resistance: 60m
ohms
max. Insulation resistance: 100M
ohms
min.
Contact resistance: 60m
ohms
max.
Insulation resistance: 100M
ohms
min.
Frequency: 10 to 55 Hz, single amplitude of 0.75 mm, 2 hours in each of the 3 directions.
96 hours at temperature of 40ç and humidity of 90% to 95%
No deformation of components affecting performance.
Reflow: At the recommended temperature profile
Manual soldering: 360ç for 5 seconds
Solder Bath: 260ç for 10 seconds
Manual soldering: 360ç for 5 seconds
DIP
Note 1: Includes temperature rise caused by current flow.
Note 2: The term "storage" refers to products stored for long period of time prior to mounting and use. Operating Temperature Range and
Humidity range covers non conducting condition of installed connectors in storage, shipment or during transportation.
Note 3: Information contained in this catalog represents general requirements for this Series. Contact us for the drawings and specifications for
a specific part number shown.
■Material
Part
Insulator
Header Contact
Receptacle Contact
Material
Polyamide
Brass
Phosphor bronze
Finish
Beige
Contact area : Gold plated
Lead area : Tin plated
Remarks
UL94V-0
________
________
Note : The black dots on the insulater will not affect performance.
■Ordering
Information
●Header
FX5 –
*
P – SH 3
q
w
e
r
t
q
Series Name
e
Connector Type
r
Contact type
SH
: FX5
P: Header
t
Connector Height
Blank
3
: 6.5mm
: 9.5mm
w
Number of Contacts : 20, 40, 52, 56, 68, 80
: Right angle SMT type
Note: The 56 contact header is for SH 3 type only.
●Receptacle
FX5 –
*
S 2 A – DSA L
q
w
e
r
t
y
u
q
Series Name
e
Connector Type
r
Contact Sequence
2
t
Serial No. : A
: FX5
S: Receptacle
: 2 Stages Sequence
y
Contact type
DSA
Blank
L
: Straight through hole type
: Without board prefixed pin
: With board Prefixed pin
u
Board prefixed pin
w
Number of Contacts : 20, 40, 52, 56, 68, 80
A129
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued,
Connector for Vertical Connection
FX5 Series●1mm Pitch
or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.

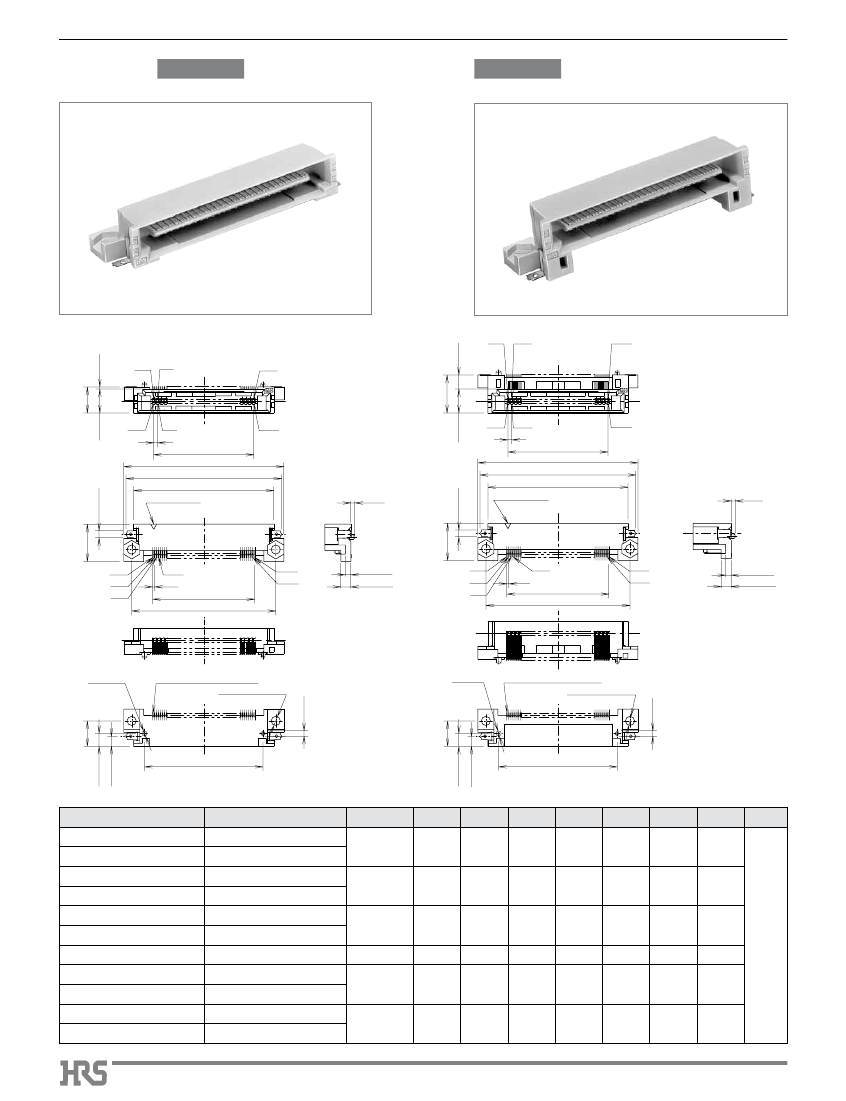

■Header
Low profile
High profile
b1
( 0.5 )
b1
b2
b*
9.5±0.3
( 3.5 )
b2
b*
6.5±0.3
* *
* *
b1
b1
a1
6±0.3
6±0.3
a1
*
= (number of contacts)/2
=
a1
a2
1
A
B±0.3
C±0.5
D±0.3
Polarity Mark
a*
a1
a2
1
a*
1.7±0.3
1.7±0.3
0
1
_0.2
A
B±0.3
C±0.5
D±0.3
Polarity Mark
0
1
_0.2
9.3±0.3
9.3±0.3
a1
b1
a2
b2
0.5
E
F±0.3
b*
a*
1.4±0.3
2.5±0.3
a1
b1
a2
b2
0.5
E
F±0.3
b*
a*
1.4±0.3
2.5±0.3
( Ø1.3 )
t0.2±0.05∞w0.2±0.05
2_Ø2.3±0.15
( 1.3 )
6.35±0.3
( Ø1.3 )
t0.2±0.05∞w0.2±0.05
2_Ø2.3±0.15
( 1.3 )
6.35±0.3
G±0.1
3.2±0.2
2.5±0.3
3.2±0.2
2.5±0.3
G±0.1
Unit: mm
Part Number
FX5-20P-SH(71)
FX5-20P-SH3(71)
FX5-40P-SH(71)
FX5-40P-SH3(71)
FX5-52P-SH(71)
FX5-52P-SH3(71)
FX5-56P-SH3(71)
FX5-68P-SH(71)
FX5-68P-SH3(71)
FX5-80P-SH(71)
FX5-80P-SH3(71)
CL No.
575-0001-7-71
575-0041-1-71
575-0005-8-71
575-0045-2-71
575-0006-0-71
575-0046-5-71
575-1001-2-71
575-0008-6-71
575-0048-0-71
575-0009-9-71
575-0049-3-71
Number of Contacts
20
40
52
56
68
80
A
9
19
25
27
33
39
B
24
34
40
42
48
54
C
22.9
32.9
38.9
40.9
46.9
52.9
D
19
29
35
37
43
49
E
9.5
19.5
25.5
27.5
33.5
39.5
F
20
30
36
38
44
50
G
13.6
23.6
29.6
31.6
37.6
43.6
RoHS
YES
A130
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
FX5 Series●1mm Pitch Connector for Vertical Connection

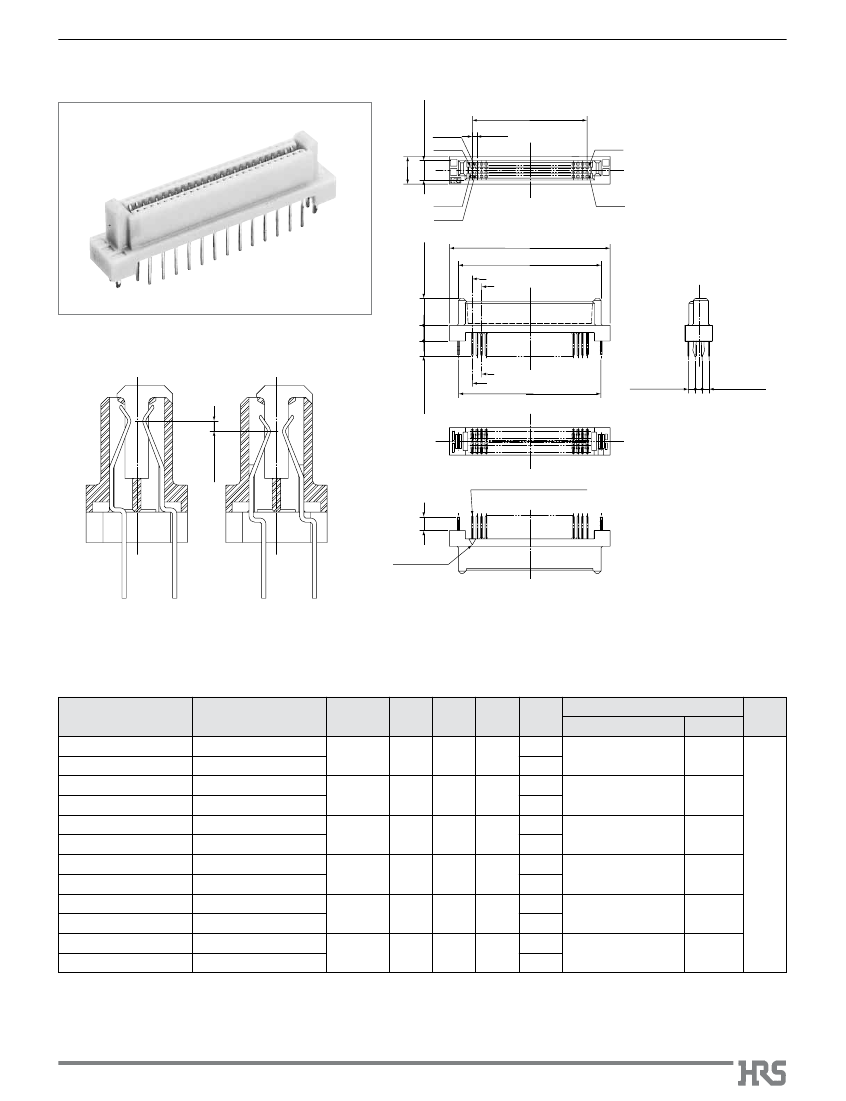

■Receptacle
4.25±0.2
A ±0.2
a2
a1
b1 a1
1
a*
* *
6±0.3
* = (number of contacts)/2
b1
b2
B ±0.3
5.9±0.2
C
E
F
+0.1
–0.2
b*
E–E
F–F
3.3±0.3
3.4±0.3
F
E
D ±0.3
1.5±0.2
1.5±0.2
1.5±0.2
0.6±0.3
t0.25±0.03xw0.4±0.05
3±0.3
Polarity Mark
Unit: mm
Part Number
FX5-20S2A-DSA(71)
FX5-20S2A-DSAL(71)
FX5-40S2A-DSA(71)
FX5-40S2A-DSAL(71)
FX5-52S2A-DSA(71)
FX5-52S2A-DSAL(71)
FX5-56S2A-DSA(71)
FX5-56S2A-DSAL(71)
FX5-68S2A-DSA(71)
FX5-68S2A-DSAL(71)
FX5-80S2A-DSA(71)
FX5-80S2A-DSAL(71)
CL No.
575-0101-1-71
575-0121-9-71
575-0105-2-71
575-0125-0-71
575-0106-5-71
575-0126-2-71
575-0107-8-71
575-0127-5-71
575-0108-0-71
575-0128-8-71
575-0109-3-71
575-0129-0-71
Number of Contacts
20
40
52
56
68
80
A
9
19
25
27
33
39
B
19
29
35
37
43
49
C
15.08
25.08
31.08
33.08
39.08
45.08
D
__
15
__
25
__
31
__
33
__
39
__
45
Order of Contact Sequence(Contact No.)
1
a1,a2,a9,a10
b1,b2,b9,b10
a1,a2,a19,a20
b1,b2,b19,b20
a1,a2,a25,a26
b1,b2,b25,b26
a1,a2,a27,a28
b1,b2,b27,b28
a1,a2,a33,a34
b1,b2,b33,b34
a1,a2,a39,a40
b1,b2,b39,b40
2
a3
to
a8
b3
to
b8
a3
to
a18
b3
to
b18
a3
to
a24
b3
to
b24
a3
to
a26
b3
to
b26
a3
to
a32
b3
to
b32
a3
to
a38
b3
to
b38
YES
RoHS
A131
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued,
Connector for Vertical Connection
FX5 Series●1mm Pitch
or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
BPCB
mounting pattern
●Header
FX5-*-SH, FX5-*-SH3
4±0.1
A ±0.1
B ±0.05
2.05±0.05
3.15±0.1
C ±0.05
0.5±0.02
0.3±0.03 (Land pattern)
0.25±0.03 (Metal mask)
4±0.1
(Mating side)
(5.95)
2.55±0.1
2.1±0.1
a1
(Polarity mark position)
b1
b2
a2
D±0.1
a*
b*
2-Ø2.3
+0.1
0
2.15±0.1
3.4±0.1
* = (number of contacts)/2
2-Ø1.4±0.05
●Receptacle
FX5-*S2A-DSA
E ±0.1
1±0.05
a2
a1
(Polarity mark position)
a3
a4
1.5±0.05
b4
b3
Ø0.6
+0.1
0
b*
1.5±0.05
1.5±0.05
b*
1.5±0.05
1.5±0.05
b4
b3
b2
Ø0.6
+0.1
0
* = (number of contacts)/2
* = (number of contacts)/2
F ±0.1
3±0.05
1±0.05
a2
a1
(Polarity mark position)
a3
a4
a*
E ±0.1
a*
1.5±0.05
b1
b2
FX5-*S2A-DSAL
2-Ø2.3
+0.1
0
b1
Unit: mm
Number of Contacts
20
40
52
56
68
80
A
16
26
32
34
40
46
B
13.6
23.6
29.6
31.6
37.6
43.6
C
9.5
19.5
25.5
27.5
33.5
39.5
D
20
30
36
38
44
50
E
9
19
25
27
33
39
F
15
25
31
33
39
45
Note: If the connector is installed in the board beyond the above recommended size, it may cause the connector to board mounting failure
or the soldering failure. It is desirable to implement the board process on the recommended PCB mounting pattern.
