114-13059

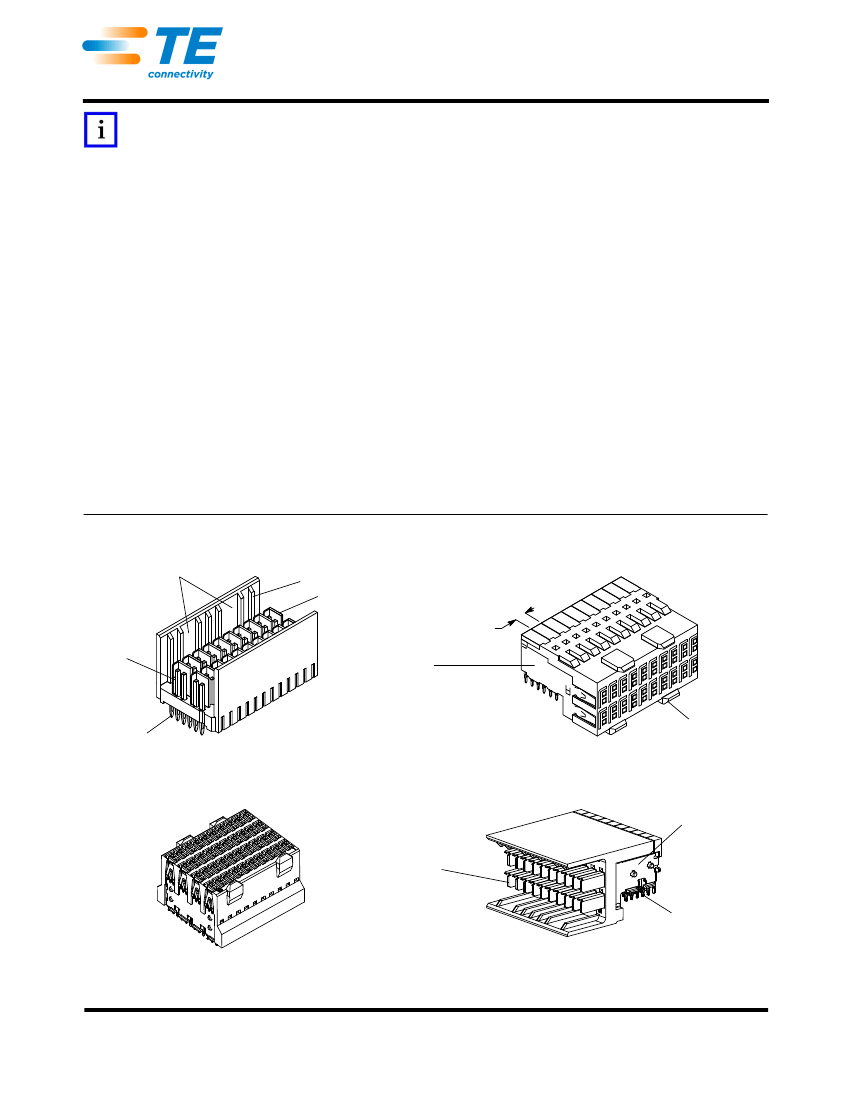

Universal Guide Pin and Guide Module
Female
Guide Module
Guide Pin

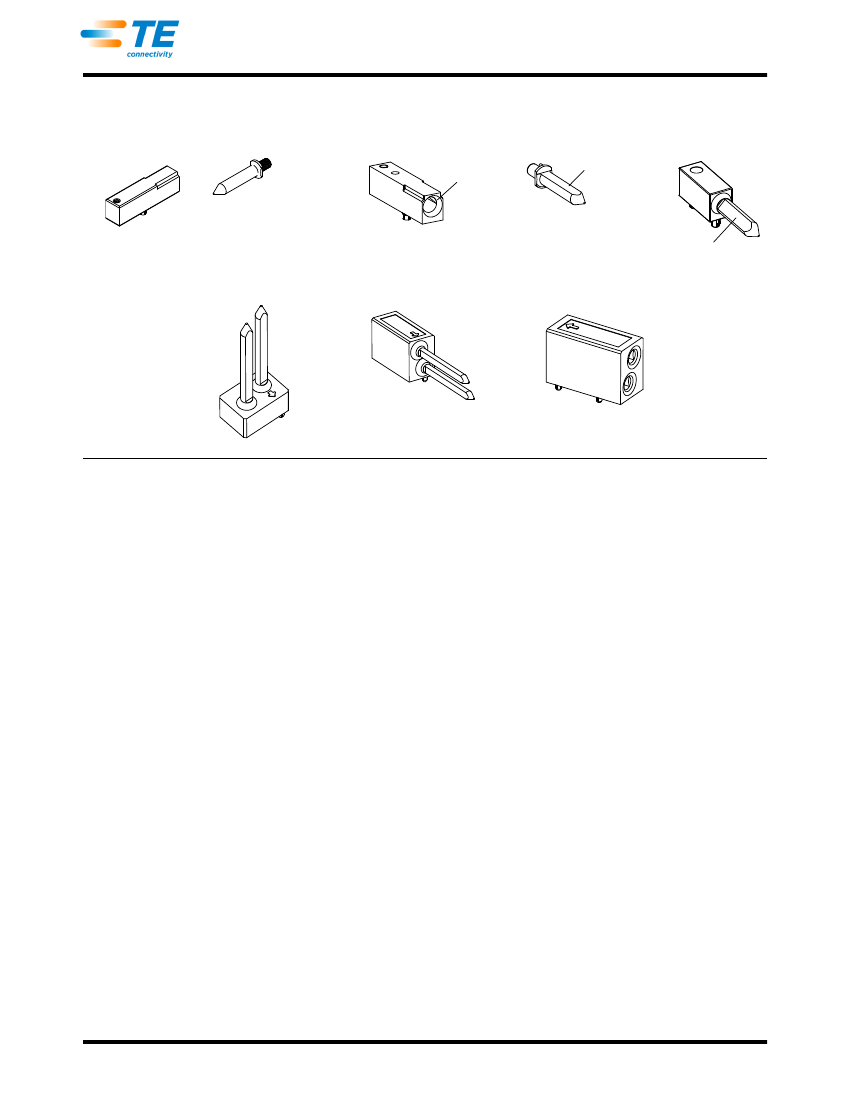

Universal Keyed Guide Pin and Guide Module
Female
Guide Module
Keyed
Surface
Guide Pin
Keyed
Surface
Right-Angle
Keyed Guide Pin
AdvancedTCA Guide Pins and Guide Module
Vertical Guide Pin
Right-Angle Guide Pin
Female Guide Pin
Keyed
Surface
Figure 1 (end)
2. REFERENCE MATERIAL
2.1. Revision Summary
Updated document to corporate requirements
Added pc board layout to Figure 3
Added new information to tables in Figures 4, 9, and 11
2.2. Customer Assistance
Reference Product Base Part Numbers 1469025 (2-pair HM-Zd pin header), 1469028 (2-pair HM-Zd
receptacle), 2065769 (2-pair HM-Zd Plus receptacle), and 2170328 (2-pair HM-Zd Plus pin header), and
Product Codes F269 and F270 are representative of these connectors. Use of these numbers will identify the
product line and help you to obtain product and tooling information when visiting
www.te.com
or calling the
number at the bottom of page 1.
2.3. Drawings
Customer drawings for product part numbers are available from
www.te.com.
Information contained in the
customer drawing takes priority.
2.4. Specifications
Product Specification
108-2055
and Qualification Test Report
501-568
provides product performance and test
information for HM Zd connectors.
Product Specification
108-2055-1
provides product performance and test information for HM Zd Plus
connectors.
Application Specification
114-1103
provides product description and application requirements for universal
power modules (UPM), vertical receptacles, and right-angle pin headers used with HM Zd connectors.
2.5. Instructional Material
Instruction sheets (408-series) provide product assembly instructions or tooling setup and operation
procedures. Instructional material available that pertains to this product are:
Rev
N
2
of 22
114-13059
408-8500
408-8501
408-8644
408-8645
408-8646
408-8647
408-8648
408-8785
408-8810
Seating Tools 91347-[ ], 91350-[ ], and 91376-1 for HM-Zd Receptacle Connectors
Seating Tools 91348-1, 91349-1, and 91375-1 for HM-Zd Header Connectors
HM-Zd Receptacle Housing Removal Tool 1583224-1
HM-Zd Header Removal Tools 1583220-1, 1583234-1, and 1673951-1
HM-Zd Pin (Post) Extraction Tool 1583237-1
HM-Zd Chicklet Removal Tools 1583248-1, 1583249-1, and 1673952-1
HM-Zd Pin (Post) Insertion Tool 1583255-1
Seating Tools 91372-1 and 91373-1 for HM-Zd Header Connectors
Seating Tools 91377-1 and 91378-1 for Z-PACK HM-Zd Right-Angle Header Connectors
3. REQUIREMENTS
3.1. Storage
The product should remain in the shipping containers until ready for use to prevent deformation to components.
The product should be used on a first in, first out basis to avoid storage contamination that could adversely
affect performance.
3.2. Material
The housings and chicklets are molded of high-temperature rated (UL 94V-0) polyesters.
The signal pin contacts are phosphor bronze and plated at the contact interface with gold. The signal
receptacle contacts are copper alloy and plated at the contact interface with gold. All contacts have a nickel
underplate and tin or tin-lead plated press-fit leads. Ground contacts are phosphor bronze and plated at the
contact interface with gold. All contacts have a nickel underplate and tin or tin-lead plated press-fit leads.
Universal guide modules and universal keyed guide pins are made of zinc alloy. Un-keyed guide pins are made
of stainless steel. AdvancedTCA guide hardware is made of a zinc alloy casting with a nickel finish.
3.3. Selection Criteria
A. Size
Length each pin is given in Figure 2.
B. Guide Modules and Pins
The guides modules and pins are recommended for multi-connector, large and heavy daughter card
applications and conditions where misalignment tolerances (given in Paragraph 3.7,A) cannot be met.
Signal Pin Post Length and Tail Length
Pin Level 1
3.8
1.8
3.8
Pin Level 2
5.3
2.5
1.8
5.3
2.5
Reference Line = Seating Plane of Connector
NOTE:
Contact area lubricated with Bellcore-approved lubricant. Technical Reference: GR-1217-CORE, Issue 1, November 1995.
Figure 2
Rev
N
3
of 22
114-13059
3.4. PC Board Requirements
A. Material and Thickness
Right-angle receptacles and pin headers require a daughter card having a minimum thickness of
1.40 mm. The maximum allowable thickness is 3.5 mm. A special pin header is required for a daughter
card thicker than 3.5 mm (contact PRODUCT INFORMATION at the number at the bottom of page 1 for
recommendation). For suitability of other daughter card thicknesses, contact PRODUCT INFORMATION
at the number at the bottom of page 1.
Vertical receptacles and pin headers require a minimum backplane thickness of 1.40 mm to allow for
positive retention of the compliant pin contacts. Midplane applications require a minimum backplane
thickness of 3.8 mm. Thicker backplanes will not affect the retention of the compliant pin contact.
NOTE
For circuit routing concerns, contact PRODUCT INFORMATION at the number at the bottom of page 1.
B. Layout

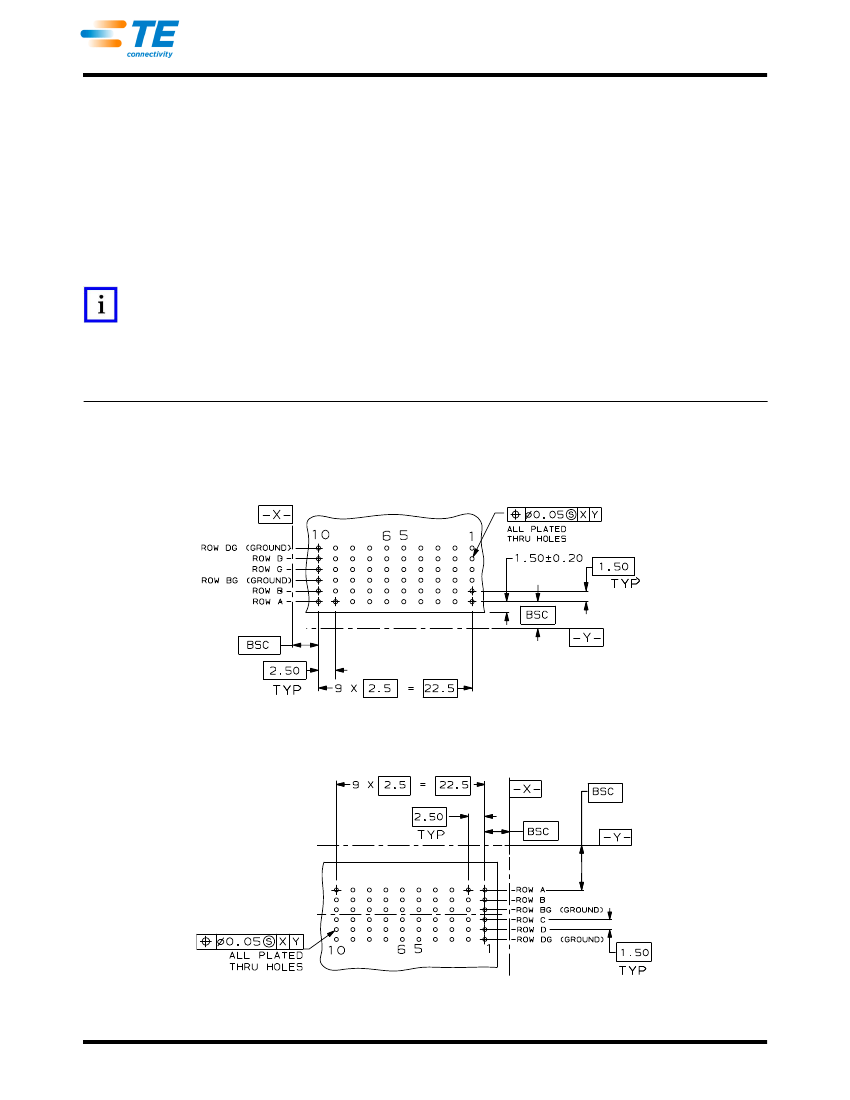

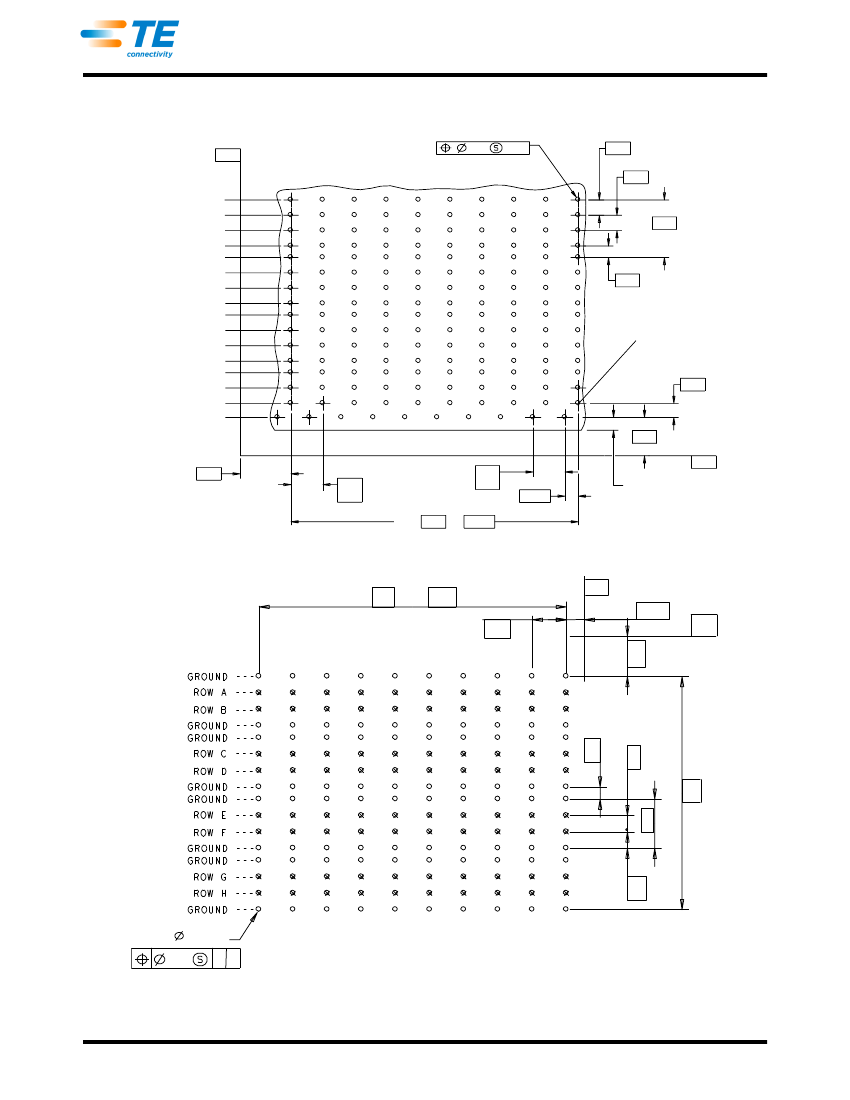

The pc board hole pattern for the placement of these connectors is provided in Figure 3. Datums and
