K22-C37P-NT30 datasheet, PDF - EEWORLD Datasheet

K22-C37P-NT30: DescriptionD Type Connector, 37 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, Hole .125-.137, Receptacle,; CategoryThe connector The connector; File Size323KB，3 Pages; ManufacturerKycon

Download Datasheet Parametric View All

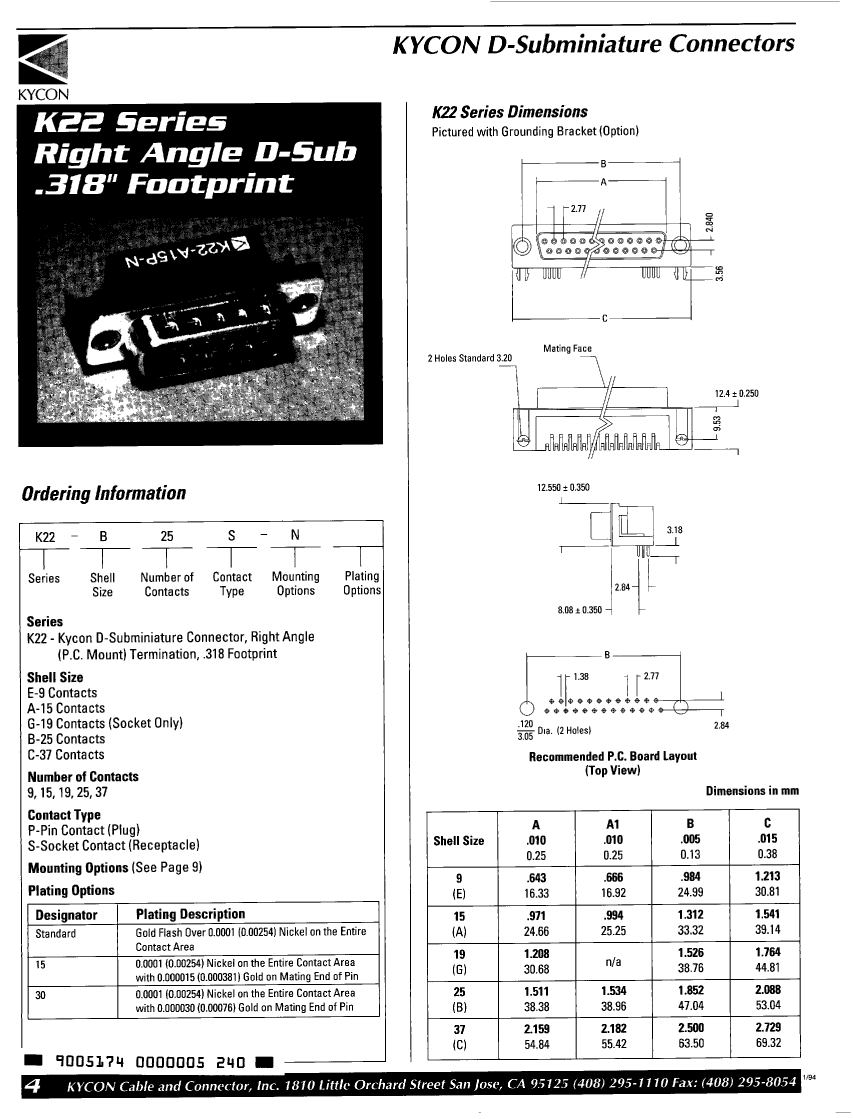

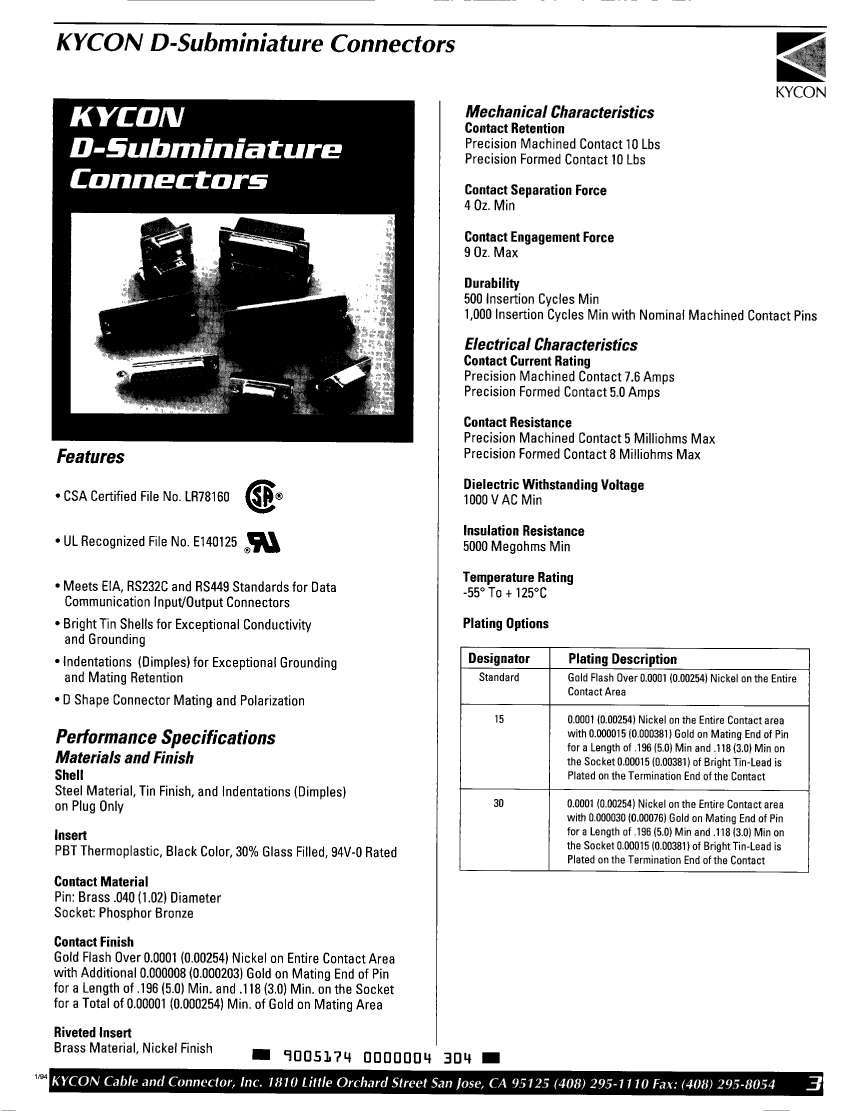

K22-C37P-NT30 Overview

D Type Connector, 37 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, Hole .125-.137, Receptacle,

Parameter Name	Attribute value
Objectid	1149719921
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	GNDING BRACKETS
body width	0.494 inch
subject depth	0.488 inch
body length	2.729 inch
Body/casing type	RECEPTACLE
Contact to complete cooperation	AU ON NI
Contact completed and terminated	GOLD
Contact point gender	MALE
Contact material	BRASS
contact mode	STAGGERED
Contact resistance	8 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1000VAC V
maximum insertion force	2.502 N
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED THERMOPLASTIC
JESD-609 code	e4
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch

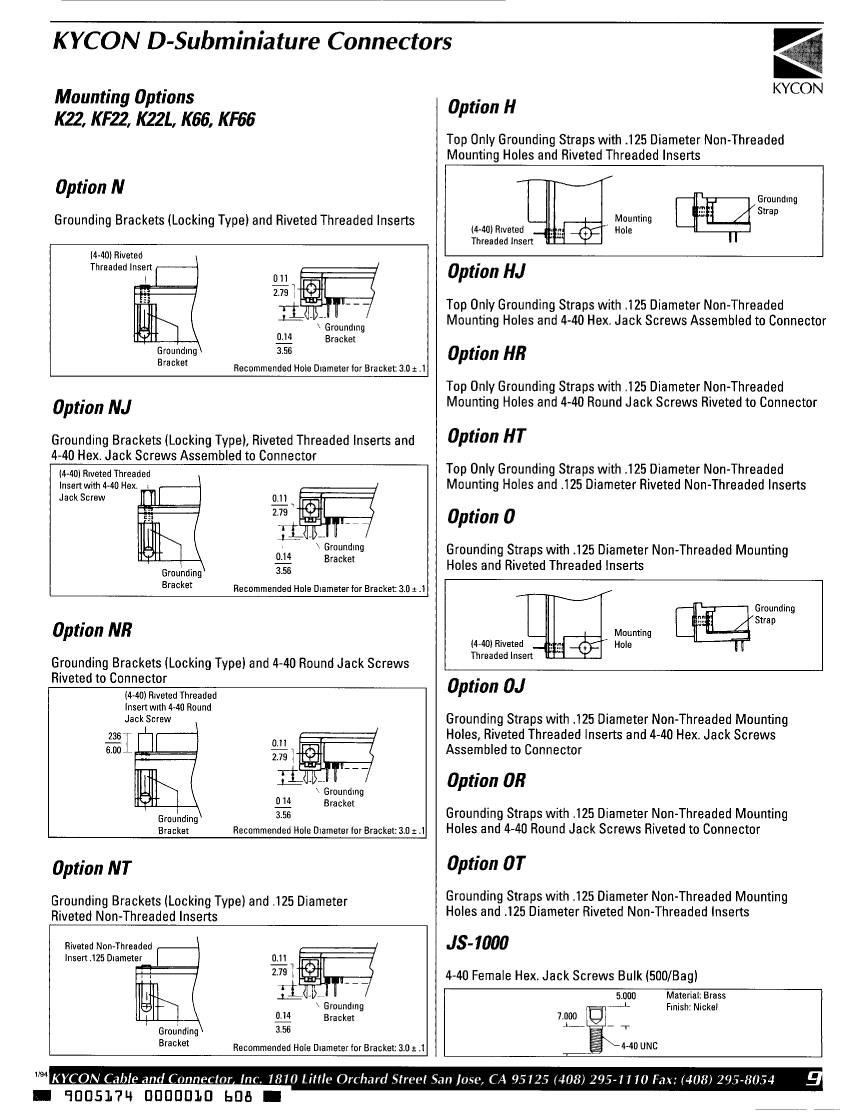

Installation option 1	HOLE .125-.137
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	2.8448 mm
Plating thickness	30u inch
Rated current (signal)	5 A
Guideline	UL, CSA
reliability	COMMERCIAL
Shell surface	TIN
Shell material	STEEL
Terminal length	0.125 inch
Terminal pitch	2.7686 mm
Termination type	SOLDER
Total number of contacts	37
Evacuation force-minimum value	1.112 N
