K42-B25P/S-A datasheet, PDF - EEWORLD Datasheet

K42-B25P/S-A: DescriptionD Type Connector, 25+25 Contact(s), Male/Female, 0.109 inch Pitch, Solder Terminal, #4-40, Plug/receptacle,; CategoryThe connector The connector; File Size203KB，2 Pages; ManufacturerKycon

Download Datasheet Parametric View All

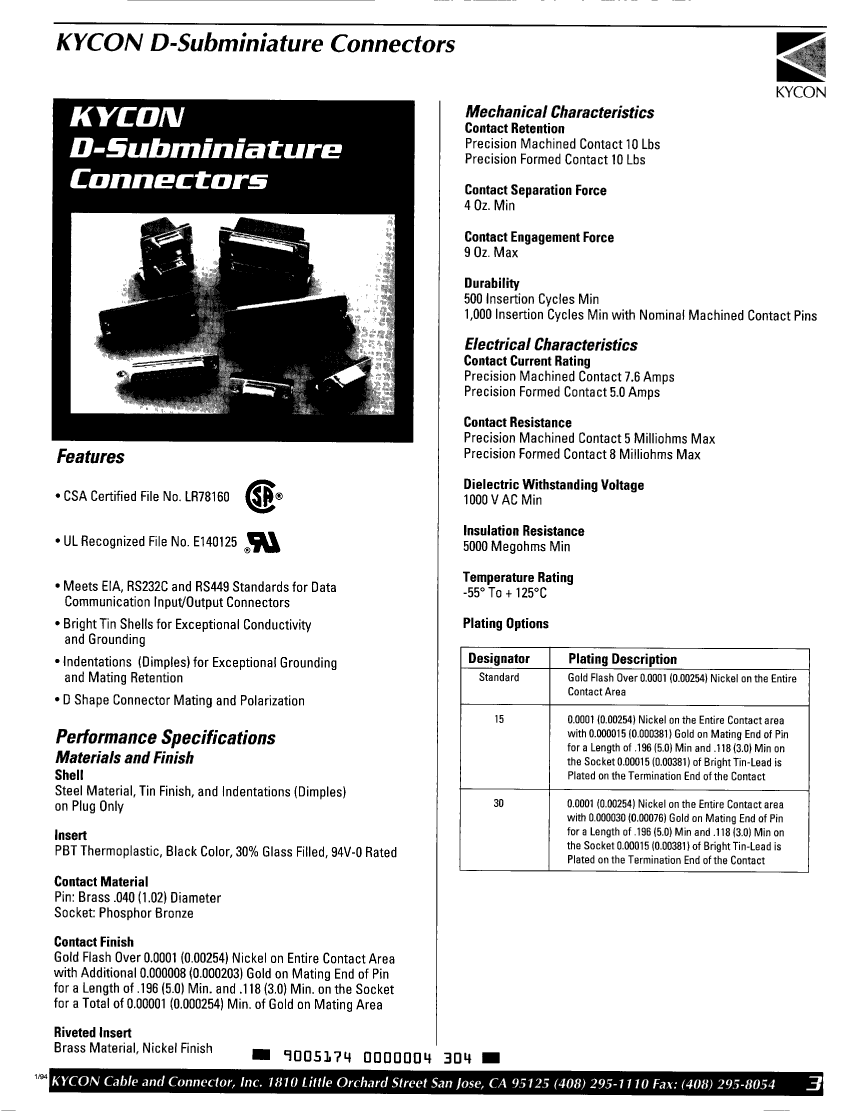

K42-B25P/S-A Overview

D Type Connector, 25+25 Contact(s), Male/Female, 0.109 inch Pitch, Solder Terminal, #4-40, Plug/receptacle,

Parameter Name	Attribute value
Objectid	1152739146
Reach Compliance Code	compliant
ECCN code	EAR99

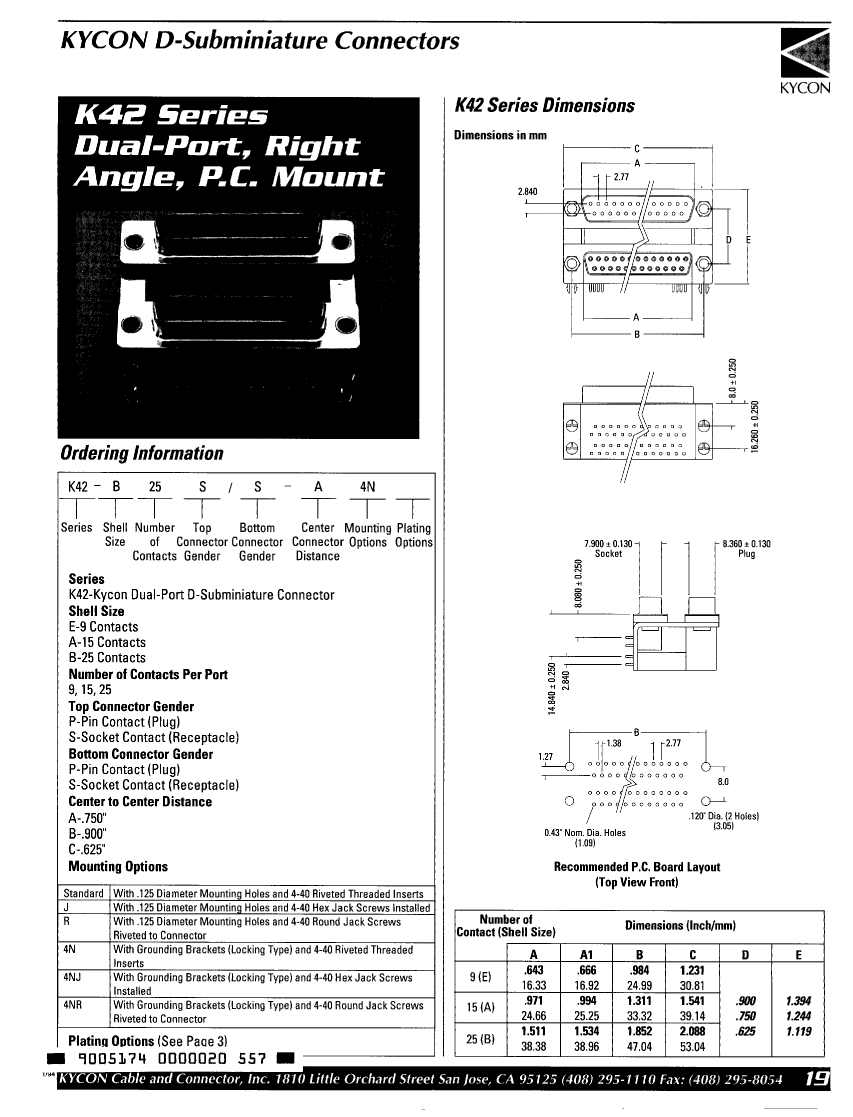

body width	1.394 inch
subject depth	1.244 inch
body length	2.088 inch
Body/casing type	PLUG-RECEPTACLE
Contact to complete cooperation	AU ON NI
Contact completed and terminated	GOLD
Contact point gender	MALE/FEMALE
Contact material	BRASS
contact mode	STAGGERED
Contact resistance	8 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1000VAC V
maximum insertion force	2.502 N
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED THERMOPLASTIC
JESD-609 code	e4
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Installation option 1	#4-40
Installation option 2	THREADED
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	4
Number of rows loaded	4
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	2.8448 mm
Plating thickness	FLASH inch
Rated current (signal)	5 A
Guideline	UL, CSA
reliability	COMMERCIAL
Shell surface	TIN
Shell material	STEEL
Terminal pitch	2.7686 mm
Termination type	SOLDER
Total number of contacts	50
Evacuation force-minimum value	1.112 N
