Clock Oscillators Surface Mount Type
Clock Z-Series
CMOS/ 1.8V, 2.5V, 3.3V/ 2.0×1.6, 2.5×2.0, 3.2×2.5, 5.0×3.2, 7.0×5.0mm
RoHS Compliant

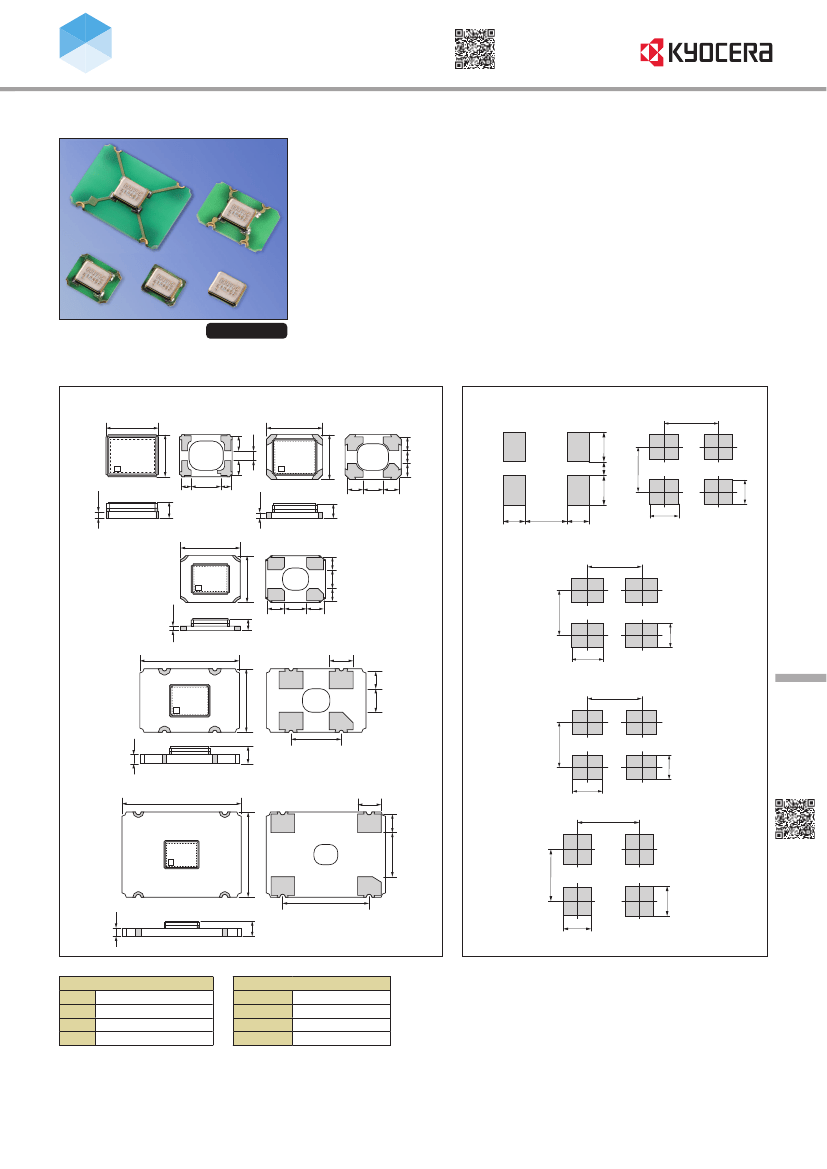

Dimensions
KC2016Z
2.0
#3
1.6
#4
0.5
0.4
(Unit : mm)
KC2520Z
2.5
#3
#4
0.6 0.6 0.6
Recommended Land Patterns
KC2016Z
KC2520Z
1.85
(Unit : mm)
2.0
0.8
#2
0.24
0.3
0.8 max.
1.2
#1
0.24
0.3
0.8 max.
0.7
0.9
0.7
0.6
1.2
0.6
Tolerance : ±0.2mm
3.2 0.15
Tolerance : ±0.1mm
1.05
KC3225Z
0.65 1.0 0.65
KC3225Z
2.5 0.15
2.2
#3
#2
#4
#1
0.24
0.8 max.
0.9
1.2
0.9
1.75
Tolerance : ±0.1mm
1.2
0.9
1.2
KC5032Z
5.0
KC5032Z
3.2
#2
#1
0.5
1.2 max.
KC7050Z
7.0
1.4
1.1
1.6
KC7050Z
5.08
#3
5.0
#4
2.6
4.2
#2
#1
0.5
5.08
1.2 max.
1.8
Tolerance : ±0.2mm
#1
#2
#3
#4
Pad Connections
INH
Case GND
Output
V
CC
Pad1
Open
"H" Level
"L" Level
INH Function
Pad3 (Output)
Active
Active
High Z (No-Oscillation)
As of December 2019
2.0
1.4
Tolerance : ±0.2mm
2.2
2.54
1.2
#3
#4
0.95
0.95
0.8
#2
#1
1.45
0.5
0.4
Crystal Oscillators
2.5

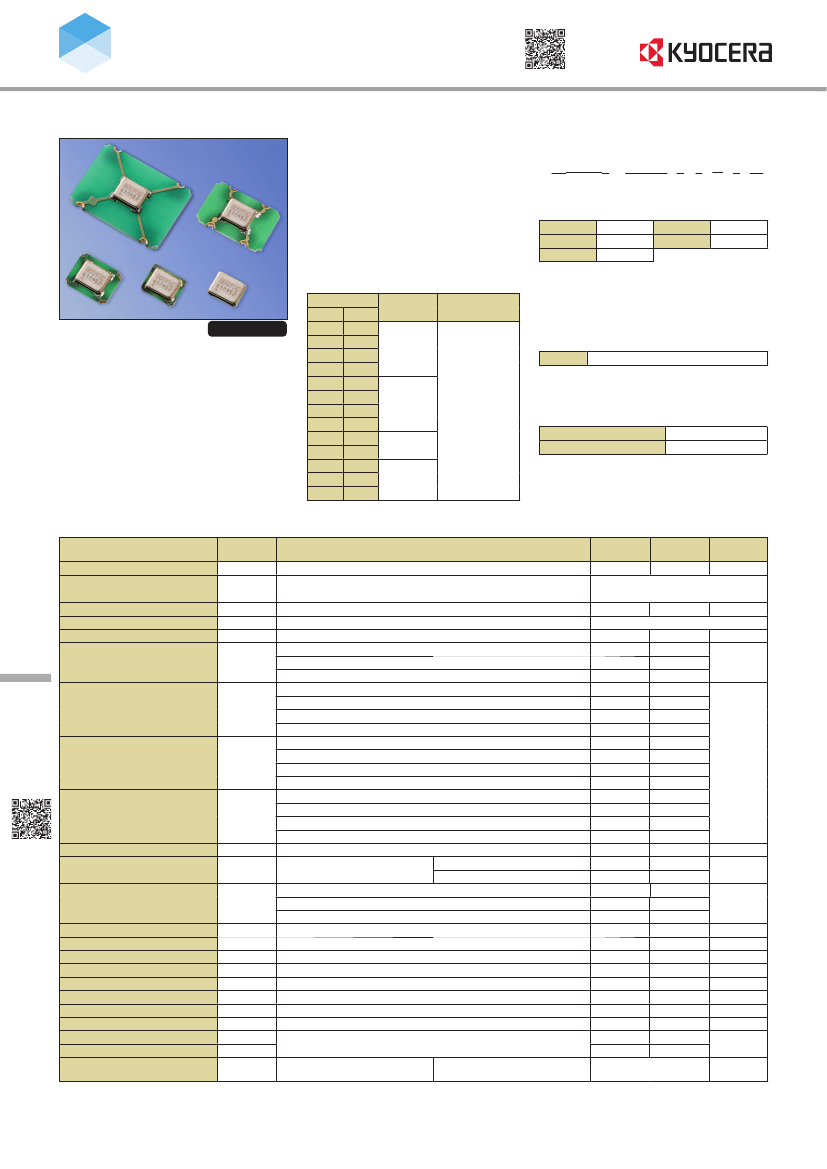

Clock Oscillators Surface Mount Type
Clock Z-Series “Y” type (CMOS, Low Jitter type)
CMOS/ 1.8V, 2.5V, 3.3V / 2.0×1.6, 2.5×2.0, 3.2×2.5, 5.0×3.2, 7.0×5.0mm
Features
• Frequency Range 24 to 72 MHz
• CMOS Output
• Low Jitter
• Heat resistant up to +125°C
How to Order
KC
Z 25.0000 C 1
Series
KC2016Z
KC3225Z
KC7050Z
2016 Size
3225 Size
7050 Size
KC2520Z
KC5032Z
Y 00
Applications
• Consumer/ Networking/ Industrial/ Amuse
2520 Size
5032 Size
Table 3
RoHS Compliant
Operating
Freq. Tol.
Temperature
Note
6
Code × 10
Range (°C)
± 50
0
± 30
S
10 to +70
± 25
U
± 20
W
± 50
G
± 30
H
For additional
40 to +85
± 25
stabillity, please
J
contact us.
± 20
K
± 50
6
40 to +105
± 30
5
± 100
X
± 50 40 to +125
Z
± 30
9
Output Frequency (25.0000 : 25MHz)
Output Type (C : CMOS)
Supply Voltage
(1 : 1.8V/ 2.5V/ 3.3V Compatible)
Frequency Tolerance (See Table 3)
Symmetry/ INH Function
Y
STD/ Low Jitter 45/ 55%
Individual Specification
(STD Specification is “00”.)
Packaging Tape&Reel
KC7050Z/ KC5032Z
KC3225Z/ KC2520Z/ KC2016Z
1000 pcs./ reel
2000 pcs./ reel
Specifications
Item
Output Frequency Range
Frequency Tolerance
Storage Temperature Range
Operating Temperature Range
Max. Supply Voltage
Supply Voltage
Symbol
fo
f
_tol
T
_stg
T
_use
—
V
CC
24 fo<30MHz
30 fo<50MHz
50 fo 60MHz
60<fo<72MHz
24 fo<30MHz
30 fo<50MHz
50 fo 60MHz
60<fo<72MHz
24 fo<30MHz
30 fo<50MHz
50 fo 60MHz
60<fo<72MHz
@50% V
CC
Loaded/ 1.71 V
CC
1.89
Loaded/ 2.25 V
CC
2.75
Loaded/ 2.97 V
CC
3.63
I
OL
= 4mA
I
OH
=
24 fo 40MHz
40<fo 72MHz
Conditions
Initial tolerance, Operating temperature range, Rated power supply voltage
change, Load change, Aging (1 year @25°C), Shock and vibration
Min.
24
Max.
72
See Table 3
150
See Table 3
4.5
1.89
2.75
3.63
2.7
3.3
3.7
4
3.5
4
4.3
4.8
4
5
5.5
6
5
55
55
4
3.2
2.7
10% V
CC
—
15
30% V
CC
—
200
5
5
5
50
1
°C
V
V
Unit
MHz
Current Consumption
(Noload/ 1.71 V
CC
1.89)
Current Consumption
(Noload/ 2.25<V
CC
2.75)
Current Consumption
(Noload/ 2.97<V
CC
3.63)
Stand-by Current
Symmetry
Rise/ Fall Time
(20% to 80% Output Level)
Low Level Output Voltage
High Level Output Voltage
Output Load (CMOS)
Low Level Input Voltage
High Level Input Voltage
Disable Time
Enable Time
Start-up Time
1 Sigma Jitter
Peak to Peak Jitter
Phase Jitter
I
CC
I
CC
I
CC
I
_std
SYM
Tr/ Tf
V
OL
V
OH
L
_
CMOS
V
IL
V
IH
t
_dis
t
_ena
t
_str
J
Sigma
J
PK_PK
—
@Minimum operating voltage to be 0 sec.
Measured with Wavecrest SIA-3000
@50MHz
V
CC
= 3.3V
BW : 12kHz to 20MHz
0.3
1.71
2.25
2.97
—
—
—
—
—
—
—
—
—
—
—
—
—
40
45
—
—
—
—
90% V
CC
—
—
70% V
CC
—
—
—
—
—
Crystal Oscillators
mA
μA
%
ns
V
V
pF
V
V
ns
ms
ms
ps
ps
All electrical characteristics are defined at the maximum load and operating temperature range.
As of December 2019

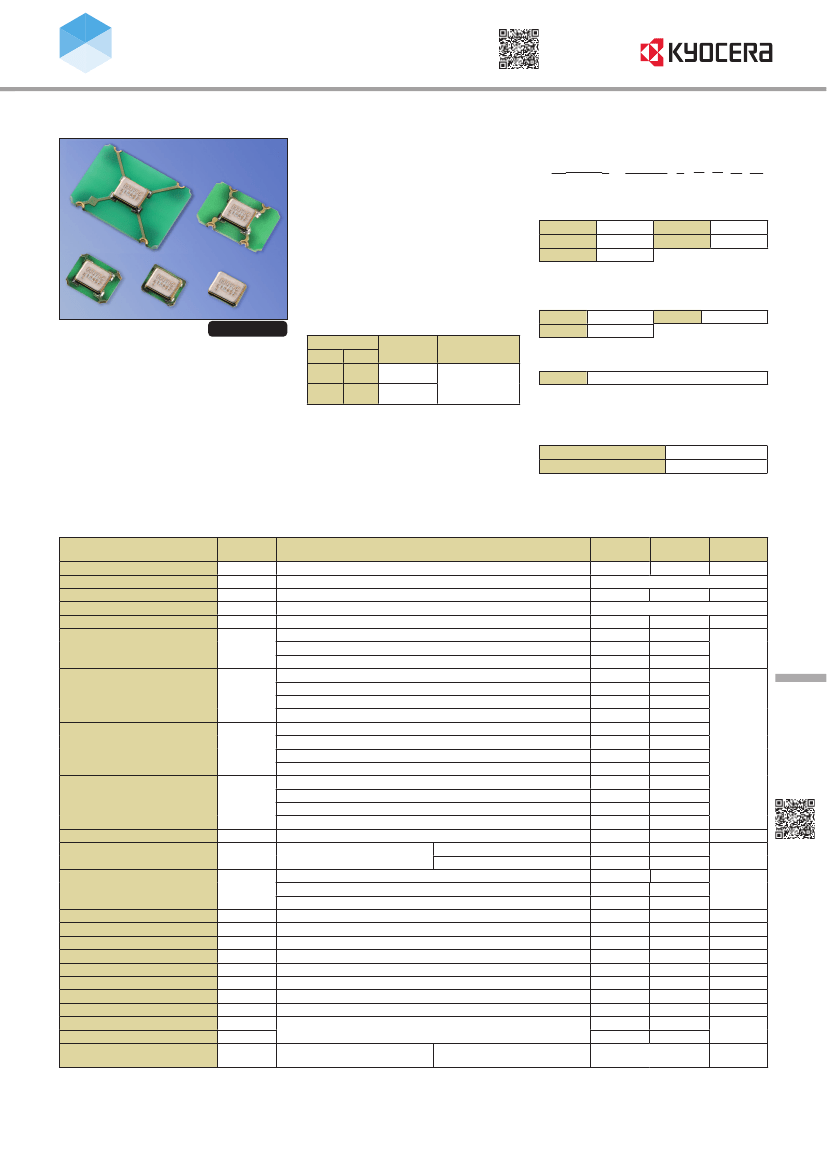

Clock Oscillators Surface Mount Type
Clock Z-Series “W” type (CMOS, TCXO type)
CMOS/ 1.8V, 2.5V, 3.3V / 2.0×1.6, 2.5×2.0, 3.2×2.5, 5.0×3.2, 7.0×5.0mm
Features
• Frequency Range 24 to 72 MHz
• CMOS Output
• Low current consumption
• Tighter Tolerance
• Low Jitter
• Heat resistant up to +125°C
How to Order
KC
Z 25.0000 C
Series
KC2016Z
KC3225Z
KC7050Z
2016 Size
3225 Size
7050 Size
KC2520Z
KC5032Z
W 00
2520 Size
5032 Size
Applications
• Networking/ Industrial/ Smart meters/
Mobile Communications
Output Frequency (25.0000 : 25MHz)
Output Type (C : CMOS)
Supply Voltage
1
3
1.8V
3.3V
2
2.5V
RoHS Compliant
Table 4
Freq. Tol.
Code × 10
±5
C
N
± 15
6
Operating
Temperature
Range (°C)
Note
stabillity, please
40 to +85
For additional
40 to +105
contact us.
Frequency Tolerance (See Table 4)
Symmetry/ INH Function
W
STD 45/ 55%
Individual Specification
(STD Specification is “00”.)
Packaging Tape&Reel
KC7050Z/ KC5032Z
KC3225Z/ KC2520Z/ KC2016Z
1000 pcs./ reel
2000 pcs./ reel
Specifications
Item
Output Frequency Range
Frequency Tolerance
Storage Temperature Range
Operating Temperature Range
Max. Supply Voltage
Supply Voltage
Current Consumption
(Noload/ 1.71 V
CC
1.89)
Current Consumption
(Noload/ 2.25<V
CC
2.75)
Current Consumption
(Noload/ 2.97<V
CC
3.63)
Stand-by Current
Symmetry
Rise/ Fall Time
(20% to 80% Output Level)
Low Level Output Voltage
High Level Output Voltage
Output Load (CMOS)
Low Level Input Voltage
High Level Input Voltage
Disable Time
Enable Time
Start-up Time
1 Sigma Jitter
Peak to Peak Jitter
Phase Jitter
Symbol
fo
f
_tol
T
_stg
T
_use
—
V
CC
24 fo<30MHz
30 fo<50MHz
50 fo 60MHz
60<fo<72MHz
24 fo<30MHz
30 fo<50MHz
50 fo 60MHz
60<fo<72MHz
24 fo<30MHz
30 fo<50MHz
50 fo 60MHz
60<fo<72MHz
@50% V
CC
Loaded/ 1.71 V
CC
1.89
Loaded/ 2.25 V
CC
2.75
Loaded/ 2.97 V
CC
3.63
I
OL
= 4mA
I
OH
=
24 fo 40MHz
40<fo 72MHz
Conditions
Initial tolerance, Operating temperature range
Min.
24
Max.
72
See Table 4
150
See Table 4
4.5
1.89
2.75
3.63
2.7
3.3
3.7
4
3.5
4
4.3
4.8
4
5
5.5
6
5
55
55
4
3.2
2.7
10% V
CC
—
15
30% V
CC
—
200
5
5
5
50
1
Unit
MHz
°C
V
V
I
CC
I
CC
I
CC
I
_std
SYM
Tr/ Tf
V
OL
V
OH
L
_
CMOS
V
IL
V
IH
t
_dis
t
_ena
t
_str
J
Sigma
J
PK_PK
—
@Minimum operating voltage to be 0 sec.
Measured with Wavecrest SIA-3000
@50MHz
V
CC
= 3.3V
BW : 12kHz to 20MHz
1.71
2.25
2.97
—
—
—
—
—
—
—
—
—
—
—
—
—
40
45
—
—
—
—
90% V
CC
—
—
70% V
CC
—
—
—
—
—
Crystal Oscillators
mA
μA
%
ns
V
V
pF
V
V
ns
ms
ms
ps
ps
All electrical characteristics are defined at the maximum load and operating temperature range.
As of December 2019
