NOTES:
1.
MATERIALS AND FINISHES:
INTERFACE BODY - BeCu, WHITE BRONZE PLATING
CONTACT & PCB BODY- BeCu, GOLD PLATING OVER WHITE BRONZE
INSULATOR - PTFE
ELECTRICAL:
A. IMPEDANCE: 50 OHM
B. FREQUENCY RANGE: DC - 6 GHz
C. DIELECTRIC WITHSTANDING VOLTAGE:
THIRD ANGLE PROJ.
REV
REVISIONS
A
B
RELEASE TO MFG.
SEE SHEET 1
DESCRIPTION
3/9/11
8/8/06
DATE
46108
48226
ECO
KJC
APPR
JTS
2.
500 VRMS, MIN.
3.
MECHANICAL:
A. DURABILITY: 500 CYCLES MIN.
B. TEMPERATURE RANGE: -65 $C TO 165 $C
PACKAGING:
A. QUANTITY: BULK PACK 100
B. MARKING: BAG TO BE MARKED
"AMPHENOL, 908-NM24100 100 PIECES, DATE CODE"
AND "NON-MAGNETIC CONNECTORS"
THIS SURFACE MARKED "NM"
TO SIGNIFY NON MAGNETIC CONNECTOR
4.
6.86 REF.
SCALE
4.31
2.53 REF
0.50
0.50
3.45
2.54
5.000
0.70
2.54
2.54
TYP
.80
TYP (5)
6.50 REF
4.78 REF
RECOMMENDED MOUNTING
HOLE DIMENSIONS

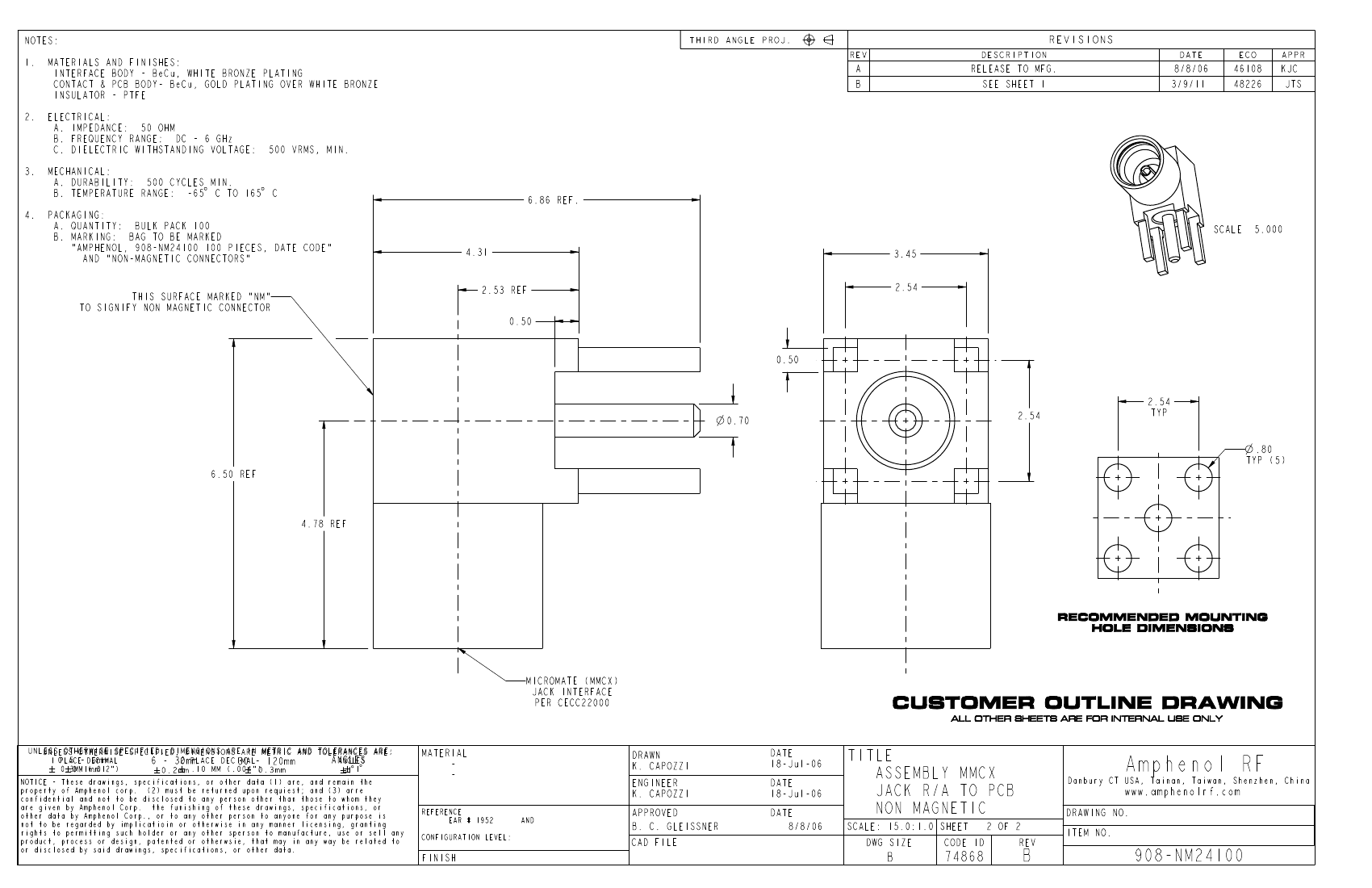

MICROMATE (MMCX)
JACK INTERFACE
PER CECC22000
NOTICE - These drawings, specifications, or other data (1) are, and remain the
property of Amphenol corp. (2) must be returned upon requiest; and (3) arre
confidential and not to be disclosed to any person other than those to whom
they
are given by Amphenol Corp. the funishing of these drawings, specifications,
or
other data by Amphenol Corp., or to any other person to anyone for any purpose
is
not to be regarded by implicatioin or otherwise in any manner licensing,
granting
rights to permitting such holder or any other sperson to manufacture, use or
sell any
product, process or design, patented or otherwsie, that may in any way be
related to
or disclosed by said drawings, specifications, or other data.
UNLESS OTHERWISE SPECIFIED, DIMENSIONS AREARE METRIC AND TOLERANCES ARE:
UNLESS OTHERWISE SPECIFIED, DIMENSIONS IN
1 0.5 - DECIMAL
PLACE 6mm
2 PLACE DECIMAL
- 120mm
ANGLES
ANGLES
6 - 30mm
30
# 0.3MM (.012")
#
#
#
0.1mm
# 0.3mm
# 1$
1 $
#
0.2mm .10 MM (.004")
MATERIAL
-
-
REFERENCE
EAR # 1952
CONFIGURATION LEVEL:
DRAWN
K. CAPOZZI
ENGINEER
K. CAPOZZI
AND
DATE
18-Jul-06
DATE
18-Jul-06
DATE
8/8/06
FINISH
CAD FILE
APPROVED
B. C. GLEISSNER
SCALE: 15.0:1.0 SHEET
DWG SIZE
TITLE
ASSEMBLY MMCX
JACK R/A TO PCB
NON MAGNETIC
B
CODE ID
Danbury CT USA, Tainan, Taiwan, Shenzhen, China
www.amphenolrf.com
Amphenol RF
2 OF 2
DRAWING NO.
ITEM NO.
74868
REV
B
908-NM24100
