DSC533-052331KI1T datasheet, PDF

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> DSC533-052331KI1T

DSC533-052331KI1T: DescriptionOTHER CLOCK GENERATOR; CategoryThe embedded processor and controller Microcontrollers and processors; File Size771KB，12 Pages; ManufacturerMicrochip; Websitehttps://www.microchip.com; Environmental Compliance

Download Datasheet Parametric View All

DSC533-052331KI1T Overview

OTHER CLOCK GENERATOR

DSC533-052331KI1T Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	4000260200
package instruction	HVQCCN,
Reach Compliance Code	compliant
Country Of Origin	Thailand
ECCN code	EAR99
YTEOL	7.15
JESD-30 code	R-XQCC-N20
length	5 mm
Humidity sensitivity level	1
Number of terminals	20
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Maximum output clock frequency	460 MHz
Package body material	UNSPECIFIED
encapsulated code	HVQCCN
Encapsulate equivalent code	LCC20,.13X.2,20
Package shape	RECTANGULAR
Package form	CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE
Maximum seat height	0.9 mm
Maximum slew rate	155 mA
Maximum supply voltage	3.6 V
Minimum supply voltage	2.25 V
Nominal supply voltage	3.3 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	NO LEAD
Terminal pitch	0.5 mm
Terminal location	QUAD
width	3.2 mm
uPs/uCs/peripheral integrated circuit type	CLOCK GENERATOR, PROCESSOR SPECIFIC

Preview

Download Datasheet

View All

DSC533-05

Crystal-less™ Four output SAS Clock Generator

General Description

The DSC533-05 is a Crystal-less™, four

output clock generator that implements

Discera’s

proven

PureSilicon™

MEMS

technology. The device provides excellent

jitter and stability over a wide range of

supply voltages and temperatures.

eliminating the external quartz crystal,

MEMS

clock

generators

significantly

enhance reliability and accelerate product

development, while meeting stringent clock

performance criteria for a variety of

applications. The output frequencies in this

device are fixed and the outputs formats

may be factory configured to meet different

requirements such as LVCMOS, LVDS, HCSL

or LVPECL on any output independently.

DSC533-05 has an Output Enable / Disable

feature allowing it to disable all outputs

when OE1 and OE2 are low. See the OE

table 2 for more detail. The FS input select

line is for selecting the output frequency on

ClK0+/-. See table 1 for more details. The

device is available in a space saving 20 pin

QFN package.

Advance Datasheet

Features



Four LVPECL (default) Outputs

125MHz LAN Clock

133.3333MHz Memory Clock

100MHz PCIe Clock

Pin Selectable SAS clock:



25MHz, or 150MHz

LVPECL, HCSL, LVDS, LVCMOS

Industrial: -40° to 85° C

Ext. commercial: -20° to 70° C



Available Format on any output:



Wide Temperature Range



Supply Range of 2.25 to 3.6 V



Low Power Consumption

30% lower than competing devices

Qualified to MIL-STD-883

20 QFN



Excellent Shock & Vibration Immunity



Available Footprints:



Lead Free & RoHS Compliant

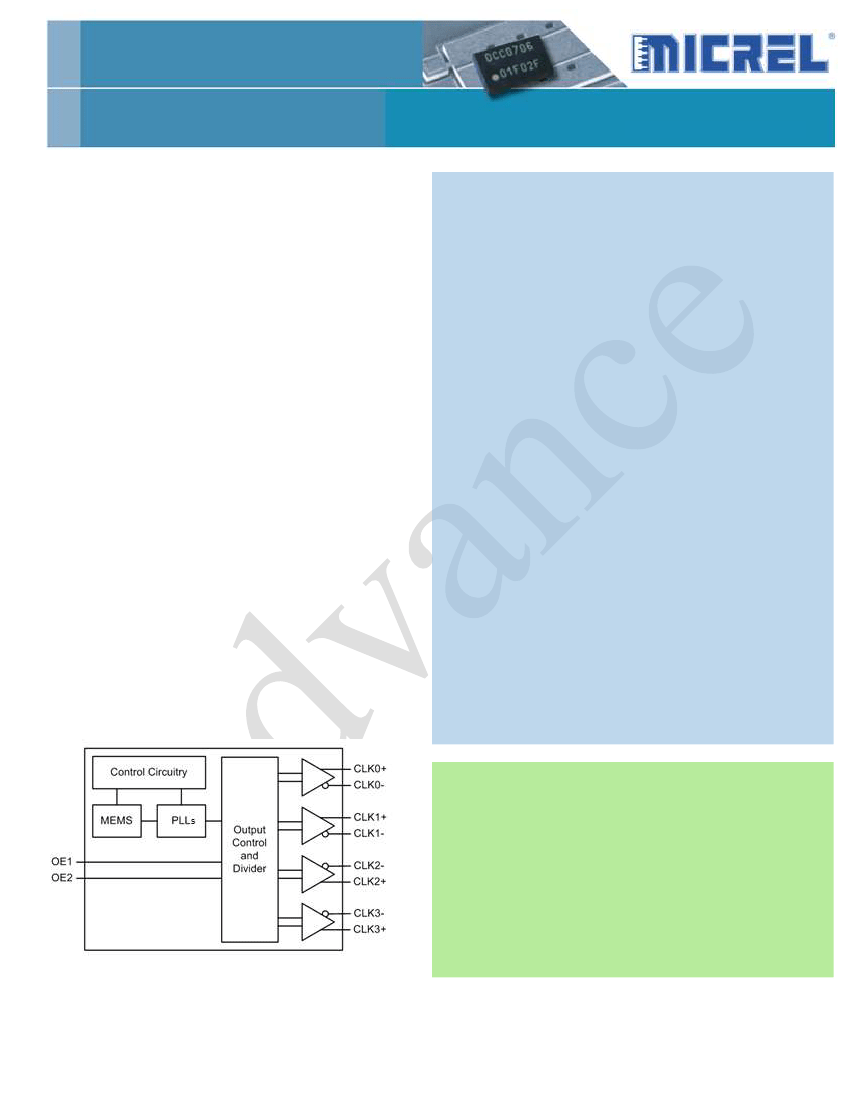

Block Diagram



Short Lead Time: 2 Weeks

Applications



SAS, Sata, Fibre Channel Storage



Storage Area Networks



Server storage cards



Expansion cards



Direct Access Storage

_____________________________________________________________________________________________________________________________ _________________

DSC533-05

Page 1

Advanced v1.3
