NOTES:
1.
MATERIALS AND FINISHES:
BODY
- ZINC DIE CAST, NICKEL PLATED [.000150 MIN THICK]
CONTACT
- PHOSPHOR BRONZE, GOLD PLATED [.000003 MIN THICK],
OVER TIN PLATING [.000100 MIN THICK], OVER NICKEL PLATING
GOLD PLATING AT CONTACT AREA, AND TIN OVER NICKEL PLATING
INSULATOR - POLYPROPYLENE,
UL94 HB FLAMMABILITY RATING
GROUND TER.- COPPER WIRE, TIN PLATED [.000100 MIN THICK}
LEGS
- BRASS, TIN PLATED [.000100 MIN THICK]
ELECTRICAL:
A. IMPEDANCE:
75 OHM
31-71042
DRAWING NO.
THIRD ANGLE PROJ.
REV
DESCRIPTION
REVISIONS
DATE
ECO
APPR
A
B
C
D
E
RELEASE TO MFG.
REDRAWN IN PRO/E
SEE SHEET 1
SEE SHEET 1
SEE SHEET 1
21-Aug-95
8/6/04
3/7/05
10/7/08
9/4/09
40712
45094
45399
46939
47784
CPM
HP
CPM
MAH
CPM
[.000050 MIN THICK]
OVER ALL
2.
4.
PACKAGING:
A. QUANTITY: BULK PACK OF 50 PER TRAY
B. MARKING : TRAY TO BE MARKED
"AMPHENOL, 31-71042 , AND DATE CODE"
1.386 .012
1.358 .012
.505
.305 .010
.471
.349 .010
SCALE
1.000
RECOMMENDED PANEL CUT-OUT
SCALE
2.000
.275 .005
2-
.400 .003
.072 .004
.169 .015
.500 - 28UNEF-2A
.100
.075 .002 X 2
.200
.035 .002 X 2
.200
.200 .015
.126 .010
.823 .010
1.129 .012
.100
.200
RECOMMENDED PCB CUT-OUT

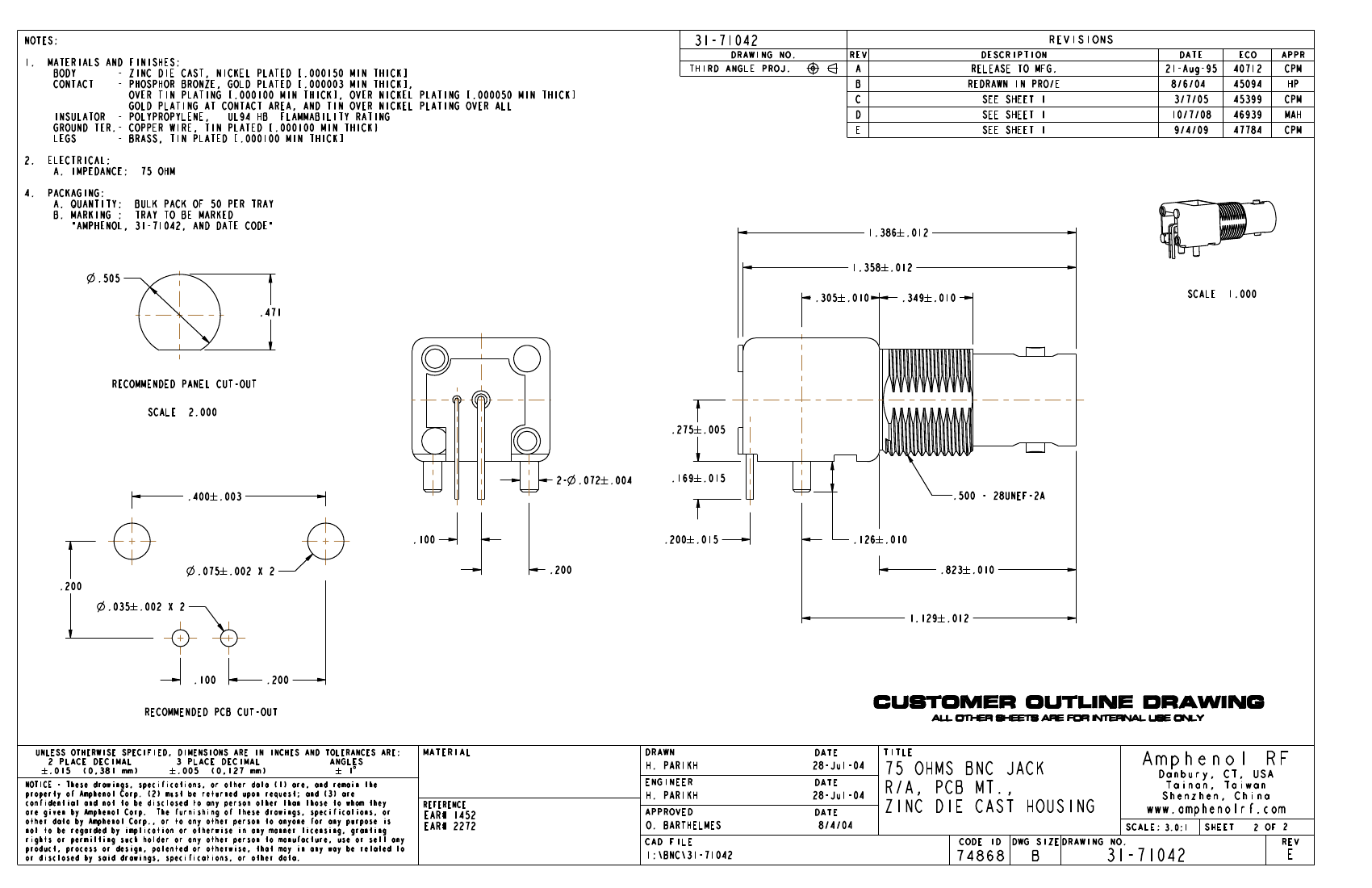

CUSTOMER OUTLINE DRAWING
ALL OTHER SHEETS ARE FOR INTERNAL USE ONLY
MATERIAL
DRAWN
DATE
TITLE
UNLESS OTHERWISE SPECIFIED, DIMENSIO
NS ARE IN INCHES AND TOLERANCES ARE:
2 PLACE DECIMAL
3 PLACE DECIMAL
ANGLES
.015 (0,381 mm)
.005 (0,127 mm)
1
NOTICE - These drawings, specificati
property of Amphenol Corp. (2) must
confidential and not to be disclosed
are given by Amphenol Corp. The fur
other data by Amphenol Corp., or to
not to be regarded by implication or
rights or permitting such holder or
product, process or design, patented
or disclosed by said drawings, speci
ons, or other data (1) are, and rema
be returned upon request; and (3) ar
to any person other than those to w
nishing of these drawings, specifica
any other person to anyone for any p
otherwise in any manner licensing,
any other person to manufacture, use
or otherwise, that may in any way b
fications, or other data.
in the
e
hom they
tions, or
urpose is
granting
or sell any
e related to
H. PARIKH
ENGINEER
REFERENCE
28-Jul-04
DATE
H. PARIKH
APPROVED
28-Jul-04
DATE
EAR# 1452
EAR# 2272
75 OHMS BNC JACK
R/A, PCB MT.,
ZINC DIE CAST HOUSING
CODE ID
DWG SIZE
DRAWING NO.
Amphenol RF
Danbury, CT, USA
Tainan, Taiwan
Shenzhen, China
3.0:1
SHEET
www.amphenolrf.com
SCALE:
OF
2
2
REV
O. BARTHELMES
CAD FILE
8/4/04
I:\BNC\ 31-71042
74868
B
31-71042
E
