31-2300 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> 31-2300

Preview

31-2300: DescriptionRF connectors / coaxial connectors panel mnt recept; CategoryThe connector; File Size429KB，1 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric View All

31-2300 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	31-2300	-	-	View	Buy Now

31-2300 Overview

RF connectors / coaxial connectors panel mnt recept

31-2300 Parametric

Parameter Name	Attribute value
Manufacture	Amphenol
Product Category	RF Connectors / Coaxial Connectors
RoHS	Yes
Produc	Connectors
RF Series	TNC
Gende	Jack
Polarity	Standard
Impedance	50 Ohms
Maximum Frequency	11 GHz
Body Material	Brass
Body Style	Straigh
Body Finish	Nickel
Contact Material	Beryllium Coppe
Contact Plating	Gold
Contact Terminati	Solde
Mounting Type	4-Hole Flange
Termination Style	Solder Cu
Coupling Mechanism	Threaded
Orientati	Straigh
Cable Type	Coaxial
Insulation Resistance	5000 MOhms
Mating Cycles	500
Operating Temperature Range	- 65 C to + 165 C
Voltage Rating	500 V
Unit Weigh	10.432 g

Preview

Download Datasheet

View All

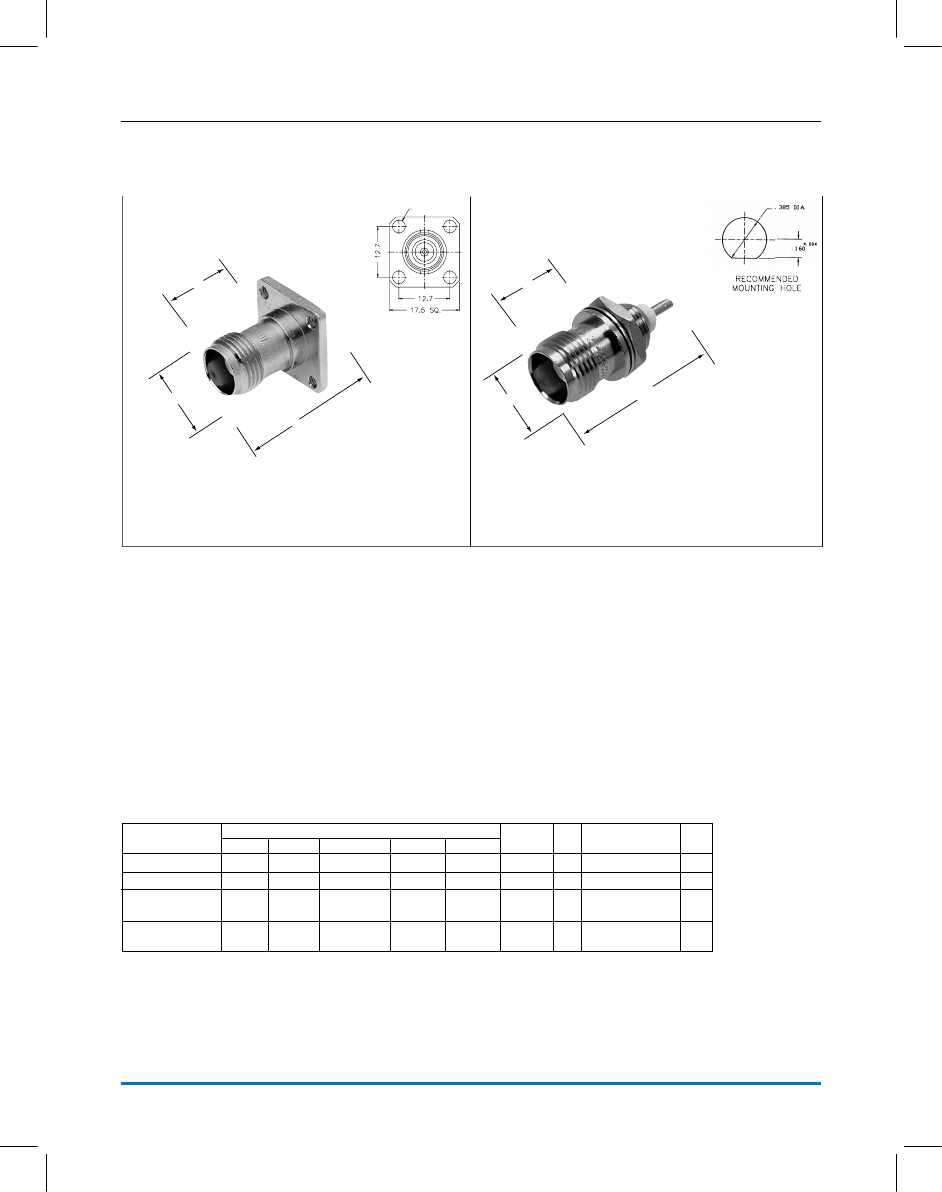

146.pdf 9/15/2005 9:56:13 AM

T NC

R ec eptac les

Fig. 1

Amphenol

®

*

Fig. 2

c

e

d

c

b

a

b

a

4-hole Flange

31-2300 - #3-56-2B Thread *

31-2300-R F X - .125 Thread *

Front Mount B ulkhead S oldercup

31-2301

31-2301-R F X

T N C B UL K HE AD RECEPTACLES

Des c ription

4-hole ange

Front mount blkh

S oldercup

Front mount blkh

S oldercup

1.06

.500

.425

—

P7

D23

31-2301-R F X

2

a

1.06

Dimens ions , inc hes (millimeters )

b

c

d

.500

.430

.687

.430

.500

.423

.688

—

e

.500

—

P lt.

P7

Ins .

D1

Amphenol

31-2300

31-2300-R F X

31-2301

F ig.

1

2

Amphenol C orporation Tel: 800-627-7100

146

www.amphenolrf.com
