NOTES:
1.
MATERIALS OF CONSTRUCTION:
BODY = ZINC DIE CAST, NICKEL PLATED (.000100 MIN. THICK)
CONTACT PIN = PHOSPHOR BRONZE (QQ-B-750), GOLD FLASH OVER NICKEL PLATED
(.000050 MIN THICK)
POST = COPPER, BRIGHT TIN PLATED (.000080 THICK).
CONTACT TAILS ARE TIN OVER NICKEL (.000050 THICK)
FORK PINS (2) = BRASS (QQ-B-613), TIN PLATED
LOCKWASHER = BRASS (QQ-B-613), NICKEL PLATED (.000100 MIN THICK)
HOUSING = PBT (UL 94 V-0), COLOR WHITE
INSULATOR = POLYPROPYLENE (UL 94 HB), COLOR NATURAL
HEX NUT = BRASS (ASTM-B16 H02, C36000), NICKEL PLATED (.000100 MIN.
THICK)
2.
MAX. PANEL THICKNESS = 5mm [.197]
31-5431-10RFX
THIRD ANGLE PROJ.
REVISIONS
REV
DRAWING NO.
A
B
C
RELEASE TO MFG.
CORRECTED VIEW
SEE SHEET 1
DESCRIPTION
6/16/05
9/6/11
3/7/02
DATE
43981
45589
48513
ECO
CPM
CPM
CPM
APPR
34,8 REF
[1.370]
20,7 REF
[.815]
8,6 REF
[.339]
14,4 REF
[.567]
15,6 REF
[.614]
8,56 REF
[.337]
4 REF
[.157]
3
REF
[.118]
10,16 REF
[.400]
5,08
REF
[.200]
5,08
REF
[.200]
12,83 REF
[.505 ]
11,96 REF
[.471]
1/2-28UNEF THREAD
7,87 REF
[.310]
2,01
REF
[.079 ]
(2) TYP
0,89
REF
[.035 ]
(2) TYP.
2,54
REF
[.100]
RECOMMENDED MOUNTING
HOLE DIMENSIONS
SCALE
2.000
RECOMMENDED MOUNTING
HOLE DIMENSIONS
SCALE
2.000
UNLESS OTHERWISE SPECIFIED, DIMENSIO NS ARE IN MM (INCHES) AND TOLERANCES ARE:
0.5 - 6mm
6 - 30mm
30 - 120mm
#
0.2mm
#
0.4mm
# 0.6mm
NOTICE - These drawings, specificati
property of Amphenol Corp. (2) must
confidential and not to be disclosed
are given by Amphenol Corp. The fur
other data by Amphenol Corp., or to
not to be regarded by implication or
rights or permitting such holder or
product, process or design, patented
or disclosed by said drawings, speci
ons, or other data (1) are, and rema
be returned upon request; and (3) ar
to any person other than those to w
nishing of these drawings, specifica
any other person to anyone for any p
otherwise in any manner licensing,
any other person to manufacture, use
or otherwise, that may in any way b
fications, or other data.
in the
e
hom they
tions, or
urpose is
granting
or sell any
e related to
MATERIAL
DRAWN
C. McGRATH
DATE
DATE
DATE
2/22/02
TITLE
ENGINEER
REFERENCE
O. BARTHELMES
O. BARTHELMES
I:\BNC\ 31-5431-10RFX
2/22/02
2/27/02
EAR# 363
GEN# 31-5431-10RFX_ASSY
APPROVED
CAD FILE

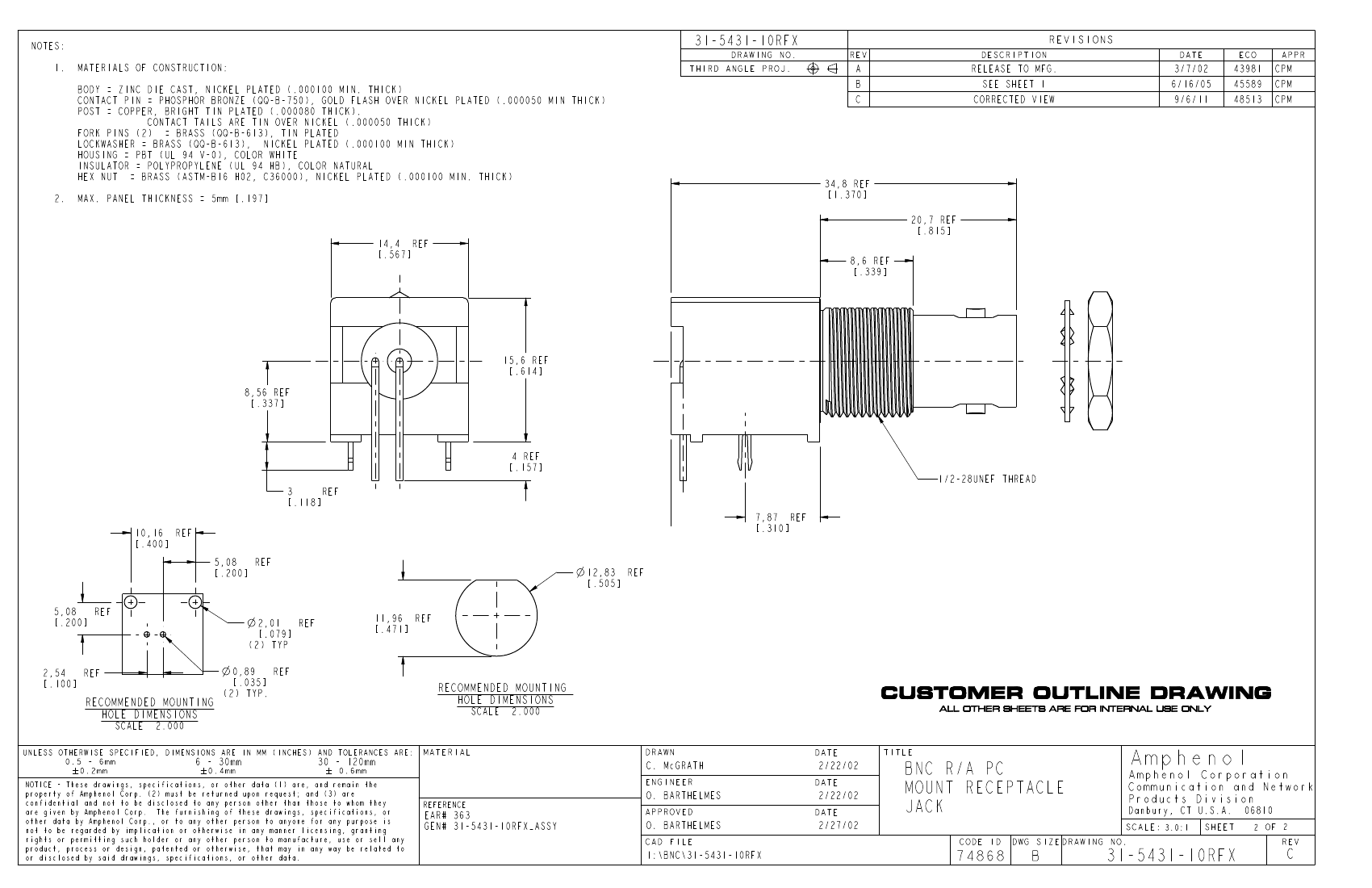

BNC R/A PC
MOUNT RECEPTACLE
JACK
74868
CODE ID
Amphenol Corporation
Communication and Network
Products Division
Danbury, CT U.S.A.
SCALE: 3.0:1
Amphenol
SHEET
06810
2 OF 2
REV
DWG SIZE DRAWING NO.
B
31-5431-10RFX
C
