RB75BYY11 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> RB75BYY11

Preview

RB75BYY11: DescriptionRF connectors / coaxial connectors bldn 1189a cnr l5cfb; CategoryThe connector; File Size538KB，2 Pages; ManufacturerNeutrik; Websitehttp://www.neutrik.com.cn

Download Datasheet Parametric Compare View All

RB75BYY11 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	RB75BYY11	-	-	View	Buy Now

RB75BYY11 Overview

RF connectors / coaxial connectors bldn 1189a cnr l5cfb

RB75BYY11 Parametric

Parameter Name	Attribute value
Manufacture	Neutrik
Product Category	RF Connectors / Coaxial Connectors
Produc	Connectors
RF Series	BNC
Impedance	75 Ohms
Contact Plating	Gold
Termination Style	Crim
Cable Type	Canare L-5CFB
Operating Temperature Range	- 30 C to + 85 C
Factory Pack Quantity	50
Voltage Rating	500 V

Preview

Download Datasheet

View All

7 5

Ω

B N C

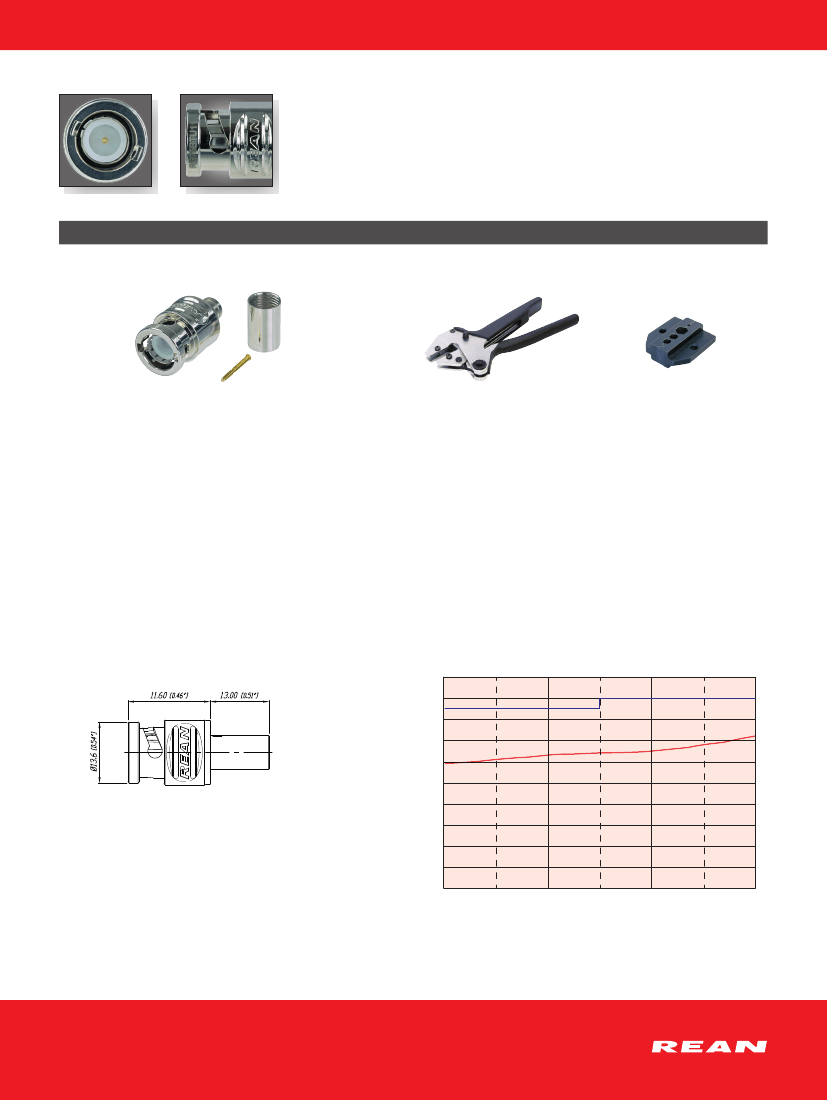

75 BNC Cable Connector

RB75BF*

HX-R-BNC

DIE-RB75-*

l

Reinforced guidance – minimizes tilting and provides contacts from deformation

True 75

Ω

design – exceeds the stringent HDTV requirements

Superior return loss - ensures highest signal quality

Shield and jacket crimping – no exposed copper braids and strong cable retention

Gold plated “Snap-In” center Pin – provides a tactile feedback during assembly & avoids push back of center contacts

RB75BF*

Typical Return Loss:

Return Loss [dB]

0

-10

-20

-30

-40

-50

-60

-70

-80

-90

-100

0

500

1000

1500

2000

2500

3000

Kabel 1

Kabel 3

Kabel 6

11.60

[0.46"]

13.00

[0.51"]

SMPTE 424M STANDARD

Ø13.6

[0.54"]

REAN

75

Ω

BNC

Frequency range [MHz]

REAN OEM

– 2013 / 06

Data subject to change without prior notice.

®

RB75BYY11 Related Products

	RB75BYY11	RB75BTU11	RB75BLP7	RB75BDD6	RB75BFG7	RB75BLP9
Description	RF connectors / coaxial connectors bldn 1189a cnr l5cfb	RF connectors / coaxial connectors bldn 1694a gepco vsd2001	RF connectors / coaxial connectors bldn 8241 cnr lv61s drka 0.6 / 3.7, rg59	RF connectors / coaxial connectors BN 1855a cnr L2.5cfb gepco vdm250	RF connectors / coaxial connectors belden 1855enh draka 0.6 / 2.8 AF	RF connectors / coaxial connectors bldn 1505a cnr l4cfb drka 0.8/3.7 AF
Manufacture	Neutrik	-	Neutrik	Neutrik	Neutrik	Neutrik
Product Category	RF Connectors / Coaxial Connectors	-	RF Connectors / Coaxial Connectors	RF Connectors / Coaxial Connectors	RF Connectors / Coaxial Connectors	RF Connectors / Coaxial Connectors
Produc	Connectors	-	Connectors	Connectors	Connectors	Connectors
RF Series	BNC	-	BNC	BNC	BNC	BNC
Impedance	75 Ohms	-	75 Ohms	75 Ohms	75 Ohms	75 Ohms
Contact Plating	Gold	-	Gold	Gold	Gold	Gold
Termination Style	Crim	-	Crim	Crim	Crim	Crim
Cable Type	Canare L-5CFB	-	Belden 8241, CAE KX6A, Canare LV-61S, Cordial CVI (CVM) 06-37, CommScope 5563, Draka 0.6/3.7, 0.6L/3.7 , RG59B/U, Sommer 600-0051 (M,L,S), 600-0054 (M,L,S), KLOTZ V06/37,Nextans HF 75 0.6/3.7 2YCY, Proel HPC 805	Belden 1855A, CommScope 7538	Argosy Image 360, Belden 1855ENH, Canford SDM, SDV, SDV-X, SDV-S-LFH, Cordial CVI 06-28, CVI 3-7, Draka 0.6/2.8 AF, 0.6L/2.8 AF, Extron BNC-5RC, Sommer 60-0104M, KLOTZ V06/28, VMXx75Y, Nexans HF 75 0.6/2.9 02YS(ST)CH, Fuzion SD-1	Argosy Image 720, Belden 1505A (ANH), 8241F, Canare L-4CFB, CommScope 5565, Draka 0.8/3.7 AF, 755-801 (803, 804), Gepco VPM2000, Suhner S0426, Proel HPC 810, Sommer 600-0451, 600-162(F), Van Damme 278 275 / 268 306
Operating Temperature Range	- 30 C to + 85 C	-	- 30 C to + 85 C	- 30 C to + 85 C	- 30 C to + 85 C	- 30 C to + 85 C
Factory Pack Quantity	50	-	50	50	50	50
Voltage Rating	500 V	-	500 V	500 V	500 V	500 V
