115101-20-M0.75 datasheet, PDF

Datasheet> All Categories > The connector> 115101-20-M0.75

115101-20-M0.75: DescriptionRF cable assemblies bnc str/bnc str plg RG-59 cbl 0.75 met; CategoryThe connector; File Size187KB，1 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric View All

115101-20-M0.75 Overview

RF cable assemblies bnc str/bnc str plg RG-59 cbl 0.75 met

115101-20-M0.75 Parametric

Parameter Name	Attribute value
Manufacture	Amphenol
Product Category	RF Cable Assemblies
Cable Type	RG-59
Frequency Range	DC to 4 GHz
Impedance	75 Ohms
Length	0.75 m
Connector A Body Style	Straigh
Connector A Series	BNC
Connector B Body Style	Straigh
Connector B Series	BNC
Connector A Gende	Plug
Connector A Polarity	Normal
Connector B Gende	Plug
Connector B Polarity	Normal

Preview

Download Datasheet

View All

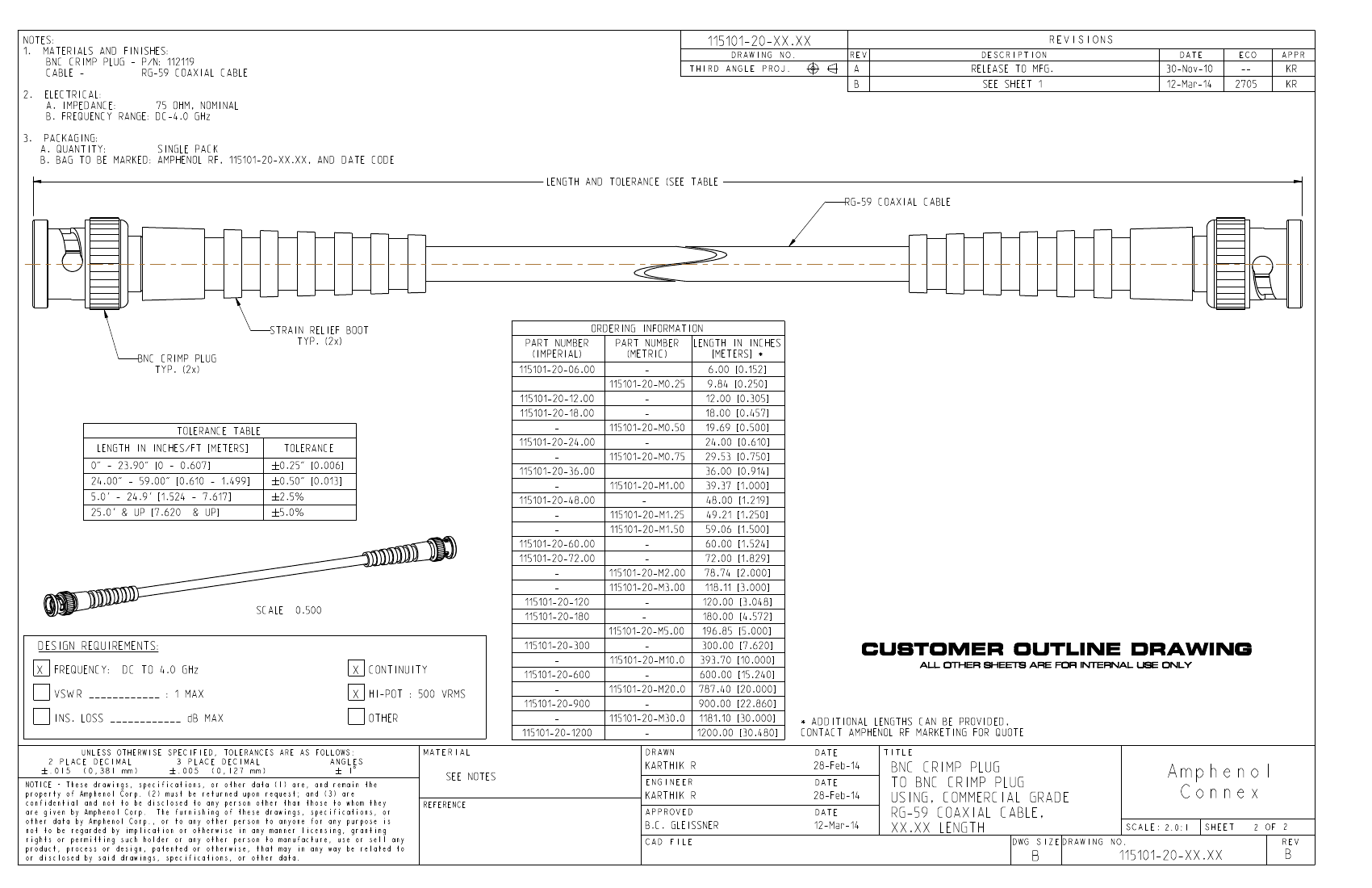

NOTES:

1. MATERIALS AND FINISHES:

BNC CRIMP PLUG - P/N: 112119

CABLE -

RG-59 COAXIAL CABLE

ELECTRICAL:

A. IMPEDANCE:

75 OHM, NOMINAL

B. FREQUENCY RANGE: DC-4.0 GHz

PACKAGING:

A. QUANTITY:

SINGLE PACK

B. BAG TO BE MARKED: AMPHENOL RF, 115101-20-XX.XX, AND DATE CODE

115101-20-XX.XX

DRAWING NO.

THIRD ANGLE PROJ.

REVISIONS

REV

RELEASE TO MFG.

SEE SHEET 1

DESCRIPTION

30-Nov-10

DATE

ECO

12-Mar-14

2705

APPR

LENGTH AND TOLERANCE (SEE TABLE

RG-59 COAXIAL CABLE

STRAIN RELIEF BOOT

TYP. (2x)

BNC CRIMP PLUG

TYP. (2x)

115101-20-06.00

115101-20-12.00

115101-20-18.00

PART NUMBER

(IMPERIAL)

ORDERING INFORMATION

PART NUMBER

(METRIC)

LENGTH IN INCHES

[METERS] *

9.84 [0.250]

6.00 [0.152]

115101-20-M0.25

12.00 [0.305]

19.69 [0.500]

29.53 [0.750]

39.37 [1.000]

49.21 [1.250]

60.00 [1.524]

78.74 [2.000]

72.00 [1.829]

18.00 [0.457]

24.00 [0.610]

36.00 [0.914]

48.00 [1.219]

TOLERANCE TABLE

LENGTH IN INCHES/FT [METERS]

0" - 23.90" [0 - 0.607]

24.00" - 59.00" [0.610 - 1.499]

5.0' - 24.9' [1.524 - 7.617]

25.0' & UP [7.620 & UP]

TOLERANCE

0.50" [0.013]

5.0%

2.5%

0.25" [0.006]

115101-20-24.00

115101-20-36.00

115101-20-48.00

115101-20-M0.50

115101-20-M0.75

115101-20-M1.00

115101-20-M1.25

115101-20-M1.50

115101-20-72.00

115101-20-60.00

59.06 [1.500]

SCALE

0.500

115101-20-180

115101-20-300

115101-20-120

115101-20-M3.00 118.11 [3.000]

180.00 [4.572]

300.00 [7.620]

120.00 [3.048]

115101-20-M2.00

DESIGN REQUIREMENTS:

FREQUENCY:

DC TO 4.0 GHz

115101-20-M5.00 196.85 [5.000]

115101-20-M10.0 393.70 [10.000]

115101-20-M20.0 787.40 [20.000]

115101-20-M30.0 1181.10 [30.000]

1200.00 [30.480]

DRAWN

CONTINUITY

HI-POT : 500 VRMS

OTHER

MATERIAL

115101-20-600

115101-20-900

115101-20-1200

600.00 [15.240]

VSWR ____________ : 1 MAX

INS. LOSS ____________ dB MAX

900.00 [22.860]

* ADDITIONAL LENGTHS CAN BE PROVIDED,

CONTACT AMPHENOL RF MARKETING FOR QUOTE

28-Feb-14

12-Mar-14

DATE

TITLE

UNLESS OTHERWISE SPECIFIED, TOLERANCES ARE AS FOLLOWS:

2 PLACE DECIMAL

3 PLACE DECIMAL

ANGLES

#.015 (0,381 mm)

#.005 (0,127 mm)

# 1$

NOTICE - These drawings, specificati

property of Amphenol Corp. (2) must

confidential and not to be disclosed

are given by Amphenol Corp. The fur

other data by Amphenol Corp., or to

not to be regarded by implication or

rights or permitting such holder or

product, process or design, patented

or disclosed by said drawings, speci

ons, or other data (1) are, and rema

be returned upon request; and (3) ar

to any person other than those to w

nishing of these drawings, specifica

any other person to anyone for any p

otherwise in any manner licensing,

any other person to manufacture, use

or otherwise, that may in any way b

fications, or other data.

in the

hom they

tions, or

urpose is

granting

or sell any

e related to

SEE NOTES

REFERENCE

KARTHIK R

ENGINEER

APPROVED

CAD FILE

KARTHIK R

B.C. GLEISSNER

BNC CRIMP PLUG

TO BNC CRIMP PLUG

USING, COMMERCIAL GRADE

RG-59 COAXIAL CABLE,

XX.XX LENGTH

Amphenol

Connex

SCALE: 2.0:1

SHEET

2 OF 2

REV

DWG SIZE DRAWING NO.

115101-20-XX.XX
