POT3104P-1-254 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> The resistor> POT3104P-1-254

POT3104P-1-254: DescriptionPotentiometer, Cermet, 0.5W, 250000ohm, 300V, 10% +/-Tol, -100,100ppm/Cel, 3819,; CategoryPassive components The resistor; File Size79KB，2 Pages; ManufacturerMurata; Websitehttps://www.murata.com

Download Datasheet Parametric View All

POT3104P-1-254 Overview

Potentiometer, Cermet, 0.5W, 250000ohm, 300V, 10% +/-Tol, -100,100ppm/Cel, 3819,

POT3104P-1-254 Parametric

Parameter Name	Attribute value
Objectid	807535040
Reach Compliance Code	unknown
structure	Trimmer Pot
Lead diameter	0.5 mm
Lead length	5.5 mm
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package height	9.6 mm
Package length	9.6 mm
Package form	3 Terminals
Package width	4.9 mm
Rated power dissipation(P)	0.5 W
resistance	250000 Ω
Resistor type	POTENTIOMETER
series	POT3104
size code	3819
technology	CERMET
Temperature Coefficient	100 ppm/°C
Tolerance	10%
Operating Voltage	300 V

Preview

Download Datasheet

View All

RESISTOR PRODUCTS

TRIMMER POTENTIOMETERS

SINGLE-TURN CERMET LEADED

Top Adjustment (F)

Top Adjustment (P)

POT3104 Series

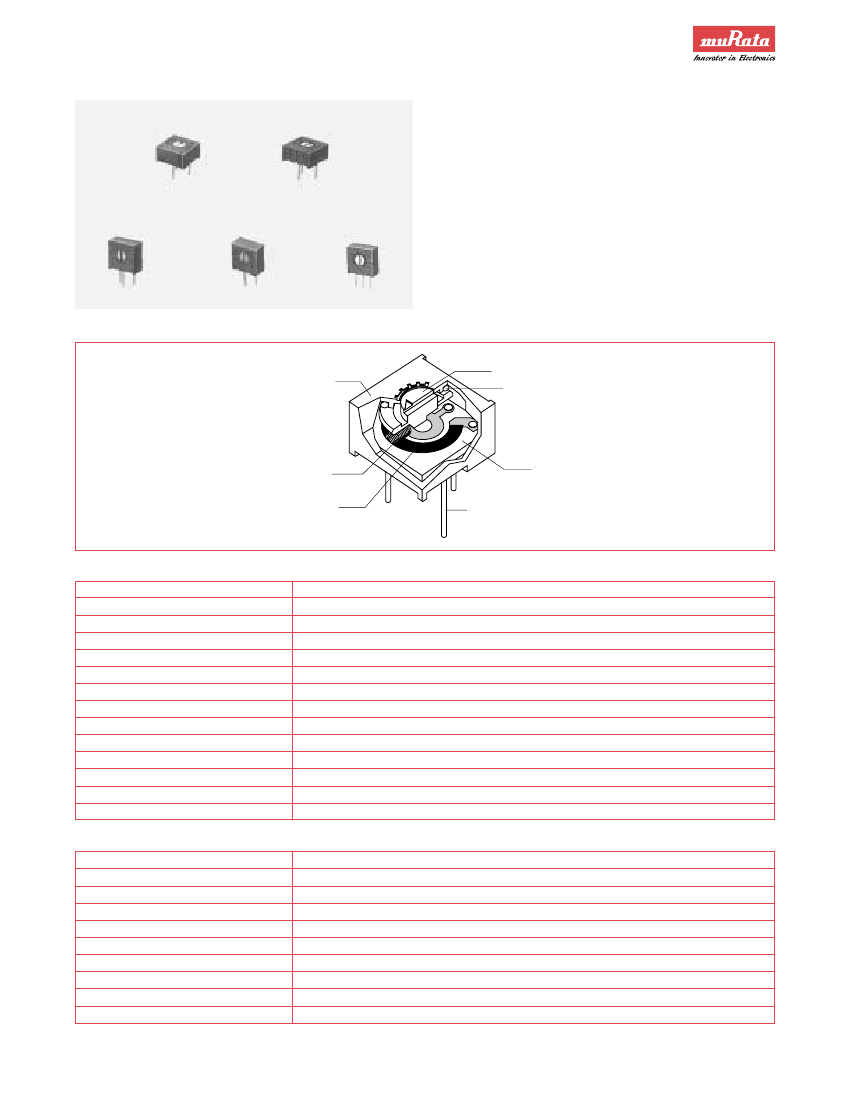

FEATURES

Single-turn cermet; square with 9.6(W) x 9.6(L) x 4.9(T)mm

package

Compatible with ultrasonic cleaning

Flammability: UL94V-0

APPLICATIONS

Side Adjustment (H)

Side Adjustment (X)

Side Adjustment (W)

TVs, HDTVs, professional cameras, facsimile machines,

printers, CPUs and switching power supplies

CONSTRUCTION

POT3104F

Case

Rotor

“O” –Ring

Wiper

Alumina

Substrate

Solderable Pins

Cermet

Resistive

Element

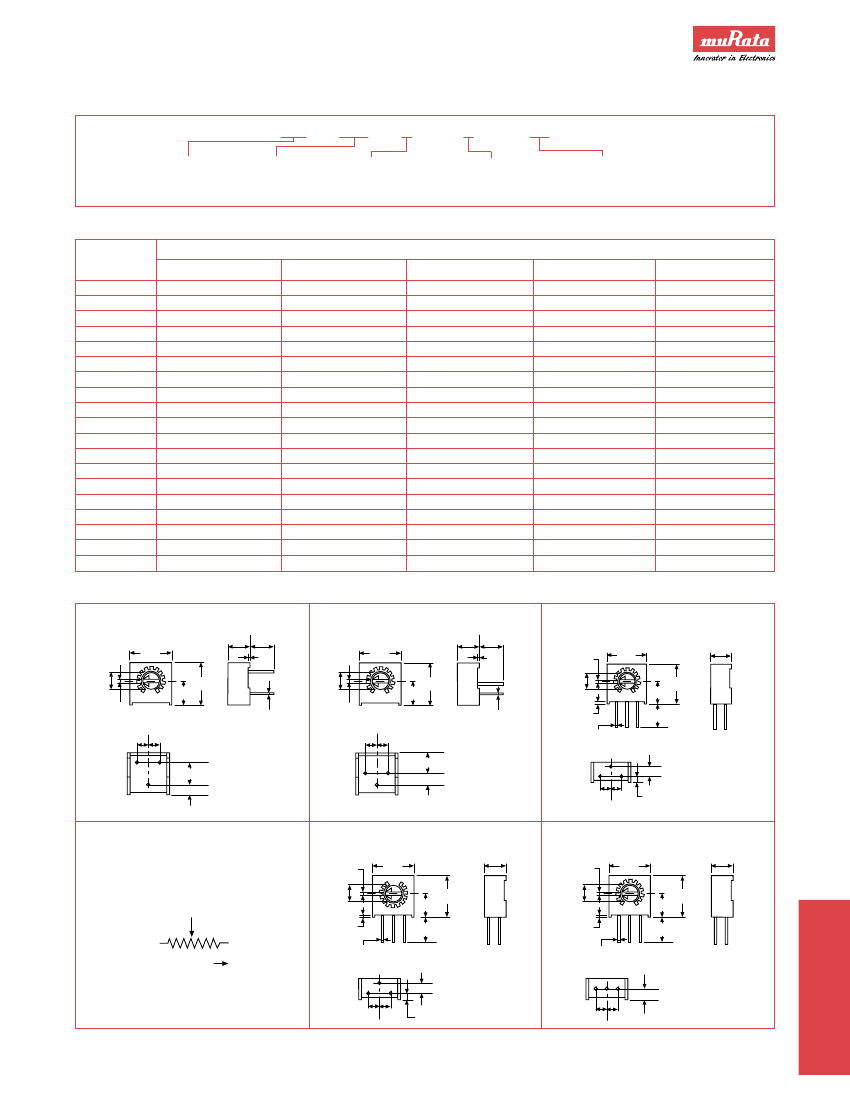

SPECIFICATIONS

Item

Standard Resistance Range

Nominal Resistance Tolerance

Power Rating

Maximum Working Voltage

Maximum Wiper Current

Operating Temperature Range

Effective Rotational Angle

Residual Resistance

Contact Resistance Variation

Dielectric Strength

Insulation Resistance

Torque

Stop Strength

100M

1% or 1

to 2M

±10%

70°C – 0.5W, 125°C – 0W

300V

100mA max.

–55°C to 125°C

280° ± 15°

max.

max., whichever is greater

900VAC

min. (500VDC)

35.3mNm (360gf • cm) max.

68.6mNm (700gf • cm) min.

ENVIRONMENTAL SPECIFICATIONS

Item

Temperature Coefficient of Resistance

Temperature Cycle

Humidity Exposure

Vibration (20G)

Shock (100G)

Load Life

Low Temperature Exposure

High Temperature Exposure

Rotational Life (200 cycles)

TR: Total Resistance Change •

V.S.S.: Voltage Setting Stability • IR: Insulation Resistance

±100ppm/°C

TR ±2%,

TR ±1%,

TR ±2%,

TR ±1%,

TR ±2%,

V.S.S. ±1%

min.

V.S.S. ±1%

V.S.S. ±2%

V.S.S. ±1%

TR ±2%, IR 100M

No intermittence on resistance change

528

CG01-I

Recommended Resources

Commonly used non-sinusoidal oscillator circuits, waveforms and frequency calculation formulas - pulse wave oscillator - transformer intermittent oscillator

Kana brand BCD-223 refrigerator circuit

Simple and reliable circuit

Electronic temperature regulating soldering iron circuit

Multipurpose home appliance controller circuit

Basic application circuit diagram of TL431a Reference source circuit diagram

What is the difference between a servo motor and a brushless DC motor?: I need help. I have learned about the difference between servo motors and stepper motors. But I have always heard people talking about brushless DC motors. What is the difference between servo motors ...; 蔡金芝 Motor Drive Control（Motor Control）

How to simulate waveform in ise13.1: As the title says, I'm learning about Xilinx's FPGA recently, but the ISE software is really confusing. There is no testwave form. How can I use testbench for simulation? Or is there modesilm? I've be...; 子诺如歌 FPGA/CPLD

LTIB Introduction and Installation (Part 2): Supportspreconfigswhich allow developers to store different system configurations (e.g. toolchain selection, kernel selection, package selection etc).Supportsprofilesthis allows just the userspace pac...; bluehacker NXP MCU

How to use an operational amplifier as an attenuator?: [size=6]Hello masters[/size]:congratulate:[size=6]How to use an operational amplifier to make an attenuator[/size]:time:[size=6]? [/size] [size=6]The initial condition is a 0-5v DC voltage, which need...; flying510 Integrated technical exchanges

STM32F207 USB HOST Power: Problem description: Using the STM32F207 official website USB Host msc lib V2.0.1 library, the PHY is embedded internally, so the HOST is FS. The simulation found that when running the red font part o...; punpun stm32/stm8

EVC simple question: This question is really shocking. For many people, this is a very stupid question. But it is very difficult for me, a novice in application, and I don’t know how to start. I found some information on ...; chris1031 Embedded System
