NOTES:
1. MATERIALS AND FINISHES:
REVERSE POLARITY TNC BULKHEAD CRIMP JACK
- P/N: 122532RP
MICRO COAX PLUG TERMINATED USING 1.37 MM CABLE - P/N: 100909-01
2. ELECTRICAL:
A. IMPEDANCE:
3. PACKAGING:
A. QUANTITY: SINGLE PACK
B. BAG TO BE MARKED: AMPHENOL RF, 336206-14-XXXX, AND DATE CODE
50 OHM, NOMINAL
336206-14-XXXX
DRAWING NO.
THIRD ANGLE PROJ.
REVISIONS
REV
A
B
RELEASE TO MFG.
SEE SHEET 1
DESCRIPTION
24-Nov-10
DATE
ECO
27-Mar-14
2716
--
APPR
KR/BCG
KR
SCALE 1.000
LENGTH AND TOLERANCE (SEE TABLES)
HEAT SHRINK TUBE
1.37 MM CABLE
AMC RIGHT ANGLE PLUG
GASKET
HEX NUT
LOCK WASHER
'D' FLAT
REVERSE POLARITY TNC BULKHEAD CRIMP JACK
336206-14-0050
336206-14-0075
336206-14-0100
336206-14-0150
336206-14-0200
336206-14-0250
PART NUMBER
(METRIC)
ORDERING INFORMATION
LENGTH IN INCHES *
[METERS]
1.97 [0.050]
2.95 [0.075]
3.94 [0.100]
5.91 [0.150]
7.87 [0.200]
11.81 [0.300]
9.84 [0.250]
TOLERANCE TABLE
LENGTH IN INCHES/FT [METERS]
0" - 23.90" [0 - 0.607]
24.00" - 59.00" [0.610 - 1.499]
5.0' - 24.9' [1.524 - 7.617]
25.0' & UP [7.620 & UP]
TOLERANCE
#
0.50" [0.013]
#
5.0%
#
2.5%
#
0.25" [0.006]
DESIGN REQUIREMENTS:
X
FREQUENCY: DC
TO 6.0 GHz
X
CONTINUITY
X
HI-POT :200 VRMS
OTHER
MATERIAL
336206-14-0300
VSWR _____ : 1 MAX
INS. LOSS _____ dB MAX
* ADDITIONAL LENGTHS CAN BE PROVIDED,
CONTACT AMPHENOL RF MARKETING FOR QUOTE
UNLESS OTHERWISE SPECIFIED, TOLERANCES ARE AS FOLLOWS:
2 PLACE DECIMAL
3 PLACE DECIMAL
ANGLES
#.015 (0,381 mm)
#.005 (0,127 mm)
# 1$
NOTICE - These drawings, specificati
property of Amphenol Corp. (2) must
confidential and not to be disclosed
are given by Amphenol Corp. The fur
other data by Amphenol Corp., or to
not to be regarded by implication or
rights or permitting such holder or
product, process or design, patented
or disclosed by said drawings, speci
ons, or other data (1) are, and rema
be returned upon request; and (3) ar
to any person other than those to w
nishing of these drawings, specifica
any other person to anyone for any p
otherwise in any manner licensing,
any other person to manufacture, use
or otherwise, that may in any way b
fications, or other data.
in the
e
hom they
tions, or
urpose is
granting
or sell any
e related to
DRAWN
SEE NOTES
REFERENCE
KARTHIK R
KARTHIK R
B.C. GLEISSNER
24-Nov-10
24-Nov-10
27-Mar-14
DATE
DATE
DATE

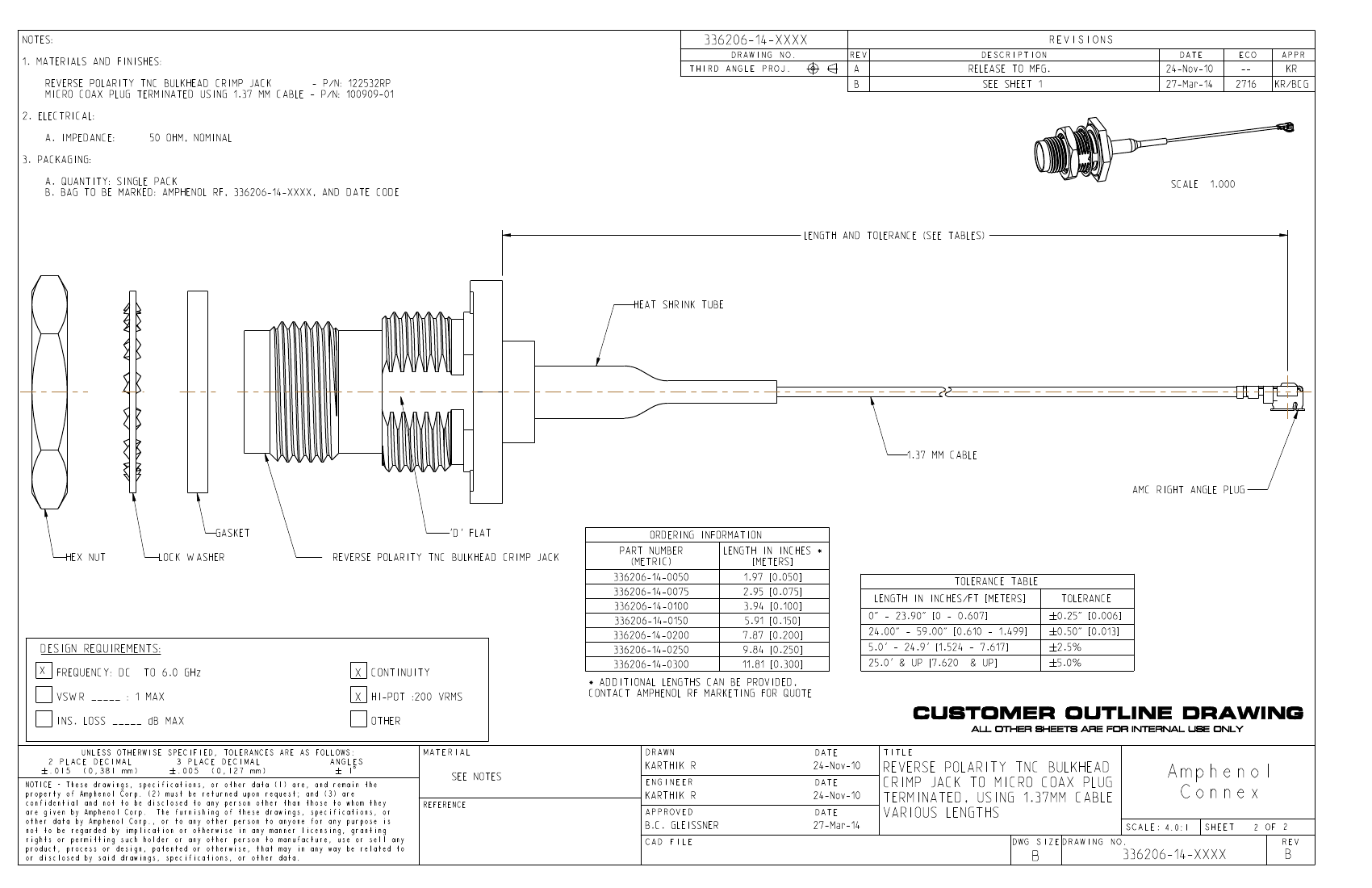

TITLE
ENGINEER
APPROVED
CAD FILE
REVERSE POLARITY TNC BULKHEAD
CRIMP JACK TO MICRO COAX PLUG
TERMINATED, USING 1.37MM CABLE
VARIOUS LENGTHS
B
Amphenol
Connex
SCALE: 4.0:1
SHEET
2 OF 2
REV
DWG SIZE DRAWING NO.
336206-14-XXXX
B
