135104-R1-48.00 datasheet, PDF

Datasheet> All Categories > The connector> 135104-R1-48.00

135104-R1-48.00: DescriptionRF cable assemblies sma R/A plug to R/A plug 085 cable 48"; CategoryThe connector; File Size86KB，1 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

135104-R1-48.00 Overview

RF cable assemblies sma R/A plug to R/A plug 085 cable 48"

135104-R1-48.00 Parametric

Parameter Name	Attribute value
Manufacture	Amphenol
Product Category	RF Cable Assemblies
RoHS	Yes
Cable Type	0.085 Conformable Semi Rigid
Frequency Range	DC to 18 GHz
Impedance	50 Ohms
Length	48 i
Connector A Body Style	Right Angle
Connector A Series	SMA
Connector B Body Style	Right Angle
Connector B Series	SMA
Connector A Gende	Plug (Male)
Connector A Polarity	Normal
Connector B Gende	Plug (Male)
Connector B Polarity	Normal
Polarity	Normal

Preview

Download Datasheet

View All

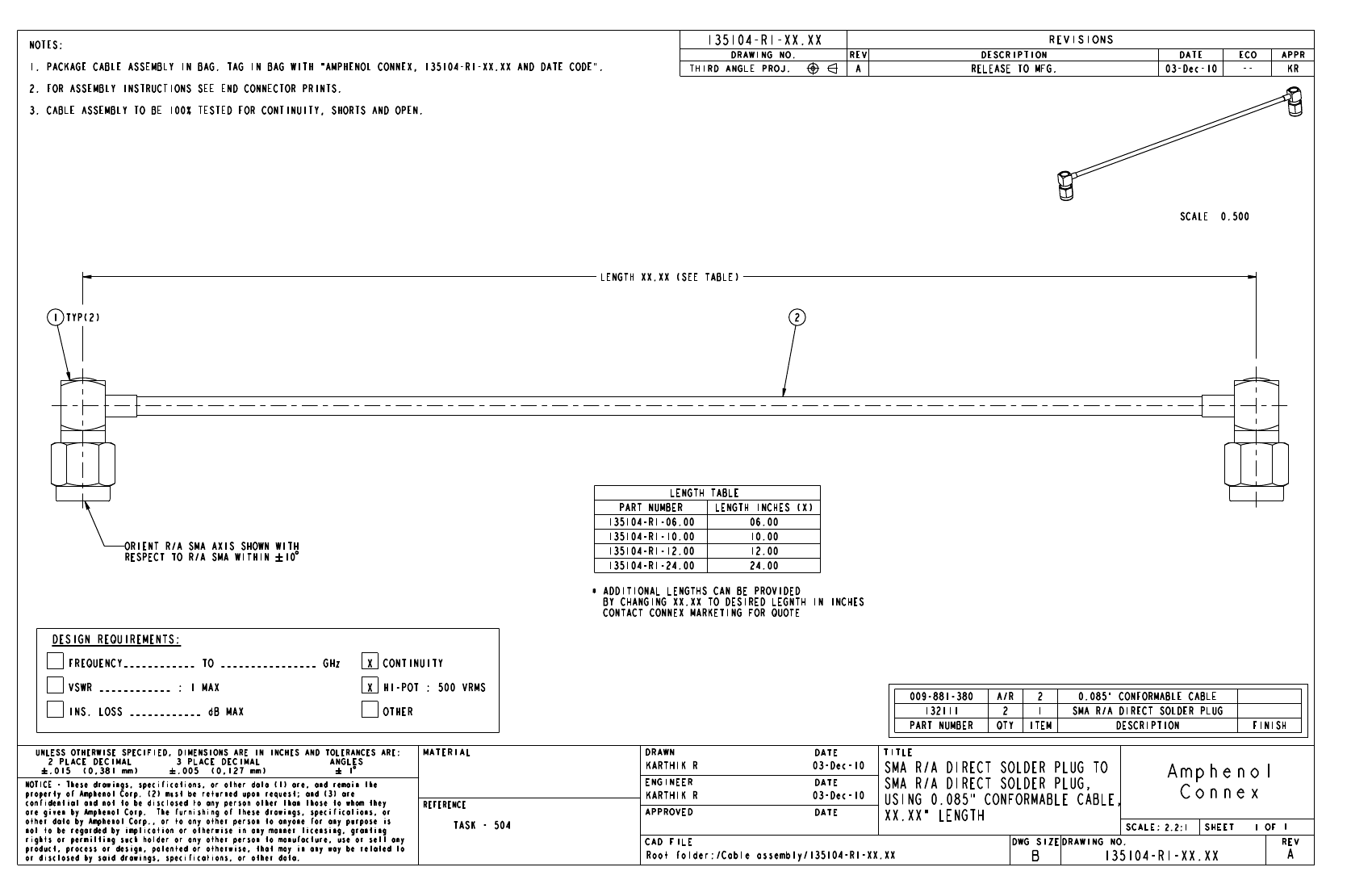

NOTES:

1. PACKAGE CABLE ASSEMBLY IN BAG. TAG IN BAG WITH "AMPHENOL CONNEX,

2. FOR ASSEMBLY INSTRUCTIONS SEE END CONNECTOR PRINTS.

3. CABLE ASSEMBLY TO BE 100% TESTED FOR CONTINUITY, SHORTS AND OPEN.

135104-R1-XX.XX AND DATE CODE".

135104-R1-XX.XX

DRAWING NO.

THIRD ANGLE PROJ.

REV

DESCRIPTION

REVISIONS

DATE

ECO

APPR

RELEASE TO MFG.

03-Dec-10

SCALE

0.500

LENGTH XX.XX (SEE TABLE)

1 TYP(2)

LENGTH TABLE

PART NUMBER

135104-R1-06.00

ORIENT R/A SMA AXIS SHOWN WITH

RESPECT TO R/A SMA WITHIN

10 $

135104-R1-10.00

135104-R1-12.00

135104-R1-24.00

LENGTH INCHES (X)

06.00

10.00

12.00

24.00

* ADDITIONAL LENGTHS CAN BE PROVIDED

BY CHANGING XX.XX TO DESIRED LEGNTH IN INCHES

CONTACT CONNEX MARKETING FOR QUOTE

DESIGN REQUIREMENTS:

FREQUENCY____________ TO ________________ GHz

VSWR ____________ : 1 MAX

INS. LOSS ____________ dB MAX

CONTINUITY

HI-POT : 500 VRMS

OTHER

009-881-380

132111

PART NUMBER

A/R

QTY

ITEM

0.085" CONFORMABLE CABLE

SMA R/A DIRECT SOLDER PLUG

DESCRIPTION

FINISH

UNLESS OTHERWISE SPECIFIED, DIMENSIO

NS ARE IN INCHES AND TOLERANCES ARE:

2 PLACE DECIMAL

3 PLACE DECIMAL

ANGLES

.015 (0,381 mm)

.005 (0,127 mm)

#1 $

NOTICE - These drawings, specificati

property of Amphenol Corp. (2) must

confidential and not to be disclosed

are given by Amphenol Corp. The fur

other data by Amphenol Corp., or to

not to be regarded by implication or

rights or permitting such holder or

product, process or design, patented

or disclosed by said drawings, speci

ons, or other data (1) are, and rema

be returned upon request; and (3) ar

to any person other than those to w

nishing of these drawings, specifica

any other person to anyone for any p

otherwise in any manner licensing,

any other person to manufacture, use

or otherwise, that may in any way b

fications, or other data.

in the

hom they

tions, or

urpose is

granting

or sell any

e related to

MATERIAL

DRAWN

DATE

TITLE

KARTHIK R

ENGINEER

REFERENCE

03-Dec-10

DATE

KARTHIK R

APPROVED

03-Dec-10

DATE

TASK - 504

CAD FILE

SMA R/A DIRECT SOLDER PLUG TO

SMA R/A DIRECT SOLDER PLUG,

USING 0.085" CONFORMABLE CABLE,

XX.XX" LENGTH

DWG SIZE

DRAWING NO.

Amphenol

Connex

2.2:1

SHEET

REV

SCALE:

Root folder:/Cable assembly/135104-R1-XX.XX

135104-R1-XX.XX

135104-R1-48.00 Related Products

	135104-R1-48.00	135104-R1-06.00	135104-R1-24.00	135104-R1-36.00	135104-R1-12.00
Description	RF cable assemblies sma R/A plug to R/A plug 085 cable 48"	RF cable assemblies sma R/A plug to R/A plug 085 cable 6"	RF cable assemblies sma R/A plug to R/A plug 085 cable 24"	RF cable assemblies sma R/A plug to R/A plug 085 cable 36"	RF cable assemblies sma R/A plug to R/A plug 085 cable 12"
Manufacture	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol
Product Category	RF Cable Assemblies	RF Cable Assemblies	RF Cable Assemblies	RF Cable Assemblies	RF Cable Assemblies
RoHS	Yes	Yes	Yes	Yes	Yes
Cable Type	0.085 Conformable Semi Rigid	0.085 Conformable Semi Rigid	0.085 Conformable Semi Rigid	0.085 Conformable Semi Rigid	0.085 Conformable Semi Rigid
Frequency Range	DC to 18 GHz	DC to 18 GHz	DC to 18 GHz	DC to 18 GHz	DC to 18 GHz
Impedance	50 Ohms	50 Ohms	50 Ohms	50 Ohms	50 Ohms
Length	48 i	6 i	24 i	36 i	12 i
Connector A Body Style	Right Angle	Right Angle	Right Angle	Right Angle	Right Angle
Connector A Series	SMA	SMA	SMA	SMA	SMA
Connector B Body Style	Right Angle	Right Angle	Right Angle	Right Angle	Right Angle
Connector B Series	SMA	SMA	SMA	SMA	SMA
Connector A Gende	Plug (Male)	Plug (Male)	Plug (Male)	Plug (Male)	Plug (Male)
Connector A Polarity	Normal	Normal	Normal	Normal	Normal
Connector B Gende	Plug (Male)	Plug (Male)	Plug (Male)	Plug (Male)	Plug (Male)
Connector B Polarity	Normal	Normal	Normal	Normal	Normal
Polarity	Normal	Normal	Normal	Normal	Normal
