NOTES:
1.
MATERIALS AND FINISHES:
BODY - BRASS, SILVER PLATING (.000200 MIN THICK)
INNER AND OUTER CONTACT -BRASS ,GOLD PLATING (.000050 MIN THICK)
BRAID CLAMP- BRASS, SILVER PLATING (.000200 MIN THICK)
INNER FERRULE- BRASS, SILVER PLATING (.000200 MIN THICK)
OUTER FERRULE- COPPER, SILVER PLATING (.000200 MIN THICK)
CLAMP NUT- BRASS, SILVER PLATING (.000200 MIN THICK)
GASKET- SILICON RUBBER
INSULATOR - PTFE
ELECTRICAL:
A. IMPEDANCE: 50 OHM
B. FREQUENCY RANGE: DC - 11 GHz
C. VSWR(RETURN LOSS): 1.35 MAX.
D. DIELECTRIC WITHSTANDING VOLTAGE: 1500 VRMS, MIN.
MECHANICAL:
A. TEMPERATURE RANGE: -65 $C TO 165 $C
PACKAGING:
A. QUANTITY: SINGLE PACK
B. MARKING: BAG TO BE MARKED
"AMPHENOL, 82-5773-1 , AND DATE CODE"
7/16" ACROSS FLATS
THIRD ANGLE PROJ.
REV
REVISIONS
A
D
E
OFFICIAL ENG. RELEASE TO MFG.
McAIR SPEC WAS "REV. A";
ADDED CABLE ENTRY DIMS.;
ADDED NOTES 6, 7, & 8
DESCRIPTION
6/19/86
7/27/92
8/2/11
DATE
32906
38907
48686
ECO
APPR
PM
DL/RV
MJS
ADDED DATE CODE 'YYWW' TO STAMP; REMOVED NOTES 3, 5;
BOEING-ST. LOUIS SPEC WAS "McAIR, REV. D"
2.
3.
4.
SCALE
1.500
.152
7/16" HEX
.175
.133
.024
.232
.177

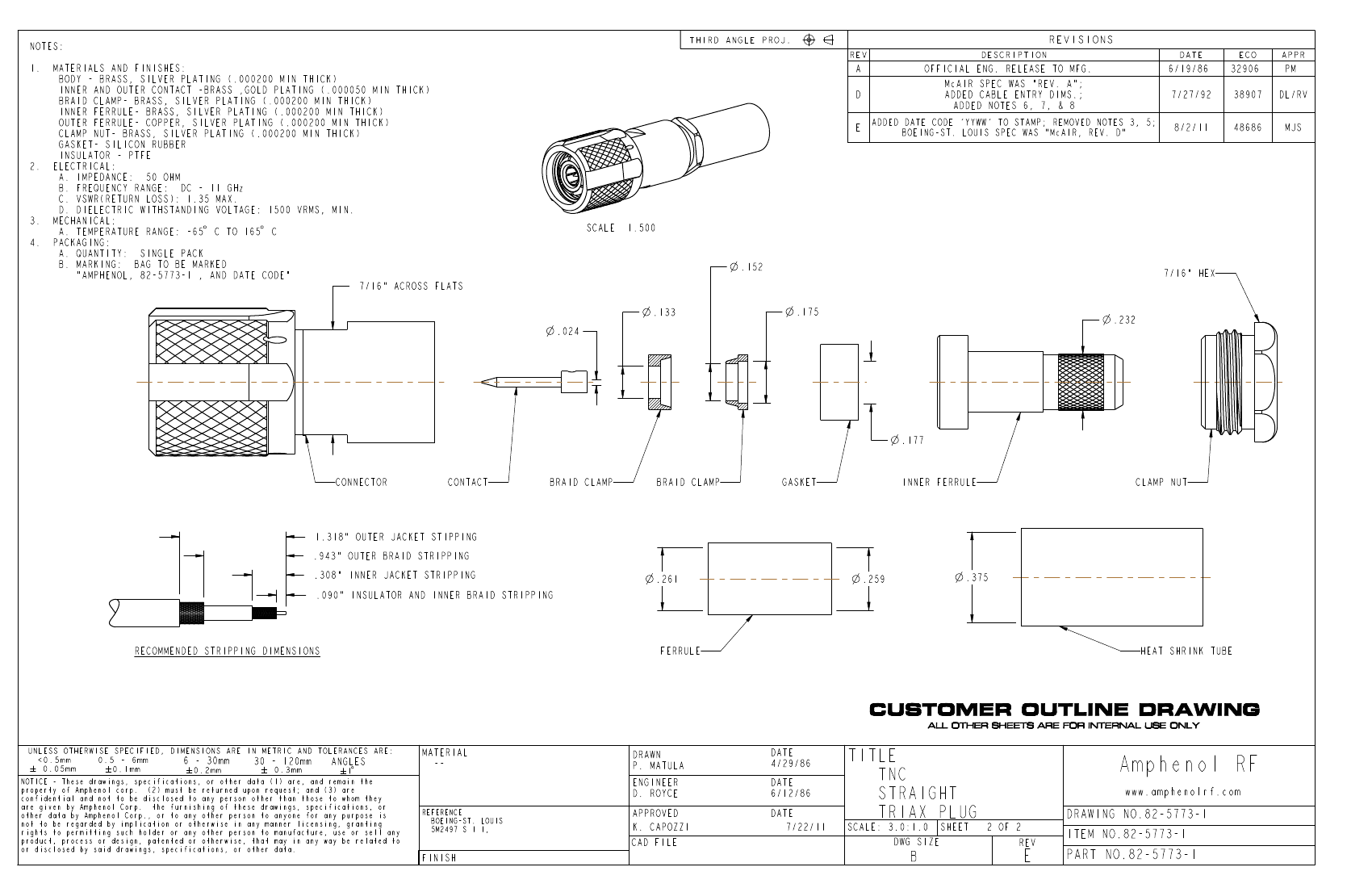

CONNECTOR
CONTACT
BRAID CLAMP
BRAID CLAMP
GASKET
INNER FERRULE
CLAMP NUT
1.318" OUTER JACKET STIPPING
.943" OUTER BRAID STRIPPING
.308" INNER JACKET STRIPPING
.090" INSULATOR AND INNER BRAID STRIPPING
.261
.259
.375
RECOMMENDED STRIPPING DIMENSIONS
FERRULE
HEAT SHRINK TUBE
UNLESS OTHERWISE SPECIFIED, DIMENSIONS ARE IN METRIC AND TOLERANCES ARE:
<0.5mm
0.5 - 6mm
6 - 30mm
30 - 120mm
ANGLES
# 0.05mm
#
0.1mm
# 0.3mm
#
0.2mm
# $
1
NOTICE - These drawings, specifications, or other data (1) are, and remain the
property of Amphenol corp. (2) must be returned upon request; and (3) are
confidential and not to be disclosed to any person other than those to whom
they
are given by Amphenol Corp. the furnishing of these drawings, specifications,
or
other data by Amphenol Corp., or to any other person to anyone for any purpose
is
not to be regarded by implication or otherwise in any manner licensing,
granting
rights to permitting such holder or any other person to manufacture, use or
sell any
product, process or design, patented or otherwise, that may in any way be
related to
or disclosed by said drawings, specifications, or other data.
MATERIAL
--
DRAWN
P. MATULA
ENGINEER
D. ROYCE
DATE
4/29/86
DATE
6/12/86
DATE
7/22/11
REFERENCE
BOEING-ST. LOUIS
5M2497 S 1 1,
FINISH
CAD FILE
APPROVED
K. CAPOZZI
TITLE
TNC
STRAIGHT
TRIAX PLUG
SCALE: 3.0:1.0
DWG SIZE
SHEET
Amphenol RF
www.amphenolrf.com
2 OF 2
DRAWING NO. 82-5773-1
B
REV
E
ITEM NO. 82-5773-1
PART NO. 82-5773-1
