31-30232-33 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 31-30232-33

31-30232-33: DescriptionRF connectors / coaxial connectors bnc jack triax; CategoryThe connector; File Size1MB，1 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

31-30232-33 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	31-30232-33	-	-	View	Buy Now

31-30232-33 Overview

RF connectors / coaxial connectors bnc jack triax

31-30232-33 Parametric

Parameter Name	Attribute value
Manufacture	Amphenol
Product Category	RF Connectors / Coaxial Connectors
RoHS	Yes
Produc	Connectors
RF Series	Triax
Gende	Jack
Polarity	Standard
Impedance	Non-Cons
Maximum Frequency	0.5 GHz
Body Material	Brass
Body Finish	Nickel
Contact Material	Brass
Contact Plating	Gold
Contact Terminati	Solde
Mounting Type	-
Termination Style	Cable - Clam
Coupling Mechanism	Bayone
Orientati	Straigh
Mating Cycles	500
Operating Temperature Range	- 65 C to + 165 C

Preview

Download Datasheet

View All

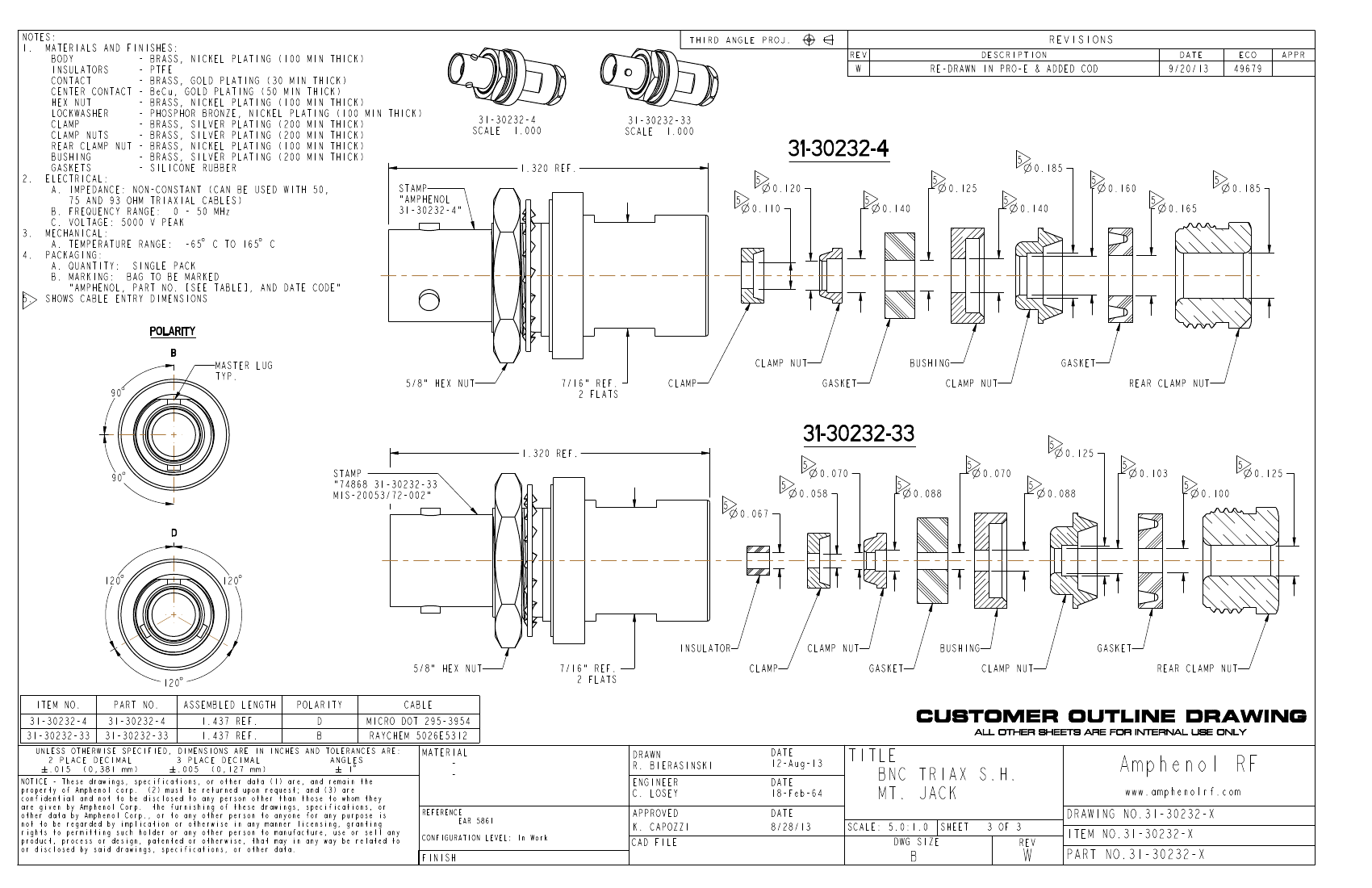

NOTES:

1. MATERIALS AND FINISHES:

BODY

- BRASS, NICKEL PLATING (100 MIN THICK)

INSULATORS

- PTFE

CONTACT

- BRASS, GOLD PLATING (30 MIN THICK)

CENTER CONTACT - BeCu, GOLD PLATING (50 MIN THICK)

HEX NUT

- BRASS, NICKEL PLATING (100 MIN THICK)

LOCKWASHER

- PHOSPHOR BRONZE, NICKEL PLATING (100 MIN THICK)

CLAMP

- BRASS, SILVER PLATING (200 MIN THICK)

CLAMP NUTS

- BRASS, SILVER PLATING (200 MIN THICK)

REAR CLAMP NUT - BRASS, NICKEL PLATING (100 MIN THICK)

BUSHING

- BRASS, SILVER PLATING (200 MIN THICK)

GASKETS

- SILICONE RUBBER

2. ELECTRICAL:

STAMP

A. IMPEDANCE: NON-CONSTANT (CAN BE USED WITH 50,

"AMPHENOL

75 AND 93 OHM TRIAXIAL CABLES)

31-30232-4"

B. FREQUENCY RANGE: 0 - 50 MHz

C. VOLTAGE: 5000 V PEAK

3. MECHANICAL:

A. TEMPERATURE RANGE: -65 $C TO 165 $C

4. PACKAGING:

A. QUANTITY: SINGLE PACK

B. MARKING: BAG TO BE MARKED

"AMPHENOL, PART NO. [SEE TABLE], AND DATE CODE"

5. SHOWS CABLE ENTRY DIMENSIONS

THIRD ANGLE PROJ.

REV

REVISIONS

RE-DRAWN IN PRO-E & ADDED COD

DESCRIPTION

9/20/13

DATE

49679

ECO

APPR

31-30232-4

SCALE 1.000

1.320 REF.

31-30232-33

SCALE 1.000

31-30232-4

0.120

0.110

0.140

0.125

0.185

0.160

0.140

0.165

0.185

POLARITY

MASTER LUG

TYP.

CLAMP NUT

5/8" HEX NUT

7/16" REF.

2 FLATS

CLAMP

GASKET

BUSHING

CLAMP NUT

GASKET

REAR CLAMP NUT

90 $

1.320 REF.

90 $

STAMP

"74868 31-30232-33

MIS-20053/72-002"

0.067

31-30232-33

0.070

0.058

0.088

0.070

0.125

0.103

0.088

0.100

0.125

120 $

INSULATOR

120 $

ITEM NO.

31-30232-33

31-30232-4

PART NO.

31-30232-33

31-30232-4

ASSEMBLED LENGTH

1.437 REF.

POLARITY

5/8" HEX NUT

CABLE

MICRO DOT 295-3954

RAYCHEM 5026E5312

MATERIAL

REFERENCE

EAR 5861

CONFIGURATION LEVEL: In Work

CLAMP NUT

CLAMP

GASKET

BUSHING

CLAMP NUT

GASKET

REAR CLAMP NUT

7/16" REF.

2 FLATS

NOTICE - These drawings, specifications, or other data (1) are, and remain the

property of Amphenol corp. (2) must be returned upon request; and (3) are

confidential and not to be disclosed to any person other than those to whom

they

are given by Amphenol Corp. the furnishing of these drawings, specifications,

other data by Amphenol Corp., or to any other person to anyone for any purpose

not to be regarded by implication or otherwise in any manner licensing,

granting

rights to permitting such holder or any other person to manufacture, use or

sell any

product, process or design, patented or otherwise, that may in any way be

related to

or disclosed by said drawings, specifications, or other data.

UNLESS OTHERWISE SPECIFIED, DIMENSIO NS ARE IN INCHES AND TOLERANCES ARE:

2 PLACE DECIMAL

3 PLACE DECIMAL

ANGLES

#.015

(0,381 mm)

#.005 (0,127 mm)

# 1$

DRAWN

R. BIERASINSKI

ENGINEER

C. LOSEY

APPROVED

K. CAPOZZI

DATE

12-Aug-13

DATE

18-Feb-64

DATE

8/28/13

TITLE

BNC TRIAX S.H.

MT. JACK

SCALE: 5.0:1.0

DWG SIZE

SHEET

3 OF 3

Amphenol RF

www.amphenolrf.com

DRAWING NO. 31-30232-X

FINISH

CAD FILE

REV

ITEM NO. 31-30232-X

PART NO. 31-30232-X

31-30232-33 Related Products

	31-30232-33	31-30232-4
Description	RF connectors / coaxial connectors bnc jack triax	RF connectors / coaxial connectors bnc jack triax
Manufacture	Amphenol	Amphenol
Product Category	RF Connectors / Coaxial Connectors	RF Connectors / Coaxial Connectors
RoHS	Yes	Yes
Produc	Connectors	Connectors
RF Series	Triax	Triax
Gende	Jack	Jack
Polarity	Standard	Standard
Impedance	Non-Cons	Non-Cons
Maximum Frequency	0.5 GHz	0.5 GHz
Body Material	Brass	Brass
Body Finish	Nickel	Nickel
Contact Material	Brass	Brass
Contact Plating	Gold	Gold
Contact Terminati	Solde	Solde
Termination Style	Cable - Clam	Cable - Clam
Coupling Mechanism	Bayone	Bayone
Orientati	Straigh	Straigh
Mating Cycles	500	500
Operating Temperature Range	- 65 C to + 165 C	- 65 C to + 165 C
