Preview

31-70015-1000: DescriptionRF connectors / coaxial connectors bnc RT angle plug assy; CategoryThe connector; File Size46KB，1 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

31-70015-1000 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	31-70015-1000	-	-	View	Buy Now

31-70015-1000 Overview

RF connectors / coaxial connectors bnc RT angle plug assy

31-70015-1000 Parametric

Parameter Name	Attribute value
Manufacture	Amphenol
Product Category	RF Connectors / Coaxial Connectors
RoHS	Yes
Produc	Connectors
RF Series	BNC
Gende	Jack
Polarity	Standard
Impedance	75 Ohms
Maximum Frequency	4 GHz
Body Material	Brass
Body Finish	Nickel
Contact Material	Brass
Contact Plating	Gold
Contact Terminati	Solde
Mounting Type	-
Termination Style	Cable - Crim
Coupling Mechanism	Bayone
Orientati	Right Angle
Mating Cycles	500
Operating Temperature Range	- 65 C to + 165 C

Preview

Download Datasheet

View All

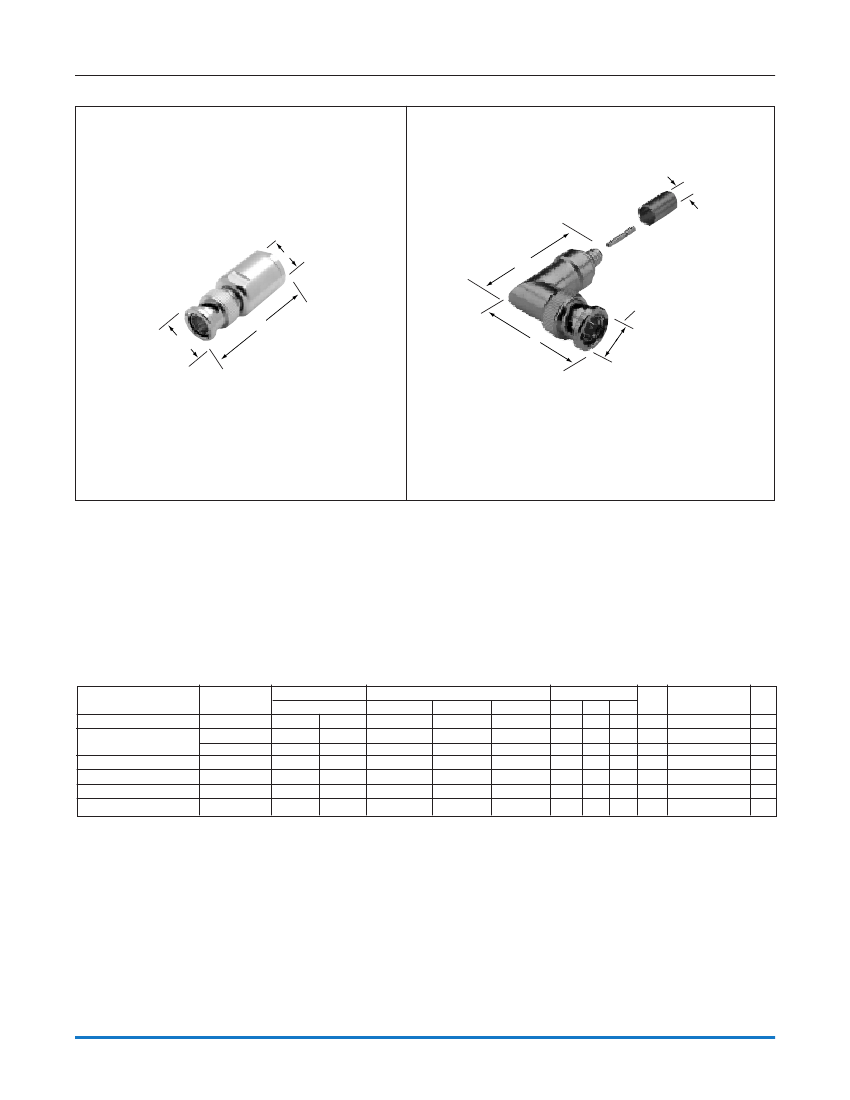

BNC 75 ohm

Plugs

Fig. 1

Fig. 2

Amphenol

®

c•

a

I

a

.562

(14.3)

d

.562

(14.3)

75Ω BNC Clamp Plug

6775-75

75Ω BNC Crimp Angle Plugs

31-70015-1000

31-71010-RFX

31-70082

31-70239

31-71010

31-70240

75Ω BNC PLUGS AND ANGLE PLUGS

Cable Attachment

Connector

Configuration

Outer

Inner

11

Plug

Clamp

Solder

59, 62 Belden 8241, 8263,

Angle Plug

Crimp

8279, 9209

Angle Plug

Crimp

ATT 735A

Angle Plug

Crimp

Solder

ATT 19224-L2

Angle Plug

Crimp

Angle Plug

Crimp

AT&T 734A

†

Angle Plug

Crimp

AT&T 735A

†

Cable

RG-/U

Dimensions, inches (millimeters)

a

I

c•

d

1.75(44.4)

.443(11.2)

—

1.66(42.2)

.261(6.6)

1.24(31.5)

1.66(42.2)

.260(6.6)

1.07(27.3)

1.09(27.7)

.158(4.0)

.894(22.7)

1.63(41.4)

.175(4.4)

1.24(31.5)

.571(14.5)

.295(7.5)

1.36(34.5)

.571(14.5)

.295(7.5)

1.36(34.5)

CAI

C25

C32

C31

Notes

Plt.

P1

P15

P7

P15

P16

P7

Ins.

D1

D23

D1

75Ω

Type

T2

T1

Amphenol

Number

6775-75

31-71010

31-71010-RFX

31-70082

31-70015-1000

31-70239

31-70240

Fig.

1

2

• accommodates cable diameter

I

includes outer ferrule

✩

supplied with two crimp ferrules

L

Distributor Stocked

❇

OD = .590(15.0)

† Low Cost

Amphenol Corporation Tel: 800-627-7100

www.amphenolrf.com

126

31-70015-1000 Related Products

	31-70015-1000	31-71010
Description	RF connectors / coaxial connectors bnc RT angle plug assy	RF connectors / coaxial connectors plug assembly
Manufacture	Amphenol	Amphenol
Product Category	RF Connectors / Coaxial Connectors	RF Connectors / Coaxial Connectors
RoHS	Yes	Yes
Produc	Connectors	Connectors
RF Series	BNC	BNC
Gende	Jack	Plug
Polarity	Standard	Standard
Impedance	75 Ohms	75 Ohms
Maximum Frequency	4 GHz	4 GHz
Body Material	Brass	Brass
Body Finish	Nickel	Nickel
Contact Material	Brass	Brass
Contact Plating	Gold	Gold
Contact Terminati	Solde	Crim
Termination Style	Cable - Crim	Cable - Crim
Coupling Mechanism	Bayone	Bayone
Orientati	Right Angle	Right Angle
Mating Cycles	500	500
Operating Temperature Range	- 65 C to + 165 C	- 65 C to + 165 C
