31-2677-1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 31-2677-1

31-2677-1: DescriptionRF connectors / coaxial connectors bnc triax spec P mnt (F)recept; CategoryThe connector; File Size847KB，1 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric View All

31-2677-1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	31-2677-1	-	-	View	Buy Now

31-2677-1 Overview

RF connectors / coaxial connectors bnc triax spec P mnt (F)recept

31-2677-1 Parametric

Parameter Name	Attribute value
Manufacture	Amphenol
Product Category	RF Connectors / Coaxial Connectors
RoHS	Yes
Produc	Connectors
RF Series	Triax
Gende	Jack
Polarity	Standard
Impedance	Non-Cons
Maximum Frequency	0.5 GHz
Body Material	Brass
Body Finish	Silve
Contact Plating	Gold
Contact Terminati	Solde
Mounting Type	Bulkhead - Rear Mou
Termination Style	Flat Tab
Coupling Mechanism	Bayone
Orientati	Straigh
Mating Cycles	500
Operating Temperature Range	- 65 C to + 165 C

Preview

Download Datasheet

View All

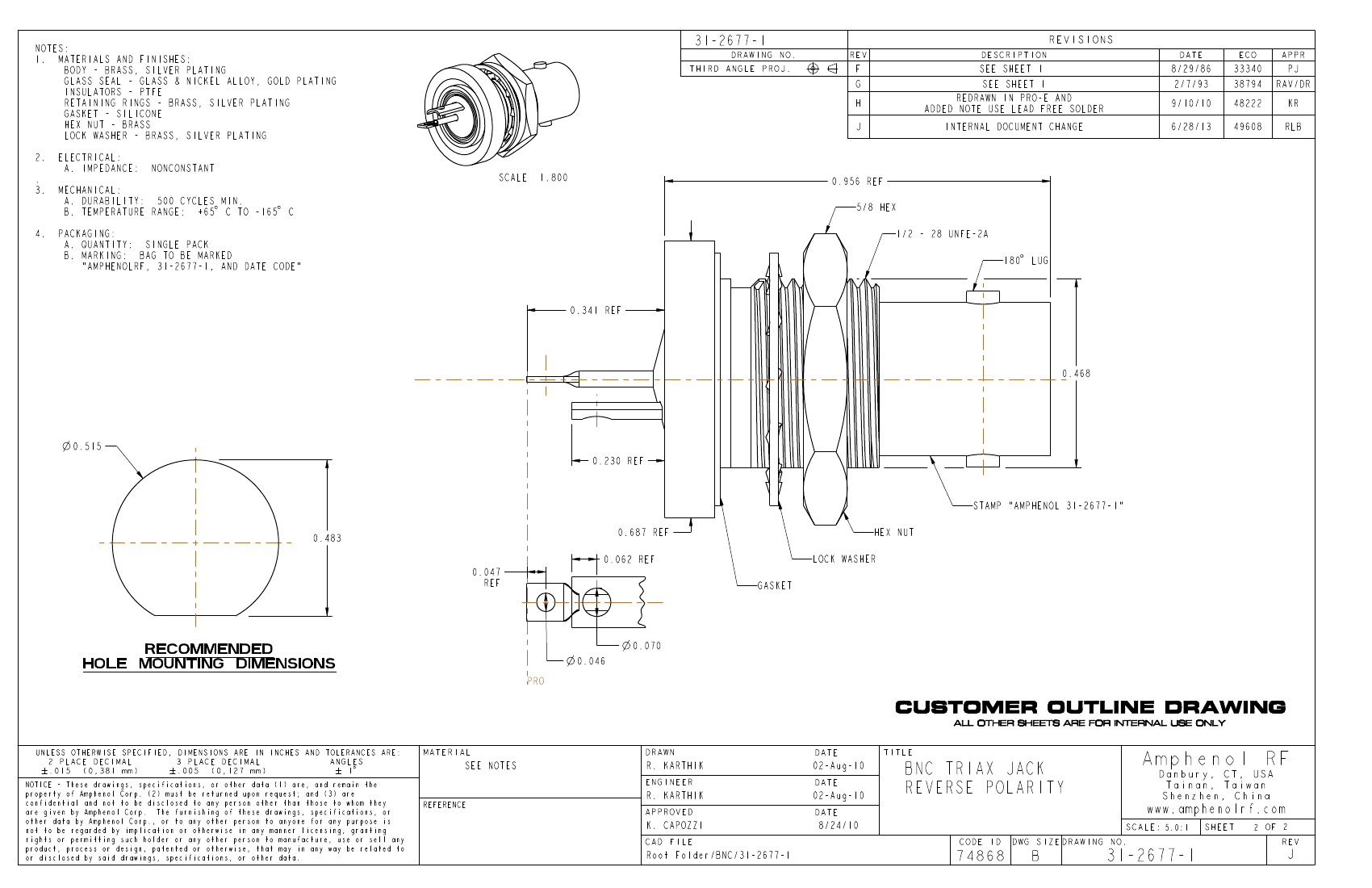

NOTES:

1. MATERIALS AND FINISHES:

BODY - BRASS, SILVER PLATING

GLASS SEAL - GLASS & NICKEL ALLOY, GOLD PLATING

INSULATORS - PTFE

RETAINING RINGS - BRASS, SILVER PLATING

GASKET - SILICONE

HEX NUT - BRASS

LOCK WASHER - BRASS, SILVER PLATING

ELECTRICAL:

A. IMPEDANCE:

NONCONSTANT

31-2677-1

REVISIONS

REV

DRAWING NO.

THIRD ANGLE PROJ.

SEE SHEET 1

REDRAWN IN PRO-E AND

ADDED NOTE USE LEAD FREE SOLDER

INTERNAL DOCUMENT CHANGE

SEE SHEET 1

DESCRIPTION

8/29/86

2/7/93

9/10/10

6/28/13

DATE

33340

38794

48222

49608

ECO

APPR

RAV/DR

RLB

MECHANICAL:

A. DURABILITY: 500 CYCLES MIN.

B. TEMPERATURE RANGE: +65 $C TO -165 $C

PACKAGING:

A. QUANTITY: SINGLE PACK

B. MARKING: BAG TO BE MARKED

"AMPHENOLRF, 31-2677-1, AND DATE CODE"

SCALE

1.800

0.956 REF

5/8 HEX

1/2 - 28 UNFE-2A

180 $LUG

0.341 REF

0.468

0.515

0.230 REF

STAMP "AMPHENOL 31-2677-1"

0.483

0.047

REF

0.687 REF

0.062 REF

GASKET

HEX NUT

LOCK WASHER

RECOMMENDED

HOLE MOUNTING DIMENSIONS

0.046

PRO

0.070

UNLESS OTHERWISE SPECIFIED, DIMENSIO NS ARE IN INCHES AND TOLERANCES ARE:

2 PLACE DECIMAL

3 PLACE DECIMAL

ANGLES

#.015

(0,381 mm)

#.005 (0,127 mm)

# 1$

NOTICE - These drawings, specificati

property of Amphenol Corp. (2) must

confidential and not to be disclosed

are given by Amphenol Corp. The fur

other data by Amphenol Corp., or to

not to be regarded by implication or

rights or permitting such holder or

product, process or design, patented

or disclosed by said drawings, speci

ons, or other data (1) are, and rema

be returned upon request; and (3) ar

to any person other than those to w

nishing of these drawings, specifica

any other person to anyone for any p

otherwise in any manner licensing,

any other person to manufacture, use

or otherwise, that may in any way b

fications, or other data.

in the

hom they

tions, or

urpose is

granting

or sell any

e related to

MATERIAL

SEE NOTES

DRAWN

R. KARTHIK

02-Aug-10

DATE

TITLE

ENGINEER

REFERENCE

APPROVED

CAD FILE

R. KARTHIK

K. CAPOZZI

Root Folder/BNC /31-2677-1

BNC TRIAX JACK

REVERSE POLARITY

CODE ID

DWG SIZE DRAWING NO.

Amphenol RF

www.amphenolrf.com

SCALE: 5.0:1

SHEET

Danbury, CT, USA

Tainan, Taiwan

Shenzhen, China

8/24/10

2 OF 2

REV

74868

31-2677-1
