28K102-400L5 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 28K102-400L5

28K102-400L5: DescriptionRF Connector, 1 Contact(s), Female, Board Mount, Solder Terminal, Jack, ROHS COMPLIANT; CategoryThe connector The connector; File Size60KB，2 Pages; ManufacturerRosenberger; Websitehttps://www.rosenberger.com/; Environmental Compliance

Download Datasheet Parametric View All

28K102-400L5 Overview

RF Connector, 1 Contact(s), Female, Board Mount, Solder Terminal, Jack, ROHS COMPLIANT

28K102-400L5 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compli
ECCN code	EAR99
Other features	INSERTION LOSS MAX AT 6 GHZ
subject depth	0.433 inch
Body diameter	0.219 inch
Body/casing type	JACK
Characteristic impedance	50 Ω
Connector type	RF CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	Gold (Au)
Contact point gender	FEMALE
Contact material	BERYLLIUM COPPER
Contact resistance	3 mΩ
Contact style	COAX
Coupling type	SNAP
DIN compliance	NO
Dielectric withstand voltage	1400VAC V
Durability	100 Cycles
Filter function	NO
IEC compliance	NO
Insertion loss	0.21 dB
Insulation resistance	5000000000 Ω
insulator material	POLYTETRAFLUORO ETHYLENE
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	QMA
Installation method	STRAIGHT
Installation type	BOARD
Number of ports	1
Maximum operating frequency	18 GHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
Panel mounting	NO
reliability	COMMERCIAL
Shell surface	GOLD
Shell material	BRASS
Terminal length	0.059 inch
Termination type	SOLDER
Total number of contacts	1
voltage standing wave ratio	1.5
Base Number Matches	1

Preview

Download Datasheet

View All

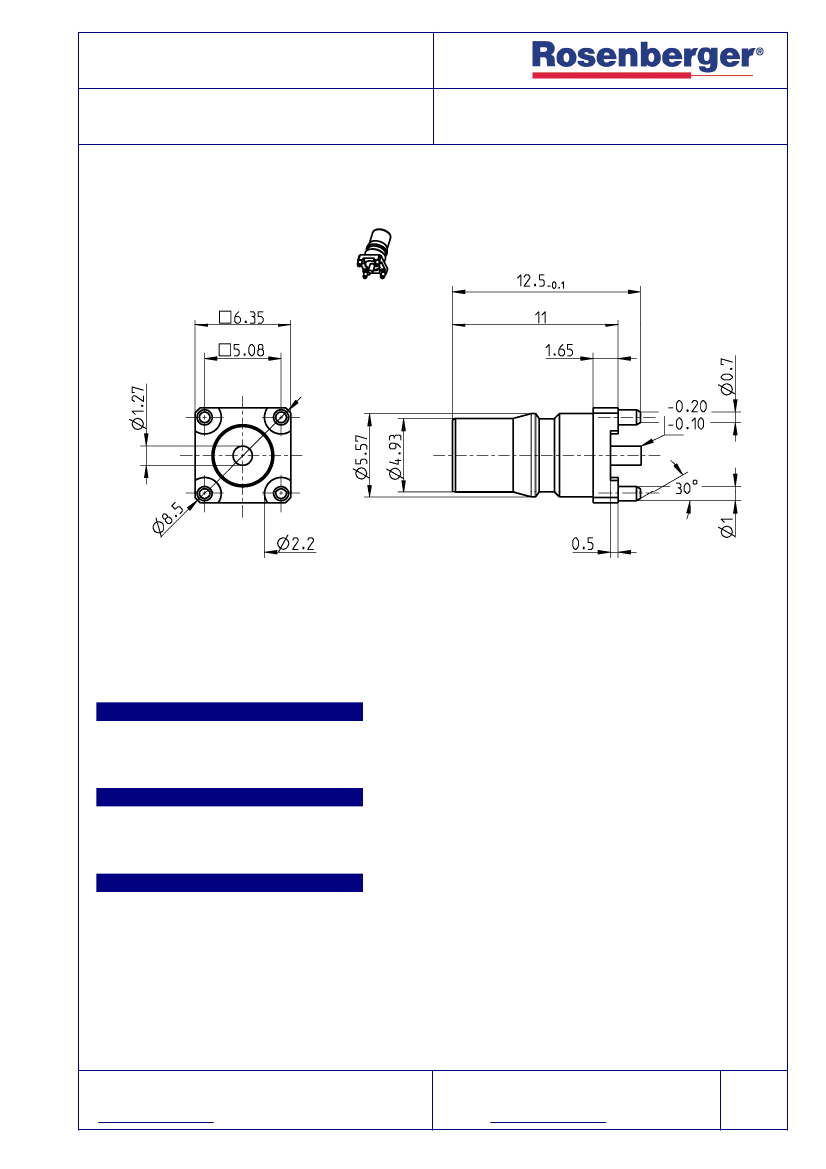

TECHNICAL DATA SHEET

QMA

STRAIGHT JACK PCB

28K102-400L5

All dimensions are in mm; tolerances according to ISO 2768 m-H

Interface

According to

Rosenberger 28K000-000, series QMA

Rosenberger is an authorised QLF manufacturer

Documents

PCB layout

Tape & reel packaging

B 168

VG58.40000

Material and plating

Connector parts

Center contact

Outer contact

Body

Dielectric

Material

CuBe

Brass

PTFE

Plating

AuroDur®, gold plated

RF_35/11.05/3.1

Rosenberger Hochfrequenztechnik GmbH & Co. KG

P.O.Box 1260

D-84526 Tittmoning

Germany

www.rosenberger.de

Tel.: +49 8684 18-0

Fax: +49 8684 18-499

email: info@rosenberger.de

Page

1/2
