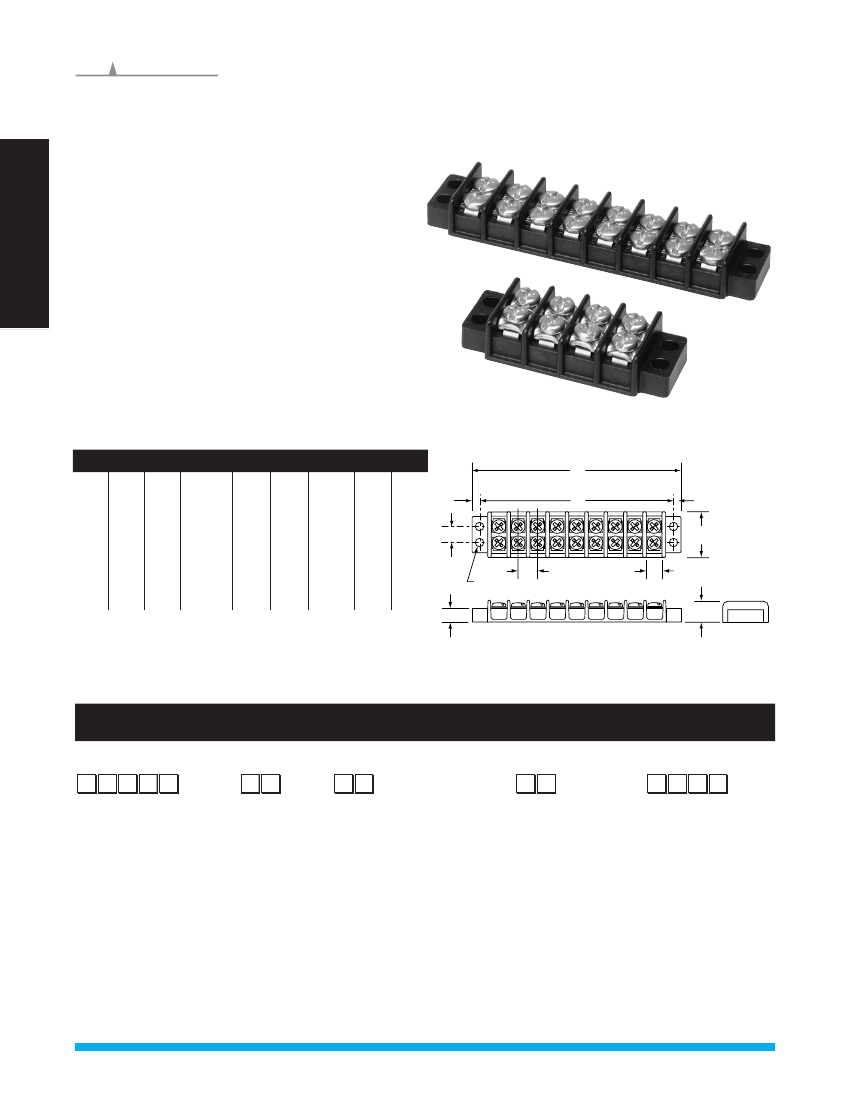

MAGNUM
®
Series TB100
Double Row Terminal Blocks
Single & Double Row
Filtered Connectors
Euro-MAG Series
PCB – Spring Clamp
SPECIFICATIONS
Rating:
30A, 300V*
Center Spacing:
.375” or 3/8” (9.52 mm)
Wire Range:
#14 - 22 AWG CU
TB100-08
Screw Size:
#6-32 philslot screws
Torque Rating:
9 in-lb.
Distance Between Barriers:
.30” (7.62 mm)
Mounting:
#6 screws
Operating Temperature:
130°C (266°F) max., -40°C (-40°F) min.
Materials:
Molded base: Black, UL rated 94V0 thermoplastic
Terminal plating: Tin over brass; Screws: Zinc plated steel
Breakdown Voltage:
3600V
Agency Information:
UL/CSA; IEC Compliance;
TB100-04SP
CE Certified
* Max. rating shown; some options may be rated lower - consult factory.
Poles
02
03
04
05
06
07
08
09
10
11
12
13
A
1.40
1.78
2.16
2.53
2.90
3.28
3.66
4.03
4.40
4.78
5.16
5.53
B
1.12
1.50
1.88
2.25
2.62
3.00
3.38
3.75
4.12
4.50
4.88
5.25
Poles
14
15
16
17
18
19
20
21
22
23
24
25
A
5.90
6.28
6.66
7.03
7.40
7.78
8.16
8.53
8.90
9.28
9.66
10.03
B
5.62
6.00
6.38
6.75
7.12
7.50
7.88
8.25
8.62
9.00
9.38
9.75
Poles
26
27
28
29
30
31
32
33
34
35
36
A
10.40
10.78
11.16
11.53
11.90
12.28
12.66
13.03
13.40
13.78
14.16
B
10.12
10.50
10.88
11.25
11.62
12.00
12.38
12.75
13.12
13.50
13.88
TB100
A
.14
(3.5)
.14
(3.5)
.88
(22.3)
.375
(9.5)
.30
(7.6)
Inches (mm)
B
.31 (7.9)
Base & Rail Mount
Connectors
.17 dia.
(4.3)
.25 (6.3)
.41
(10.4)
* Dimensions in inches. To convert to millimeters, multiply by 25.4.
Part Numbering System
Power Distribution Blocks
Series
T B 1 0 0
-
Poles
Screw Options
Marking
Hardware Options
02
to
36
Blank - steel philslot, zinc plated
00
- screws shipped bulk
B
- brass philslot, nickel plated
BS
- brass Sems philslot, nickel plated
SP
- steel Sems philslot, zinc plated
P
- steel Sems (P-style)
ST
- stainless steel, philslot
STR
- stainless steel, phillips (recess)
L1
to
L6
- (pg 35)
Marker strips (pg 36)
Covers (pg 35)
QC1
to
QC20
- quick connects
J101
- flat slip-on jumper
(2 position only)
0J2
- over barrier jumpers
0J4
- over barrier jumpers
WIRE MANAGEMENT PRODUCTS
28

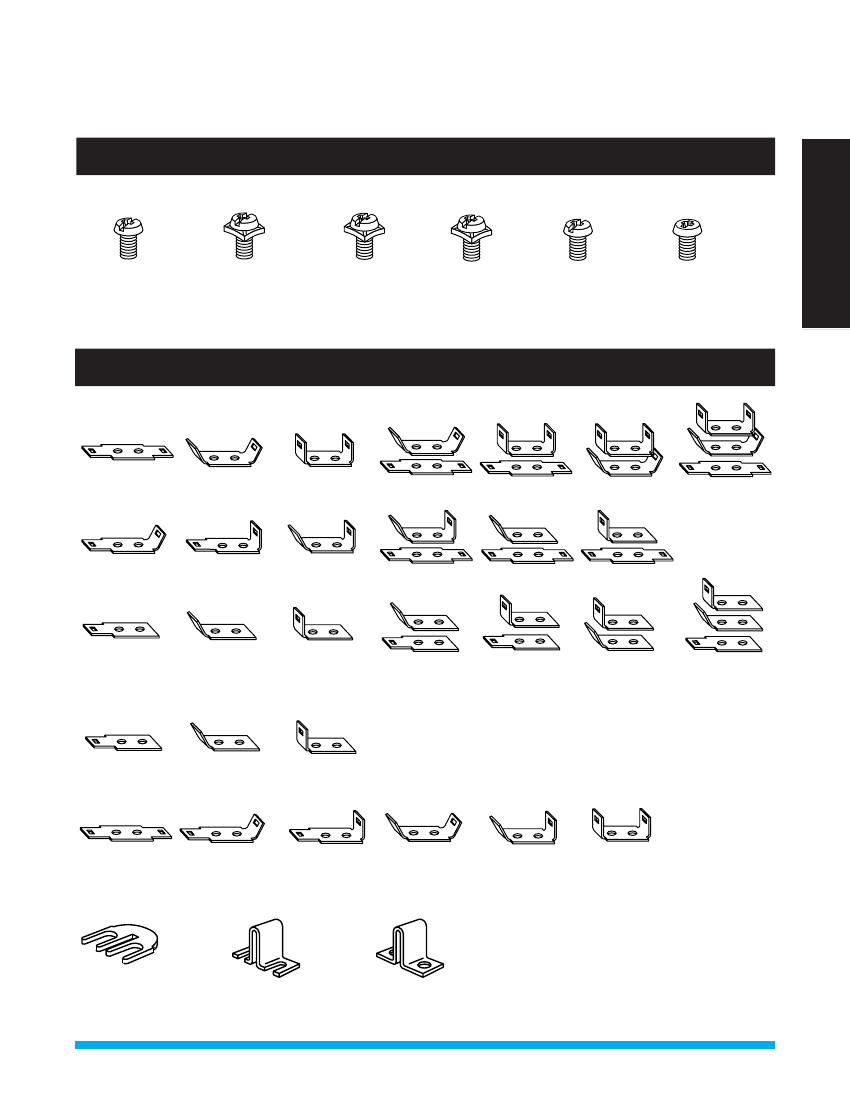

Screw Options
Single & Double Row
Filtered Connectors
B
Brass Philslot
Nickel Plated
BS
Brass SEMS
Philslot Nickel Plated
SP
Steel SEMS
Philslot Zinc Plated
P
Steel SEMS
(P-Style)
ST
Stainless Steel
Philslot
STR
Stainless Steel
Phillips (recess)
Hardware Options
Euro-MAG Series
PCB – Spring Clamp
Quick Connects – Assembled
Terminals .187” x .020”. Max. current rating 13 Amps. For other orientations, contact factory.
QC1
QC2
QC3
QC4
QC5
QC6
QC7
Base & Rail Mount
Connectors
QC8
QC9
QC10
QC11
QC12
QC13
QC14
QC15
QC16
QC17
QC18
QC19
QC20
Quick Connects – Bulk
Min. order per part no. – 100 pieces.
Power Distribution Blocks
QC101
Flat – none
QC102
QC 45° – none
QC103
QC 90° – none
QC104
Flat – Flat
Jumpers – Bulk
QC105
Flat – QC 45°
QC106
Flat – QC 90°
QC107
QC 45° – QC 45°
QC108
QC 45° – QC 90°
QC109
QC 90° – QC 90°
Min. order per part no. – 100 pieces. Contact factory for jumper assembly.
WIRE MANAGEMENT PRODUCTS
J101
Flat slip-on
OJ2
Slip-on over barrier
OJ4
Closed over barrier
29
MAGNUM
®

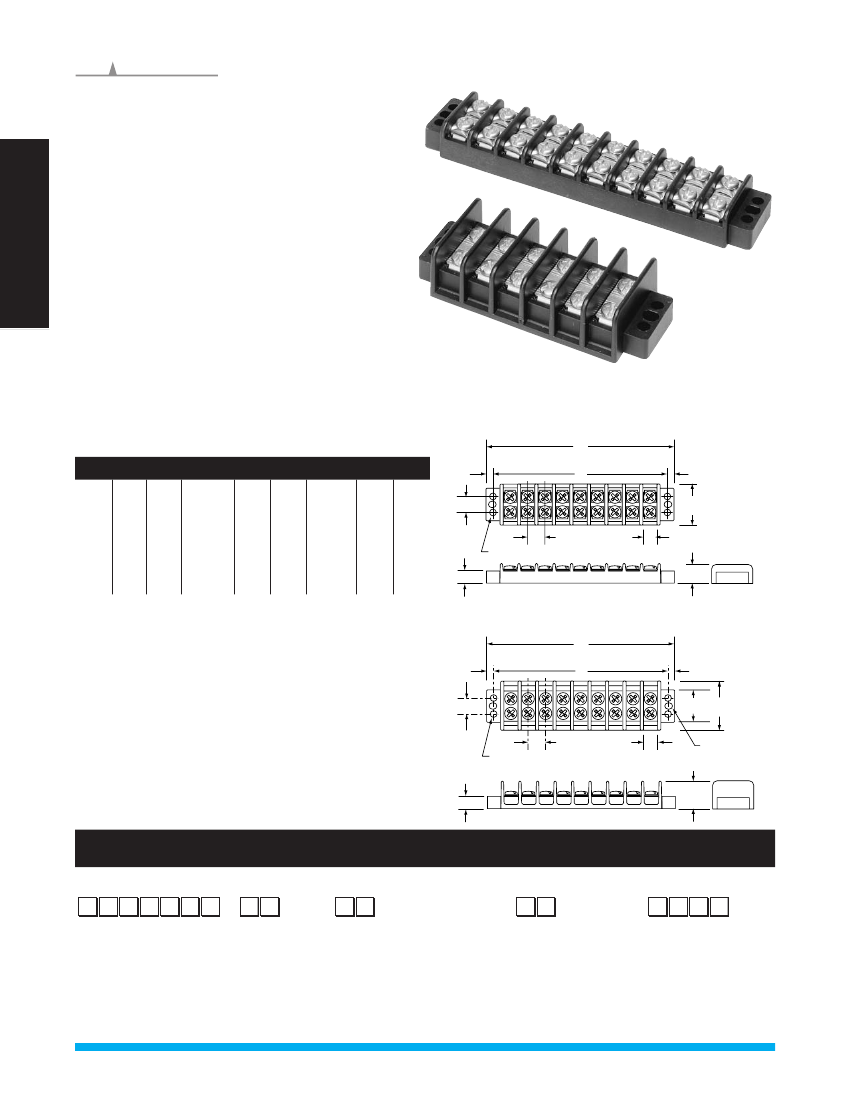

Series TB200 & TB200HB
Double Row Terminal Blocks
Single & Double Row
Filtered Connectors
Euro-MAG Series
PCB – Spring Clamp
SPECIFICATIONS
Rating:
TB200 - 30A, 300V*
TB200HB - 30A, 600V*
Center Spacing:
.437” or 7/16” (11.10 mm)
Wire Range:
#12 - 22 AWG CU
Screw Size:
#6-32 philslot screws
Torque Rating:
9 in-lb.
Distance Between Barriers:
.353” (8.97 mm)
Mounting:
#6 screws
Operating Temperature:
130°C (266°F) max., -40°C (-40°F) min.
Materials:
Molded base: Black, UL rated 94V0 thermoplastic
Terminal plating: Tin over brass; Screws: Zinc plated steel
Breakdown Voltage:
4800V
Agency Information:
UL/CSA; IEC Compliance;
CE Certified
* Max. rating shown; some options may be rated lower - consult factory.
TB200-10SP
TB200HB-06
TB200
A
Inches (mm)
Poles
02
03
04
05
06
07
08
09
10
11
A
1.63
2.07
2.51
2.94
3.38
3.82
4.25
4.69
5.13
5.57
B
1.31
1.75
2.18
2.62
3.06
3.50
3.93
4.37
4.81
5.25
Poles
12
13
14
15
16
17
18
19
20
21
A
6.00
6.44
6.87
7.31
7.75
8.19
8.62
9.06
9.50
9.94
B
5.68
6.12
6.56
7.00
7.43
7.87
8.31
8.75
9.18
9.62
Poles
22
23
24
25
26
27
28
29
30
A
10.37
10.81
11.25
11.68
12.12
12.56
13.00
13.44
13.87
B
10.06
10.50
10.93
11.37
11.81
12.25
12.68
13.12
13.56
.16
(4.0)
B
.16
(4.0)
1.12
(28.4)
.44 (11.2)
.17 dia.
(4.3)
.31 (7.8)
.437
(11.1)
.353
(8.9)
Base & Rail Mount
Connectors
.56
(14.2)
* Dimensions in inches. To convert to millimeters, multiply by 25.4.
TB200HB
A
.16
(4.0)
.16
(4.0)
B
.44 (11.2)
.90
1.37
(22.8) (34.8)
Power Distribution Blocks
.17 dia.
(4.3)
.437
(11.1)
.353
(8.9)
.17 x .22 slots
(4.3 x 5.6)
.33 (8.4)
.75
(19.0)
Part Numbering System
Series
T B 2 0 0
WIRE MANAGEMENT PRODUCTS
200
- Standard
200HB
- High barrier
-
Poles
Screw Options
Marking
Hardware Options
02
to
30
Blank - steel philslot, zinc plated
00
- screws shipped bulk
B
- brass philslot, nickel plated
BS
- brass Sems philslot, nickel plated
SP
- steel Sems philslot, zinc plated
P
- steel Sems (P-style)
ST
- stainless steel, philslot
SS
- stainless steel Sems, philslot
STR
- stainless steel, phillips (recess)
L1
to
L6
- (pg 35)
Marker strips (pg 33)
Covers (pg 32)
QC1
to
QC20
- quick connects
J201
- flat slip-on jumper
(2 position only)
0J3
- over barrier jumpers
0J5
- over barrier jumpers
0J7
- over barrier jumpers
30

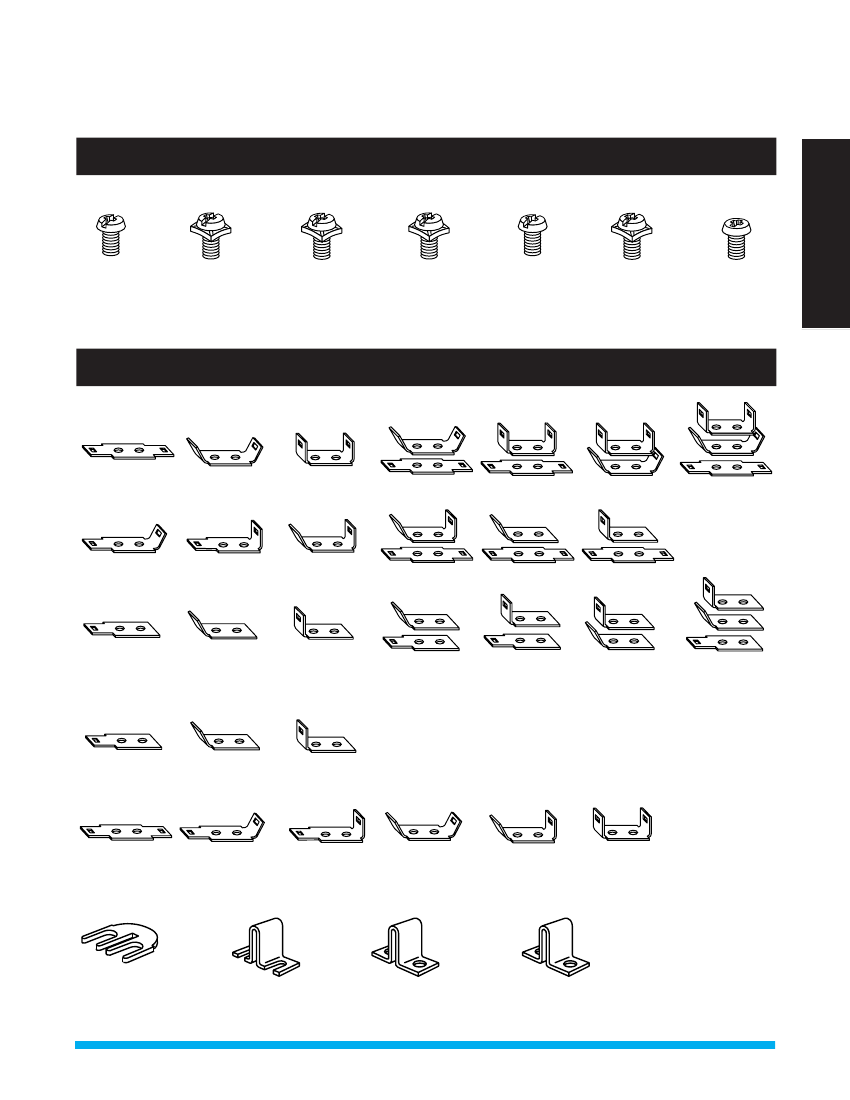

Screw Options
Single & Double Row
Filtered Connectors
B
Brass Philslot
Nickel Plated
BS
Brass SEMS
Philslot Nickel Plated
SP
Steel SEMS
Philslot Zinc Plated
P
Steel SEMS
(P-Style)
ST
Stainless Steel
Philslot
SS
Stainless Steel
SEMS Philslot
STR
Stainless Steel
Phillips (recess)
Hardware Options
Euro-MAG Series
PCB – Spring Clamp
Quick Connects – Assembled
Terminals .250” x .031”. Max. current rating 20 Amps. For other orientations, contact factory.
QC1
QC2
QC3
QC4
QC5
QC6
QC7
Base & Rail Mount
Connectors
QC8
QC9
QC10
QC11
QC12
QC13
QC14
QC15
QC16
QC17
QC18
QC19
QC20
Quick Connects – Bulk
Min. order per part no. – 100 pieces.
Power Distribution Blocks
QC201
Flat – none
QC202
QC 45° – none
QC203
QC 90° – none
QC204
Flat – Flat
Jumpers – Bulk
QC205
Flat – QC 45°
QC206
Flat – QC 90°
QC207
QC 45° – QC 45°
QC208
QC 45° – QC 90°
QC209
QC 90° – QC 90°
Min. order per part no. – 100 pieces. Contact factory for jumper assembly.
WIRE MANAGEMENT PRODUCTS
J201
Flat slip-on
(not available on
TB200HB)
OJ3
Slip-on over barrier
for TB200HB
OJ5
Closed over barrier
for TB200HB
OJ7
Closed over barrier
for TB200
31
MAGNUM
®

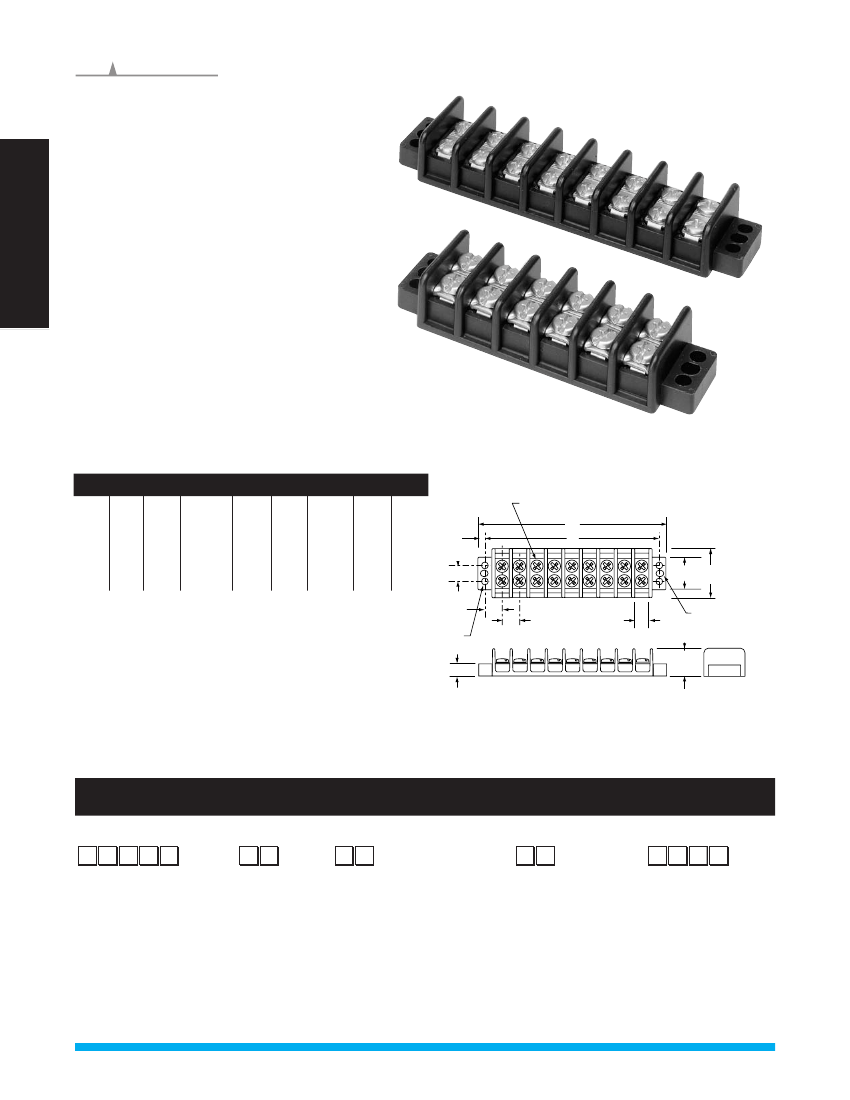

Series TB300 & TB345
Double Row Terminal Blocks
Single & Double Row
Filtered Connectors
Euro-MAG Series
PCB – Spring Clamp
SPECIFICATIONS
Rating:
TB300 – 30A, 600V*
TB345 – 45A, 600V*
Center Spacing:
.562” or 9/16” (14.28 mm)
Wire Range:
#8 - 22 AWG CU
Screw Size:
TB300 – #8-32 philslot screws
TB345 – #10-32 philslot screws
Torque Rating:
#8 screws - 16 in-lb.;
#10 screws - 20 in-lb.
Distance Between Barriers:
.41” (10.5 mm)
Mounting:
TB300 – #8 screws; TB345 – #10 screws
Operating Temperature:
130°C (266°F) max., -40°C (-40°F) min.
Material:
Molded base: Black, UL rated 94V0 thermoplastic
Terminal plating: Tin over brass; Screws: Zinc plated steel
Breakdown Voltage:
7500V
Agency Information:
UL/CSA; IEC Compliance;
CE Certified
* Max. rating shown; some options may be rated lower - consult factory.
TB300-08
TB345-06SP
Poles
02
03
04
05
06
07
08
09
A
2.13
2.69
3.25
3.81
4.37
4.94
5.50
6.06
B
1.69
2.25
2.81
3.37
3.94
4.50
5.06
5.62
Poles
10
11
12
13
14
15
16
17
A
B
Poles
18
19
20
21
22
23
24
A
11.12
11.68
12.24
12.80
13.37
13.93
14.49
B
10.68
11.25
11.81
12.37
12.93
13.50
14.06
TB300 & TB345
8-32 binding head screw - TB 300
10-32 binding head screw - TB 345
A
.22
(5.6)
B
Inches (mm)
Base & Rail Mount
Connectors
6.62 6.19
7.18 6.75
7.75 7.31
8.31 7.87
8.87 8.44
9.43 9.00
9.99 9.56
10.56 10.12
.50 (12.7)
.90
1.33
(22.8) (33.8)
* Dimensions in inches. To convert to millimeters, multiply by 25.4.
.56
(14.2)
.21dia.
(5.3)
.56
(14.2)
.412
(10.4)
.21 x .25 slots
(5.3 x 6.3)
.33 (8.4)
.81
(20.5)
Power Distribution Blocks
Part Numbering System
Series
T B 3
300
- 8-32 screw
345
- 10-32 screw
-
Poles
Screw Options
Marking
Hardware Options
02
to
24
WIRE MANAGEMENT PRODUCTS
Blank - steel philslot, zinc plated
00
- screws shipped bulk
B
- brass philslot, nickel plated
BS
- brass Sems philslot, nickel plated
(TB300 only)
SP
- steel Sems philslot, zinc plated
P
- steel Sems (P-style)
ST
- stainless steel, philslot
STR
- stainless steel, phillips (recess)
L1
to
L6
- (pg 35)
Marker strips (pg 36)
Covers (pg 35)
QC1
to
QC20
- quick connects
(TB300 only)
J301
- flat slip-on jumper
0J6
- over barrier jumper
0J11
- over barrier jumper
32
