TECHNICAL DATA SHEET
QMA
RIGHT ANGLE PLUG
28S207-3Y8N5
Dieses Dokument ist urheberrechtlich geschützt
●
This document is protected by copyright
●
Rosenberger Hochfrequenztechnik GmbH & Co. KG

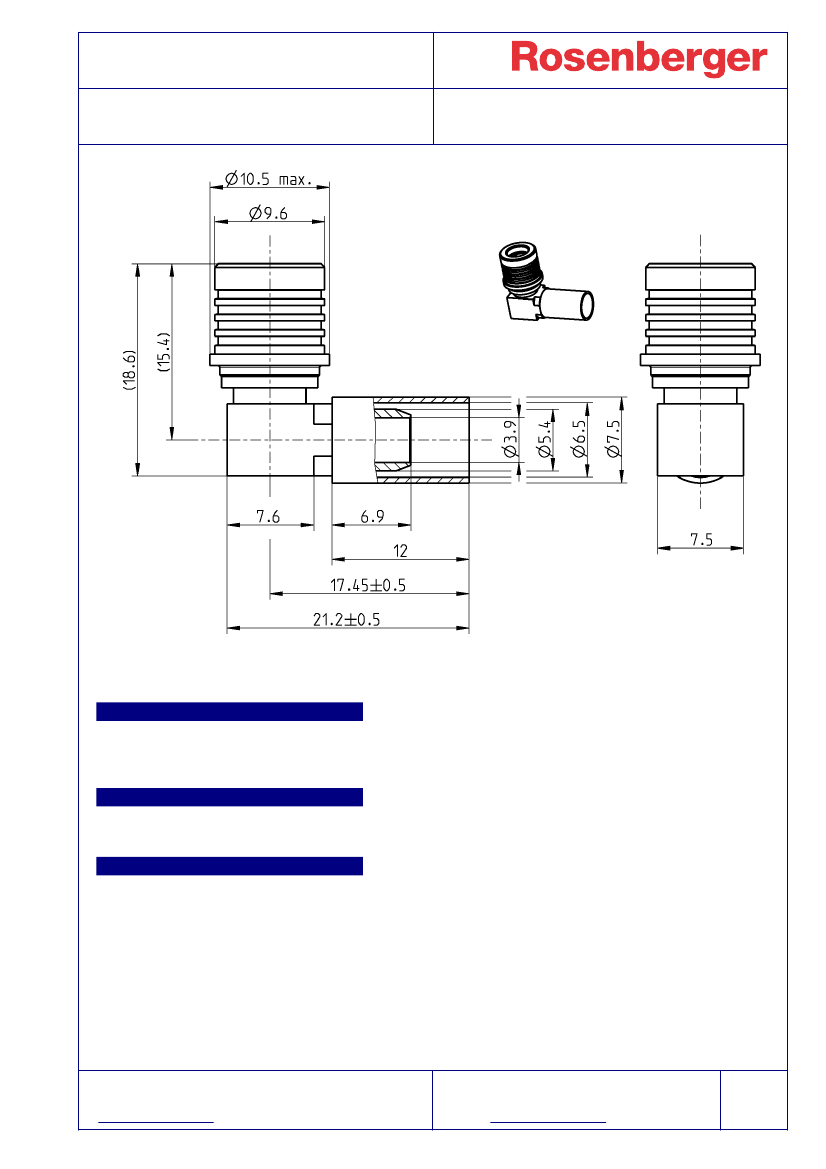

All dimensions are in mm; tolerances according to ISO 2768 m-H
Interface
According to
Rosenberger 28S000-000, series QMA
Rosenberger is an authorised QLF manufacturer
Documents
Assembly instruction
28 B1
Material and plating
Connector parts
Center contact
Outer contact
Dielectric
Unlocking sleeve
Crimping ferrule
Material
Brass
Spring bronze
PTFE
Brass
Copper
Plating
AuroDur®, gold plated
White bronze(e.g. Optalloy®)
White bronze(e.g. Optalloy®)
Flash white bronze over silver(e.g. Optargen®)
RF_35/12.04/3.0
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel.: +49 8684 18-0
Fax: +49 8684 18-499
email: info@rosenberger.de
Page
1/2
TECHNICAL DATA SHEET
QMA
RIGHT ANGLE PLUG
28S207-3Y8N5
50
Ω
DC to 18 GHz
≥
32 dB, DC to 3 GHz
≥
25 dB, 3 to 6 GHz
≤
0.05 x
f(GHz)
dB, DC to 6 GHz
≥
5 x10
3
MΩ
≤
3 mΩ
≤
2.5 mΩ
1000 V rms
480 V rms
≥
95 dB up to 2 GHz
≥
80 dB up to 4 GHz
≥
70 dB up to 6 GHz
≤
-120 dBc @ 2 x 20 W
Electrical data
Impedance
Frequency
Return loss
Insertion loss
Insulation resistance
Center contact resistance
Outer contact resistance
Test voltage, at sea level, 50Hz
Working voltage, at sea level, 50Hz
RF-leakage
Dieses Dokument ist urheberrechtlich geschützt
●
This document is protected by copyright
●
Rosenberger Hochfrequenztechnik GmbH & Co. KG
Intermodulation
(3
rd
order)
- Limitations are possible due to the used cable type -
Mechanical data
Mating cycles
Center contact captivation: axial
Engagement force
Disengagement force
Retention force for interface
min. 100
≥
20 N
typ. 25 N
typ. 20 N
60 N min.
Environmental data
Temperature range
Storage temperature
Thermal shock
Corrosion
Vibration
Damp heat, steady state
2002/95/EC (RoHS)
-40°C to +85°C
-40°C to +85°C
IEC 60169-1 16.4 (-40 / +85°C)
IEC 60169-1 16.7 (48 hrs)
IEC 60068-2-64 random
IEC 60169-1 16.3 (96 hrs)
compliant
Tooling
Crimping tool
Crimp insert
11W150-000
11W150-109
Suitable cables
TZC 50025
Packing
Standard
Weight
100 pcs in bag
8.2 g/pce
RF_35/12.04/3.0
Draft
Inge Mühlauer
Date
05/10/04
Approved
Schwangler
Date
16.03.2011
Rev.
b00
Engineering change number
11-0222
Name
S. Kra.
Date
16.03.11
