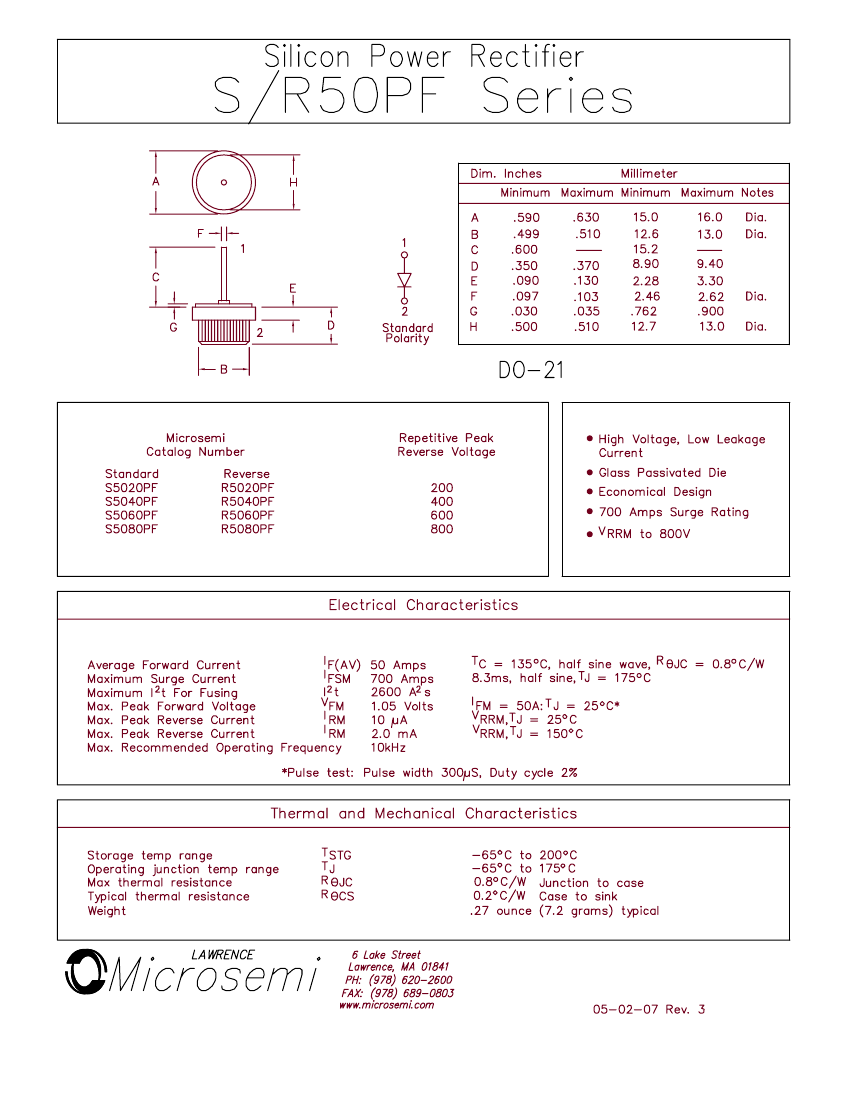

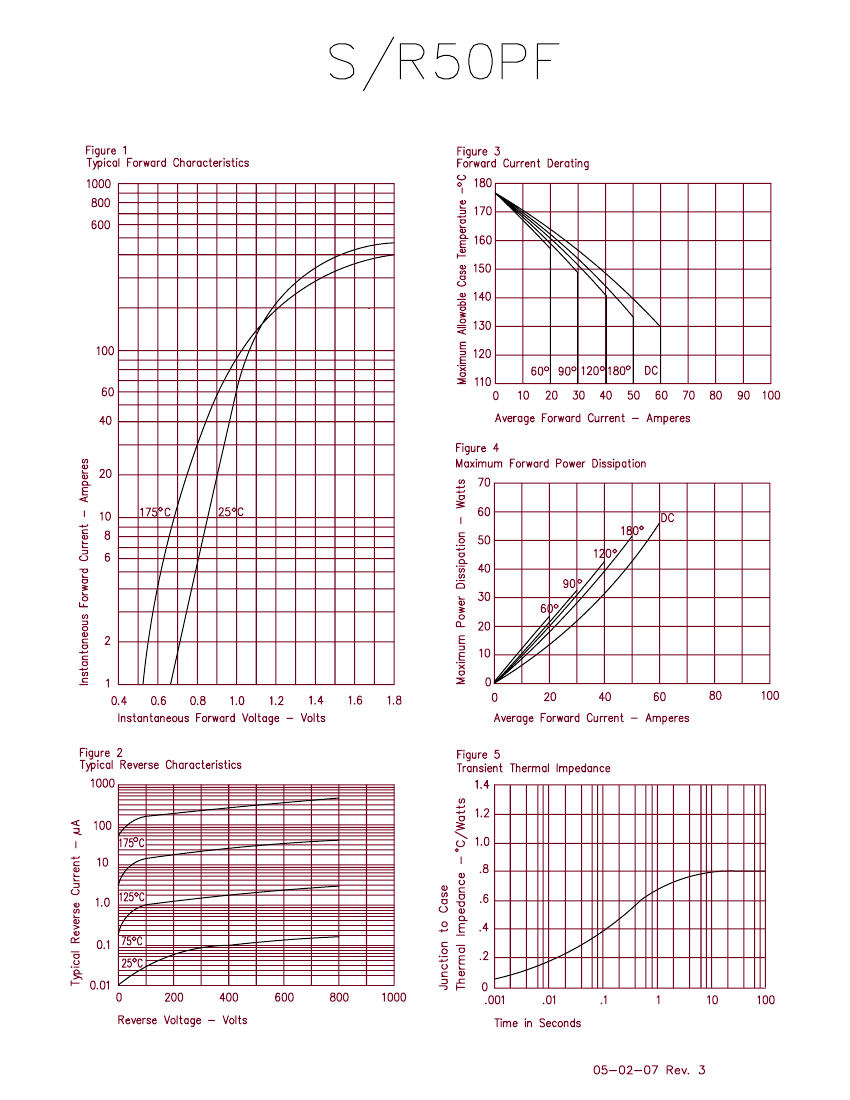

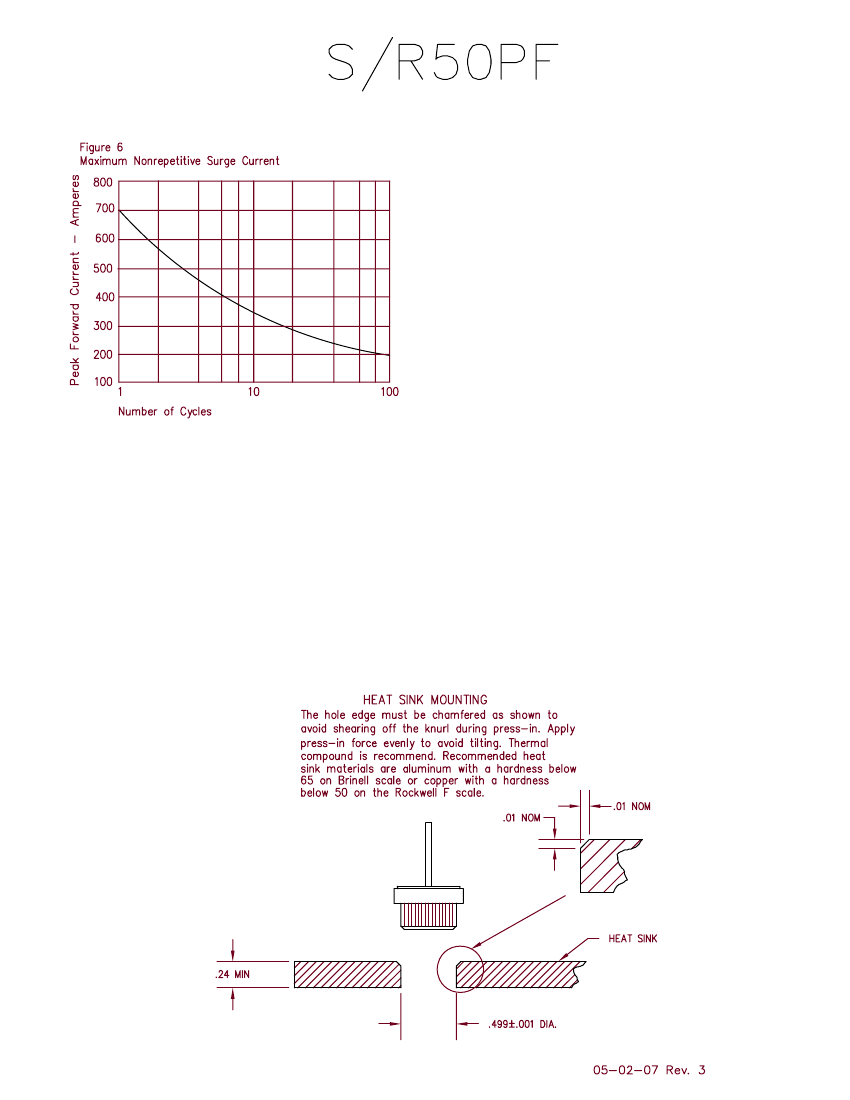

Silicon Power Rectifier
| Parameter Name | Attribute value |
| Is it lead-free? | Contains lead |
| Is it Rohs certified? | conform to |
| Maker | Microsemi |
| Parts packaging code | DO-21 |
| package instruction | PRESSFIT-1 |
| Contacts | 1 |
| Reach Compliance Code | unknow |
| ECCN code | EAR99 |
| Other features | LOW LEAKAGE CURRENT |
| application | HIGH VOLTAGE POWER |
| Configuration | SINGLE |
| Diode component materials | SILICON |
| Diode type | RECTIFIER DIODE |
| Maximum forward voltage (VF) | 1 V |
| JEDEC-95 code | DO-21 |
| JESD-30 code | O-MUPF-P1 |
| JESD-609 code | e0 |
| Maximum non-repetitive peak forward current | 700 A |
| Number of components | 1 |
| Phase | 1 |
| Number of terminals | 1 |
| Maximum operating temperature | 175 °C |
| Minimum operating temperature | -65 °C |
| Maximum output current | 50 A |
| Package body material | METAL |
| Package shape | ROUND |
| Package form | PRESS FIT |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| Certification status | Not Qualified |
| Maximum repetitive peak reverse voltage | 400 V |
| Maximum reverse current | 40 µA |
| Maximum reverse recovery time | 5 µs |
| surface mount | NO |
| Terminal surface | TIN LEAD |
| Terminal form | PIN/PEG |
| Terminal location | UPPER |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| R5040PF | S50PF | S5060PF | S5080PF | S5040PF | S5020PF | R5080PF | |
|---|---|---|---|---|---|---|---|
| Description | Silicon Power Rectifier | Silicon Power Rectifier | Silicon Power Rectifier | Silicon Power Rectifier | Silicon Power Rectifier | Silicon Power Rectifier | Silicon Power Rectifier |
| Is it lead-free? | Contains lead | - | Contains lead | Contains lead | Contains lead | Contains lead | Contains lead |
| Is it Rohs certified? | conform to | - | incompatible | incompatible | incompatible | incompatible | conform to |
| Maker | Microsemi | - | Microsemi | Microsemi | Microsemi | Microsemi | Microsemi |
| Parts packaging code | DO-21 | - | DO-21 | DO-21 | DO-21 | DO-21 | DO-21 |
| package instruction | PRESSFIT-1 | - | O-MUPF-P1 | O-MUPF-P1 | O-MUPF-P1 | O-MUPF-P1 | PRESSFIT-1 |
| Contacts | 1 | - | 1 | 1 | 1 | 1 | 1 |
| Reach Compliance Code | unknow | - | compli | compli | compli | compli | unknow |
| ECCN code | EAR99 | - | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
| Other features | LOW LEAKAGE CURRENT | - | LOW LEAKAGE CURRENT | LOW LEAKAGE CURRENT | LOW LEAKAGE CURRENT | LOW LEAKAGE CURRENT | LOW LEAKAGE CURRENT |
| application | HIGH VOLTAGE POWER | - | HIGH VOLTAGE POWER | HIGH VOLTAGE POWER | HIGH VOLTAGE POWER | HIGH VOLTAGE POWER | HIGH VOLTAGE POWER |
| Configuration | SINGLE | - | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE |
| Diode component materials | SILICON | - | SILICON | SILICON | SILICON | SILICON | SILICON |
| Diode type | RECTIFIER DIODE | - | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE |
| Maximum forward voltage (VF) | 1 V | - | 1 V | 1 V | 1 V | 1 V | 1 V |
| JEDEC-95 code | DO-21 | - | DO-21 | DO-21 | DO-21 | DO-21 | DO-21 |
| JESD-30 code | O-MUPF-P1 | - | O-MUPF-P1 | O-MUPF-P1 | O-MUPF-P1 | O-MUPF-P1 | O-MUPF-P1 |
| JESD-609 code | e0 | - | e0 | e0 | e0 | e0 | e0 |
| Maximum non-repetitive peak forward current | 700 A | - | 700 A | 700 A | 700 A | 700 A | 700 A |
| Number of components | 1 | - | 1 | 1 | 1 | 1 | 1 |
| Phase | 1 | - | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 1 | - | 1 | 1 | 1 | 1 | 1 |
| Maximum operating temperature | 175 °C | - | 175 °C | 175 °C | 175 °C | 175 °C | 175 °C |
| Minimum operating temperature | -65 °C | - | -65 °C | -65 °C | -65 °C | -65 °C | -65 °C |
| Maximum output current | 50 A | - | 50 A | 50 A | 50 A | 50 A | 50 A |
| Package body material | METAL | - | METAL | METAL | METAL | METAL | METAL |
| Package shape | ROUND | - | ROUND | ROUND | ROUND | ROUND | ROUND |
| Package form | PRESS FIT | - | PRESS FIT | PRESS FIT | PRESS FIT | PRESS FIT | PRESS FIT |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED | - | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Certification status | Not Qualified | - | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum repetitive peak reverse voltage | 400 V | - | 600 V | 800 V | 400 V | 200 V | 800 V |
| Maximum reverse current | 40 µA | - | 40 µA | 40 µA | 40 µA | 40 µA | 40 µA |
| Maximum reverse recovery time | 5 µs | - | 5 µs | 5 µs | 5 µs | 5 µs | 5 µs |
| surface mount | NO | - | NO | NO | NO | NO | NO |
| Terminal surface | TIN LEAD | - | TIN LEAD | TIN LEAD | TIN LEAD | TIN LEAD | TIN LEAD |
| Terminal form | PIN/PEG | - | PIN/PEG | PIN/PEG | PIN/PEG | PIN/PEG | PIN/PEG |
| Terminal location | UPPER | - | UPPER | UPPER | UPPER | UPPER | UPPER |
| Maximum time at peak reflow temperature | NOT SPECIFIED | - | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Is Samacsys | - | - | N | N | N | N | - |
| Base Number Matches | - | - | 1 | 1 | 1 | 1 | - |
