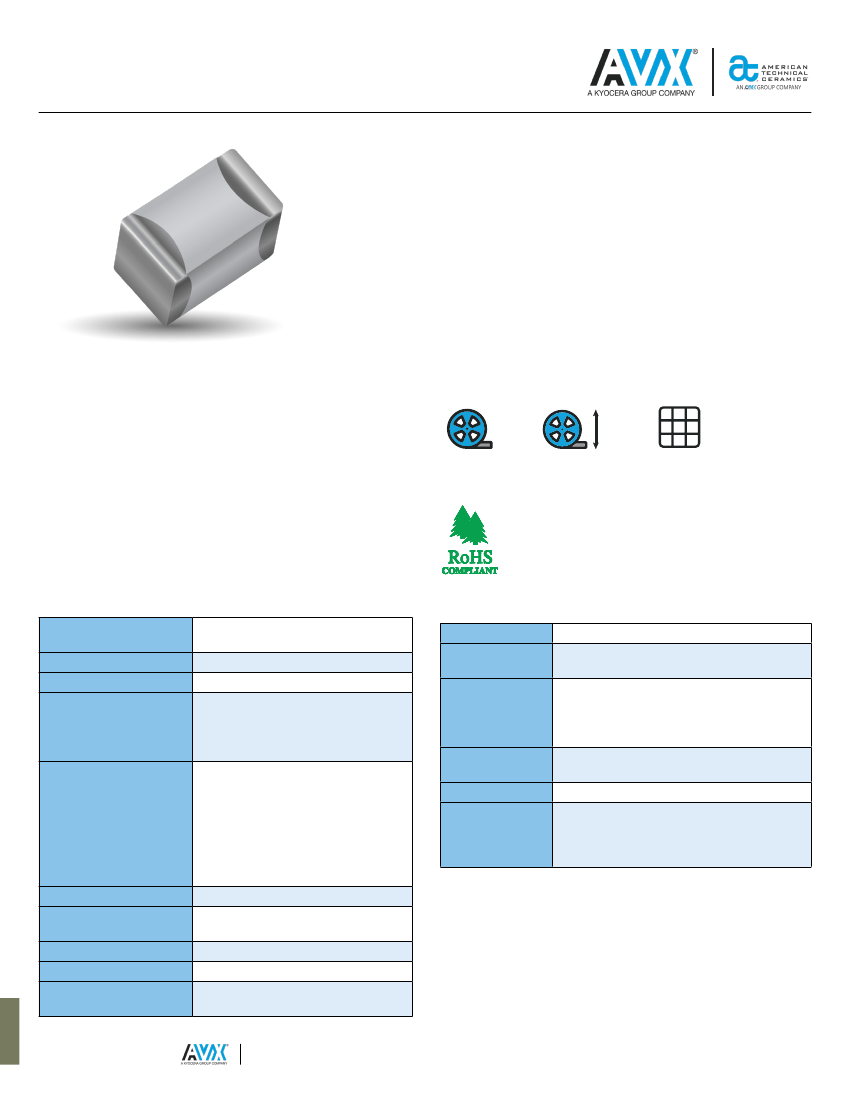

RF/Microwave Capacitors
RF/Microwave Multilayer Capacitors (MLC)
700A Series NP0 Porcelain and Ceramic Multilayer Capacitors
FEATURES
•
•
•
•
•
•
•
•
•
Case A Size (.055” x .055”)
Low ESR / ESL
High Q
Low Noise
Capacitance Range 0.1 pF to 1000 pF
Extended WVDC up to 250 VDC
Zero TCC
High Self-Resonance
Established Reliability (QPL)
GENERAL DESCRIPTION
AVX, the industry leader, offers new improved ESR/
ESL performance for the 700 A Series RF/Microwave
Capacitors. The superior high self- resonance and zero TCC
characteristic of this Series provide excellent performance
over a broad range of RF and microwave applications
requiring minimum drift. High density porcelain and ceramic
constructions provide a rugged, hermetic package.
Typical functional applications: Bypass, Coupling, Tuning and
DC Blocking.
Typical circuit applications: Filters, Oscillators and Timing
PACKAGING OPTIONS
Tape & Reel
Vertical
Orientation
Tape & Reel
Cap-Pak
®
(100 pcs)
ELECTRICAL SPECIFICATIONS
Temperature Coefficient
(TCC)
Capacitance Range
Operating Temperature
Quality Factor
0 ± 30 PPM/ºC
0.1 pF to 1000 pF
-55ºC to +125ºC*
Greater than 10,000
(0.1 pF to 100 pF) @ 1 MHz.
Greater than 2000
(110 pF to 1000 pF) @ 1 MHz.
0.1 pF to 470 pF
10
6
Megohms min. @ 25ºC at rated
WVDC 10
5
Megohms min. @
125ºC at rated WVDC
510 pF to 1000 pF
10
5
Megohms min. @ 25ºC at rated
WVDC 10
4
Megohms min. @
125ºC at rated WVDC
See Capacitance Values table
250% of rated WVDC for 5 seconds
None
None
± (0.02% or 0.02 pF), whichever
is greater
ENVIRONMENTAL CHARACTERISTICS
Themal Shock
Moisture
Resistance
Low Voltage
Humidity
Life Test
Solderability
Terminal
Strength
Mil-STD-202, Method 107, Condition A
Mil-STD-202, Method 106
Mil-STD-202, Method 103, condition A,
with 1.5 VDC applied while subjected to
an environment of 85ºC with 85% relative
humidity for 240 hours
MIL-STD-202, Method 108, for 2000 hours, at
125°C. 200% WVDC applied.
Mil-STD-202, Method 208
Terminations for chips and pellets withstand
a pull of 5 lbs. min., 10 lbs. typical, for 5
seconds in direction perpendicular to the
termination surface of the capacitor.
Insulation Resistance
(IR)
Working Voltage (WVDC)
Dielectric Withstanding
Voltage (DWV)
Aging Effects
Piezoelectric Effects
Capacitance Drift
530
The Important Information/Disclaimer is incorporated in the catalog where these specifications came from or
available online at www.avx.com/disclaimer/ by reference and should be reviewed in full before placing any order.
032521
RF/Microwave Capacitors
RF/Microwave Multilayer Capacitors (MLC)
700A Series NP0 Porcelain and Ceramic Multilayer Capacitors
CAPACITANCE VALUES
Cap. Cap.
Code (pF)
0R1
0R2
0R3
0R4
0R5
0R6
0R7
0R8
0R9
1R0
1R1
1R2
1R3
1R4
1R5
1R6
1R7
1R8
1R9
2R0
2R1
2R2
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
1.0
1.1
1.2
1.3
1.4
1.5
1.6
1.7
1.8
1.9
2.0
2.1
2.2
Tol.
B
B, C
Rated
WVDC
STD. EXT.
EXTENDED VOLTAGE ED
Cap. Cap.
Code (pF)
2R4
2R7
3R0
3R3
3R6
3R9
4R3
4R7
5R1
5R6
6R2
6R8
7R5
8R2
9R1
100
110
120
130
150
160
180
2.4
2.7
3.0
3.3
3.6
3.9
4.3
4.7
5.1
5.6
6.2
6.8
7.5
8.2
9.1
10
11
12
13
15
16
18
Tol.
Rated
WVDC
STD. EXT.
EXTENDED VOLTAGE ED
Cap.
Code
200
220
240
270
300
330
360
390
430
470
510
560
620
680
750
820
910
101
111
121
131
Cap.
(pF)
20
22
24
27
30
33
36
39
43
47
51
56
62
68
75
82
91
100
110
120
130
Tol.
Rated
WVDC
STD. EXT.
VOLTAGE
Cap.
Code
151
161
181
201
221
241
271
301
331
361
391
431
471
511
561
621
681
751
821
911
102
Cap.
(pF)
Tol.
Rated
WVDC
STD. EXT.
B, C,
D
250
EXTENDED
150
B, C,
D
250
150
B, C,
J, K,
M
250
F, G,
J, K,
M
150
200
EXT.
F, G,
J, K,
M
N/A
150
160
180
200
220
240
270
300
330
360
F, G,
390
J, K,
430
M
470
510
560
620
680
750
820
910
1000
150
N/A
EXTENDED VOLTAGE
EXTENDED VOLTAGE
VOLT.
50
vrms = 0.707 x WVDC
Special values, tolerances, higher WVDC and matching available. Please consult factory.
note: extended wvdc does not apply to cdr products.
Capacitance values in bold type indicate porcelain dielectric. All other capacitance values indicate ceramic dielectric.
All 700 A Capacitors are available laser marked with AVX's identification, capacitance code and tolerance.
HOW TO ORDER
700
Series
Case Size
See mechanical dimensions below
A
6R8
J
W
150
X
T
Packaging
T = Tape and Reel, 500 pc qty
TV = Vertical Tape and Reel, 500 pc qty
Please see last column of mechanical configuration table
for other options.
Capacitance
EIA Capacitance Code in pF.
First two digits = significant figures or “R” for decimal place.
Third digit = number of zeros or after “R” significant figures
Laser Marking (Optional)
Voltage Rating
Termination Style Code
K
M
Capacitance Tolerance Code
Code
Tol.
B
C
D
F
G
J
±.1 pF ±.25 pF ±.5 pF
±1%
±2%
±5%
±10%
±20%
Please see 2nd Column Mechanical
Configuration Table
The above part number refers to a 700A Series (case size A) 6.8 pF capacitor, J tolerance (+/-5%), 150 WVDC,
with W termination, (Tin/Lead, Solder Plated over Nickel Barrier), laser marking and Tape and Reel Packaging.
The Important Information/Disclaimer is incorporated in the catalog where these specifications came from or
available online at www.avx.com/disclaimer/ by reference and should be reviewed in full before placing any order.
062821
531
RF/Microwave Capacitors
RF/Microwave Multilayer Capacitors (MLC)
700A Series NP0 Porcelain and Ceramic Multilayer Capacitors

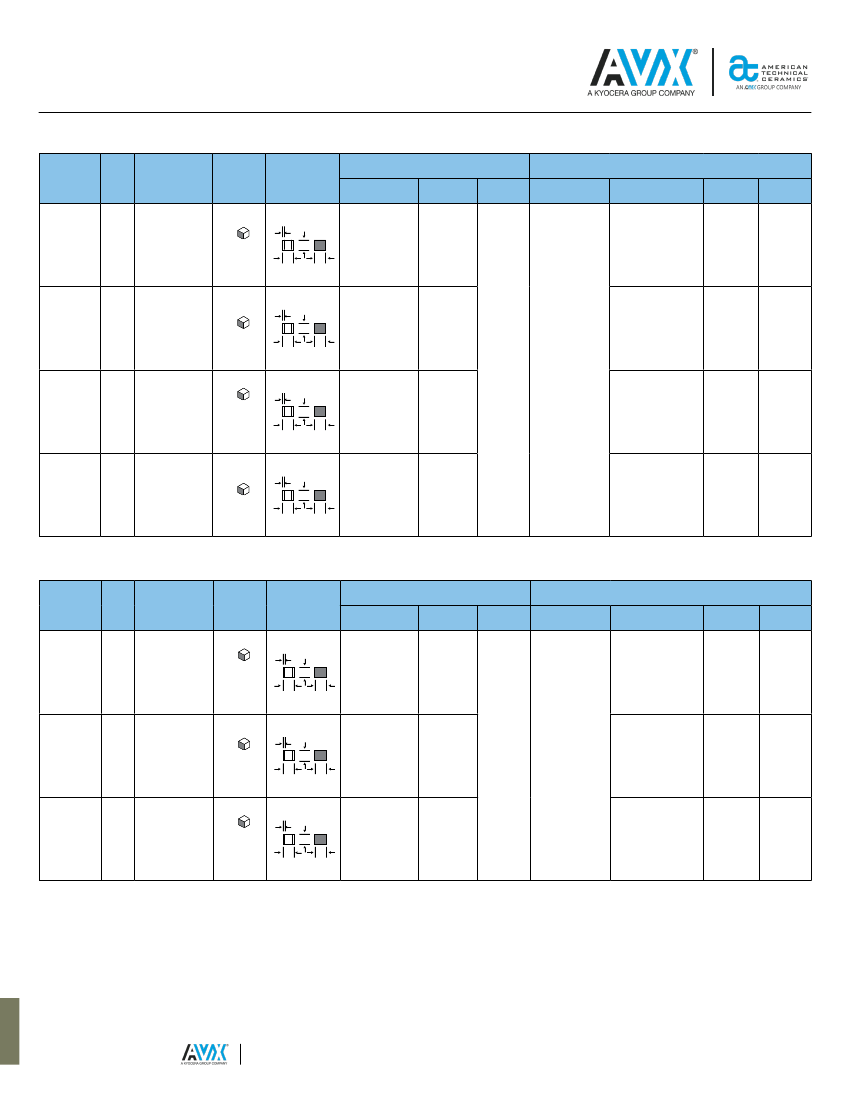

MECHANICAL CONFIGURATION
AVX
AVX Series
Case Size
Term. MIL-PRF-55681
& Case Size
& Type
Code
Outline ES
W/T is a
Termination
Surface
Body Dimensions
inches (mm)
Length (L)
Width (W)
Thickness
(T)
Overlap (Y)
Lead and Termination
Dimensions and Material
Materials
Pkg Type
Pkg Code
T1K or T
TV1K or
TV
C100
700A
W
CDR12BP
A
Solder
Plate
Y
W
L
T
.055+.015 -.010 .055 ±.015
(1.40+0.38-0.25) (1.40 ±0.38)
700A
P
CDR12BP
A
Pellet
Y
W
L
T
.055+.025 -.010 .055 ±.015
(1.40+0.64-0.25) (1.40 ±0.38)
.057
(1.45)
max.
700A
T
N/A
A
Solderable
Nickel
Barrier
Y
W
L
T
.055+.015 -.010 .055 ±.015
(1.40+0.38-0.25) (1.40 ±0.38)
700A
CA
CDR11BP
A
Gold Chip
Y
W
L
T
.055+.015 -.010 .055 ±.015
(1.40+0.38-0.25) (1.40 ±0.38)
T&R, 1000
or 500 pcs
Tin/ Lead, Solder
Vertical
Plated over Nickel T&R, 1000
Barrier Termination or 500 pcs
Cap Pac,
100 pcs
T&R, 1000
or 500 pcs
Heavy Tin/ Lead
Vertical
Coated, over Nickel T&R, 1000
Barrier Termination or 500 pcs
Cap Pac,
100 pcs
.010+.010 -.005
(0.25+0.25 -0.13)
T&R, 1000
or 500 pcs
RoHS Compliant
Vertical
Tin Plated over
T&R, 1000
Nickel Barrier
or 500 pcs
Termination
Cap Pac,
100 pcs
T&R, 1000
or 500 pcs
RoHS Compliant
Vertical
Gold Plated over
T&R, 1000
Nickel Barrier
or 500 pcs
Termination
Cap Pac,
100 pcs
T1K or T
TV1K or
TV
C100
T1K or T
TV1K or
TV
C100
T1K or T
TV1K or
TV
C100
NON-MAGNETIC CONFIGURATION
AVX
AVX Series
Case Size
Term. MIL-PRF-55681
& Case Size
& Type
Code
Non-Magnetic
Configuration
Body Dimensions
inches (mm)
Length (L)
Width (W)
Thickness
(T)
Overlap (Y)
Lead and Termination
Dimensions and Material
Materials
Pkg Type
Pkg Code
T1K or T
TV1K or
TV
C100
T&R, 1000
or 500 pcs
Tin/ Lead, Solder
A
Y
Vertical
.055+.025 -.010 .055 ±.015
Plated over
WN
Meets
Non-Mag
W
T&R, 1000
700A
(1.40+0.64-0.25) (1.40 ±0.38)
Non-Magnetic
Requirements
Solder
T
L
or 500 pcs
Barrier Termination
Plate
Cap Pac,
100 pcs
T&R, 1000
or 500 pcs
Heavy Tin/ Lead
Y
Vertical
.057
A
.055+.025 -.010 .055 ±.015
Coated, over
Meets
.010+.010 -.005
W
T&R, 1000
700A
PN
(1.45)
Non-Mag
(1.40+0.64-0.25) (1.40 ±0.38)
Non-Magnetic
Requirements
(0.25+0.25 -0.13)
T
L
or 500 pcs
max.
Pellet
Barrier Termination
Cap Pac,
100 pcs
T&R, 1000
or 500 pcs
RoHS Compliant
A
Y
Vertical
.055+.015 -.010 .055 ±.015
Tin Plated over
TN
Meets
Non-Mag
W
T&R, 1000
700A
(1.40+0.38-0.25) (1.40 ±0.38)
Non-Magnetic
Requirements Solderable
T
L
or 500 pcs
Barrier Termination
Barrier
Cap Pac,
100 pcs
*Capacitors with values greater than 100 pF contain a trace magnetic element that may exhibit weak magnetic properties.
T1K or T
TV1K or
TV
C100
T1K or T
TV1K or
TV
C100
532
The Important Information/Disclaimer is incorporated in the catalog where these specifications came from or
available online at www.avx.com/disclaimer/ by reference and should be reviewed in full before placing any order.
062821
RF/Microwave Capacitors
RF/Microwave Multilayer Capacitors (MLC)
700A Series NP0 Porcelain and Ceramic Multilayer Capacitors
SUGGESTED MOUNTING PAD DIMENSIONS
Pad Size
Normal
Vertical Mount
High Density
Normal
Horizontal Mount
High Density
Mount Type
Case A
A Min.
.070
.050
.080
.060
B Min.
.050
.030
.050
.030
C Min.
.030
.030
.030
.030
D Min.
.130
.090
.130
.090
Dimensions are in inches.

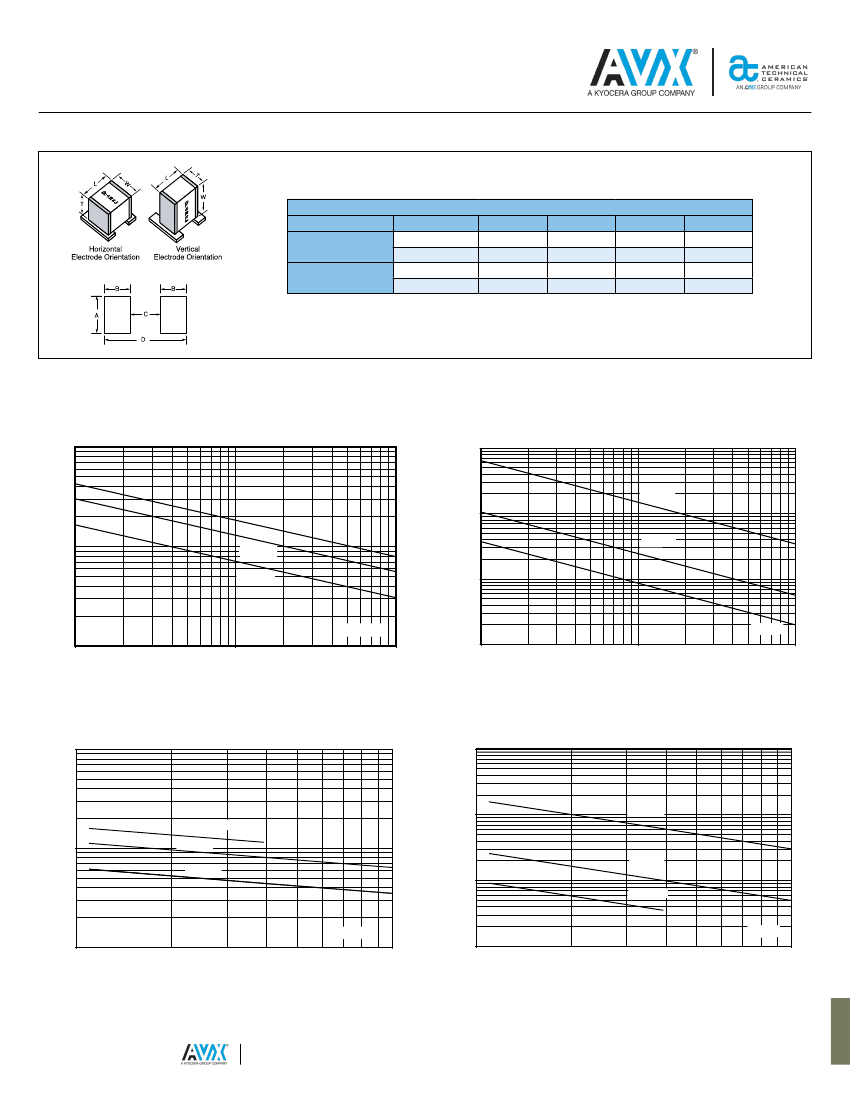

PERFORMANCE DATA
ESR VS. CAPACITANCE
AVX SERIES 700, CASE A
1
10000
Q VS. CAPACITANCE
AVX SERIES 700, CASE A
150 MHz
ESR (Ohms)
1000 MHz
Q
1000
500 MHz
100
1000 MHz
0.1
500 MHz
150 MHz
(Typical)
0.01
10
(Typical)
1
10
CAPACITANCE (pF)
(1.0 pF to 100 pF)
100
1
10
CAPACITANCE (pF)
(1.0 pF to 1000 pF)
100
ESR VS. CAPACITANCE
AVX SERIES 700, CASE A
1
1000
Q VS. CAPACITANCE
AVX SERIES 700, CASE A
ESR (Ohms)
1000 MHz
0.1
500 MHz
150 MHz
Q
100
150 MHz
500 MHz
10
1000 MHz
(Typical)
0.01
(Typical)
100
300
CAPACITANCE (pF)
(110 pF to 100 pF)
1000
1
100
300
CAPACITANCE (pF)
(110 pF to 1000 pF)
1000
The Important Information/Disclaimer is incorporated in the catalog where these specifications came from or
available online at www.avx.com/disclaimer/ by reference and should be reviewed in full before placing any order.
113020
533
RF/Microwave Capacitors
RF/Microwave Multilayer Capacitors (MLC)
700A Series NP0 Porcelain and Ceramic Multilayer Capacitors

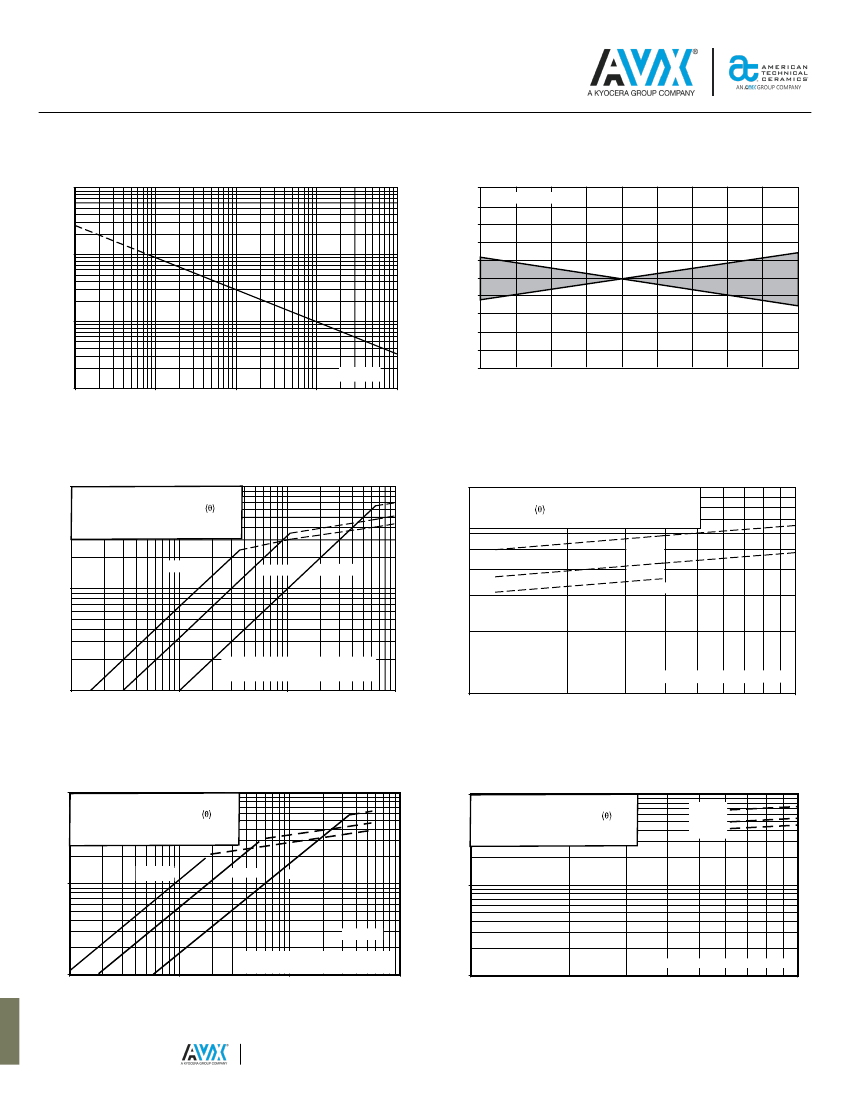

PERFORMANCE DATA
100
SERIES RESONANCE VS. CAPACITANCE
AVX SERIES 700, CASE A
1
0.8
% CHANGE IN CAPACITANCE
CAPACITANCE CHANGE VS. TEMPERATURE
AVX SERIES 700, CASE A
TCC= 0
±
30 PPM/°C
0.6
0.4
0.2
0
-0.2
-0.4
-0.6
-0.8
-1
-55
-35
-15
5
25
45
65
85
105
125
FREQUENCY (GHz)
10
1
(Typical)
0.1
0.1
1
10
CAPACITANCE (pF)
100
1000
TEMPERATURE (°C)
CURRENT RATING VS. CAPACITANCE
AVX SERIES 700, CASE A
10
The current rating is based on a 65°C mounting
surface and a device thermal resistance of
40°C/W. A power dissipation of 1.5 W will result
in a case temperature of 125°C.
CURRENT RATING VS. CAPACITANCE
AVX SERIES 700, CASE A
10
The current rating is based on a 65°C mounting surface and a device
thermal resistance of 40°C/W. A power dissipation of 1.5 W will
result in a case temperature of 125°C.
RMS CURRENT (Amps)
RMS CURRENT (Amps)
150 MHz
500 MHz
1000 MHz
1000 MHz
1
500 MHz
150 MHz
Dotted line = Power dissipation limited
Solid line = Voltage limited (Vrms)
0.1
0.1
1
CAPACITANCE (pF)
(0.1 pF to 100 pF)
Dotted line = Power dissipation limited
100
10
1
100
CAPACITANCE (pF)
(120 pF to 1000 pF)
1000
10
CURRENT RATING VS. CAPACITANCE
AVX SERIES 700, CASE A, EXTENDED VOLTAGE
The current rating is based on a 65°C mounting
surface and a device thermal resistance of
40°C/W. A power dissipation of 1.5 W will result
in a case temperature of 125°C.
10
CURRENT RATING VS. CAPACITANCE
AVX SERIES 700, CASE A, EXTENDED VOLTAGE
The current rating is based on a 65°C mounting
surface and a device thermal resistance of
40°C/W. A power dissipation of 1.5 W will result
in a case temperature of 125°C.
150 MHz
500 MHz
1000 MHz
RMS CURRENT (Amps)
1
1000
MHz
1000
MHz
500 MHz
150 MHz
RMS CURRENT (Amps)
1
Typical
Dotted line = Power dissipation limited
Solid line = Voltage limited (Vrms)
1
10
100
(Typical)
Dotted line = Power dissipation limited
10
100
0.1
0.1
0.1
CAPACITANCE (pF)
(1 pF to 56 pF)
CAPACITANCE (pF)
(62 pF to 100 pF)
534
The Important Information/Disclaimer is incorporated in the catalog where these specifications came from or
available online at www.avx.com/disclaimer/ by reference and should be reviewed in full before placing any order.
113020
Embedded System
京公网安备 11010802033920号
EEWORLD
