FA18C0G2A822JRU00 datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> FA18C0G2A822JRU00

FA18C0G2A822JRU00: DescriptionCeramic Capacitor, Ceramic,; CategoryPassive components capacitor; File Size742KB，31 Pages; ManufacturerTDK Corporation; Websitehttp://www.tdk.com

Download Datasheet Parametric View All

FA18C0G2A822JRU00 Overview

Ceramic Capacitor, Ceramic,

FA18C0G2A822JRU00 Parametric

Parameter Name	Attribute value
Objectid	7128656312
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
Samacsys Description	MLCC with Dipped Radial Lead, Capacitance=8.2nF, LxWxT:4x5.5x2.5mm, Lead pitch:2.5mm
Samacsys Manufacturer	TDK
Samacsys Modified On	2022-02-14 16:02:21
YTEOL	6.7
capacitance	0.0082 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	5.5 mm
JESD-609 code	e3
length	4 mm
Installation features	THROUGH HOLE MOUNT
multi-layer	Yes
negative tolerance	5%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
Package form	Radial
method of packing	BULK
positive tolerance	5%
Rated (DC) voltage (URdc)	100 V
Guideline	AEC-Q200
surface mount	NO
Temperature characteristic code	C0G
Temperature Coefficient	30ppm/Cel ppm/°C
Terminal surface	TIN OVER NICKEL
Terminal shape	WIRE
width	2.5 mm

Preview

Download Datasheet

View All

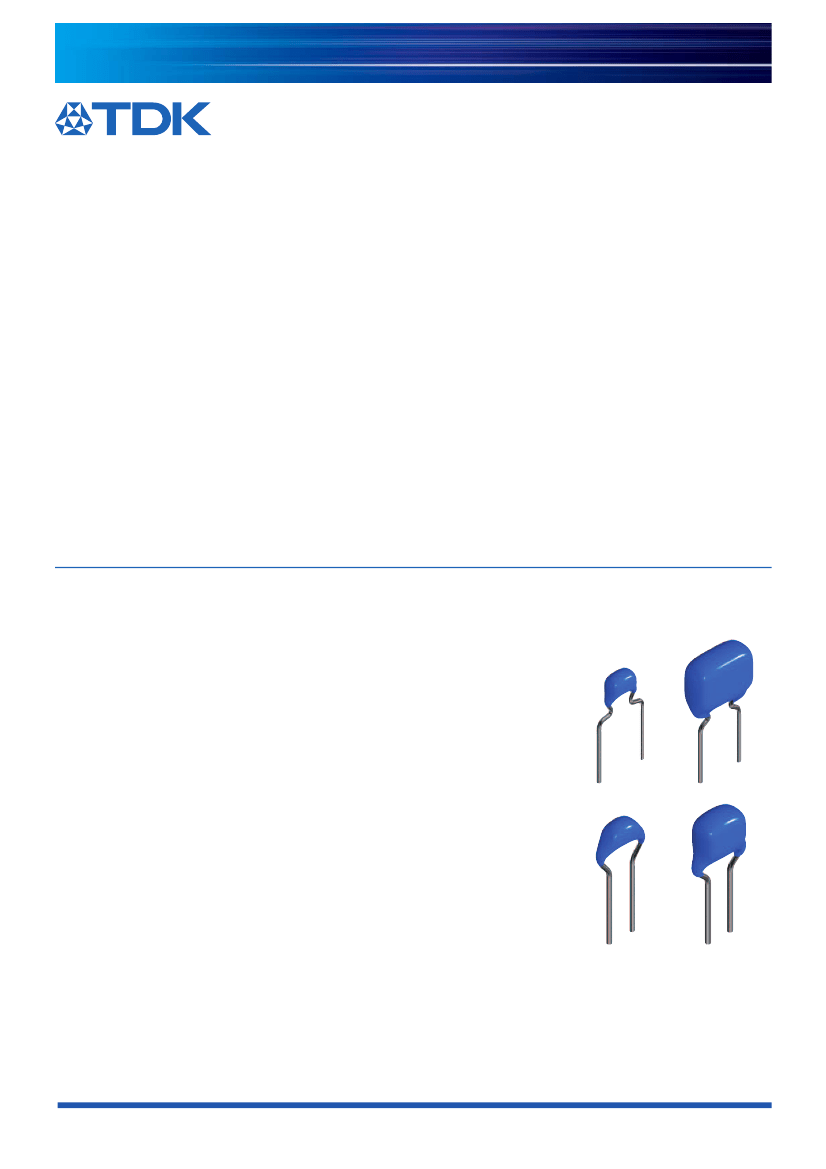

C A P A C I T O R S

March 2020

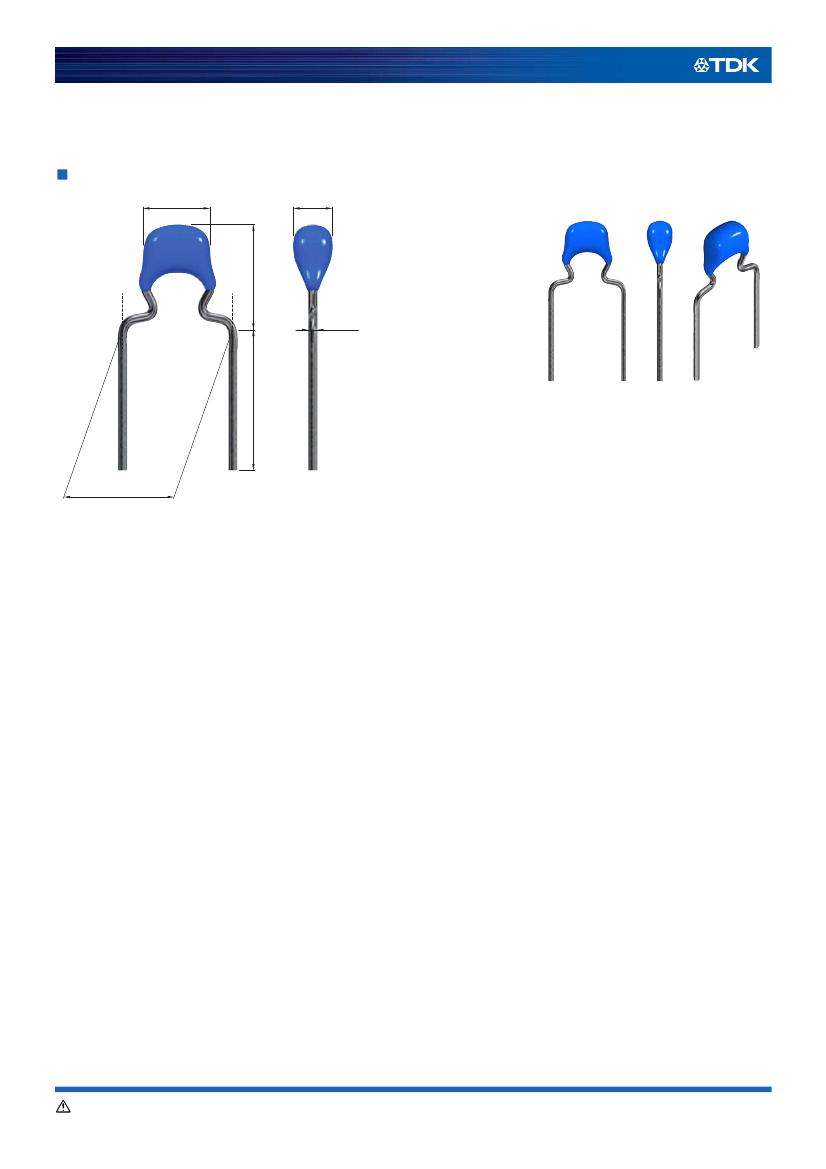

MLCC with dipped radial lead

(Halogen-free, automotive grade)

series

Type:

Lead pitch

5.0 mm

FA28 [4.0x5.5mm]

FA24 [4.5x5.5mm]

FA26 [5.5x6.0mm]

FA20 [5.5x7.0mm]

FA22 [7.5x8.5mm]

FA23 [8.5x11.0mm]

2.5 mm

FA18 [4.0x5.5mm]

FA14 [4.5x5.5mm]

FA16 [5.5x6.0mm]

FA11 [5.5x7.0mm]

Lead pitch

(2/31)

C A P A C I T O R S

REMINDERS FOR USING THESE PRODUCTS

Before using these products, be sure to request the delivery specifications.

SAFETY REMINDERS

Please pay sufficient attention to the warnings for safe designing when using this products.

REMINDERS

1. The products listed in this specification are intended for use in automotive applications under normal operation and usage conditions.

The products are not designed or warranted to meet the requirements of the applications listed below, whose performance and/or qual-

ity requires a more stringent level of safety or reliability, or whose failure, malfunction or defect could cause serious damage to society,

person or property.

Please understand that we are not responsible for any damage or liability caused by use of the products in any of the applications

below or for any other use exceeding the range or conditions set forth in this specification sheet. If you intend to use the products in the

applications listed below or if you have special requirements exceeding the range or conditions set forth in this specification, please

(1) Aerospace/aviation equipment

(2) Transportation equipment (electric trains, ships, etc.)

(3) Medical equipment (excepting Pharmaceutical Affairs Law

classification Class1,2)

(4) Power-generation control equipment

(5) Atomic energy-related equipment

(6) Seabed equipment

(7) Transportation control equipment

(8) Public information-processing equipment

(9) Military equipment

(10) Electric heating apparatus, burning equipment

(11) Disaster prevention/crime prevention equipment

(12) Safety equipment

(13) Other applications that are not considered general-purpose

applications

When designing your equipment even for general-purpose applications, you are kindly requested to take into consideration securing

protection circuit/device or providing backup circuits in your equipment.

In addition, although the products listed in this specification are intended for use in automotive applications as described above, they

are not prohibited to use in general electronic equipment, whose performance and/or quality doesn’t require a more stringent level of

safety or reliability, or whose failure, malfunction or defect could not cause serious damage to society, person or property. Therefore,

the description of this caution will be applied, when the products are used in general electronic equipment under a normal operation

and usage conditions.

2. We may modify products or discontinue production of a product listed in this catalog without prior notification.

3. We provide “Delivery Specification” that explain precautions for the specifications and safety of each product listed in this catalog. We

strongly recommend that you exchange these delivery specifications with customers that use one of these products.

4. If you plan to export a product listed in this catalog, keep in mind that it may be a restricted item according to the “Foreign Exchange

and Foreign Trade Control Law”. In such cases, it is necessary to acquire export permission in harmony with this law.

5. Any reproduction or transferring of the contents of this catalog is prohibited without prior permission from our company.

6. We are not responsible for problems that occur related to the intellectual property rights or other rights of our company or a third party

when you use a product listed in this catalog. We do not grant license of these rights.

7. This catalog only applies to products purchased through our company or one of our company’s official agencies. This catalog does not

apply to products that are purchased through other third parties.

20200318 / leadmlcc_halogenfree_fa_en.fm
