TB400-04B Overview

barrier terminal blocks barrier block

TB400-04B Parametric

Parameter Name	Attribute value
Manufacture	Cooper Bussm
Product Category	Barrier Terminal Blocks
RoHS	Yes
Packaging	Bulk
Factory Pack Quantity	1
Unit Weigh	160.118 g

Preview

Download Datasheet

View All

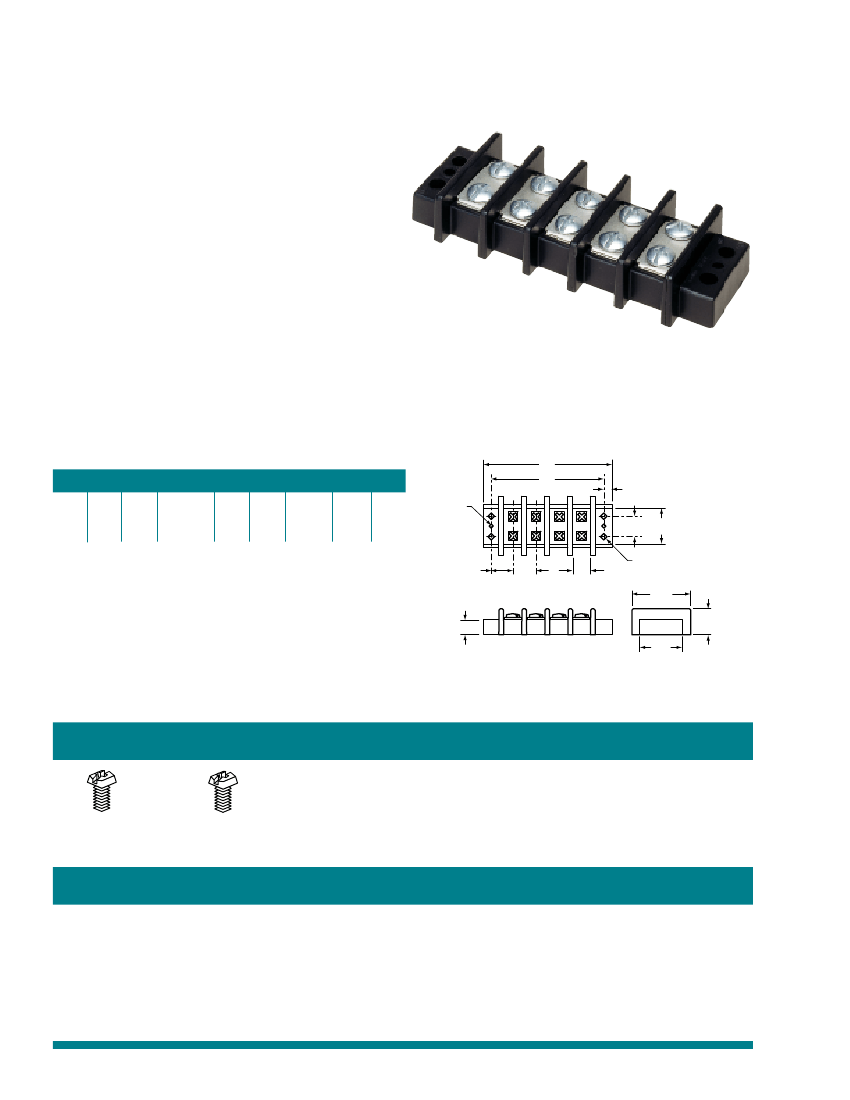

INDEX

Series TB400

Double Row Terminal Blocks

SPECIFICATIONS

Rating: 75A, 600V*

* 75A max. with pressure terminal connector and #4 AWG;

30A max. with #10 AWG;

Center Spacing: .687” or 11/16” (17.45 mm)

Wire Size: #10-14 AWG CU

Screw Size: #10-32 philslot screws

Torque Rating: 20 in-lb.

Distance Between Barriers: .56” (14.3 mm)

Mounting: #10 screws

Material: Molded base: Black, UL rated 94VO thermoplastic

Terminal plating: Tin over brass; Screws: Zinc plated steel

Operating Temperature: 130°C (260°F) max., -40°C (-40°F) min.

Breakdown Voltage: 7500V rms

Approvals: UL E62622; CSA LR15364; IEC Compliance;

CE Certified

TB400

TB400-05

Inches (mm)

Poles

2.51

3.20

3.89

4.58

2.06

2.75

3.44

4.13

Poles

5.26

5.95

6.64

7.33

4.81

5.50

6.19

6.88

Poles

8.01

8.70

9.39

7.56

8.25

8.94

.15 dia.

(3.8)

.22

(5.6)

.625

(15.9)

1.12

(28.4)

* Dimensions in inches. To convert to millimeters, multiply by 25.4.

.22 dia. (5.6)

.687

(17.4)

.687

(17.4)

.562

(14.3)

1.81

(46.0)

.76

(19.3)

1.34

(34.0)

.46 (11.7)

Screw Options

Brass Philslot

Nickel Plated

Stainless Steel

Philslot

Part Numbering System

Series

Poles

Screw Options

Marking

Hardware Options

T B 4 0 0

nnnnn

–

02 to 12

Blank - std. screws

00 - screws shipped bulk

B - brass philslot, nickel plated

ST - stainless steel, philslot

Not available

Cooper Bussmann

7300 W. Wilson Ave

Chicago, IL 60656-4708

Fax: 708-867-2211

Phone: 708-867-4600

Website: http://www.busscc.com
