66WR20TB datasheet, PDF - EEWORLD Datasheet

66WR20TB: DescriptionTrimmer, Cermet, 0.5W, 20ohm, 200V, 20% +/-Tol, -100,100ppm/Cel, 20 Turn(s), 4120, 3/8 INCH, SQUARE, 3 PINS; CategoryPassive components The resistor; File Size882KB，4 Pages; ManufacturerTT Electronics plc; Websitehttp://www.ttelectronics.com/

Download Datasheet Parametric View All

66WR20TB Overview

Trimmer, Cermet, 0.5W, 20ohm, 200V, 20% +/-Tol, -100,100ppm/Cel, 20 Turn(s), 4120, 3/8 INCH, SQUARE, 3 PINS

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Objectid	1024758978
package instruction	3/8 INCH, SQUARE, 3 PINS
Reach Compliance Code	compliant
YTEOL	7.3
Actuator direction	VERTICAL
Actuator type	SCREW
structure	Trimmer Pot
Lead diameter	0.533 mm
Lead length	4.57 mm
Installation features	THROUGH HOLE MOUNT
Number of terminals	3
number of turns	20
Maximum operating temperature	150 °C
Minimum operating temperature	-65 °C
Package height	10.41 mm
Package length	9.525 mm
Package shape	RECTANGULAR PACKAGE
Package form	PCB Mount
Package width	5.08 mm
method of packing	TUBE
Rated power dissipation(P)	0.5 W
Rated temperature	70 °C
resistance	20 Ω
resistance law	LINEAR
Resistor type	TRIMMER
rotation angle	7200 deg
size code	4120
surface mount	NO
technology	CERMET
Temperature Coefficient	100 ppm/°C
Terminal shape	WIRE
Tolerance	20%
Operating Voltage	200 V

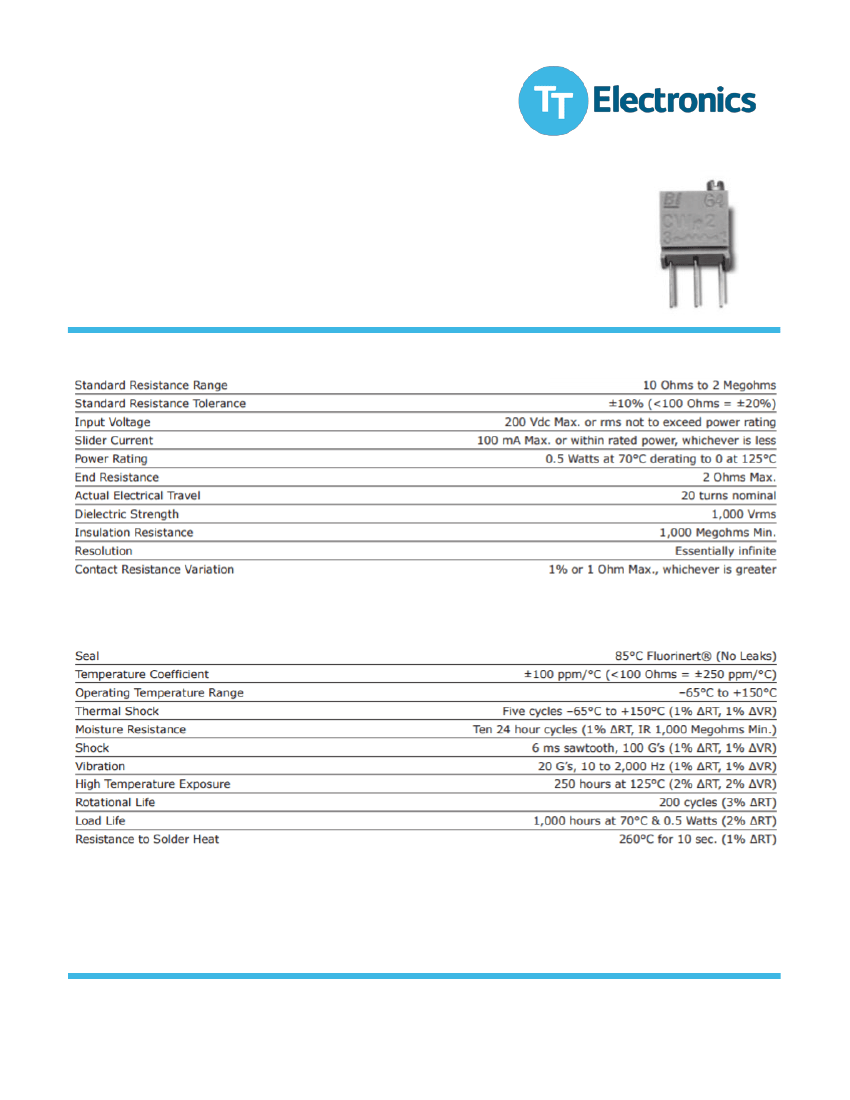

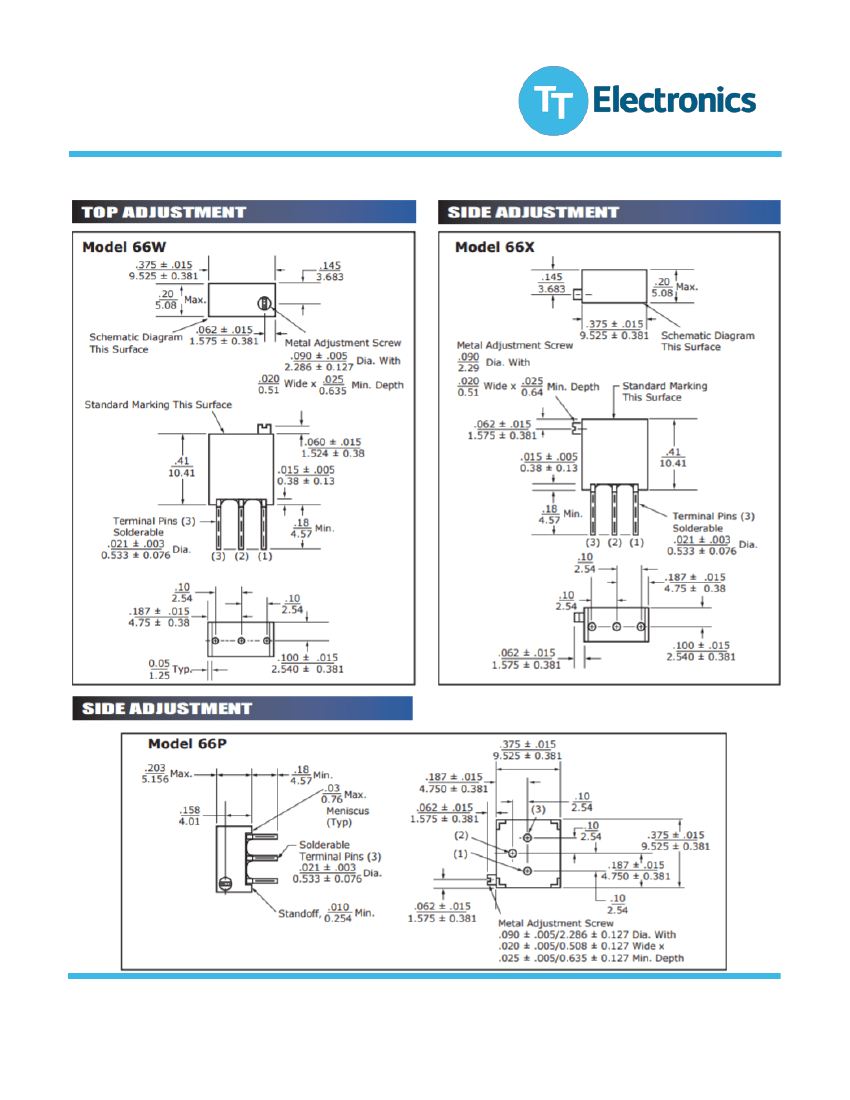

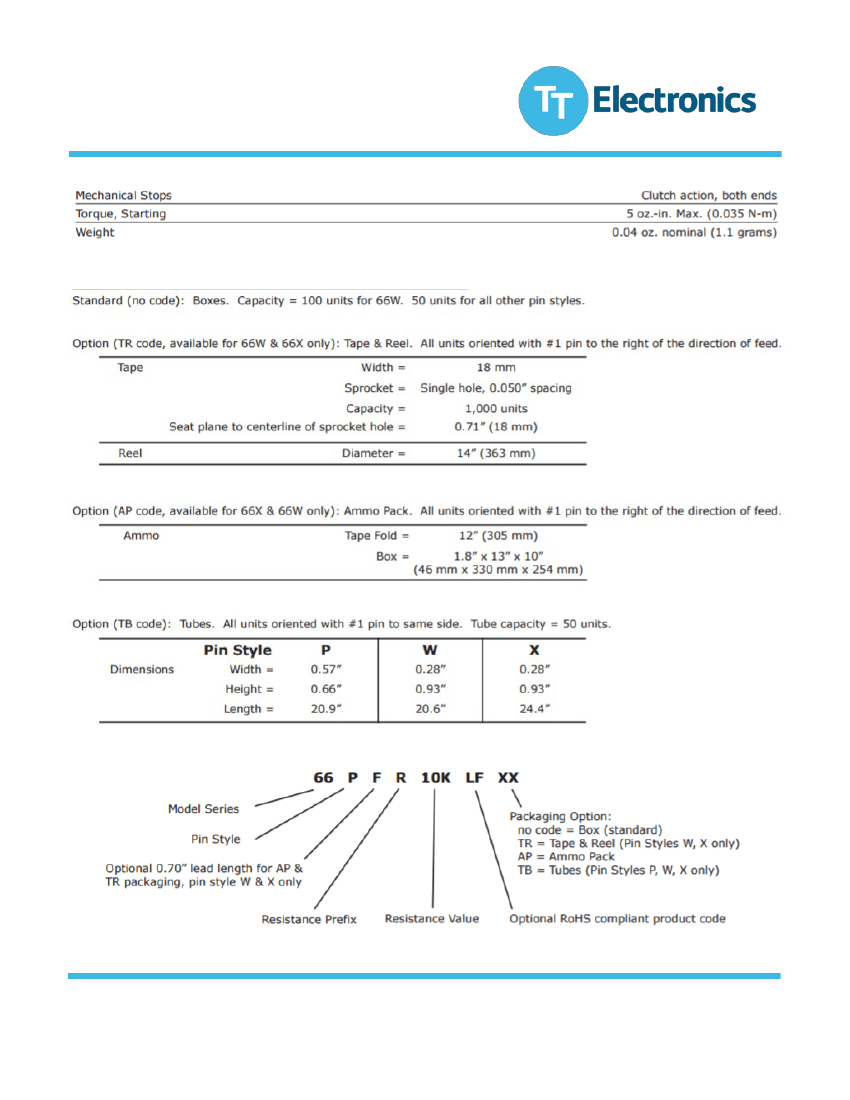

Multi-Turn Trimmer

Model 66

Features:



3/8” square



Cermet

Electrical

Environmental

General Note

TT Electronics reserves the right to make changes in product specification without

notice or liability. All information is subject to TT Electronics’ own data and is

considered accurate at time of going to print.

TT Electronics | BI Technologies

4200 Bonita Place, Fullerton, CA USA 92835-1053 |Ph: +1 714-447-2300

www.ttelectronics.com | sensors@ttelectronics.com

Issue A

11/2016

Page 1
