PT01E-8-4S(SR)

Description
circular mil spec connector 4P Sz 8 cable Mt skt recept strain relief
CategoryThe connector    The connector
File Size800KB,3 Pages
ManufacturerAmphenol
Websitehttp://www.amphenol.com/
Download Datasheet Parametric View All

PT01E-8-4S(SR) Overview

circular mil spec connector 4P Sz 8 cable Mt skt recept strain relief

PT01E-8-4S(SR) Parametric

Parameter NameAttribute value
MakerAmphenol
Reach Compliance Codeunknow
Other featuresSTANDARD: MIL-C-26482, POLARIZATION AVAILABLE
Back shell typeSOLID
Body/casing typeRECEPTACLE
Connector typeMIL SERIES CONNECTOR
Contact point genderFEMALE
Coupling typeBAYONET
DIN complianceNO
empty shellNO
Environmental characteristicsCORROSION/ENVIRONMENT/MOISTURE RESISTANT
Filter functionNO
IEC complianceNO
MIL complianceYES
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation typeCABLE
OptionsGENERAL PURPOSE
Shell surfaceCADMIUM PLATED
Shell materialALUMINUM ALLOY
Housing size8
Termination typeSOLDER
Total number of contacts4

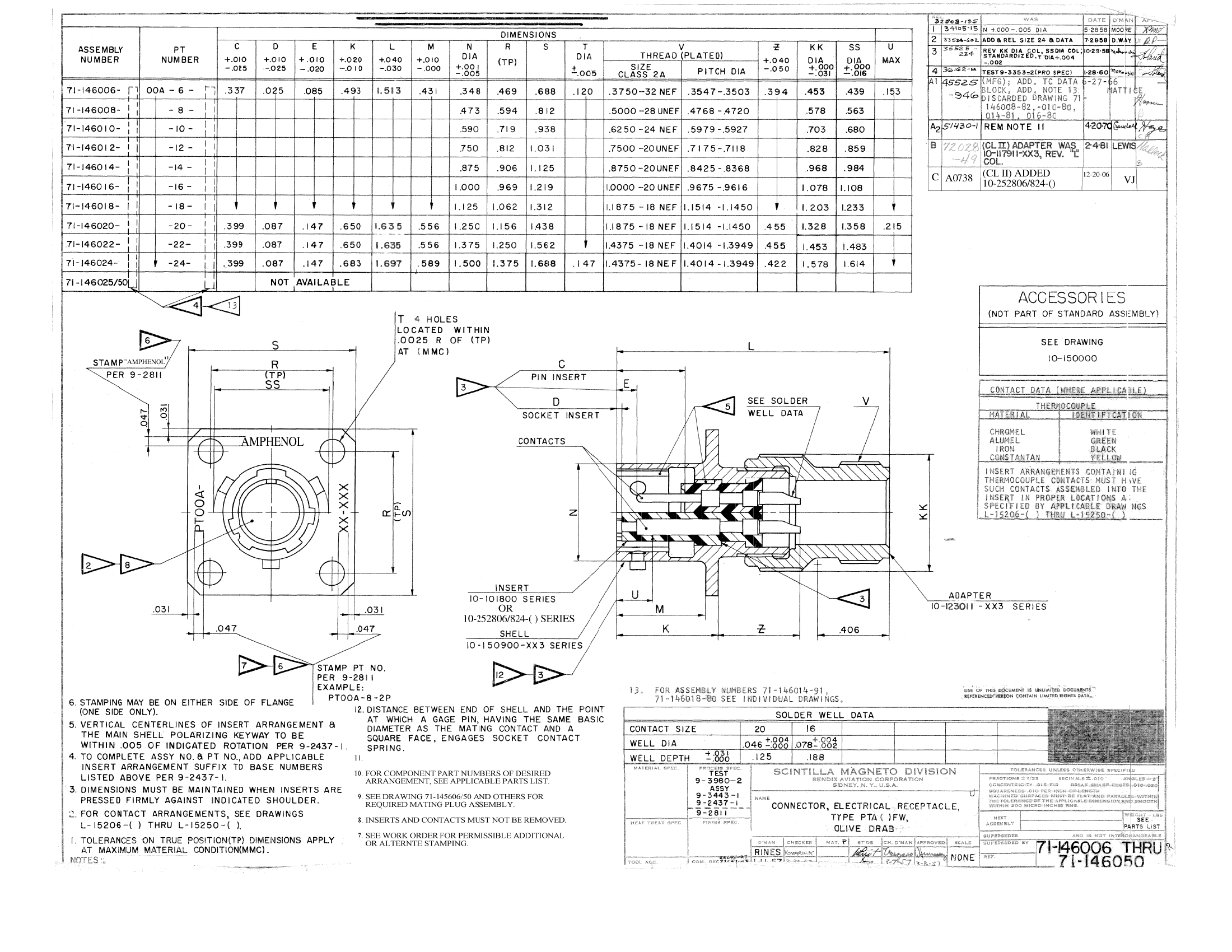

PT, SP, MS/PT
how to order
PT, SP
To more easily illustrate ordering procedure, part number PT00A-20-41PW(SR) is
shown as follows:
PT
00
A - 20 - 41
P
W
(SR)
1
2
3
4
5
6
7
8
MS/PT
MIL-C-26482, Series 1
Part number MS3110E20-41PW is shown as follows:
MS
311
0
E
20 - 41
P
W
1
2
3
4
5
6
7
8
HOW TO ORDER
PT, SP, MS/PT
See code below:
1. Connector Type
“PT” designates standard olive drab, electrically conductive cadmium plate
bayonet lock connector with solder contacts
“SP” designates electrically non-conductive, hard anodic coated bayonet lock
connector with solder contacts and larger flange and mounting holes for
back panel mounting
“PTG” designates plug with grounding fingers
2. Shell Style
“00”
designates wall mounting receptacle
“01”
designates cable connecting receptacle**
“02”
designates box mounting receptacle
“06”
designates straight plug
“07”
designates jam nut receptacle
“08”
designates 90 degree plug cable support
“B”
designates thru bulkhead receptacle (pressurized)
designates solder mount receptacle (Hermetic only)
I
3. Service Classes
“A”
designates general duty back shell
“C”
designates pressurized receptacle
“E”
designates environmental resisting open wire seal with grommet and nut
“J”
designates clamp assembly for moisture proofing multi-jacketed cables,
with strain relief
“P”
designates assembly with potting boot
W”
designates clamp assembly for moisture proofing multi-jacketed cables
“H”
designates hermetic* without interfacial seal
“Y”
designates hermetic* with interfacial seal
4. Shell Size
“20” designates shell size. Shell sizes 6 through 24 available.
5. Insert Arrangement - Refer to pages 4-11 for insert availability.
“20 - 41” designates insert arrangement. (The number following the hyphen is
the number only that is used in the part number).
6. Contacts
“P” designates pin contacts
“S” designates socket contacts
For ordering connectors with printed circuit board contacts, see pg. 20.
7. Insert Rotation - Refer to page 7.
“W”, “X”, “Y”, “Z” designate that insert is rotated in its shell from “normal position.
No letter required for normal (no rotation) position.
8. “SR” designates a strain relief clamp.
Indicate optional finishes as follows:
(003) olive drab cadmium plate (standard on “PT”)
(005) anodic coating - Alumilite
®
(standard on “SP”)
(014) olive drab cadmium plate over nickel
(023) electroless nickel
(024) olive drab zinc cobalt plating
(424) electroless nickel finish with strain relief
(466) olive drab zinc cobalt plating with strain relief
(100) Suffix added for flat eyelet pin contacts in hermetic versions
OR
pheno
l
Am
RoHS Compliant finish suffix as follow:
oHS
(025) non-conductive black zinc cobalt plating
R
(027) conductive black zinc cobalt plating
U
E
/2
002
/
95
/
(470) non-conductive black zinc cobalt plating
with strain relief
27
(476) conductive black zinc cobalt plating with strain relief
C
E
For Hermetic connectors part number
MS3113H20Y41PW is shown as follows:
MS
311
3
H
20 Y 41
1
2
3
4
5, 6
P
7
W
8
See code below:
1. “MS” designates Military Standard
2. Specification Number
“311” designates basic family number for MIL-C-
26482, Series 1 solder type
3. Shell Style
“0” designates wall mounting receptacle
“1” designates cable connecting receptacle**
“2” designates box mounting receptacle
“3” designates solder mount receptacle (hermetic
only)
“4” designates jam nut receptacle
“6” designates straight plug
4. Service Class
“E” designates environmental resisting connector
“F” designates environmental resisting connectors
with strain relief
“J” designates clamp assembly for moisture proofing
multi-jacketed cables, with strain relief
“P” designates potted type with potting boot
“H” designates hermetic
5. Shell Size
“20” designates shell size. Shell sizes 8 through 24
available.
6. Insert Arrangement - Refer to pages 4-11 for insert
availability.
“20 - 41” designates arrangement. (The number fol-
lowing the hyphen is the number only that is used in
the part number).
Hermetic version
“20Y41” designates insert arrangement; specify “Y”
for flat eyelet pin contacts, or “C” for solder cup pin
contacts
7. Contact Configuration
“P” designates pin contacts
“S” designates socket contacts
8. Insert Rotation- Refer to page 7.
“W”, “X”, “Y”, “Z” designate that insert is rotated in it
shell from “normal” position. No letter require fo nor-
mal (no rotation) position.
* Hermetic connectors are supplied with tin plated shells.
** This connector style is sometimes referred to as a cable connect-
ing “plug”. It does, however, mate with either a straight or 90
degree plug.
For ordering Miniature Breakaway PT Solder connec-
tors see pg. 26.
