M85049/1712W04: Descriptioncircular mil spec backshells backshell env emi/ rfi ST OD cad SZ 12; CategoryThe connector; File Size4MB，33 Pages; ManufacturerAll Sensors

Download Datasheet Parametric View All

M85049/1712W04 Overview

circular mil spec backshells backshell env emi/ rfi ST OD cad SZ 12

M85049/1712W04 Parametric

Parameter Name	Attribute value
Manufacture	Amphenol
Product Category	Circular MIL Spec Backshells
RoHS	N
MIL Type	MIL-DTL-38999 I, II
Shell Style	Straigh
Shell Size	12
Shell Material	Aluminum Alloy
Mating Style	Threaded
Mounting Angle	Straigh
Shell Plating	Olive Drab Cadmium over Electroless Nickel
Factory Pack Quantity	1

Preview

Download Datasheet

View All

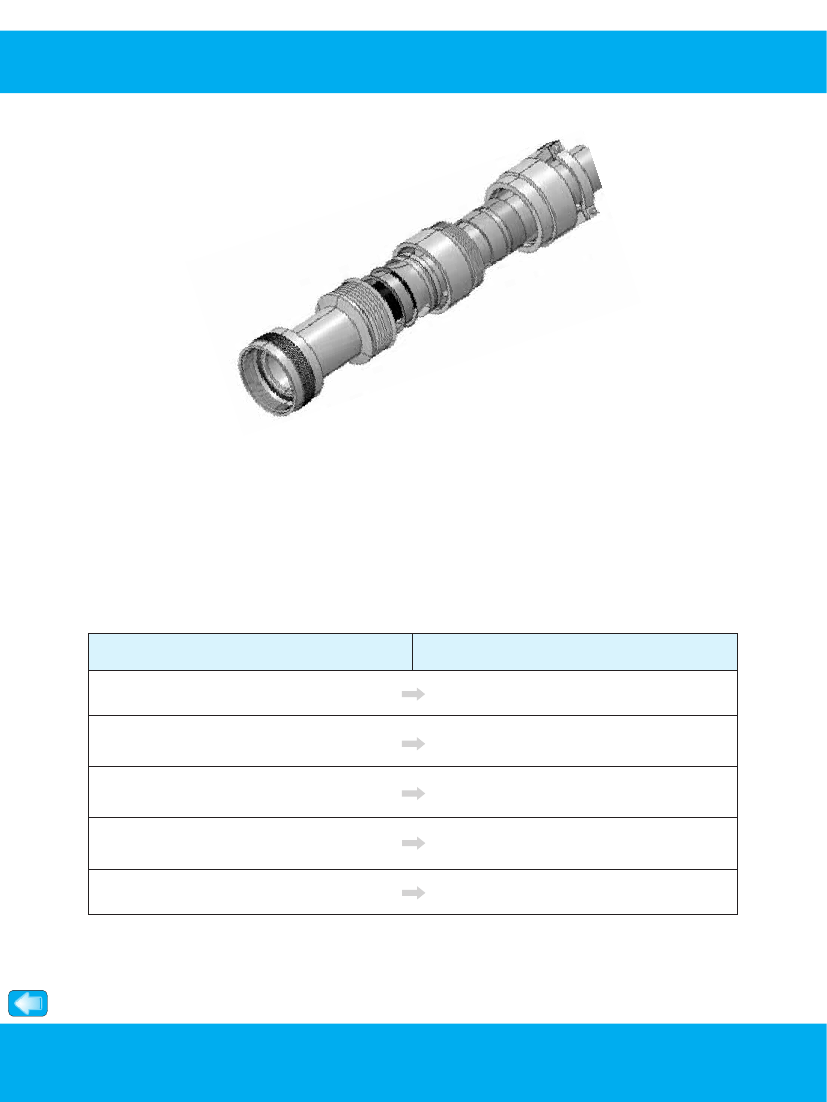

ENVIRONMENTAL EMI / RFI

BACKSHELL

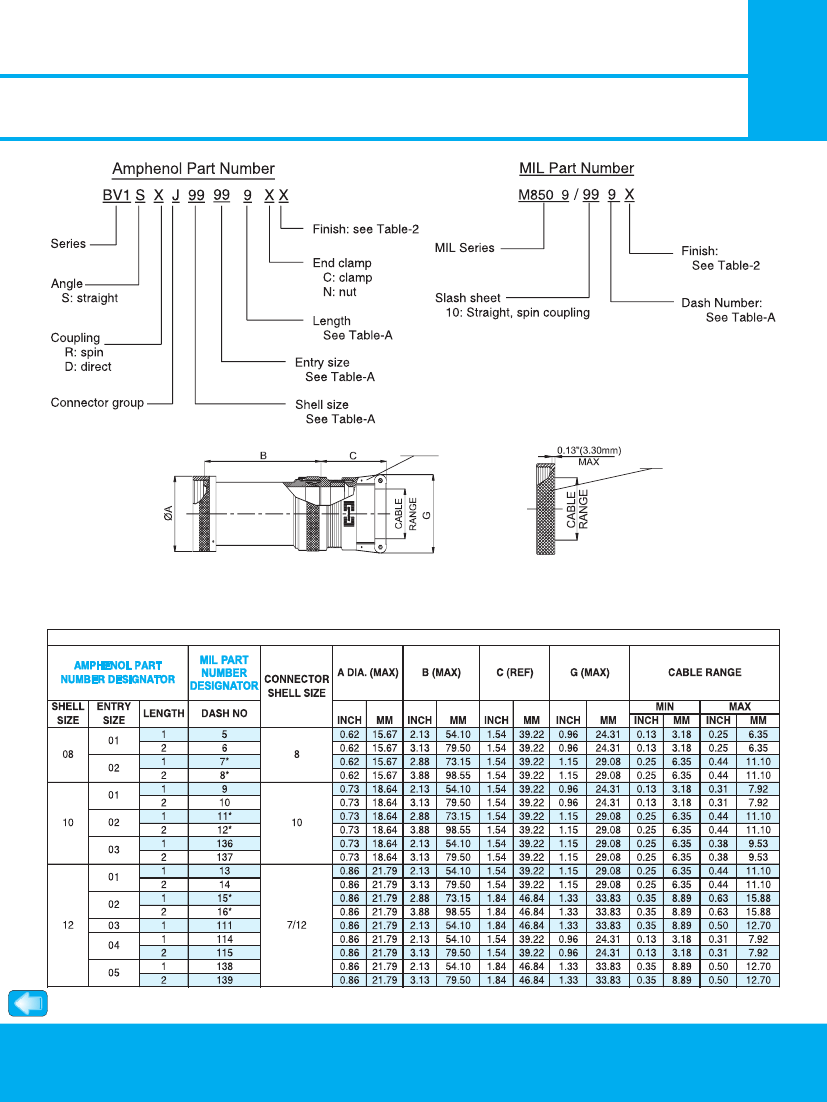

Both individual and overall shieldings can be terminated in this type in addition to the

cable sealing as possible in the Environmental Backshell. It is an ideal choice for heavy

duty cabling solutions in harsh environment situations where electromagnetic and

radio frequency noises are to be isolated.

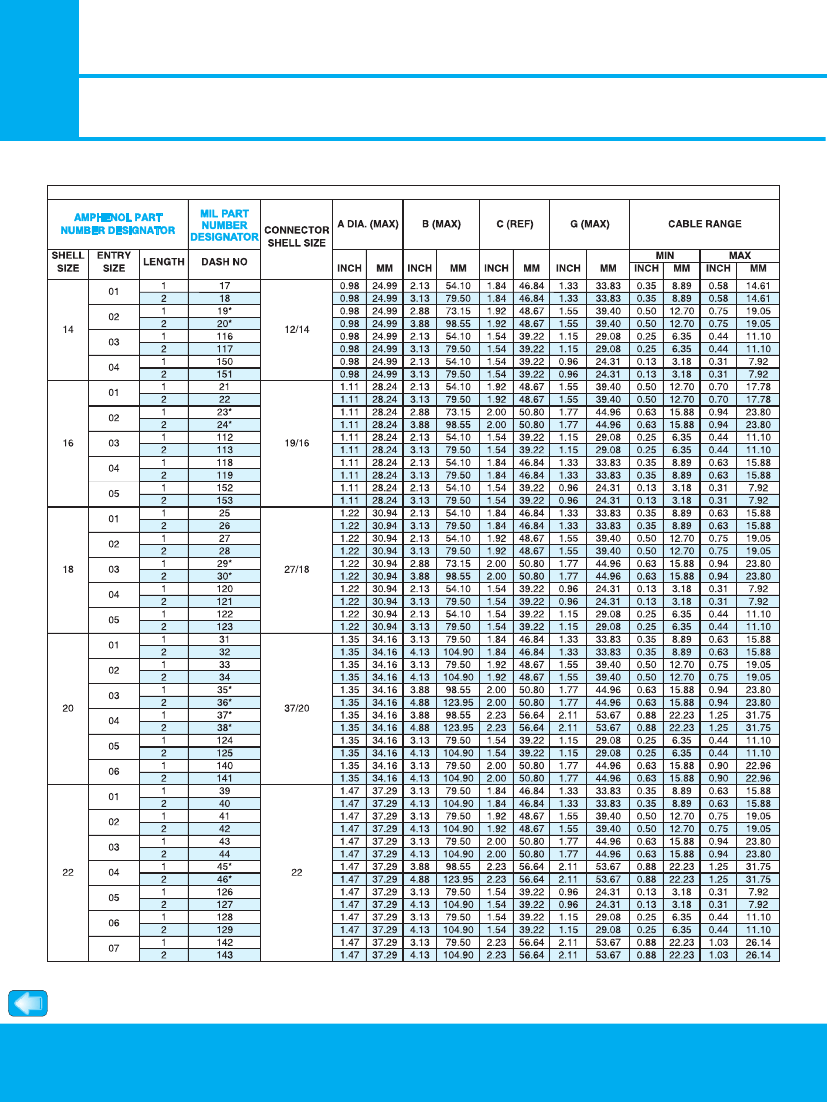

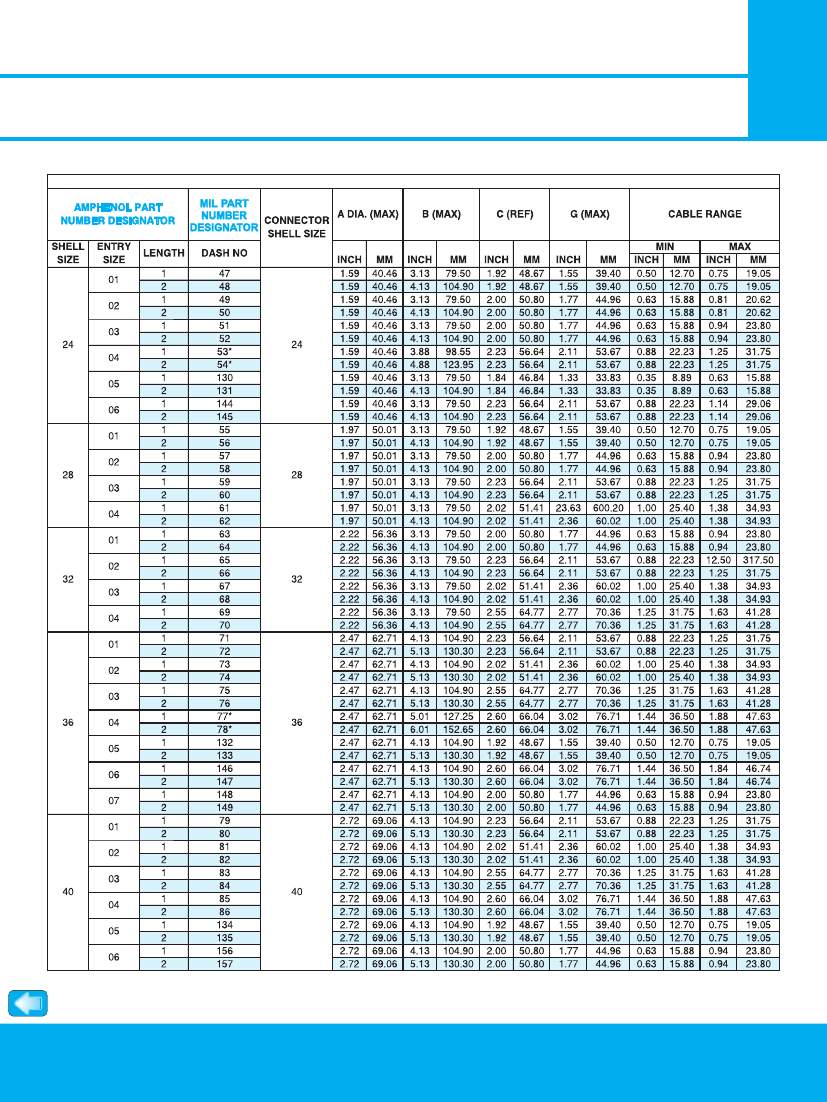

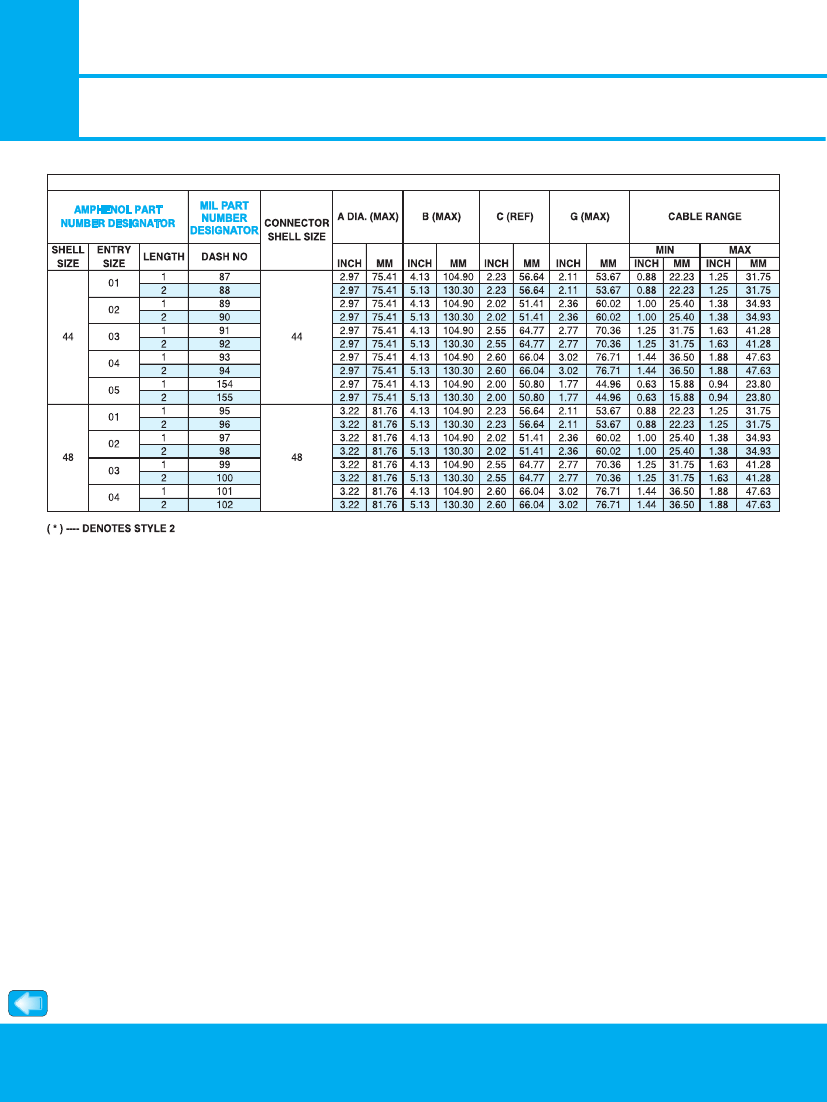

For Connector Group

J

K

L

M

N

Page No.

IV-1

IV-9

- IV-8

- IV-13

IV-14 - IV-20

IV-21 - IV-26

IV-27 - IV-32

Note:

For Connector group Identification refer Table 1 - A, B, C, D

(Page 7-11)

and for Material / Plating Finish, Refer Table-2

(Page 12)

Amphenol Backshells

IV

email: sales@backshellworld.com

www.backshellworld.com
