2-2110838-5 Overview

terminals #3 pcp tri-bar 14 PC kit

2-2110838-5 Parametric

Parameter Name	Attribute value
Manufacture	TE Connectivity
Product Category	Terminals
RoHS	Yes
Produc	Kits
Wire Gauge	12-10, 16-14, 22-16
Insulati	Insulated
Insulation Material	Vinyl
Factory Pack Quantity	1

Preview

Download Datasheet

View All

General Information

Kit Part Number:

Description:

Application:

2-2110838-5

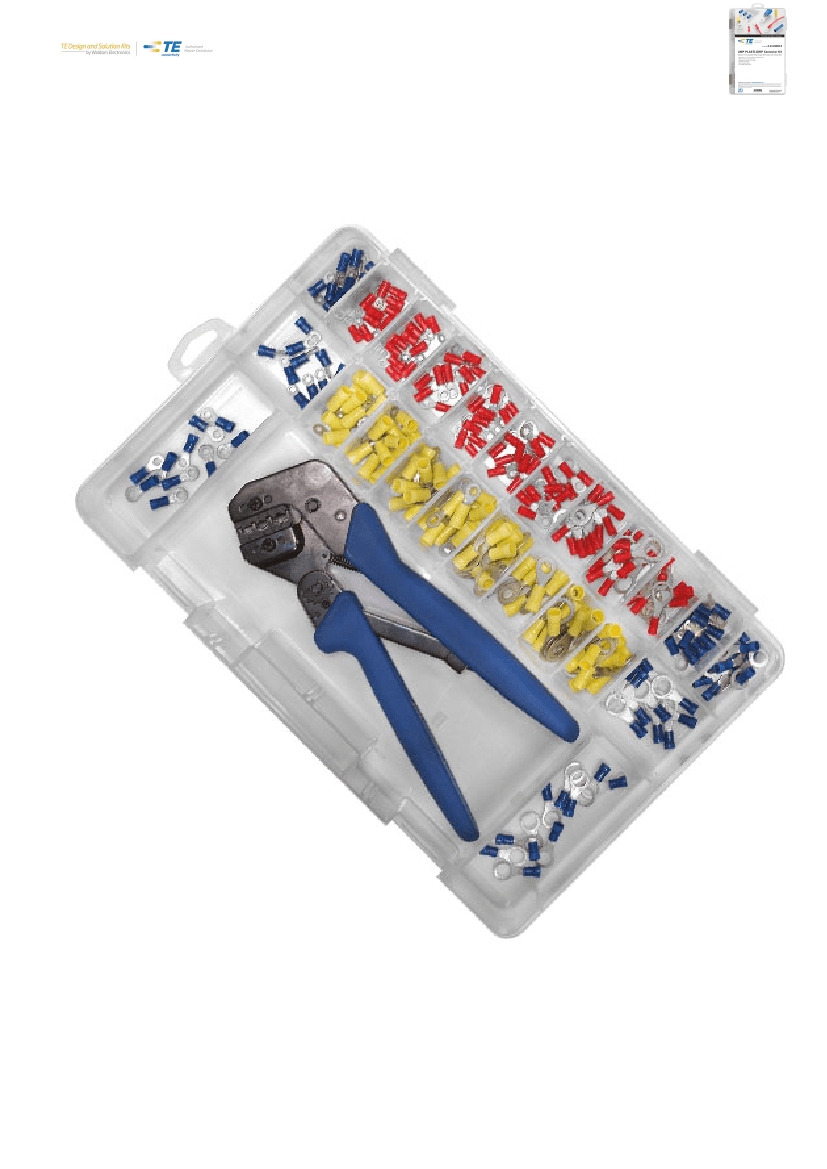

Deluxe Pre-Insulated Ring Tongue Terminals with Crimp Tool Kit

HVAC Systems, Instrumentation and Controls, Lighting Applications, Motors, Panel Boxes, Power Supplies,

Switchgear, Transportation

Family:

TE Brand:

None:

Solution:

Product Type:

Number of Pieces:

RoHS:

Specifications

Body and Plating:

Insulation:

Stud/Tab Size:

Temperature Rating:

Terminal Type:

Tool Included:

Voltage Rating:

Wire Gauge (AWG):

Product Highlights

Tin Plated, Copper Body

Vinyl

1/4", 1/2", 2, 3/8", 4, 5/16", 6, 8, 10

90 Degrees C (Max)

Ring Tongue

Yes

600 Volts AC (Max.)

12-10, 16-14 , 22-16

PLASTI-GRIP

AMP Products

With Tool

MRO (Maintenance, Repair and Operation)

Terminals & Splices

241

Yes

Pre-insulated PLASTI-GRIP solderless terminals and splices are designed specifically to answer the need for inexpensive, insulated electrical

terminations. They can be used in almost every type of commercial application and accommodate wire sizes from 22 AWG through 2/0 AWG.

Carefully engineered application tooling has been developed to ensure uniformly high quality terminations. Tool and terminal have been designed

as a team to promote ease and speed of application and at the same time to provide precise crimping pressure for every wire size. The wire and

the terminal barrel form a homogeneous mass of metal, providing a connection of maximum conductivity, tensile strength, and high resistance to

corrosion. The quality performance, the facility of installation and the inherent simplicity make them ideal for many industrial applications.

PLASTI-GRIP products are available as rings, spades, flanged spaded, slotted rings, splices and several other varieties. Wire ranges for the

terminals and splices are 22 AWG through 2/0 and stud sizes from #2 through 3/8".

Features and Benefits

• Vinyl insulation sleeve provides good dielectric strength and supports the wire insulation so that no bare wire is exposed

• Most product rated to 90 degrees C, with an operating voltage of 600 V

• Insulation is 94V-0 rated

• Funneled wire entry on terminal prevents turned back wire strands and permits rapid wire insertion during high speed production

• Serrations in the crimp barrel provide maximum contact and tensile strength after crimping

Applications

• HVAC

• Instruments / Controls

• Lighting

• Switchgear

Page 1 - Retrieved on Dec 07, 2011
