3013W3SCM99A30X datasheet, PDF

Datasheet> All Categories > The connector> The connector> 3013W3SCM99A30X

3013W3SCM99A30X: DescriptionD-sub mixed contact connectors 13w3 solder cup female; CategoryThe connector The connector; File Size133KB，1 Pages; ManufacturerCONEC; Websitehttp://www.conec.com; Environmental Compliance

Download Datasheet Parametric View All

3013W3SCM99A30X Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3013W3SCM99A30X	-	-	View	Buy Now

3013W3SCM99A30X Overview

D-sub mixed contact connectors 13w3 solder cup female

3013W3SCM99A30X Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compli
body width	0.509 inch
subject depth	0.211 inch
body length	2.103 inch
Body/casing type	RECEPTACLE
Contact to complete cooperation	AU ON NI
Contact point gender	FEMALE
Contact material	COPPER ALLOY
Contact style	HYBRID
Durability	500 Cycles
Manufacturer's serial number	301
Mixed contacts	YES
Installation option 1	LOCKING
Installation type	PANEL
Number of connectors	ONE
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.085 inch
Termination type	SOLDER LUG
Total number of contacts	13
Base Number Matches	1

Preview

Download Datasheet

View All

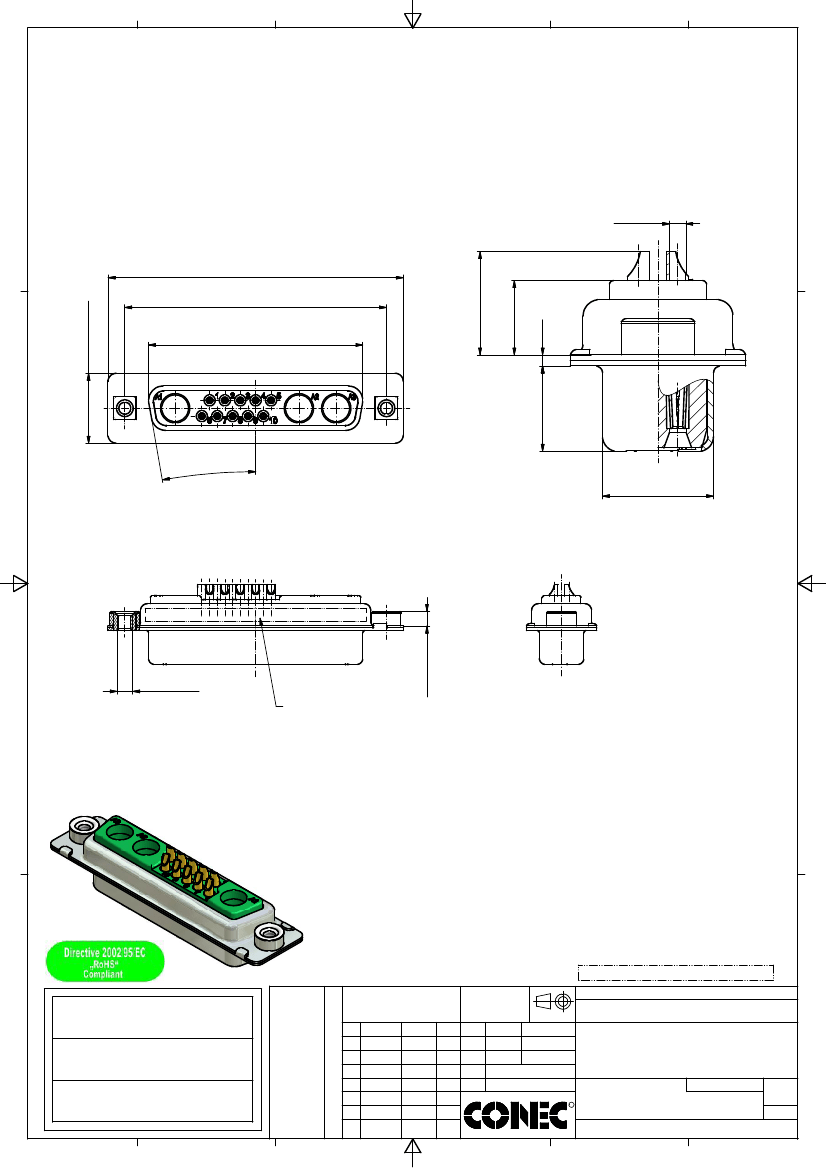

1,16

(5:1)

53,09

+ 0,33

- 0,43

12,6

+ 0,33

- 0,43

5,35

0,3

47,04

0,13

38,51

+ 0,24

- 0,01

7,44

0,3

6,13

+ 0,17

- 0,08

0,8

+ 0,23

0,02

4-40 UNC

SEE NOTE 8

REF.2,55

NOTES:

1. METALSHELLS: STEEL; min. 315µin TIN over 40-80µin NICKEL

2. INSULATORS: PBT GF UL 94 V-0, GREEN

3. SIGNAL CONTACTS: COPPER ALLOY

PLATING: 30µin HARD GOLD over min. 50µin NICKEL

SOLDER CUP ACCEPTS CABLE AWG 20

4. NO CONTACTS ON POS A1, A2 and A3

5. THREADED INSERT: COPPER ALLOY; min. 200µin TIN over 80µin NICKEL

6. COLLAR: COPPER ALLOY; min. 200µin TIN over 80µin NICKEL

7. MAXIMUM TORQUE VALUE FOR THREAD: 6 in.LB

8. CONNECTOR IS PART MARKED: 3013W3SCM99A30X CONEC ABC

APPROVAL # FREIGABE # DEBLOCAGE # AUTORIZACION

APPROVAL # FREIGABE # DEBLOCAGE # AUTORIZACION # APPROVAL

CUSTOMER APPROVAL DATE:

THIS DRAWING MAY NOT BE COPIED OR

REPRODUCED IN ANY WAY, AND MAY NOT

BE PASSED ON TO A THIRD PARTY WITHOUT

WRITTEN PERMISSION.

OWNERSHIP AND COPYRIGHT OF CONEC GmbH

DO NOT ALTER CAD DRAWING BY HAND

tolerance

dim. in mm

date

drawn

03.09.2007

appd.

03.09.2007

norm

d-old

scale:

material:

title:

2:1 (5:1)

APPROVAL # FREIGABE # DEBLOCAGE # AUTORIZACION

SEE NOTES

name

NAME:

TITLE:

Sonnenberg

Mickenbecker

D-SUB COMBINATION FEMALE

dwg no:

13W3S SOLDER CUP

with threaded insert

Inventor 10

COMPANY NAME:

Origin

13K1A1707

part no:

sh:

DIN-

APPROVAL # FREIGABE # DEBLOCAGE # AUTORIZACION # APPROVAL

rev. description

date

name

3013W3SCM99A30X
