Data Sheet, Rev. 2
September 2001
R2860F Digital Receiver OC-192/STM-64
Description

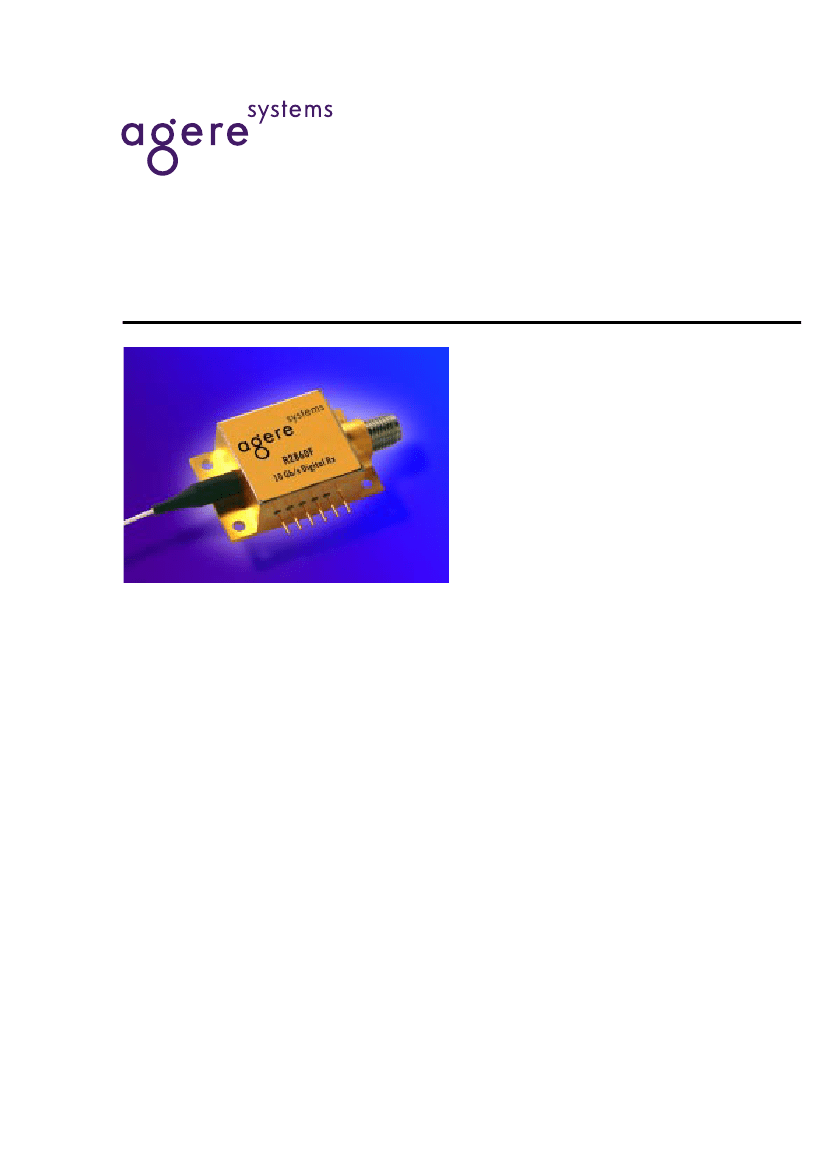

The R2860F receiver module incorporates a high-
speed planar PIN diode and a GaAs PHEMT pream-
plifier to provide exceptionally high performance. The
unit provides high bandwidth and sensitivity to oper-
ate with long, dispersive fibers, plus wide dynamic
range for operation over a variety of loss budgets.
High transimpedance coupled with a nonquantizing
limiting buffer output provides high gain while limiting
the maximum output signal swing, thereby simplifying
the interface to subsequent stages.
Agere Systems Inc. offers several 1R and 2R high-
speed receiver components for 10 Gbits/s and
12.5 Gbits/s applications. APD and PIN versions are
available in a 6-pin hermetic package with coaxial
output. In addition, Agere Systems also offers a PIN
receiver with coplanar waveguide in a multisource
agreement form-factor or a smaller, space sensitive
package. For more information about the complete
line of high-speed receiver products, please visit the
Agere Systems' website at www.agere.com/opto.
Features
s
s
s
s
s
High sensitivity, –20 dBm typical
Wide dynamic range, 2 dBm overload typical
High transimpedance, 2000
Ω
typical
Hermetically sealed
Optimized for multiple supply voltages, including
±5 V dual supplies, 8 V only, or –8 V only
ac-coupled output
s
Applications
s
10 Gbits/s short, intermediate, and long-haul sys-
tems
SONET/SDH equipment
Datacom equipment
s
s
R2860F Digital Receiver OC-192/STM-64
Data Sheet, Rev. 2
September 2001
Absolute Maximum Ratings
Stresses in excess of the absolute maximum ratings can cause permanent damage to the device. These are abso-
lute stress ratings only. Functional operation of the device is not implied at these or any other conditions in excess
of those given in the operational sections of the data sheet. Exposure to absolute maximum ratings for extended
periods can adversely affect device reliability.
Parameter
Operating Temperature Range
Storage Case Temperature Range
Preamp Supply Voltage
Photodiode Bias Voltage
Optical Input Power
Symbol
T
OP
Tstg
V
CC-
V
EE
V
PD-
V
EE
P
IN
Min
–5
–40
—
—
—
Max
70
85
12
20
4
Unit
°C
°C
V
V
dBm
Electrical/Optical Characteristics
Table 1. Electrical and Optical Characteristics
(25 °C Case Temperature)
Parameter
Optical Wavelength Range
Sensitivity (10
-10
BER, PRBS 2
23
–
1)
Overload (10
-13
BER, PRBS 2
23
–
1)
Responsivity
Dark Current
High-Frequency Cutoff
Low-Frequency Cutoff
Transimpedance
Maximum ac Output Voltage Swing
RF Output Return Loss
(0.1 GHz—5 GHz)
Optical Return Loss
Logic Sense
Photodiode Supply Voltage*
Positive Supply Voltage*
Negative Supply Voltage*
Supply Current
Symbol
λ
—
—
R
I
D
—
—
Z
—
RL
RF
RL
—
V
PD
V
CC
V
EE
I
CC
, –I
EE
Min
1280
—
0
0.7
—
8.0
—
1400
—
—
27
—
3
4
–5.5
—
Typ
—
–20
2
0.8
—
9.0
—
2000
800
—
—
Noninverting
5
5
–5
80
Max
1580
–18
—
—
1.0
—
30
—
—
10
—
—
7
5.5
–4
120
Unit
nm
dBm
dBm
A/W
nA
GHz
kHz
Ω
mVp-p
dB
dB
—
V
V
V
mA
* Floating supply capability allows alternate powering configurations such as V
PD
= 8 V, V
CC
= 8 V, and V
EE
= GND, or V
PD
= GND, V
CC
= GND,
and V
EE
= –8 V.
2
Agere Systems Inc.
Data Sheet, Rev. 2
September 2001
R2860F Digital Receiver OC-192/STM-64
Ordering Information
Table 3. Ordering Information
1
Device Code
R2860F023
Description
Digital Receiver
1400
Ω
min. TIA gain,
ac-coupled output
Digital Receiver
1400
Ω
min. TIA gain,
ac-coupled output
Connector
FC/SPC,
Standard
SC/UPC
Pigtail
Comcode
108870312
SMF-28
™ (1 m min.)
R2860F040
SMF-28
(1 m min.)
108870320
1. Other options available. For additional ordering information, please contact an account manager at Opto West, Agere Systems Inc., 1-800-
362-3891 (for sales staff, please press option 2).
Agere Systems Inc.
5
