SPECIFICATIONS
PARAMETERS
RATED VOLTAGE
OPERATING VOLTAGE RANGE
TONE OUTPUT
CURRENT CONSUMPTION
(NOMINAL)
INGRESS PROTECTION
CASE MATERIAL/COLOR
TERMINAL
OPERATING TEMPERATURE
WEIGHT
VALUES
24
9 ~ 28
SEE 32
TONE CHART
SEE 32
TONE CHART
IP42
ABS/RED
SCREW
-25 ~ +55
580
UNITS
Vdc
Vdc
-
mA
-
-
-
°C
grams
THIS DOCUMENT CONTAINS DATA PROPRIETARY TO
PROJECTS UNLIMITED, INC. ANY USE OR
REPRODUCTION, IN ANY FORM, WITHOUT PRIOR
WRITTEN PERMISSION OF PROJECTS UNLIMITED,
INC. IS PROHIBITED.
©2003, Projects Unlimited Inc.
REVISION HISTORY
LTR
-
A
B
DESCRIPTION
RELEASED FROM ENGINEERING
ADDED RoHS NOTE
REVISED TO INVENTOR 3-D DRAWING TEMPLATE
DATE
12/20/2005
5/22/2007
6/22/2010
APPROVED
R.W.
B.R.
109
95
50
100
60
50
NOTES:
1. ALL DIMENSIONS ARE IN MILLIMETERS.
2. SPECIFICATIONS SUBJECT TO CHANGE OR WITHDRAWL
WITHOUT NOTICE.
3. THIS PART IS RoHS 2002/95/EC COMPLIANT.
UNLESS OTHERWISE
SPECIFIED:
DIMENSIONS ARE IN
MILLIMETERS,
TOLERANCES
ARE ±0.5 AND
ANGLES ARE ±3°.
Designed by
Date
Checked by
Date
Approved by
Date
Drawn Date
SIZE
J.A.F.
12/20/2005
E.P.
12/20/2005
B.R.
12/20/2005 6/22/2010
A3

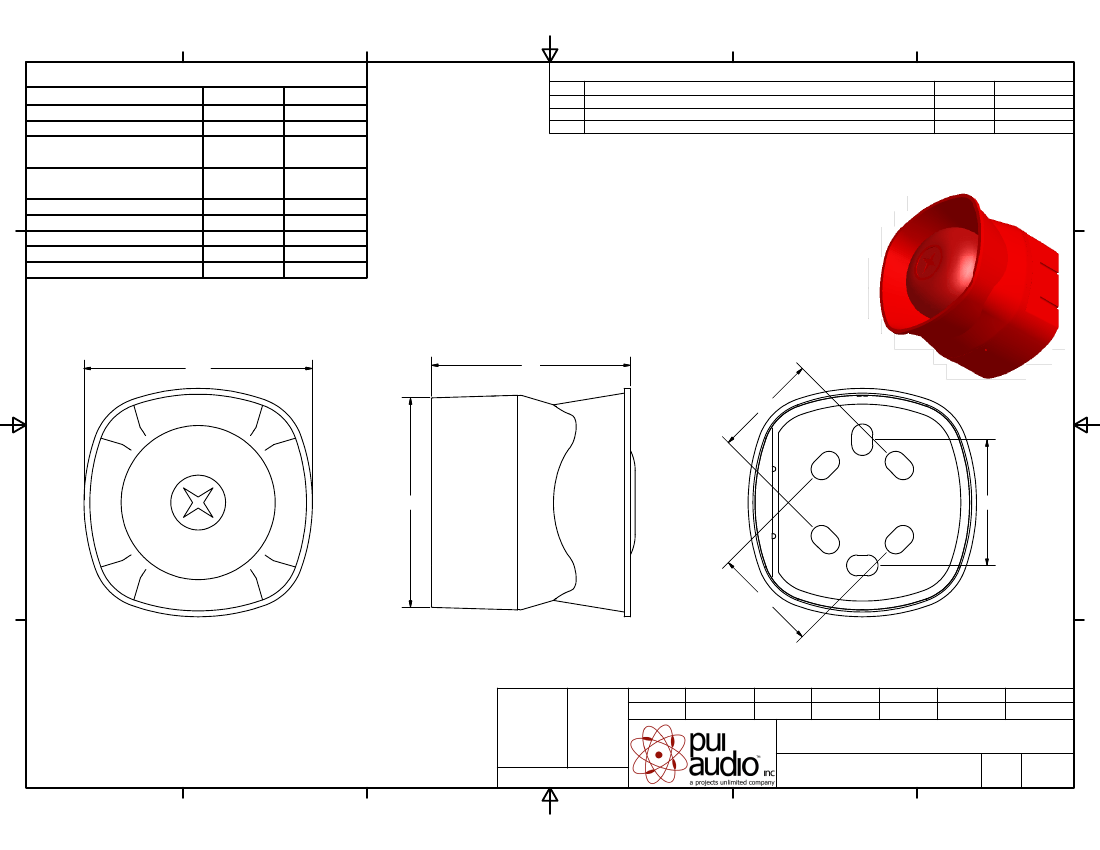

AW-30SBR
Siren
Edition
Sheet
AW-30SBR.idw
-
1/1
