L117DCFRDB37P datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> L117DCFRDB37P

L117DCFRDB37P: DescriptionD-sub standard connectors D-sub idc pin 37p; CategoryThe connector; File Size1MB，4 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric View All

L117DCFRDB37P Overview

D-sub standard connectors D-sub idc pin 37p

L117DCFRDB37P Parametric

Parameter Name	Attribute value
Manufacture	Amphenol
Product Category	D-Sub Standard Connectors
RoHS	Yes
Number of Rows	2
Factory Pack Quantity	32

Preview

Download Datasheet

View All

DFR

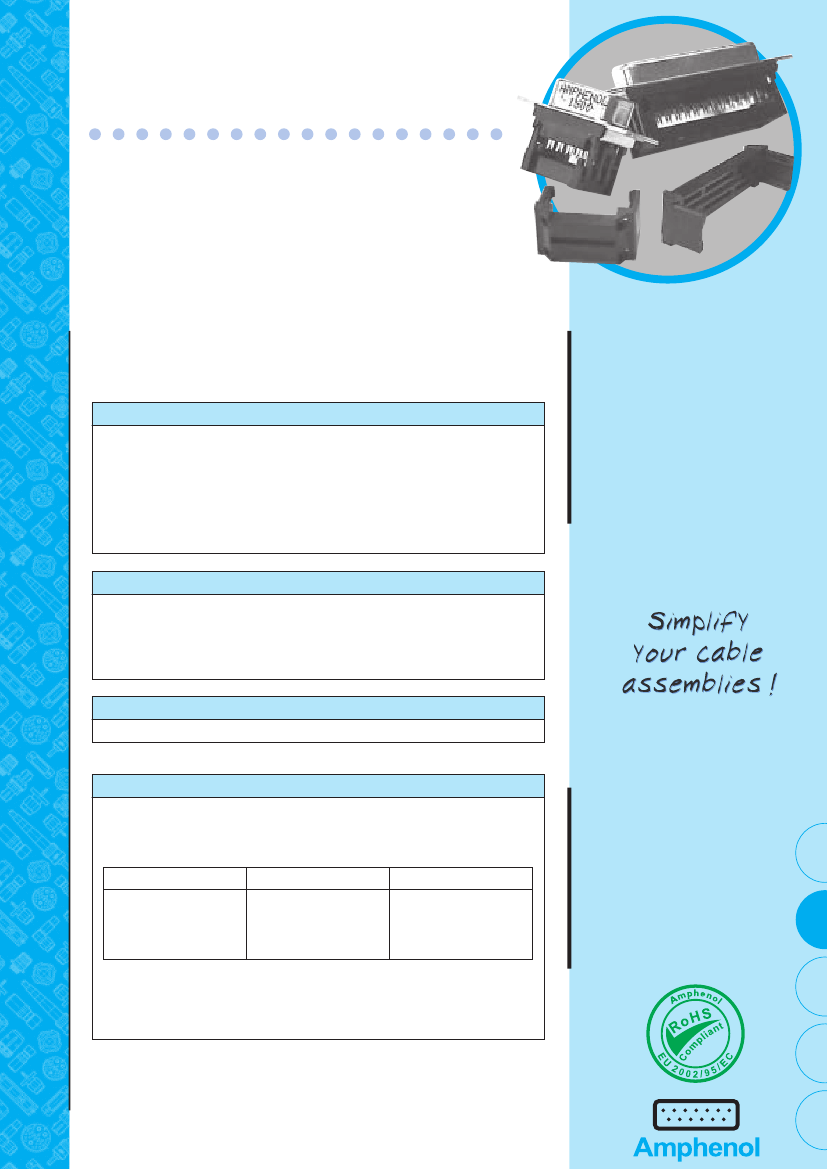

D-Sub connectors - Stamped and Formed Contacts

FLAT RIBBON

D-SUB CONNECTORS

These connectors are suitable for

compact requirement of modern

peripheral equipment.

Special contact design allows usage

of standard 1.27mm (.05") flat cable.

Suitable with all standard D-Sub hoods.

CHARACTERI STI CS

Specifications

• Connectors according to MIL C24308

• UL File: E232356

Materials and Platings

Shells

Insulator

Contacts

Steel with nickel plating

Glass-filled thermoplastic, UL 94V-0

Brass, selected gold in mating area;

2.54µm (100µ") min. tin

on termination area over

1.27µm (50µ") min. nickel

Brass, 2.54µm (100µ") min. nickel plated

Rear insert

Screwlock

Electrical Data

Current rating

Voltage rating

Withstanding voltage

Insulation resistance

Contact resistance

250V AC/rms 60Hz

1000V AC/rms 60Hz for one minute

1000MΩ

20mΩ max

Climatic Data

Operating temperature

-40°C to +125°C

Single contact insertion force

Single contact withdrawal force

Mating and unmating force

Unit: kg ( lb)

No. of Cts

9 (size E)

15 (size A)

25 (size B)

37 (size C)

0.54kg (1.19lb) max

0.06kg (0.13lb) min

APPLI CATI ONS

Mechanical Data

DESCRI PTI ON

•

Industrial

•

Telecom

•

Any industry standard

I / O connections

Mate (max)

3.05 (6.74)

5.09 (11.24)

8.44 (18.66)

12.51 (27.65)

• gold flash

• 0.4µm (15µ") gold

• 0.76 µm (30µ") gold

Unmate (min)

0.36 (0.79)

0.46 (1.01)

0.81 (1.8)

1.1 (2.47)

Standard plating thicknesses

DFR / E12
