EUROLINE - DC/DC-Converter
RxxPxx Series, 1 Watt, SIP7, 5.2kVDC Isolation (Dual Output)
Features
●
Wide Temperature Performance at
full 1 Watt Load, –40°C to +85°C
●
5.2kVDC Isolation
●
Efficiency at Full Load 65% min.
●
●
●
●
UL 94V-O Package Material
Internal SMD Construction
MTTF up to 1.6 Million Hours
BS EN 60950 Certified
Selection Guide
5V, 9, 12, 15V and 24V input types
Part
Number
RxxP1.8D
RxxP3.3D
RxxP05D
RxxP09D
RxxP12D
RxxP15D
Nom. Input
Voltage
(VDC)
5, 9,12, 15, 24
5, 9,12, 15, 24
5, 9,12, 15, 24
5, 9,12, 15, 24
5, 9,12, 15, 24
5, 9,12, 15, 24
Rated Output
Voltage
(VDC)
±1.8
±3.3
±5
±9
±12
±15
Rated Output
Current
(mA)
±278
±151
±100
±55
±41
±33
SIP7
Package
Style
Specifications
(measured at TA = 25°C, at nominal input voltage and rated output current unless otherwise specified)
Input Voltage Range
Output Voltage Accuracy
Line Voltage Regulation
Load Voltage Regulation (10% load to rated load)
Ripple and Noise (20MHz BW)
Efficiency (at full load)
Isolation Voltage (flash tested for 1 minute)
Short Circuit Protection
Operating Temperature Range (all output types)
Storage Temperature Range
Please contact us, if you need exact parameters for the converter you have selected.
±10%
±5%
1.2% typ./1% of Vin
5V output types
other output types
15% max.
10% max.
200mVp-p max.
65% min.
5.2kVDC min.
1s
–40°C to +85°C (see graph)
–55°C to +130°C
EU 22
www.recom-international.com
EUROLINE - DC/DC-Converter
RxxPxx Series, 1 Watt, SIP7, 5.2kVDC Isolation (Dual Output)

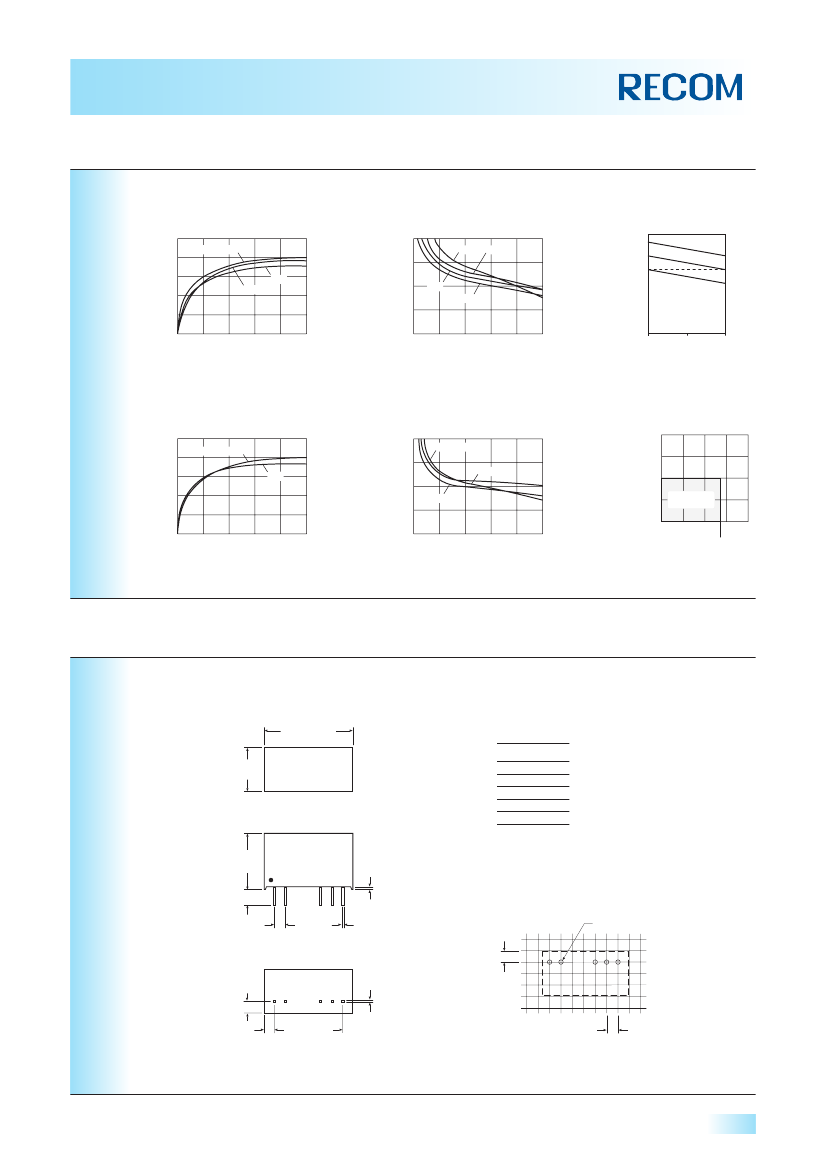

Typical Characteristics, Tolerance Envelope and Temperature Derating Graph
R05Pxx
100
0509, 0515
80
60
0505
0512
Deviation from Nominal (%)
+5
0
–5
–10
0
20
40
60
80
100
Total Output Current (%)
0512
0515
+10
0505
0509
Tolerance Envelope
+10%
+5%
V Nom.
Output Voltage
Typical L
o
ad Line
+2,5%
– 2,5%
– 7,5%
Efficiency (%)
40
20
0
20
40
60
80
100
10%
50%
100%
Total Output Current (%)
Output Load Current (%)
R12Pxx
100
80
60
Deviation from Nominal (%)
1209, 1212, 1215
1205
+15
1209, 1212
+10
1205
0
1215
–5
–10
0
20
40
60
80
100
Total Output Current (%)
Temperature Derating Graph
2.0
Output Power (Watts)
1.5
1.0
0.5
0
-40
Safe
Operating Area
Efficiency (%)
40
20
0
20
40
60
80
100
0
50
100
85
150
Total Output Current (%)
Ambient Temperature ˚C
Package Style and Pinning (mm)
7 Pin SIP Package Style
19.50
Pin Connections
Pin #
1
2
5
6
7
RxxPxx
RECOM
****
9.80
Single
+Vin
GND
–Vout
0V
+Vout
12.50
0.51±0.05
Recommended Footprint Details
4.1
2.54
0.50±0.05
2.54
1.00
ø
+0.15/–0
2.40 typ.
1 2
5 6 7
0.50±0.05
1.88±0.50
15.24
2.54
XX.X ± 0.5 mm
XX.XX ± 0.25 mm
www.recom-international.com
EU 23
