DX4R105JJCR1800 datasheet, PDF

Datasheet> All Categories > The connector> DX4R105JJCR1800

DX4R105JJCR1800: Descriptionusb connectors microusb 2.0 type B revmnt rcpt W/taper; CategoryThe connector; File Size620KB，11 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

DX4R105JJCR1800 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DX4R105JJCR1800	-	-	View	Buy Now

DX4R105JJCR1800 Overview

usb connectors microusb 2.0 type B revmnt rcpt W/taper

DX4R105JJCR1800 Parametric

Parameter Name	Attribute value
Manufacture	JAE Electronics
Product Category	USB Connectors
RoHS	Yes
Produc	Micro USB Type AB Connectors
Standard	USB 2.0
Number of Contacts	5
Gende	Female
Current Rating	1.8 A
Termination Style	SMD
Connector Type	Micro USB Type AB Receptacle
Contact Material	Copper Alloy
Contact Plating	Gold
Insulation Resistance	1000 MOhms
Operating Temperature Range	- 30 C to + 80 C
Packaging	Reel
Shell Plating	Tin over Nickel
Factory Pack Quantity	1800
Voltage Rating	30 V

Preview

Download Datasheet

View All

COMPONENTS PRODUCT INFORMATION

NEW

USB 2.0 Compatible Micro Connectors

CONNECTOR

MB-0187-2

November 2012

DX4 Series

RoHS Compliant

On-board Type

Mid-mount Type

The DX4 Series is a set of connectors compatible with the Micro-USB type USB 2.0

for small devices standardized by the USB Implementers Forum, Inc.

Features

Compatible

with Universal Serial Bus Micro-USB Cables and Connectors Specification,

Revision 1.01.

Connector

type: USB 2.0 compatible, Micro types

Au

plating over Pd over Ni is used for mating cycle durability and long product life.

Superior

rigidity with high-strength stainless steel shell.

Available

in a variety of versions to suit diverse device configurations.

Two-piece

shell structure for mid-mount type to prevent contact failure due to flux

scattering during reflow.

Available

in reinforced type, with reinforcement plate set in mating area to prevent

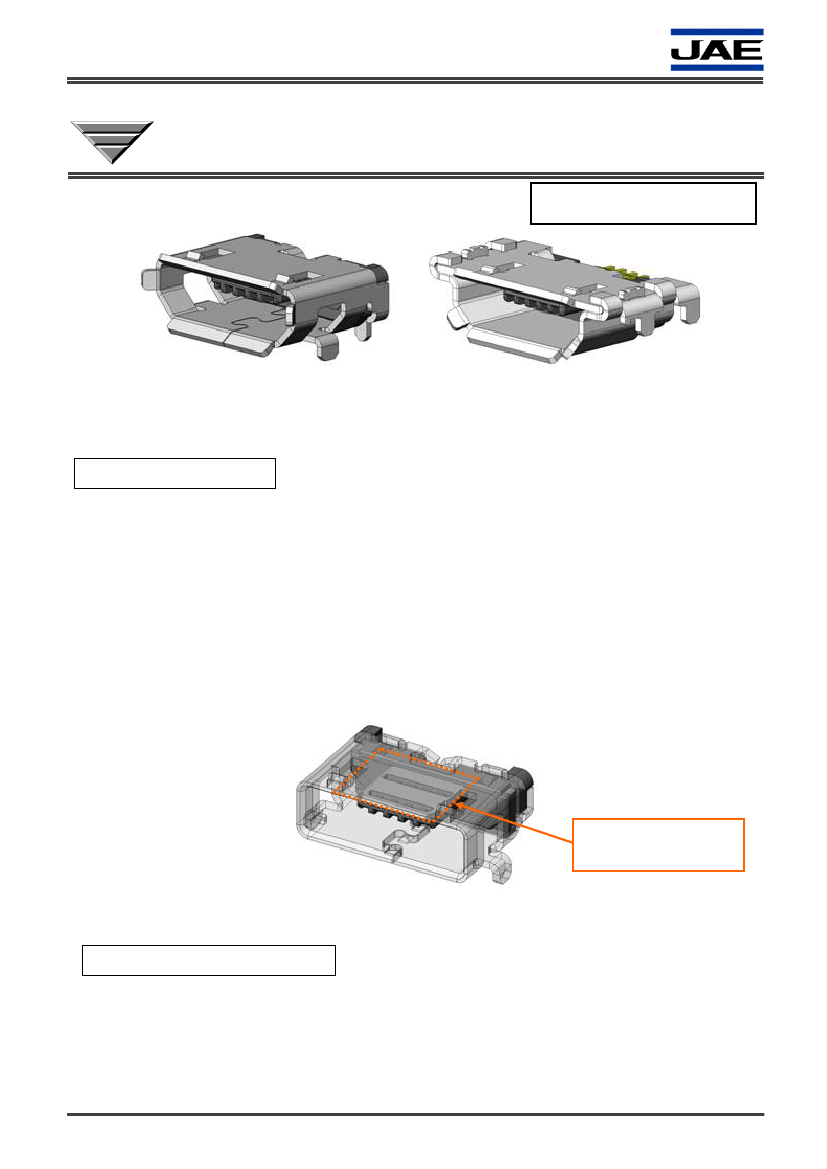

damage from plug caused by misaligned mating. (Refer to drawing below)

Reinforcement plate

of mating area

Mating Area Reinforced Type

*In the above drawing the shell is transparent for illustration purposes to show the

reinforcement plate.

General Specifications

No.

of Contacts: 5 positions

Contact

Resistance:

30m ohm max. (initial)

Dielectric

Withstanding Voltage:

AC500Vrms per minute

Insulation

Resistance: 1000M ohm (initial)

Rated

Current: 1.8A (Vbus, GND)

Others DC0.5A

Rated

Voltage: AC30Vrms

Durability:

10,000 mating cycles

Operating

temperature:

-30 Deg. C to +80 Deg. C

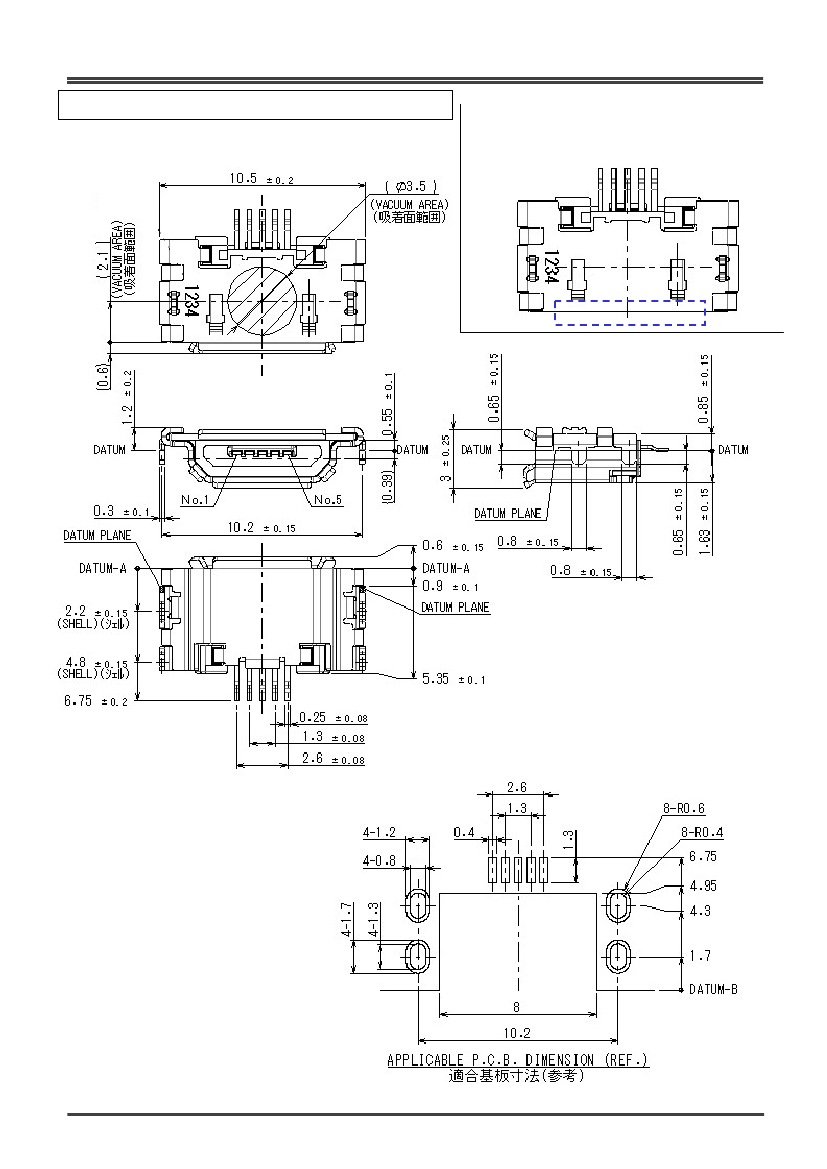

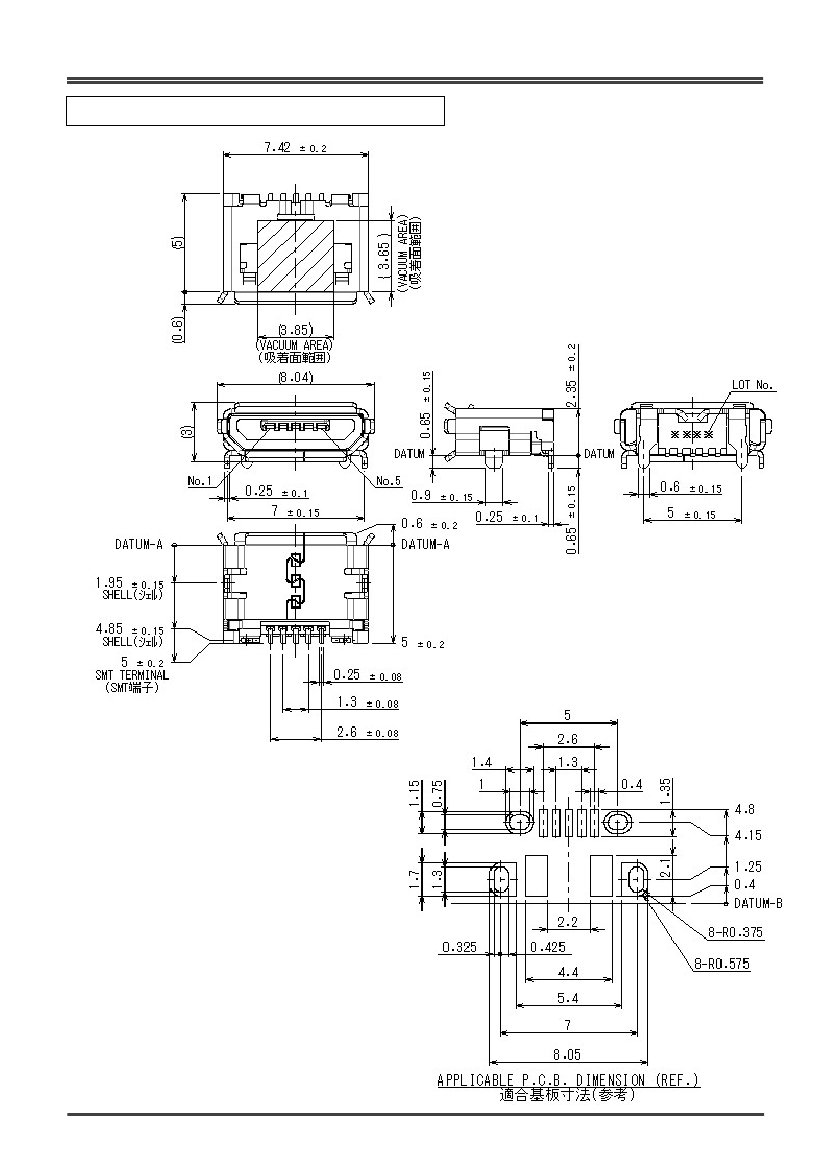

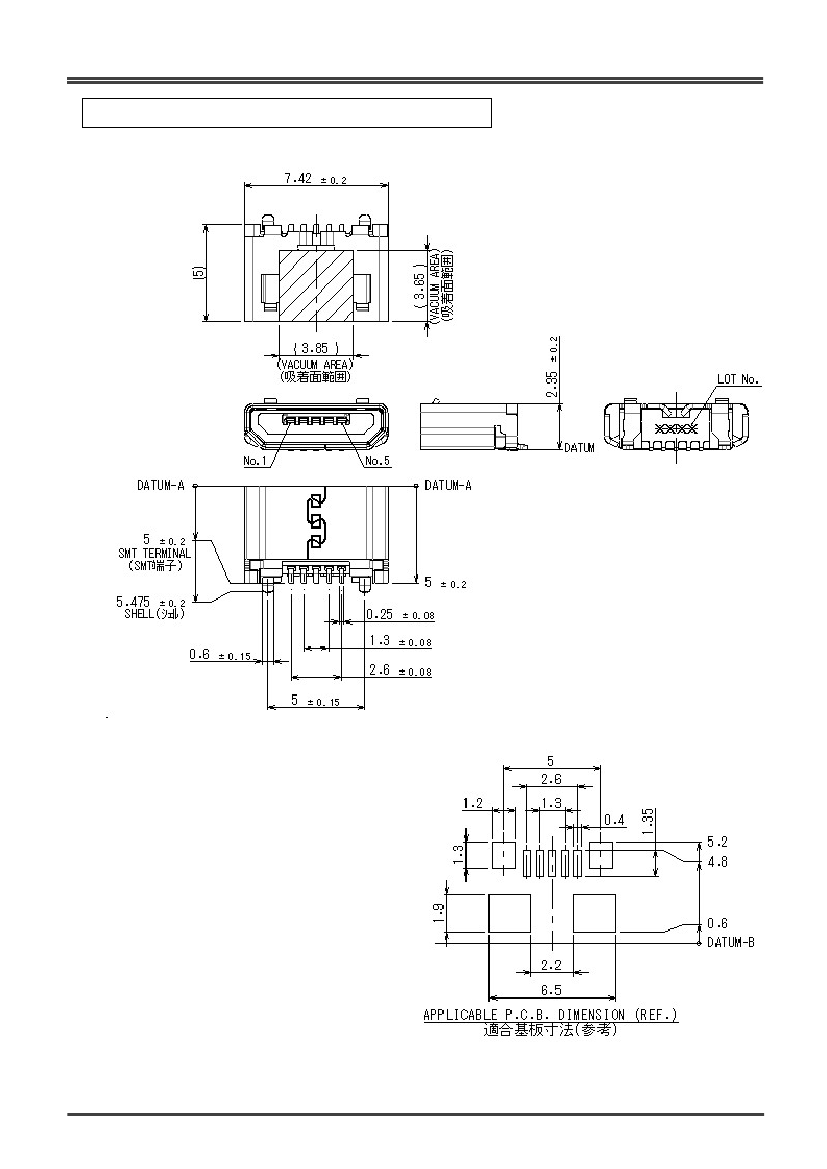

1/10

DX4R105JJCR1800 Related Products

	DX4R105JJCR1800	DX4R005JJ2R1800	DX4R005HJ5R2000	DX4R005JJ7R1500
Description	usb connectors microusb 2.0 type B revmnt rcpt W/taper	usb connectors microusb 2.0 type B stdmnt rcpt W/taper	usb connectors microusb 2.0 type B stdmnt rcpt NO taper	usb connectors microusb 2.0 type B midmnt rcpt NO taper
Manufacture	JAE Electronics	JAE Electronics	JAE Electronics	JAE Electronics
Product Category	USB Connectors	USB Connectors	USB Connectors	USB Connectors
RoHS	Yes	Yes	Yes	Yes
Produc	Micro USB Type AB Connectors	Micro USB Type B Connectors	Micro USB Type B Connectors	Micro USB Type B Connectors
Standard	USB 2.0	USB 2.0	USB 2.0	USB 2.0
Number of Contacts	5	5	5	5
Gende	Female	Female	Female	Female
Current Rating	1.8 A	1.8 A	1.8 A	1.8 A
Termination Style	SMD	SMD	SMD	SMD
Connector Type	Micro USB Type AB Receptacle	Micro USB Type B Receptacle	Micro USB Type B Receptacle	Micro USB Type B Receptacle
Contact Material	Copper Alloy	Copper Alloy	Copper Alloy	Copper Alloy
Contact Plating	Gold	Gold	Gold	Gold
Insulation Resistance	1000 MOhms	1000 MOhms	1000 MOhms	1000 MOhms
Operating Temperature Range	- 30 C to + 80 C	- 30 C to + 80 C	- 30 C to + 80 C	- 30 C to + 80 C
Packaging	Reel	Reel	Reel	Reel
Shell Plating	Tin over Nickel	Tin over Nickel	Tin over Nickel	Tin over Nickel
Factory Pack Quantity	1800	1800	2000	1500
Voltage Rating	30 V	30 V	30 V	30 V
