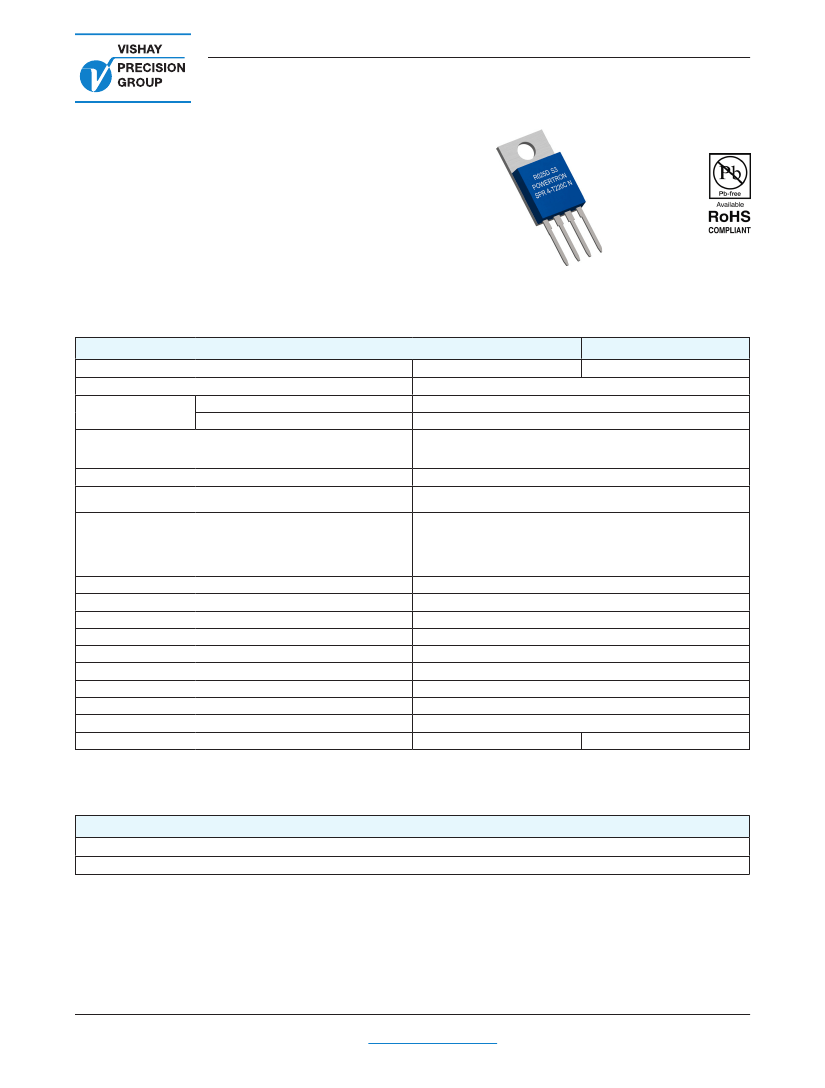

SPR 4-T220 T221
Powertron
FEATURES
•
•
•
•
•
•
•
Resistances from 0.005Ohm to 10Ohms
Power Rating to 15Watt
Resistance Tolerances to ±0.1%
TCR to ±2ppm/K
Load Stability to 0.1%
TO-220 Housing
Convenient SMD D2Pak Available
TABLE 1—SPECIFICATIONS
TYPE
Resistance Range
Power Rating
Free air 70°C
With heatsink
1.5 W
15 W
1% / 2% / 5%
0.1% / 0.25% / 0.5% / 1% / 2% / 5%
4.8 K/W
0.1% / 0.2% / 0.5%
(depends on stress)
±10ppm/K (20 to 60°C)
±5ppm/K (20 to 60°C)
±2ppm/K (20 to 60°C)
other specifications upon request
300 VDC
50 A
< 1µV/K
-40 to 130°C
CuMnSn-Foil
Anodized aluminium / Copper
PPS
Cu / tinned
4
1 Nm
0.8 Nm
SPR 4-T220
0.005 to 10 Ohms
SPR 4-T221
Tolerances
from 0.005 Ohms
from 0.01 Ohms
Thermal Resistance
Stability (1000h)
Temperature Coefficient
Standard (N)
Option (M)
Option (L) upon request for selected values
Voltage Proof
Maximum Current
Thermal EMF
Operating Temperature Range
Resistor Material
Substrate
Housing
Connector Material
Terminals
Max. Torque
ORDERING INFORMATION
Part Number - Resistance - Contact - Tolerance - TCR
SPR 4-T220 0R010 C 0.1% M
Document No.: 64255
Revision: 30-03-2014
For technical questions,
contact
powertron@vishaypg.com
www.powertron.de
1
SPR 4-T220 T221
Powertron
FIGURE 1—TEMPERATURE COEFFICIENT
2000
+10 ppm/K
1000
+5 ppm/K
∆R/R
(ppm)
0
Nominal
∆R/R
-5 ppm/K
-1000
-10 ppm/K
-2000
-40
-20
0
20
40
60
80
100
120
140
Temperature (°C)
FIGURE 2—DERATING
120
Power ( % from
nominal power)
100
80
60
40
20
0
25
0.5%
0.2%
0.1%
50
85
100
115
130
Temperature of the backplate (°C)
Power Rating Notes -
The SPR Series Resistors must be attached to a suitable heat-
sink. The maximum internal resistor temperature is 130°C.
To specify an appropriate heatsink use the following formula :
R
qH
= T
MAX
- ( P x R
qR
) - T
A
P
Where:
R
qH
= Thermal Resistance of Heatsink ( K/W )
R
qR
= Thermal Resistance of Resistor ( K/W )
T
MAX
= Maximum Temperature of Resistor
T
A
= Ambient Temperature of Heatsink ( °C )
P = Power Through Resistor ( W )
www.powertron.de
2
For technical questions,
contact
powertron@vishaypg.com
Document No.: 64255
Revision: 30-03-2014
