KA22293Q datasheet, PDF - EEWORLD Datasheet

KA22293Q: DescriptionMONOLITHIC INTEGRATED CIRCUIT FOR MUSIC CENTER; CategoryOther integrated circuit (IC) Consumption circuit; File Size152KB，8 Pages; ManufacturerSAMSUNG; Websitehttp://www.samsung.com/Products/Semiconductor/

Download Datasheet Parametric Compare View All

KA22293Q Overview

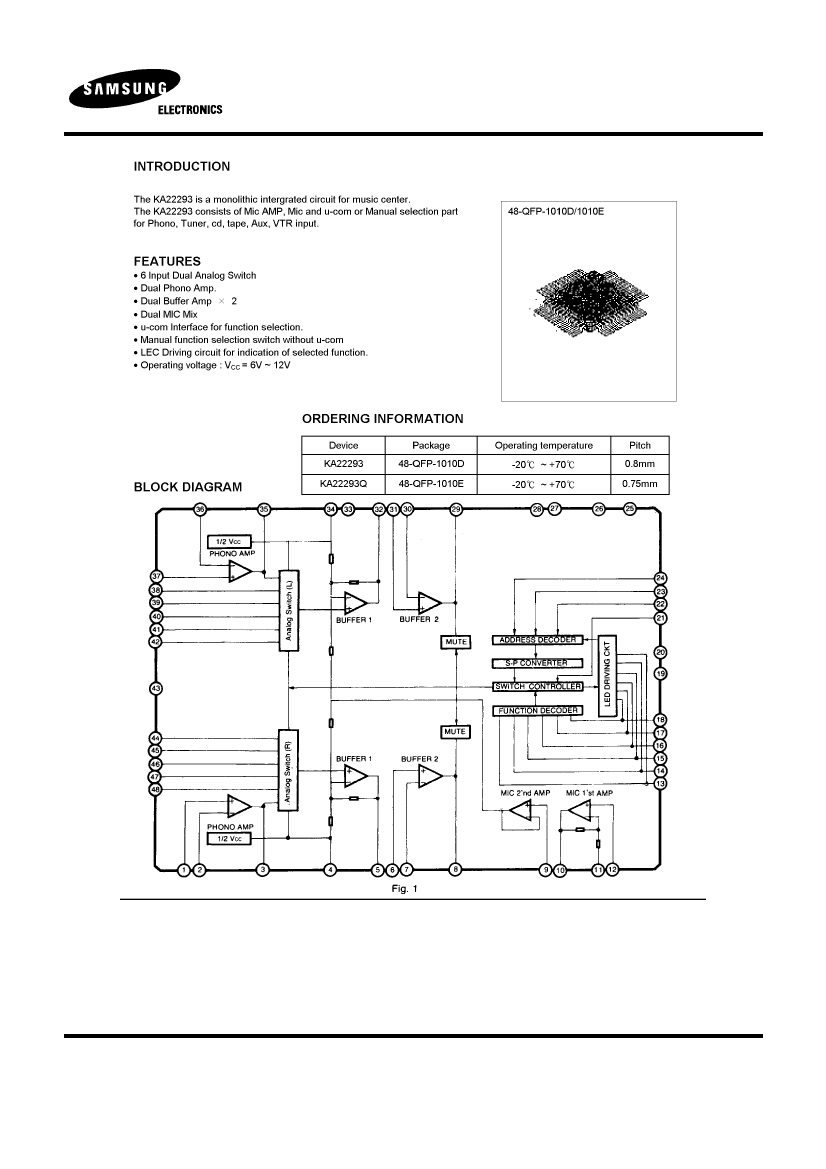

MONOLITHIC INTEGRATED CIRCUIT FOR MUSIC CENTER

Parameter Name	Attribute value
Parts packaging code	QFP
package instruction	QFP,
Contacts	48
Reach Compliance Code	unknow
Commercial integrated circuit types	CONSUMER CIRCUIT
JESD-30 code	S-PQFP-G48
length	10 mm
Number of functions	1
Number of terminals	48
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
Package body material	PLASTIC/EPOXY
encapsulated code	QFP
Package shape	SQUARE
Package form	FLATPACK
Certification status	Not Qualified
Maximum seat height	2.3 mm
Maximum slew rate	55 mA
Maximum supply voltage (Vsup)	12 V
Minimum supply voltage (Vsup)	6 V
surface mount	YES
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal pitch	0.75 mm
Terminal location	QUAD
width	10 mm
Base Number Matches	1

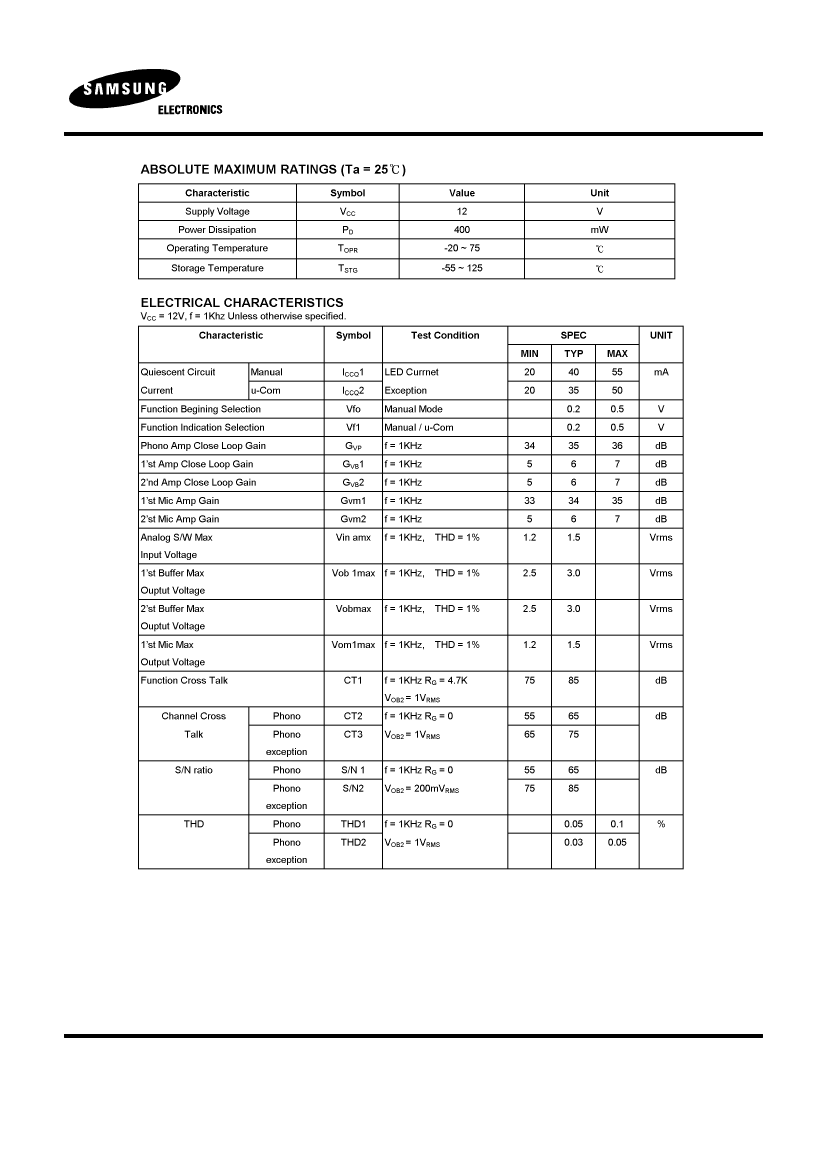

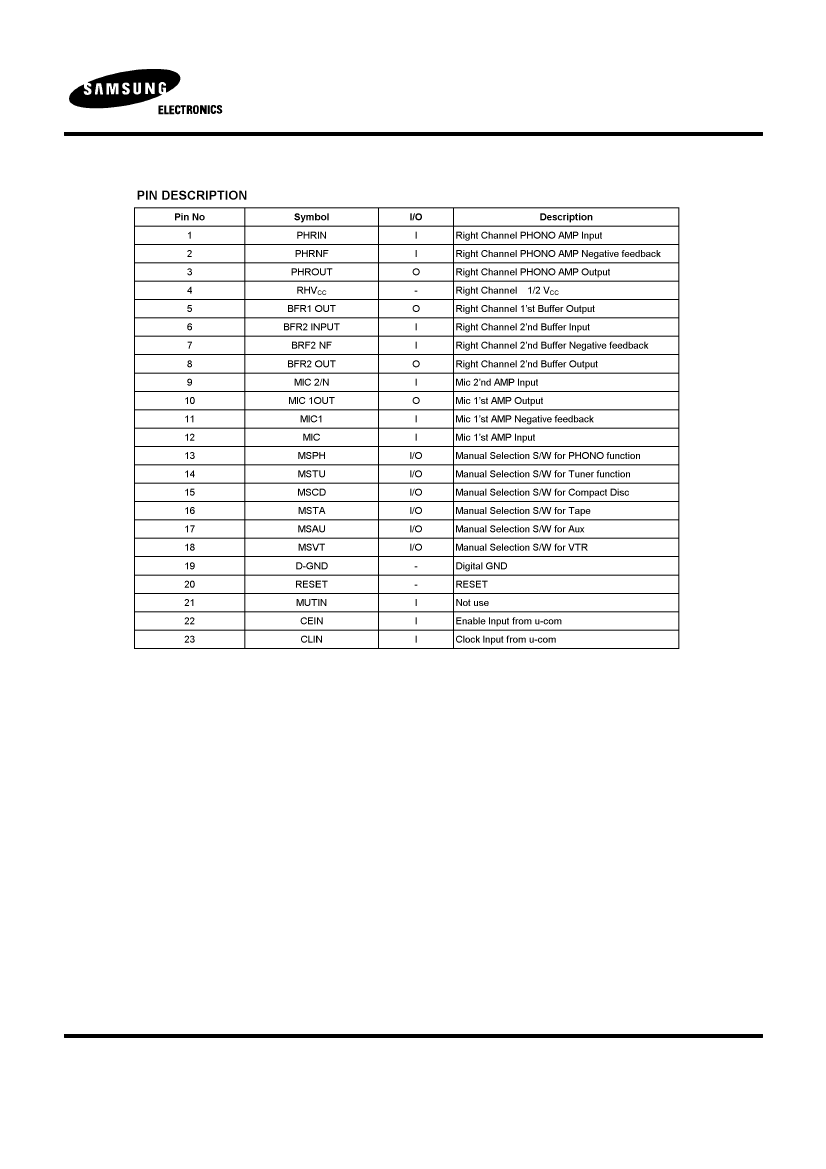

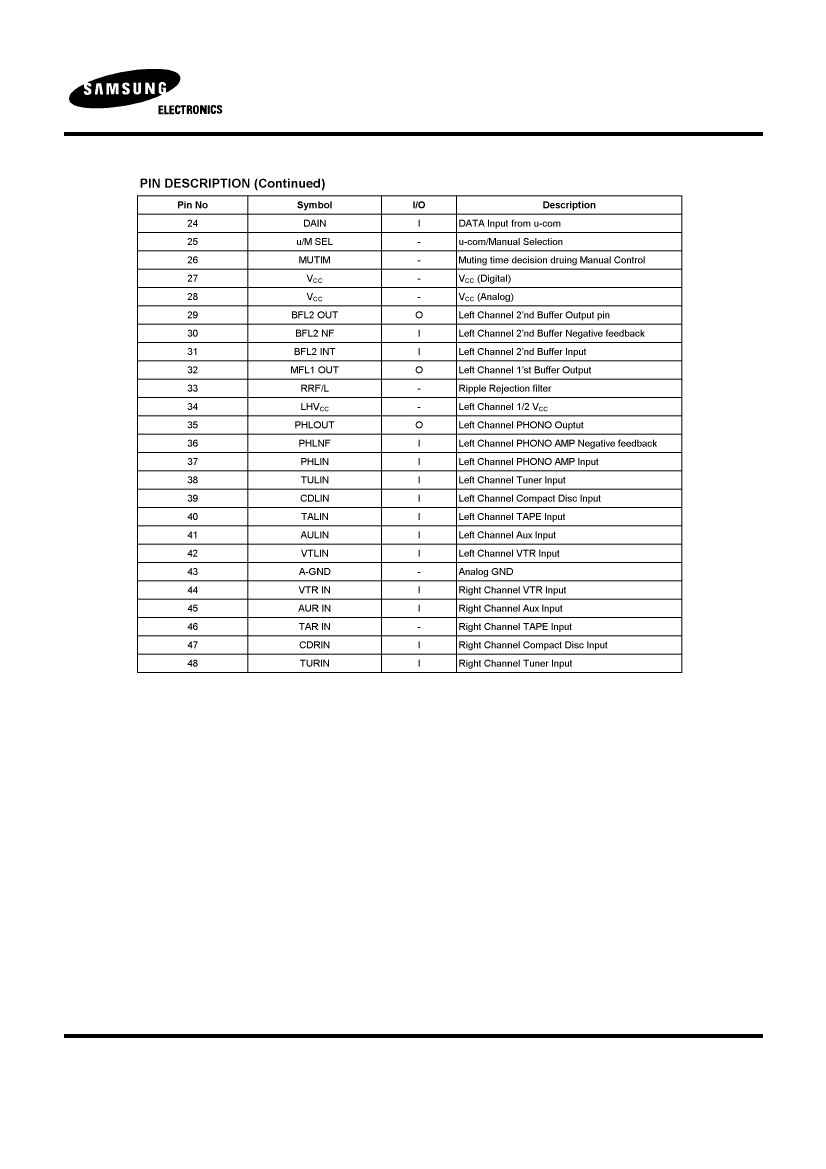

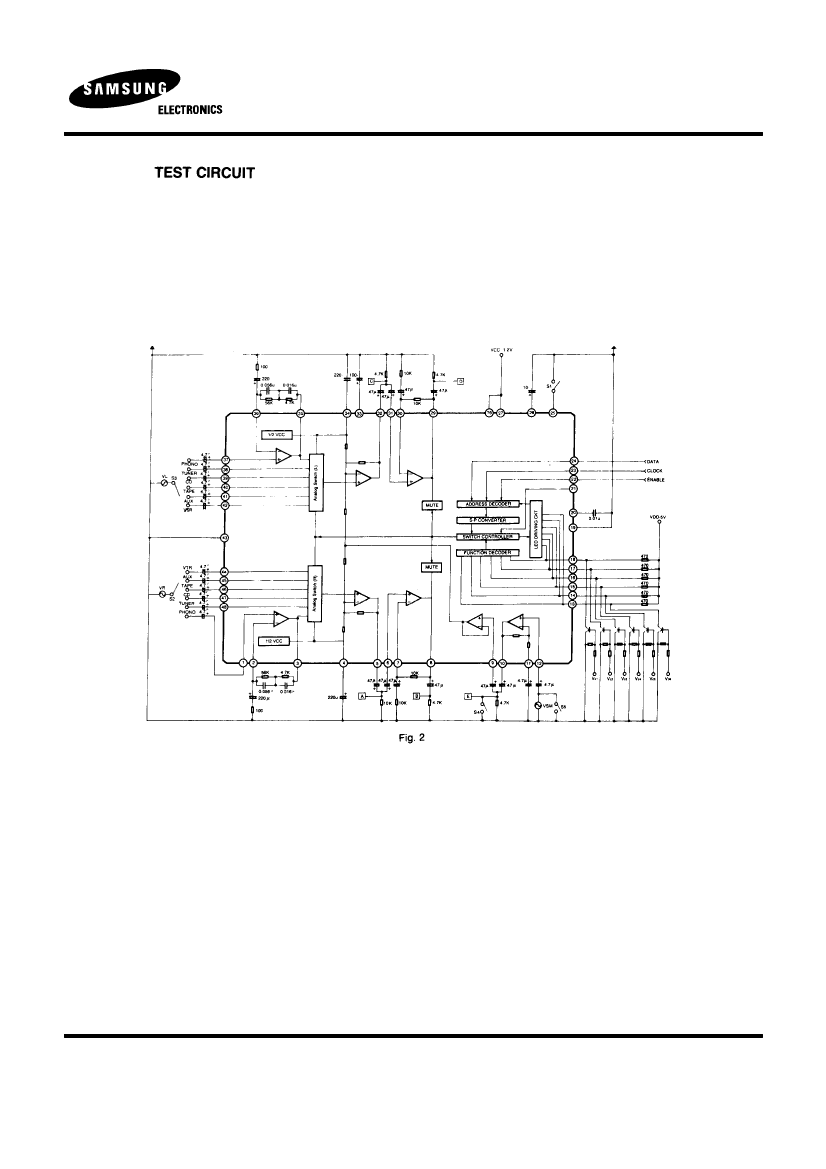

KA22293

Audio

CD-ROM(Edition 3.0)

This Data Sheet is subject to change without notice.

Page : 1 ( KA22293 )

Printed in Korea.

	KA22293Q	KA2293	KA22293
Description	MONOLITHIC INTEGRATED CIRCUIT FOR MUSIC CENTER	MONOLITHIC INTEGRATED CIRCUIT FOR MUSIC CENTER	MONOLITHIC INTEGRATED CIRCUIT FOR MUSIC CENTER
Parts packaging code	QFP	DIP	QFP
package instruction	QFP,	DIP,	LQFP,
Contacts	48	24	48
Reach Compliance Code	unknow	unknow	unknow
Commercial integrated circuit types	CONSUMER CIRCUIT	AUDIO SINGLE CHIP RECEIVER	CONSUMER CIRCUIT
JESD-30 code	S-PQFP-G48	R-PDIP-T24	S-PQFP-G48
length	10 mm	31.85 mm	10 mm
Number of functions	1	1	1
Number of terminals	48	24	48
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QFP	DIP	LQFP
Package shape	SQUARE	RECTANGULAR	SQUARE
Package form	FLATPACK	IN-LINE	FLATPACK, LOW PROFILE
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	2.3 mm	5.08 mm	1.6 mm
Maximum supply voltage (Vsup)	12 V	7 V	12 V
Minimum supply voltage (Vsup)	6 V	1.8 V	6 V
surface mount	YES	NO	YES
Terminal form	GULL WING	THROUGH-HOLE	GULL WING
Terminal pitch	0.75 mm	2.54 mm	0.8 mm
Terminal location	QUAD	DUAL	QUAD
width	10 mm	15.24 mm	10 mm
Base Number Matches	1	1	1
Maximum operating temperature	70 °C	-	70 °C
Minimum operating temperature	-20 °C	-	-20 °C
Maximum slew rate	55 mA	-	55 mA
Temperature level	COMMERCIAL	-	COMMERCIAL
