M85049/69-11A

Description
circular mil spec strain reliefs & adapters shrink boot adapter
CategoryThe connector    Connector bracket
File Size35KB,1 Pages
ManufacturerGlenair
Websitehttp://www.glenair.com/
Download Datasheet Parametric View All

M85049/69-11A Overview

circular mil spec strain reliefs & adapters shrink boot adapter

M85049/69-11A Parametric

Parameter NameAttribute value
Reach Compliance Codecompli
Factory Lead Time8 weeks
Related military specificationsMIL-DTL-38999
Connector bracket typeCONNECTOR ACCESSORY
DIN complianceNO
IEC complianceNO
MIL complianceYES
Military connector accessories nameSHRINK BOOT ADAPTER
Housing size11
Base Number Matches1
AS85049/69

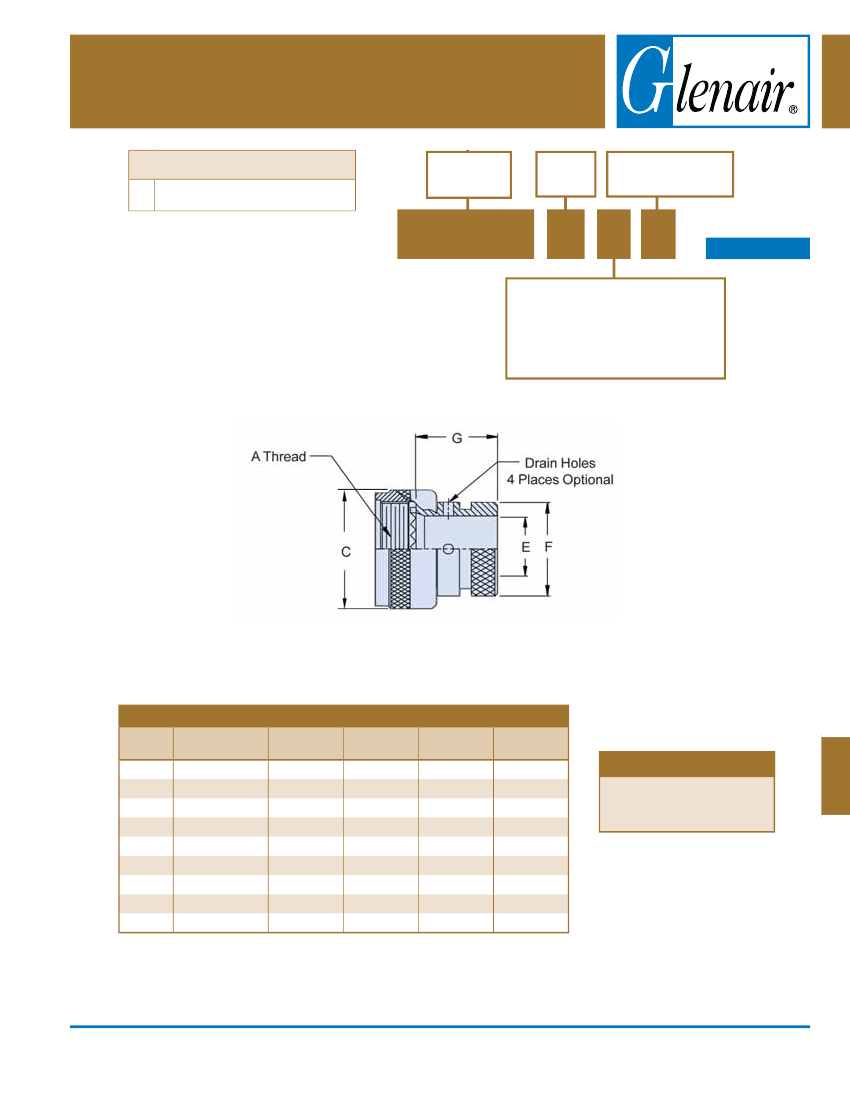

Series 310 Straight Shrink Boot Adapter
CONNECTOR DESIGNATOR:
H
MIL-DTL-38999 Series III & IV,
EN3645
Basic
Part Number
Shell
Size
Drain Hole Option
(Omit for None)
M85049/69
-
11
A
D
Order Boot Separately
Finish
A
= Black Anodize
N
= Electroless Nickel
W
= 500 Hr. Cadmium Olive Drab over
Electroless Nickel
TABLE I: Shell Size and Dimensions
Shell
Size
9
11
13
15
17
19
21
23
25
A Thread
Class 6H
M12 X 1 - 6H
M15 X 1 - 6H
M18 X 1 - 6H
M22 X 1 - 6H
M25 X 1 - 6H
M28 X 1 - 6H
M31 X 1 - 6H
M34 X 1 - 6H
M37 X 1 - 6H
C
Max
.750 (19.1)
.850 (21.6)
1.000 (25.4)
1.150 (29.2)
1.250 (31.8)
1.400 (35.6)
1.550 (39.4)
1.650 (41.9)
1.785 (47.0)
E Dia
Min
.250 (6.4)
.375 (9.5)
.500 (12.7)
.625 (15.9)
.750 (19.1)
.812 (20.6)
.938 (23.8)
1.062 (27.0)
1.188 (30.2)
F
Dia Max
.533 (13.5)
.605 (15.4)
.774 (19.7)
.838 (21.3)
.963 (24.5)
1.042 (26.5)
1.217 (30.9)
1.355 (34.4)
1.443 (36.7)
G
Max
.710 (18.0)
.710 (18.0)
.710 (18.0)
.710 (18.0)
.710 (18.0)
.710 (18.0)
.710 (18.0)
.710 (18.0)
.710 (18.0)
1.
APPLICATION NOTES
For complete dimensions
see the applicable Military
Specification.
H
© 2011 Glenair, Inc.
Dimensions in inches (millimeters) and are subject to change without notice.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com
H-23
E-Mail: sales@glenair.com
