KA9259HD datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Drivers and interfaces> KA9259HD

KA9259HD: Description5-Channel Motor Drive IC; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size527KB，16 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

KA9259HD Overview

5-Channel Motor Drive IC

KA9259HD Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Fairchild
Parts packaging code	SSOP
package instruction	HEAT SINK, SSOP-30/28
Contacts	30
Reach Compliance Code	compli
Interface integrated circuit type	CD MOTOR DRIVER
JESD-30 code	R-PDSO-G30
JESD-609 code	e3
length	18.4 mm
Humidity sensitivity level	1
Number of channels	5
Number of functions	1
Number of terminals	30
Maximum operating temperature	75 °C
Minimum operating temperature	-25 °C
Package body material	PLASTIC/EPOXY
encapsulated code	HSSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum seat height	2.5 mm
Maximum supply voltage	13.2 V
Minimum supply voltage	6 V
Nominal supply voltage	8 V
surface mount	YES
Temperature level	COMMERCIAL EXTENDED
Terminal surface	Matte Tin (Sn)
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.5 mm

Preview

Download Datasheet

View All

www.fairchildsemi.com

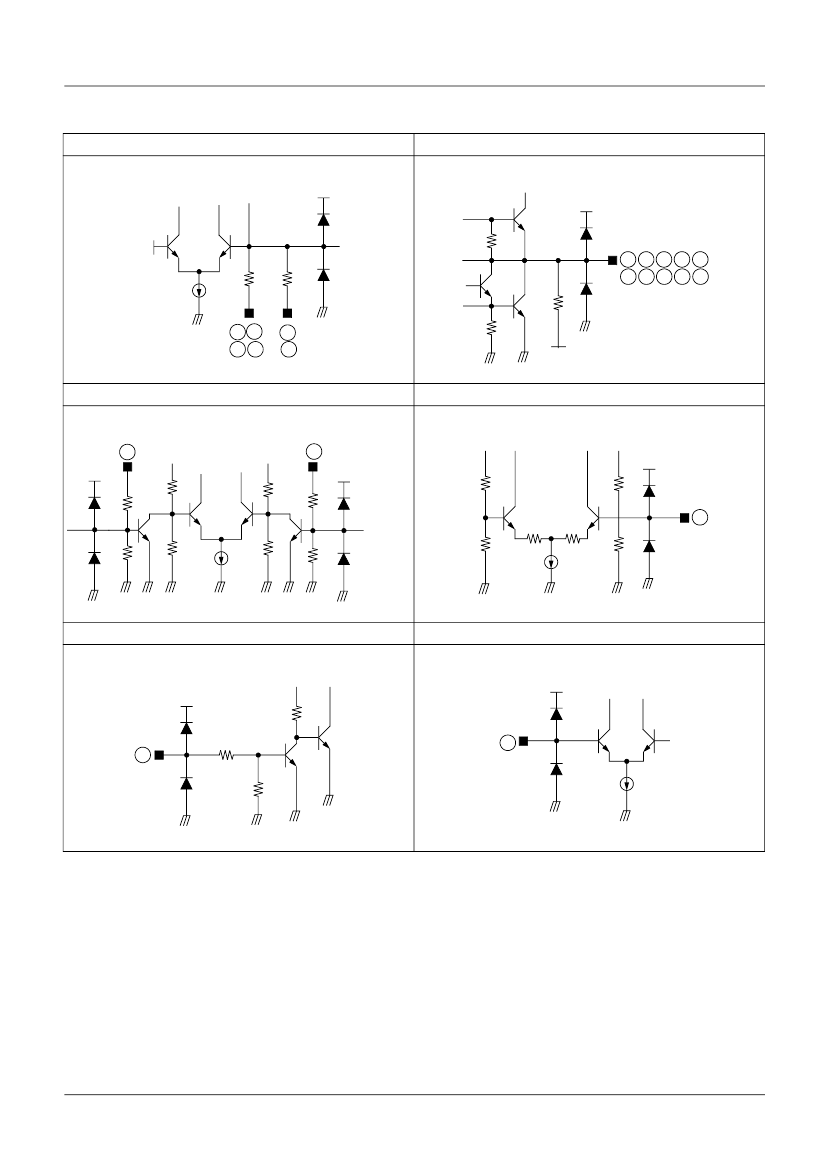

KA9259D(KA9259HD)

5-Channel Motor Drive IC

Features

• 4-CH Balanced Transformerless(BTL) Driver

• 1-CH (Forward/Reverse) DC Motor Driver With Speed

Control Circuit

• Built-in TSD (Thermal Shutdown) Circuit

• Built-in 5V Regulator (With an External PNP Transistor)

• Built-in Mute Circuit

• Wide Operating Supply Voltage Range: 6V~13.2V

Description

The KA9259D is a monolithic integrated circuit, and suit-

able for 5-CH motor driver which drives focus actuator,

tracking actuator, sled motor, spindle motor and loading

motor of compact disk player system.

28-SSOPH-375

Typical Applications

•

Compact Disk Player (CDP)

Video Compact Disk Player (VCD)

Automotive Compact Disk Player (CDP)

Other Compact Disk Media

Ordering Information

Device

KA9259HD

Package

28-SSOPH-375

Operating Temp.

-25°C

~ +75°C

-25°C

~ +75°C

KA9259HDTF 28-SSOPH-375

Rev. 1.0.3

KA9259HD Related Products

	KA9259HD	KA9259HDTF	KA9259D
Description	5-Channel Motor Drive IC	5-Channel Motor Drive IC	5-Channel Motor Drive IC
Is it Rohs certified?	conform to	conform to	incompatible
Maker	Fairchild	Fairchild	Fairchild
Parts packaging code	SSOP	SSOP	SSOP
package instruction	HEAT SINK, SSOP-30/28	HSSOP,	HSSOP, SOP42,.4,32
Contacts	30	30	28
Reach Compliance Code	compli	compli	unknow
JESD-30 code	R-PDSO-G30	R-PDSO-G30	R-PDSO-G28
JESD-609 code	e3	e3	e0
length	18.4 mm	18.4 mm	18.4 mm
Number of functions	1	1	1
Number of terminals	30	30	28
Maximum operating temperature	75 °C	75 °C	75 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	HSSOP	HSSOP	HSSOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH	SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH	SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	2.5 mm	2.5 mm	2.5 mm
surface mount	YES	YES	YES
Temperature level	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED
Terminal surface	Matte Tin (Sn)	Matte Tin (Sn)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	GULL WING	GULL WING
Terminal pitch	0.8 mm	0.8 mm	0.8 mm
Terminal location	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	7.5 mm	7.5 mm	7.5 mm
Interface integrated circuit type	CD MOTOR DRIVER	CD MOTOR DRIVER	-
Humidity sensitivity level	1	1	-
Number of channels	5	5	-
Maximum supply voltage	13.2 V	13.2 V	-
Minimum supply voltage	6 V	6 V	-
Nominal supply voltage	8 V	8 V	-
