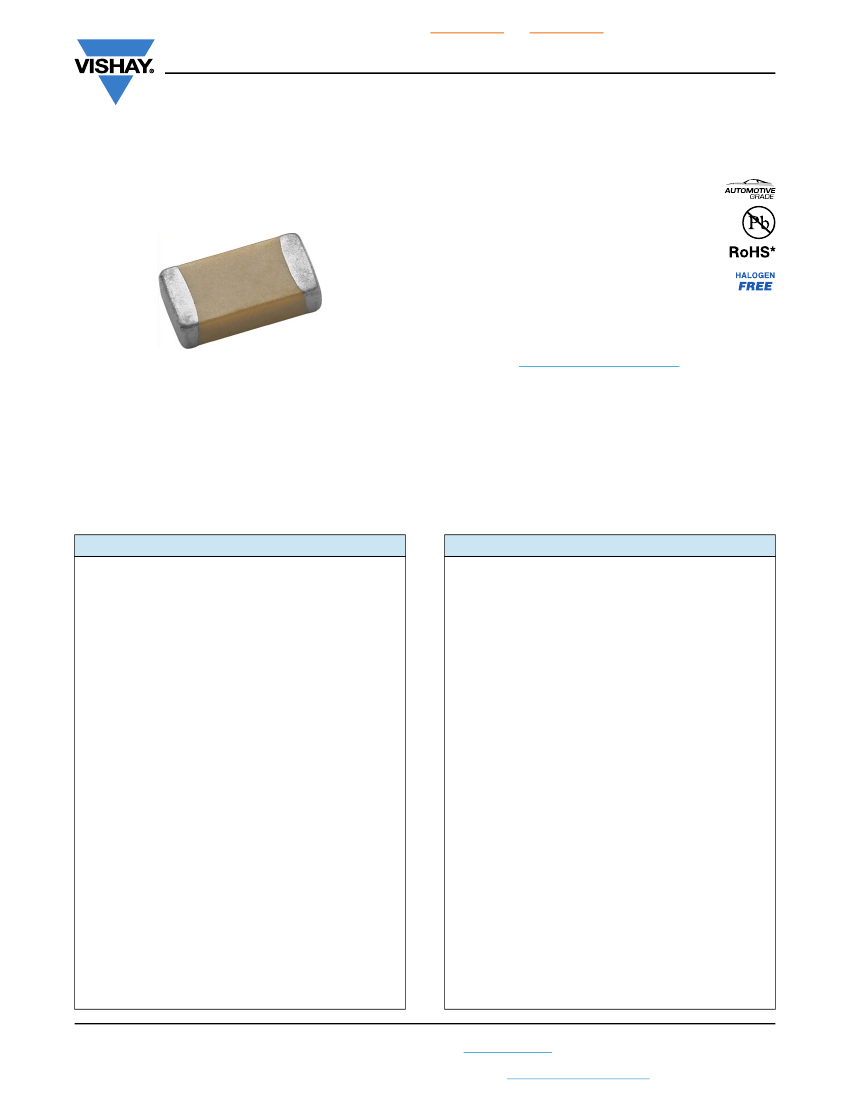

Not for New Designs - Alternative Device: GA....31G or GA....34G Automotive MLCC
VJ....31 / VJ....34 Automotive MLCC
www.vishay.com
Vishay Vitramon
Surface Mount Multilayer Ceramic Chip Capacitors
for Automotive Applications
FEATURES
•
•
•
•
•
•
•
•
•
AEC-Q200 qualified with PPAP available
Available in 0402 to 1812 body size
Four dielectric materials
AgPd termination available for silver epoxy
bonding
Available
High operating temperature
Wet build process
Reliable Noble Metal Electrode (NME) system
RoHS and ELV (end-of-life vehicles) compliance, see
Selection Charts
Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
Note
*
This datasheet provides information about parts that are
RoHS-compliant and / or parts that are non RoHS-compliant. For
example, parts with lead (Pb) terminations are not RoHS-compliant.
Please see the information / tables in this datasheet for details
For more than 30 years Vishay Vitramon has supported the automotive industry with robust, highly reliable MLCCs that have
made it a leader in this segment. All Vishay Vitramon MLCCs are manufactured in “Precious Metal Technology” (PMT / NME)
and a wet build process. They are qualified according to AEC-Q200 with PPAP available on request. Applications for these
devices include automotive “under the hood”, safety and comfort electronics. Their termination finish is 100 % matte tin plate
finish and AgPd which is used with silver epoxy bonding. A polymer (flexible) termination with 100 % matte tin plate finish is
offered for boardflex sensitive applications.
C0G (NP0) DIELECTRIC
GENERAL SPECIFICATION
Note
Electrical characteristics at +25 °C unless otherwise specified
X7R, X8R DIELECTRIC
GENERAL SPECIFICATION
Note
Electrical characteristics at +25 °C unless otherwise specified
Operating Temperature:
-55 °C to +150 °C
(above +125 °C changed characteristics, see 2.3)
Capacitance Range:
22 pF to 22 nF
Voltage Range
:
25 V
DC
to 3000 V
DC
Temperature Coefficient of Capacitance (TCC):
0 ppm/°C ± 30 ppm/°C from -55 °C to +125 °C
Dissipation Factor (DF):
0.1 % maximum at 1.0 V
RMS
and
1 MHz for values
1000 pF
0.1 % maximum at 1.0 V
RMS
and
1 kHz for values > 1000 pF
Insulating Resistance:
at +25 °C 100 000 M min. or 1000
F
whichever is less
at +125 °C 10 000 M min. or 100
F
whichever is less
Aging
:
0 % maximum per decad
e
Operating Temperature
:
-55 °C to +150 °C
(X7R above +125 °C changed characteristics, see 2.3)
Capacitance Range
:
120 pF to 1.0 μF
Voltage Range
:
16 V
DC
to 1000 V
DC
Temperature Coefficient of Capacitance (TCC):
X7R: ± 15 % from -55 °C to +125 °C, with 0 V
DC
applied
X8R: ± 15 % from -55 °C to +150 °C, with 0 V
DC
applied
Dissipation Factor (DF):
10 V ratings: 5 % maximum at 1.0 V
RMS
and 1 kHz
16 V, 25 V ratings: 3.5 % maximum at 1.0 V
RMS
and 1 kHz
> 25 V ratings: 2.5 % maximum at 1.0 V
RMS
and 1 kHz
Insulating Resistance:
at +25 °C 100 000 M min. or 1000
F
whichever is less
at +125 °C 10 000 M min. or 100
F
whichever is less
X8R: at 150 °C 10 000 M min. or 100
F
whichever is less
Aging Rate
:
1 % maximum per decade
Dielectric Strength Test:
performed per method 103 of EIA 198-2-E.
Applied test voltages
250 V
DC
-rated:
250 % of rated voltage
500 V
DC
-rated:
200 % of rated voltage
630 V
DC
, 1000 V
DC
-rated:
150 % of rated voltage
3000 V
DC
-rated:
120 % of rated voltage
Dielectric Strength Test:
performed per method 103 of EIA 198-2-E.
Applied test voltages
250 % of rated voltage
250 V
DC
-rated:
500 V
DC
-rated:
min. 150 % of rated voltage
630 V
DC
, 1000 V
DC
-rated: min. 120 % of rated voltage
Revision: 19-Jul-2021
Document Number: 45040
1
For technical questions, contact:
mlcc@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
Not for New Designs - Alternative Device: GA....31G or GA....34G Automotive MLCC
VJ....31 / VJ....34 Automotive MLCC
www.vishay.com
Vishay Vitramon
QUICK REFERENCE DATA
DIELECTRIC
CASE CODE
MAXIMUM VOLTAGE
(V)
CAPACITANCE
MINIMUM
22 pF
56 pF
100 pF
100 pF
100 pF
33 pF
120 pF
330 pF
330 pF
220 pF
390 pF
10 nF
330 pF
470 pF
470 pF
1.0 nF
10 nF
MAXIMUM
220 pF
1.0 nF
3.9 nF
8.2 nF
12 nF
22 nF
33 nF
150 nF
470 nF
1.0 μF
1.0 μF
1.0 μF
6.8 nF
33 nF
100 nF
220 nF
330 nF
0402
0603
0805
C0G (NP0)
1206
1210
1812
0402
0603
0805
X7R
1206
1210
1812
0402
0603
X8R
0805
1206
1210
Note
• Detail ratings see “Selection Chart”
100
200
500
630
630
3000
100
200
500
630
630
630
100
100
100
50
50
Revision: 19-Jul-2021
Document Number: 45040
2
For technical questions, contact:
mlcc@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
Not for New Designs - Alternative Device: GA....31G or GA....34G Automotive MLCC
VJ....31 / VJ....34 Automotive MLCC
www.vishay.com
Vishay Vitramon
ORDERING INFORMATION - TIN TERMINATION
VJ0805
(2)
CASE
CODE
Y
102
K
CAPACITANCE
TOLERANCE
X
A
A
MARKING
C
PACKAGING
31
PROCESS
CODE
DIELECTRIC CAPACITANCE
NOMINAL
CODE
(4)
A = C0G
(NP0)
Y = X7R
H = X8R
TERMINATION DC VOLTAGE
RATING
(1)
0402
0603
0805
1206
1210
1812
B = ± 0.10 pF
Expressed in
X = Ni barrier
C = ± 0.25 pF
picofarads (pF).
100 % matte tin
D = ± 0.5 pF
The first two
plate finish
F=±1%
digits are
B = polymer
G=±2%
significant, the
100 % matte tin
J=±5%
third is a
plate finish
(3)(7)
K = ± 10 %
multiplier. An
M = ± 20 %
“R” indicates a
Note:
decimal point.
C0G (NP0):
Examples
B, C, D < 10 pF
4R7 = 4.7 pF
102 = 1000 pF F, G, J, K 10 pF
X7R / X8R:
J, K, M
J = 16 V
X = 25 V
A = 50 V
B = 100 V
C = 200 V
P = 250 V
E = 500 V
L = 630 V
G = 1000 V
H = 3000 V
A = unmarked
B = marked
Note:
marking is only
available for
0805 and 1206
vendor ID and
date code
31 =
automotive
100 %
matte tin
plate finish
E / T = 7" reel / plastic tape
(5)
C = 7" reel / paper tape
M / R = 11 1/4" / 13" reel / plastic tape
(5)
P = 11 1/4" / 13" reel / paper tape
ORDERING INFORMATION - SILVER PALLADIUM TERMINATION
VJ0805
(2)
CASE
CODE
Y
102
K
CAPACITANCE
TOLERANCE
F
A
A
MARKING
O
PACKAGING
34
PROCESS
CODE
DIELECTRIC CAPACITANCE
NOMINAL
CODE
(4)
A = C0G
(NP0)
Y = X7R
H = X8R
Expressed in
picofarads (pF).
The first two
digits are
significant, the
third is a
multiplier. An
“R” indicates a
decimal point.
Examples
102 = 1000 pF
TERMINATION DC VOLTAGE
RATING
(1)
0402
0603
0805
1206
1210
1812
F, E = AgPd
(6)(7)
B = ± 0.10 pF
C = ± 0.25 pF
D = ± 0.5 pF
F=±1%
G=±2%
J=±5%
K = ± 10 %
M = ± 20 %
Note:
C0G (NP0):
B, C, D < 10 pF
F, G, J, K 10 pF
X7R / X8R:
J, K, M
J = 16 V
X = 25 V
A = 50 V
B = 100 V
C = 200 V
P = 250 V
E = 500 V
L = 630 V
G = 1000 V
H = 3000 V
A = unmarked
Note:
marking is not
available
34 =
automotive
AgPd finish
E / T = 7" reel / plastic tape
(5)
O = 7" reel / flamed paper tape
M / R = 11 1/4" / 13" reel / plastic tape
(5)
I = 11 1/4" / 13" reel / flamed paper tape
Note:
“I” and “O” are used for “F”, “E” termination
size 0402 / 0603 / 0805
Notes
(1)
DC voltage rating should not be exceeded in application. Other application factors may affect the MLCC performance.
Consult for questions:
mlcc@vishay.com
(2)
Case size designator may be replaced by a four digit drawing number
(3)
Polymer termination for size 0603 and larger, contact
mlcc@vishay.com
for availability of ratings. Packaging only plastic tape “E” / “M” and
size 1812 “T” / “R”
(4)
Non-standard values please contact:
mlcc@vishay.com
for availability
(5)
Packaging “T” and “R” is used for 1812 size
(6)
Termination code “E” / “F” is for conductive epoxy assembly
(7)
Termination code “B” and “F” are not available with X8R in 0402, 0603 - 100 V, 0805 - 100 V
Revision: 19-Jul-2021
Document Number: 45040
3
For technical questions, contact:
mlcc@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
Not for New Designs - Alternative Device: GA....31G or GA....34G Automotive MLCC
VJ....31 / VJ....34 Automotive MLCC
www.vishay.com
Vishay Vitramon
DIMENSIONS
in inches (millimeters)
L
W
T
MAX.
P
CASE
CODE
STYLE
LENGTH
(L)
0.040 + 0.004 / - 0.002
(1.00 + 0.10 / - 0.05)
0.063 ± 0.006
(1.60 ± 0.15)
0.079 ± 0.008
(2.00 ± 0.20)
0.126 ± 0.010
(3.20 ± 0.25)
0.126 ± 0.010
(3.20 ± 0.25)
0.177 ± 0.010
(4.50 ± 0.25)
WIDTH
(W)
0.020 + 0.004 / - 0.002
(0.50 + 0.10 / - 0.05)
0.031 ± 0.006
(0.80 ± 0.15)
0.049 ± 0.008
(1.25 ± 0.20)
0.063 ± 0.010
(1.60 ± 0.25)
0.098 ± 0.010
(2.50 ± 0.25)
0.126 ± 0.010
(3.20 ± 0.25)
MAXIMUM
THICKNESS
(T)
0.024
(0.60)
0.038
(0.97)
0.057
(1.45)
0.067
(1.70)
0.076
(1.94)
0.086
(2.18)
TERMINATIONS PAD
(P)
MINIMUM
0.004
(0.10)
0.012
(0.30)
0.010
(0.25)
0.010
(0.25)
0.010
(0.25)
0.010
(0.25)
MAXIMUM
0.016
(0.41)
0.018
(0.46)
0.028
(0.71)
0.028
(0.71)
0.028
(0.71)
0.030
(0.76)
0402
0603
0805
1206
1210
1812
VJ0402
VJ0603
VJ0805
VJ1206
VJ1210
VJ1812
Note
• Polymer (B-termination) have increased dimensions:
part length increased by 0.006" (0.15 mm)
Revision: 19-Jul-2021
Document Number: 45040
4
For technical questions, contact:
mlcc@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
Not for New Designs - Alternative Device: GA....31G or GA....34G Automotive MLCC
VJ....31 / VJ....34 Automotive MLCC
www.vishay.com
Vishay Vitramon
SELECTION CHART
DIELECTRIC
C0G (NP0)
STYLE
VJ0402
VJ0603
CASE CODE
0402
0603
25 / 50
100
50
100
200
50
VOLTAGE (V
DC
)
VOLTAGE CODE
X/A
B
A
B
C
A
CAP. CODE
CAP.
1R0
1.0 pF
1R2
1.2 pF
1R5
1.5 pF
1R8
1.8 pF
2R2
2.2 pF
2R7
2.7 pF
3R3
3.3 pF
3R9
3.9 pF
(1)
4R7
4.7 pF
5R6
5.6 pF
(1)
6R8
6.8 pF
8R2
8.2 pF
100
10 pF
120
12 pF
150
15 pF
180
18 pF
++
++
220
22 pF
++
++
270
27 pF
330
33 pF
++
++
++
++
390
39 pF
++
++
470
47 pF
560
56 pF
++
++
++
++
++
++
++
++
++
++
680
68 pF
++
++
++
++
++
820
82 pF
101
100 pF
++
++
++
++
++
++
++
++
++
++
++
++
121
120 pF
++
++
++
++
++
151
150 pF
181
180 pF
++
++
++
+
++
++
++
++
+
++
221
220 pF
++
++
+
++
271
270 pF
331
330 pF
++
++
++
++
++
++
391
390 pF
++
++
++
471
470 pF
561
560 pF
++
++
++
++
681
680 pF
++
++
821
820 pF
102
1.0 nF
++
++
++
122
1.2 nF
++
152
1.5 nF
182
1.8 nF
+
+
222
2.2 nF
+
272
2.7 nF
332
3.3 nF
+
+
392
3.9 nF
472
4.7 nF
562
5.6 nF
682
6.8 nF
822
8.2 nF
103
10 nF
123
12 nF
153
15 nF
183
18 nF
223
22 nF
273
27 nF
333
33 nF
393
39 nF
473
47 nF
563
56 nF
Notes
•• Paper tape, • Plastic tape, ++ Paper tape, + Plastic tape, see table “Product drawings (in use)”
- For soldering conditions see Vishay Soldering Recommendations
www.vishay.com/doc?45034
(1)
Alternative product see GA…31M, GA...34G Automotive HIFREQ Series
www.vishay.com/doc?45248
RoHS and ELV (end-of-life vehicles) compliant
Not RoHS and ELV (end-of-life vehicles) compliant
Revision: 19-Jul-2021
VJ0805
0805
100
B
200
C
500
E
(1)
++
++
++
++
++
++
++
++
++
++
++
++
++
+
+
+
++
++
++
++
++
++
++
++
+
+
+
+
+
++
++
++
++
+
+
+
+
+
Document Number: 45040
5
For technical questions, contact:
mlcc@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
京公网安备 11010802033920号
EEWORLD
