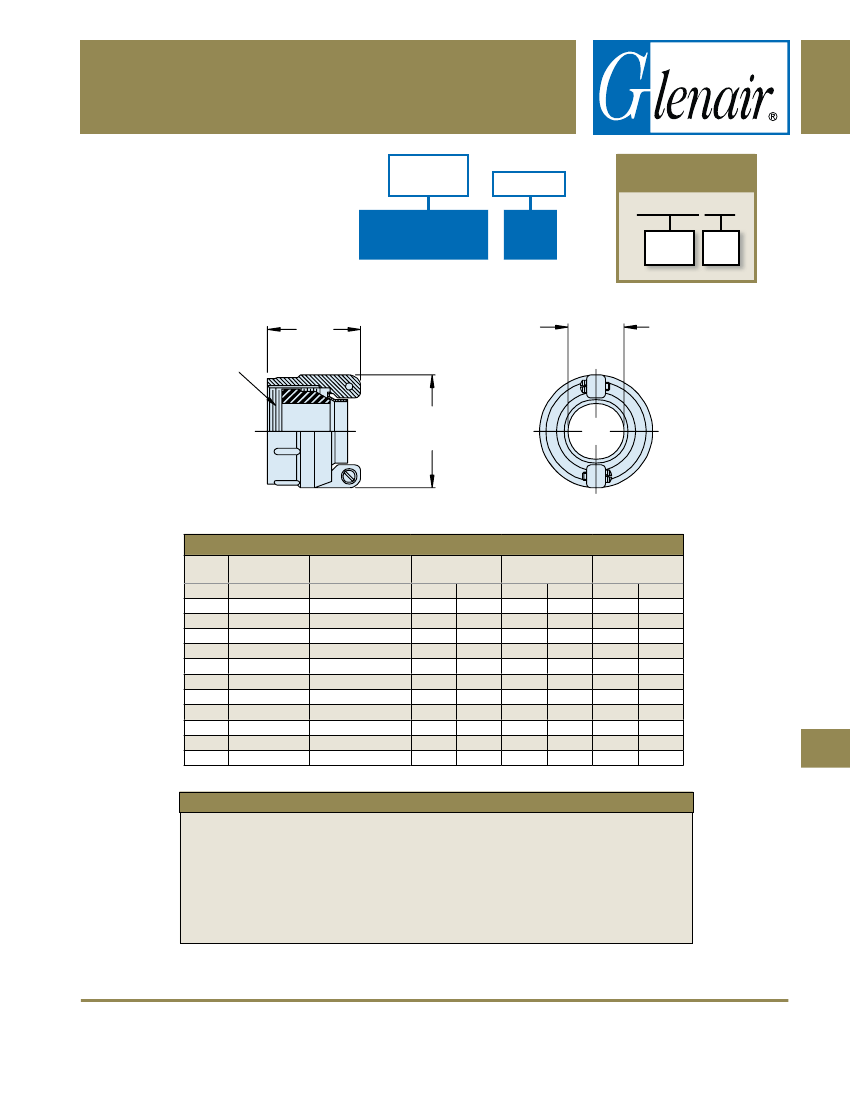

AS85049/1 and MS3057B
Strain Reliefs
Basic
Part Number
Dash No.
Superseded
PART NUMBER
MS3057-16B
M85049/1
-
12B
Basic
Part No.
Dash
No.
F
E Thread
H
G
TABLE I: Shell Size, Cable Entry and Backshell Dimensions
Dash
No.
3B
4B
6B
8B
10B
12B
16B
20B
24B
28B
32B
40B
Conn. Shell
Ref.(s)
8S, 10S
10SL, 12S, 12
14S, 14
16S, 16
18
20, 22
24, 28
32
36
40
44
48
E Thread
Class 2B
1/2 - 28 UNEF
5/8 - 24 UNEF
3/4 - 20 UNEF
7/8 - 20 UNEF
1 - 20 UNEF
1 3/16 - 18 UNEF
1 7/16 - 18 UNEF
1 3/4 - 18 UNS
2 - 18 UNS
2 1/4 - 16 UN
2 1/2 - 16 UN
3 - 16 UN
F
Max
1.031
(26.2)
1.031
(26.2)
1.031
(26.2)
1.031
(26.2)
1.094
(27.8)
1.219
(31.0)
1.219
(31.0)
1.344
(34.1)
1.547
(39.3)
1.547
(39.3)
1.734
(44.0)
1.781
(45.2)
ØG
Max
.812
(20.6)
.937
(23.8)
1.062
(27.0)
1.188
(30.2)
1.312
(33.3)
1.562
(39.7)
1.750
(44.5)
2.250
(57.2)
2.375
(60.3)
2.625
(66.7)
2.812
(71.4)
3.312
(84.1)
.231
.315
.440
.515
.614
.738
.926
1.200
1.363
1.611
1.865
2.365
H
Min
(5.9)
(8.0)
(11.2)
(13.1)
(15.6)
(18.7)
(23.5)
(30.5)
(34.6)
(40.9)
(47.4)
(60.1)
62
APPLICATION NOTES
1.
2.
3.
4.
5.
Finish on M85049/1 is Cadmium Olive Drab over Electroless Nickel (1,000 hour salt spray.
Assembly to be identified with manufacturer’s name and part number, space permitting.
Cable Entry is defined as the accommodation entry for the wire bundle or cable.
Dimensions are not intended for inspection criteria.
For complete dimensions, see the applicable Military Specification.
Metric dimensions (mm) are in parentheses.
