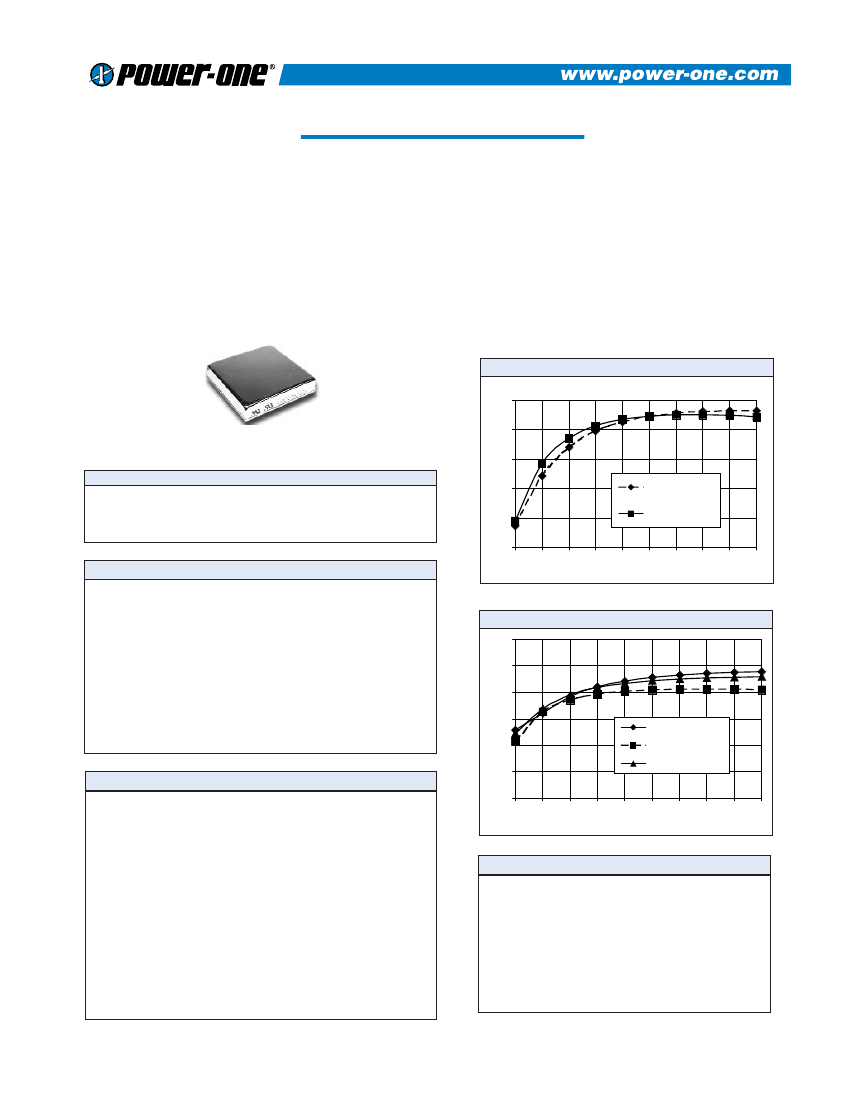

OBD SERIES - DUAL OUTPUT, 25 WATT
DESCRIPTION
OBD dual output DC/DC converters provide up to 25 watts
of output power in an industry standard package and
footprint. These units feature excellent efficiency, six-sided
shielding, and fixed switching frequency. With 100°C case
operation, the OBS series is well suited to telecom,
networking, and industrial applications. The OBD series is
100% surface-mount construction and fully compatible with
production board washing processes.
FEATURES
•
•
•
•
Industry Standard Package
48V Input
Fixed-Frequency Design
100°C Case Operation
• Trim and Enable Pins
• 6-Sided Shielding
• 1500V Isolation
Efficiency vs. Load (24V Input)
90
85
EFFICIENCY %
TECHNICAL SPECIFICATIONS
Input
Voltage Range
48 VDC Nominal
Reflected Ripple
Input Reverse Voltage Protection
Output
Setpoint Accuracy
Line Regulation Vin Min. - Vin Max., Iout Rated
Load Regulation Iout Min. - Iout Max., Vin Nom.
Minimum Output Current
Dynamic Regulation, Loadstep
Pk Deviation
Settling Time
Voltage Trim Range
Short Circuit / Overcurrent Protection
Current Limit Threshold Range, % of Iout Rated
OVP Trip Range
OVP and UVP Type
±1%
0.2% Vout
0.5% Vout
10 % Iout Rated
25% Iout
4% Vout
500 ms
±10%
Hiccup
110 - 140%
115 - 140% Vout Nom.
Second Control Loop
34 - 75 VDC
25 mA
Shunt Diode
80
75
70
65
10
20
30
40
50
60
70
80
90
100
LOAD %
EFF. OBD25YJJ
EFF. OBD25YHH
Efficiency vs. Load (48V Input
)
100
90
EFFICIENCY %
80
70
60
50
EFF. OBD025ZJJ
EFF. OBD025ZGG
EFF. OBD025ZHH
General
Turn-On Time: 24 & 48V Input
Remote Shutdown
Remote Shutdown Reference
Switching Frequency
Isolation
Input - Output
Input - Case (12 Vin and 24 Vin units)
Output - Case (48 Vin units)
Temperature Coefficient
Case Temperature
Operating Range (12V Input Max. Temp +85°C)
Storage Range
Vibration, 3 Axes, 5 Min. Each
MTBF† (Bellcore TR-NWT-000332)
Safety
Weight (Approx.)
REV. 01/31/02
10 ms
Positive
Vin Negative
400 kHz
1500 VDC
1050 VDC
500 VDC
0.03%/°C
-40 to +100°C
-40 to +125°C
5 g, 10 - 55 Hz
1.9 x 106 hrs
UL, cUL, TUV
1.4 oz
40
10
20
30
40
50
60
70
80
90
100
LOAD %
Notes
† MTBF predictions may vary slightly from model to model.
†† Industrial temp range available.
Specifications typically at 25°C, normal line, and full load, unless
otherwise stated.
Soldering Conditions: I/O pins, 260°C, ten seconds; fully
compatible with commercial wave-soldering equipment.
Units are water-washable and fully compatible with commercial
spray or immersion post wave-solder washing equipment.
1
OPTIONS
When ordering equipment options, use the following suffix information. Select the option(s) that you prefer
and add them to the model number. Example ordering options are located below the options table.
OPTION
Negative Logic
Lucent-Compatible
Terminal Strip
Trim
Enable
Trim and Enable
Current Share
Headerless
SUFFIX
N
T
TS
1
2
3
4
Y
APPLICABLE SERIES
HAS, HBD, HBS, HES, HLS, HLD, LES,
QBS, QES, QLS, TES, TQD
HAS, HBD, HBS, HES, HLS, QBS, QES,
QLS
XWS, XWD, XWT
IAS, LES
IAD, IAS, LES, SMS
IAS, LES
SMS
Encapsulated EWS, IWS, OWS
REMARKS
TTL "Low" Turns Module ON
TTL "High" Turns Module OFF
Pin Length and Heatsink Options
0.110" (2.8mm) Pin Length
0.150" (3.8mm) Pin Length
0.24" (6.1mm) Horizontal Heatsink
0.24" (6.1mm) Vertical Heatsink
0.45" (11.4mm) Horizontal Heatsink
0.45" (11.4mm) Vertical Heatsink
0.95" (24.1mm) Horizontal Heatsink
0.95" (24.1mm) Vertical Heatsink
8
9
1H
1V
2H
2V
3H
3V
All Units (Except SMS)
All Units (Except SMS)
All Units (All Units Except DIP, HLS, HLD, QLS,
SIP, SM, TLD, and TKD Packages)
All Units (All Units Except DIP, HLS, HLD, QLS,
SIP, SM, TLD, and TKD Packages)
All Units (All Units Except DIP, HLS, HLD, QLS,
SIP, SM, TLD, and TKD Packages)
All Units (All Units Except DIP, HLS, HLD, QLS,
SIP, SM, TLD, and TKD Packages)
All Units (All Units Except DIP, HLS, HLD, QLS,
SIP, SM, TLD, and TKD Packages)
All Units (All Units Except DIP, HLS, HLD, QLS,
SIP, SM, TLD, and TKD Packages)
Standard Pin Length is 0.180" (4.6mm)
Includes Thermal Pad
Includes Thermal Pad
Includes Thermal Pad
Includes Thermal Pad
Includes Thermal Pad
Includes Thermal Pad
Example Options:
HBS050ZG-ANT3V = HBS050ZG-A with negative logic, Lucent-compatible trim, and 0.95” vertical heatsink.
LES015YJ-3N = LES015YJ with optional trim and enable, negative logic.
QBS066ZG-AT8 = QBS066ZG-A with Lucent-compatible trim and 0.110” pin length.
NUCLEAR AND MEDICAL APPLICATIONS - Power-One products are not authorized for use as critical components in life support systems,
equipment used in hazardous environments, or nuclear control systems without the express written consent of the President of Power-One, Inc.
TECHNICAL REVISIONS - The appearance of products, including safety agency certifications pictured on labels, may change depending on the
date manufactured. Specifications are subject to change without notice.
3
