23470C datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> 23470C

23470C: DescriptionGeneral Purpose Inductor, 47uH, 1 Element, SMD, 1218, CHIP, 1218, ROHS COMPLIANT; CategoryPassive components inductor; File Size205KB，4 Pages; ManufacturerMurata Power Solutions; Environmental Compliance

Download Datasheet Parametric View All

23470C Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	23470C	-	-	View	Buy Now

23470C Overview

General Purpose Inductor, 47uH, 1 Element, SMD, 1218, CHIP, 1218, ROHS COMPLIANT

23470C Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1807685801
package instruction	1218
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	7.5
uppercase and lowercase codes	1218
DC Resistance	0.683 Ω
Nominal inductance(L)	47 µH
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e3
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Maximum rated current	0.55 A
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	YES
Terminal surface	Tin (Sn)
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	0.001 MHz

Preview

Download Datasheet

View All

www.murata-ps.com

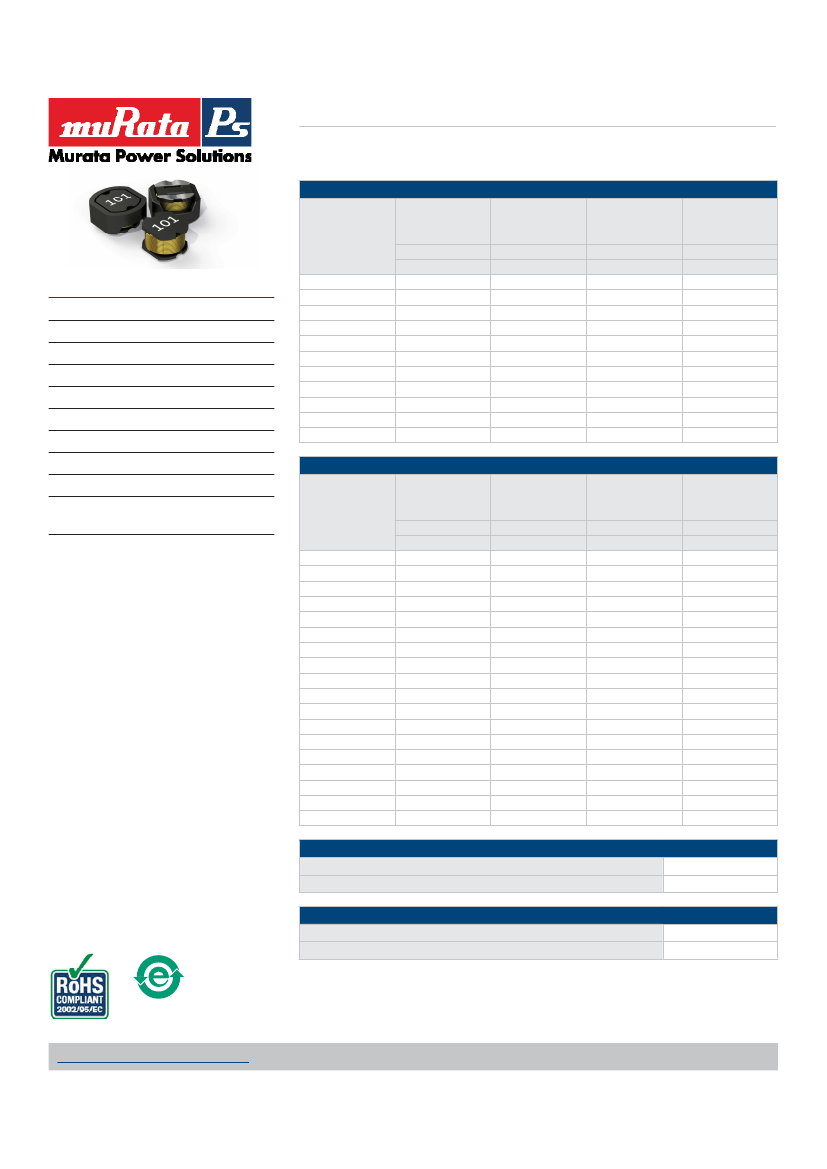

2300 Series

Bobbin Wound Surface Mount Inductors

SELECTION GUIDE

(UNSHIELDED TYPES)

Inductance

(1kHz, 100mV

)

Nom.

μH

Inductance Range

(1kHz, 100mV

)

Min. - Max.

μH

1.7 - 2.8

2.3 - 3.9

3.6 - 6.0

5.1 - 8.6

7.6 - 12.7

11.3 - 18.9

16.8 - 28.1

24.6 - 41.0

34.6 - 57.6

51.0 - 85.0

74.2 - 124

Order Code

Current

Max.

2.10

1.80

1.48

1.22

1.02

0.86

0.74

0.64

0.55

0.49

0.43

Resistance

Max.

0.040

0.058

0.068

0.102

0.138

0.210

0.361

0.497

0.683

1.051

1.281

FEATURES

RoHS compliant

Up to 2.1A I

2.2μH to 220μH

Optional integral EMI shield

Low R

Surface mount

Compact size

Tape and reel packaging

J-STD-020C reﬂow

Backward compatible with

Sn/Pb soldering systems

232R2C

233R3C

234R7C

236R8C

23100C

23150C

23220C

23330C

23470C

23680C

23101C

2.2

3.3

4.7

6.8

100

SELECTION GUIDE

(SHIELDED TYPES)

Inductance

(1kHz, 100mV

)

Nom.

μH

23S2R2C

23S3R3C

23S4R7C

23S6R8C

23S100C

23S120C

23S150C

23S180C

23S220C

23S270C

23S330C

23S390C

23S470C

23S560C

23S680C

23S101C

23S151C

23S221C

2.2

3.3

4.7

6.8

100

150

220

Order Code

Inductance Range

(1kHz, 100mV

)

Min. - Max.

μH

1.8 - 3.0

2.7 - 4.5

3.8 - 6.4

5.2 - 8.6

7.5 - 12.6

9.4 - 15.6

11.4 - 19.0

13.6 - 22.6

16.0 - 26.7

20.0 - 33.3

24.4 - 40.7

29.3 - 48.8

34.6 - 57.7

42.4 - 70.6

50.9 - 84.9

75.8 - 126

112 - 187

167 - 279

Current

Max.

2.10

1.80

1.60

1.40

1.18

1.08

0.96

0.88

0.80

0.72

0.65

0.60

0.54

0.50

0.45

0.37

0.30

0.25

Resistance

Max.

0.025

0.031

0.044

0.064

0.087

0.107

0.131

0.143

0.175

0.218

0.241

0.370

0.460

0.509

0.641

0.782

1.190

2.280

DESCRIPTION

The 2300 series is a range of bobbin-wound,

surface-mount inductors designed for use in

switching power supply, and power line ﬁlter

circuits. The parts are suitable for any application

requiring a high saturation current in a miniature

surface-mount footprint. Where EMI is a critical

factor, the devices are available with an integral

ferrite EMI shield.

ABSOLUTE MAXIMUM RATINGS

Operating free air temperature range

Storage temperature range

-40°C to 85°C

-40°C to 125°C

SOLDERING INFORMATION

Peak reﬂow temperature

Pin ﬁnish

250˚C

Hot dipped tin

For full details go to

www.murata-ps.com/rohs

Speciﬁcations typical at T

= 25°C

1 The maximum DC current is the value at which the inductance falls to 75% of its nominal value or when its temperature rise reaches

40°C, whichever is sooner.

2 For further information, please visit www.murata-ps.com/rohs

www.murata-ps.com/support

KMP_2300C_B06

Page 1 of 4

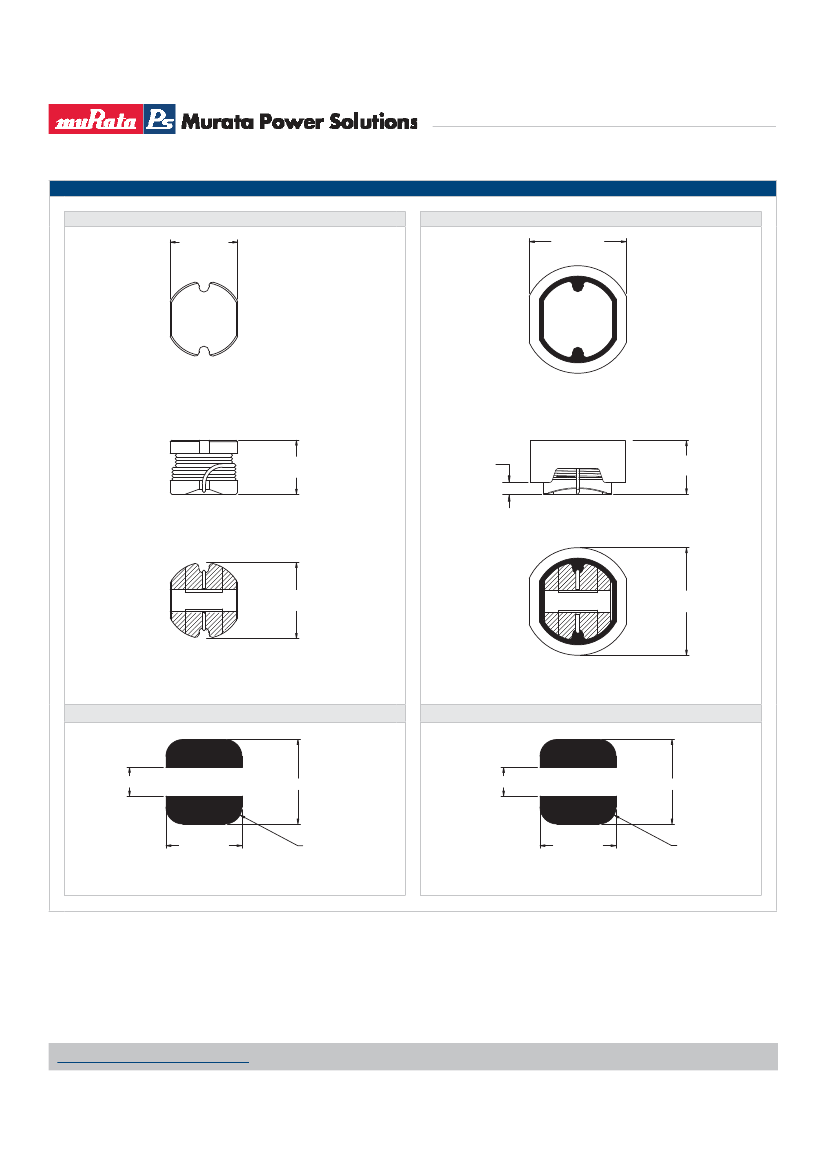

Recommended Resources

Intrinsically protected safety op amp

Light controlled delay circuit (4)

Water pump motor protection circuit

High-precision constant current source circuit diagram
